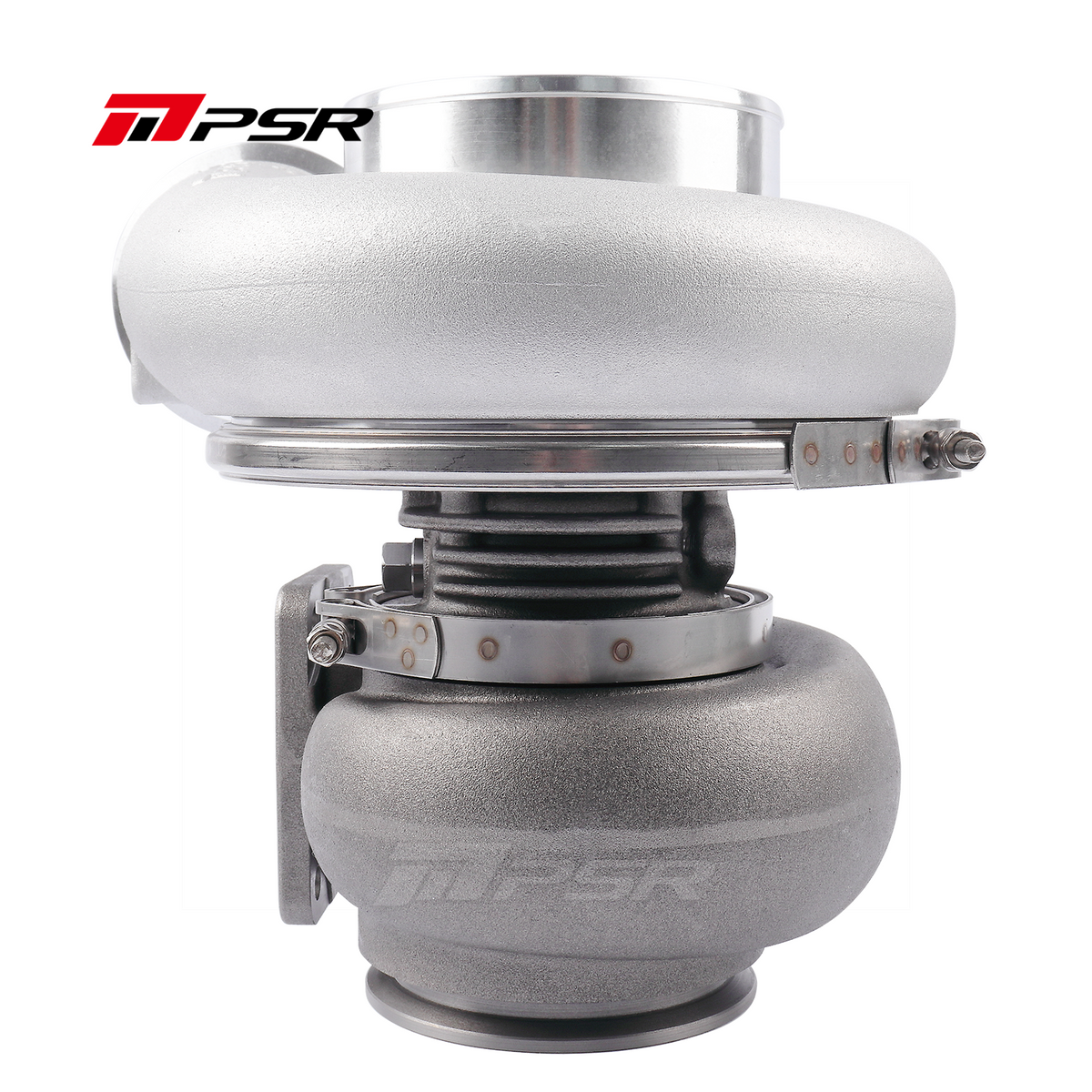

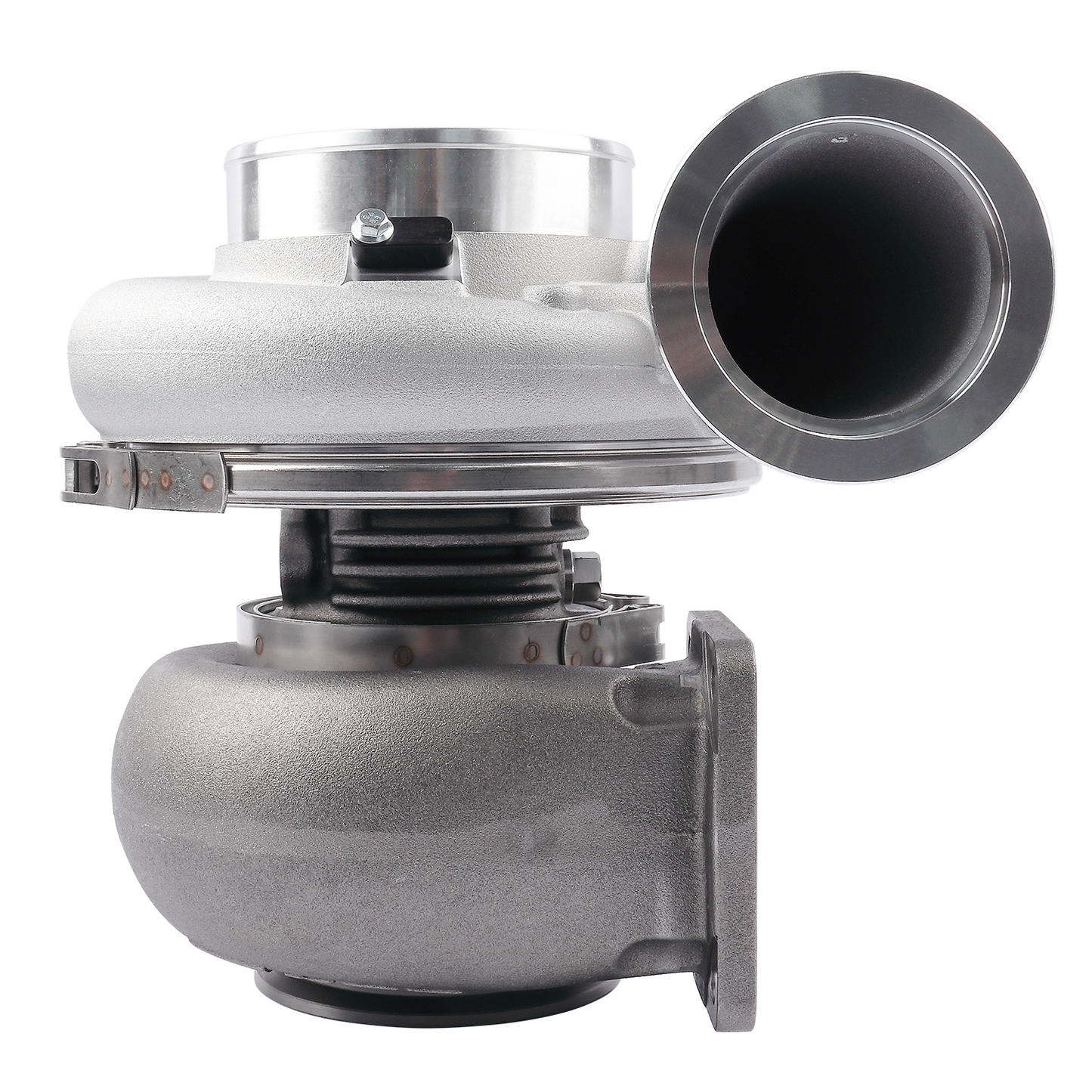

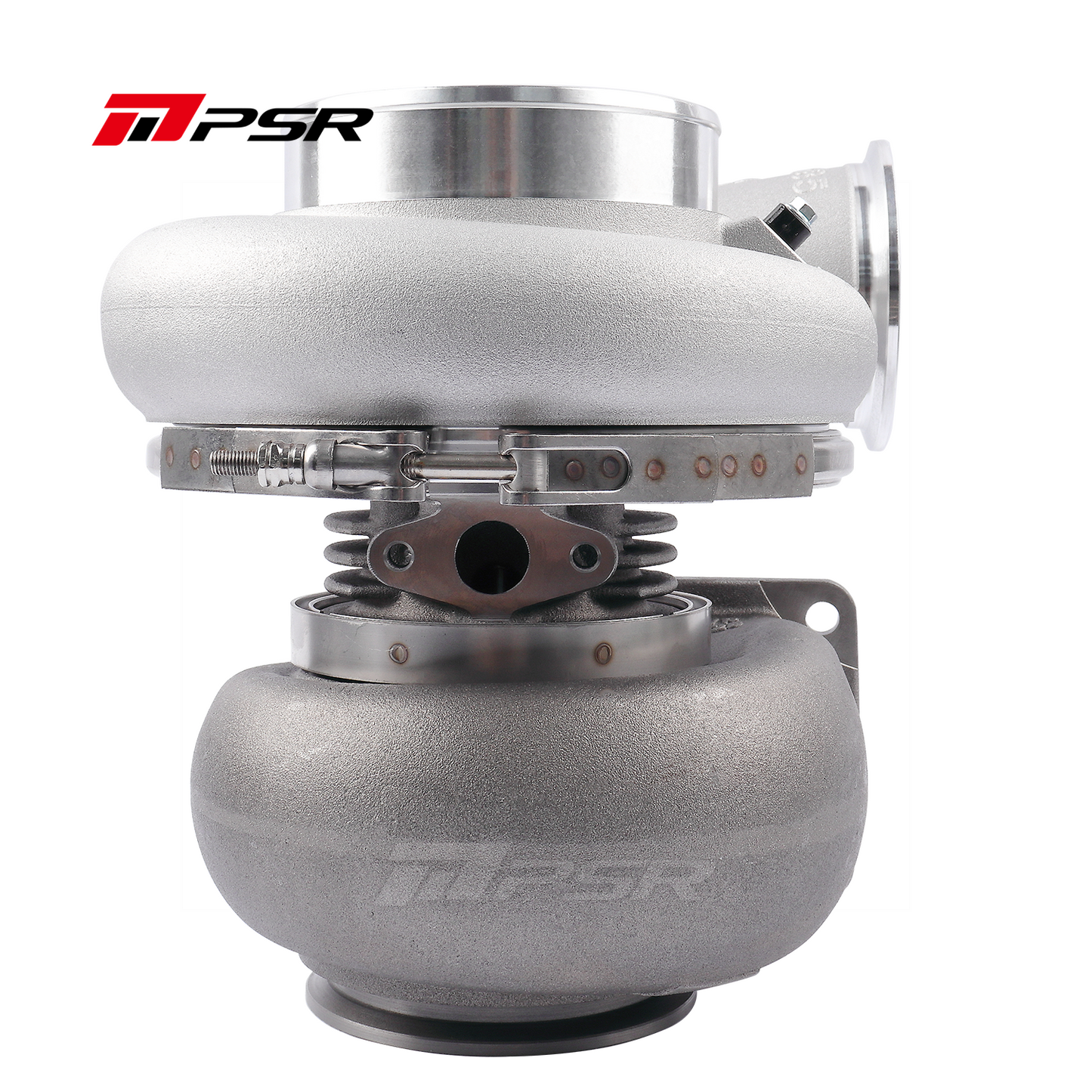

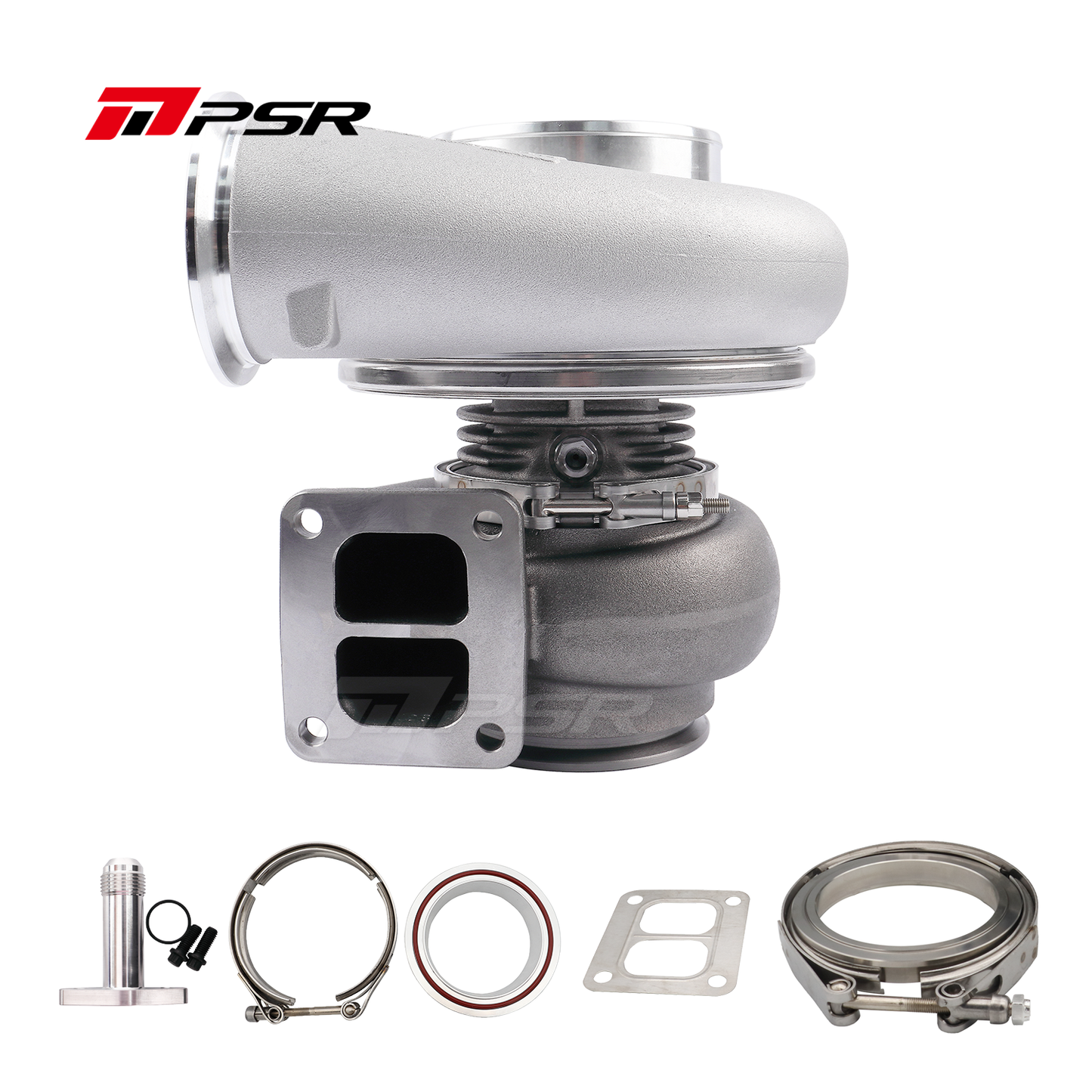

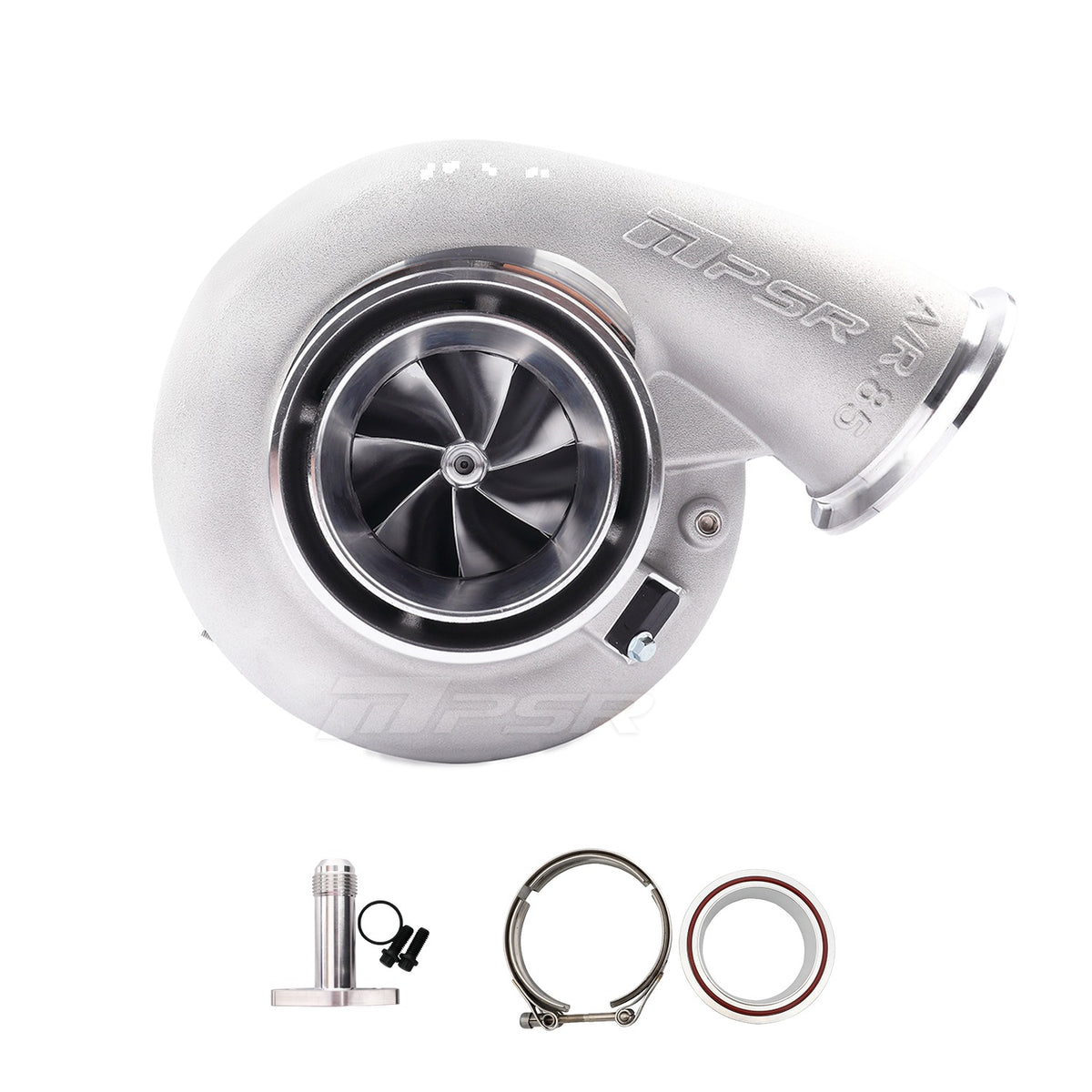

8385E Ball Bearing Turbo UP to 1700HP

• Ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion

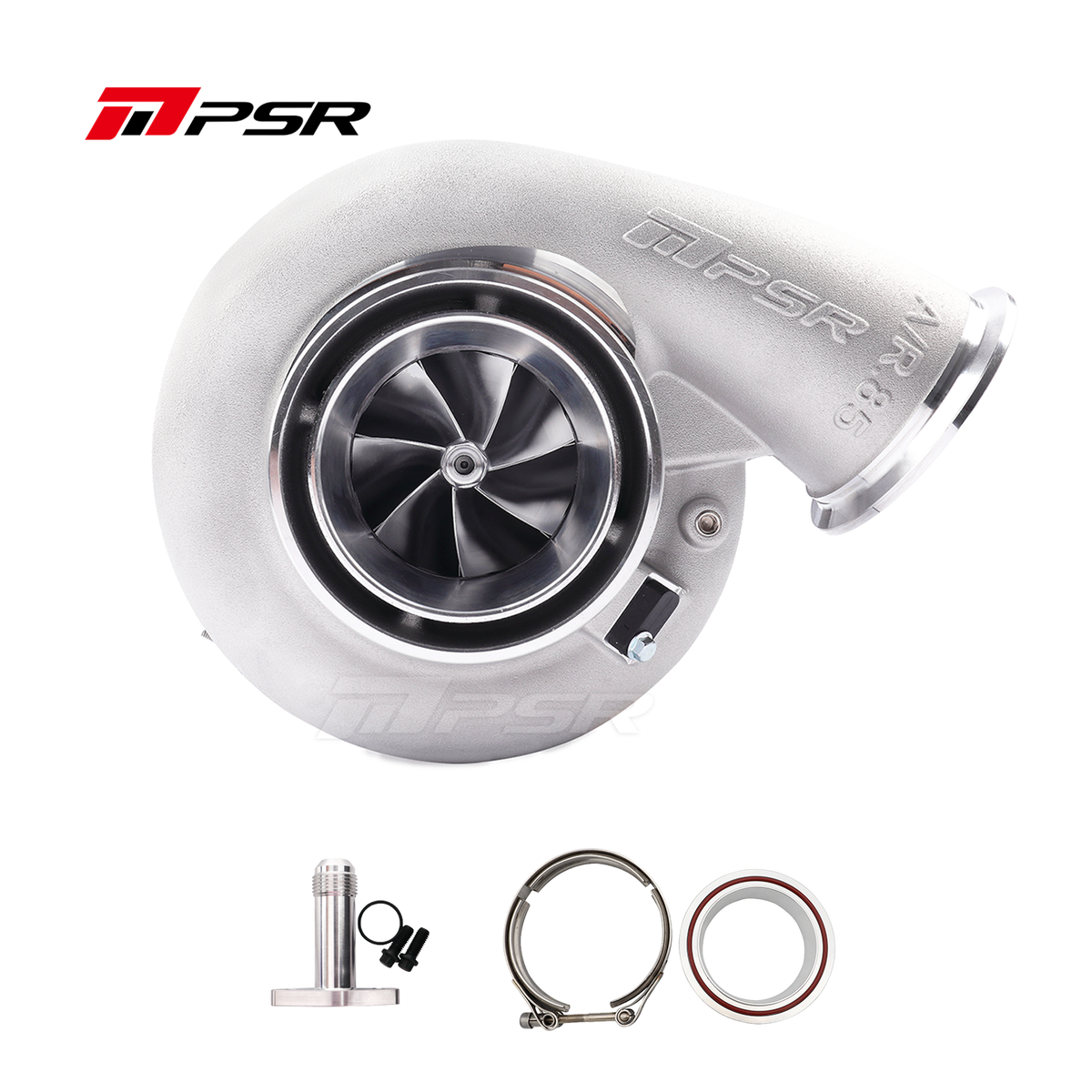

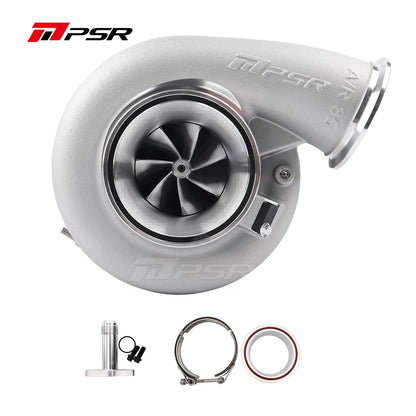

• Billet Compressor Wheel with Extended Tapered Tip Technology
• Inconel 713c 11 Blade Turbine Wheel

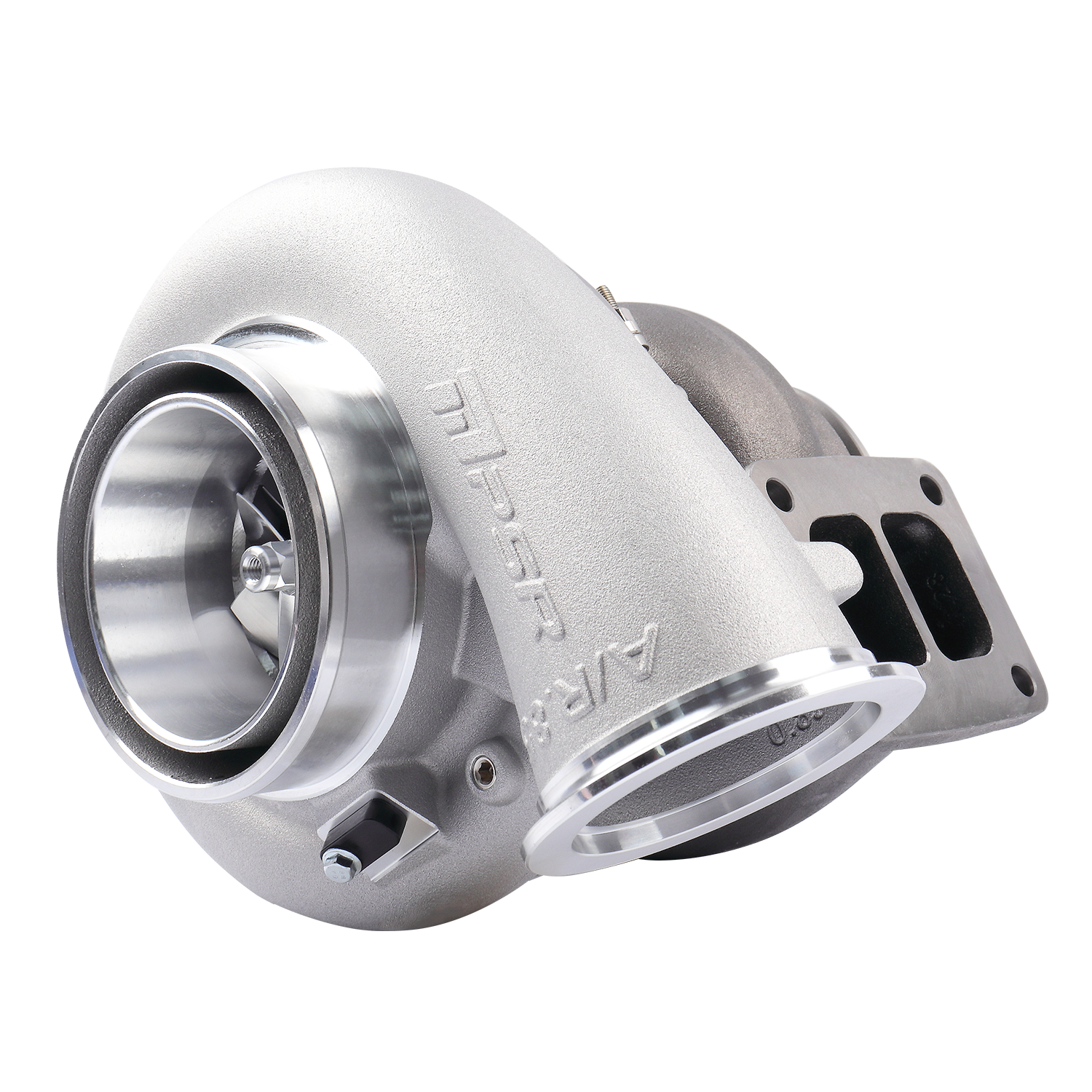

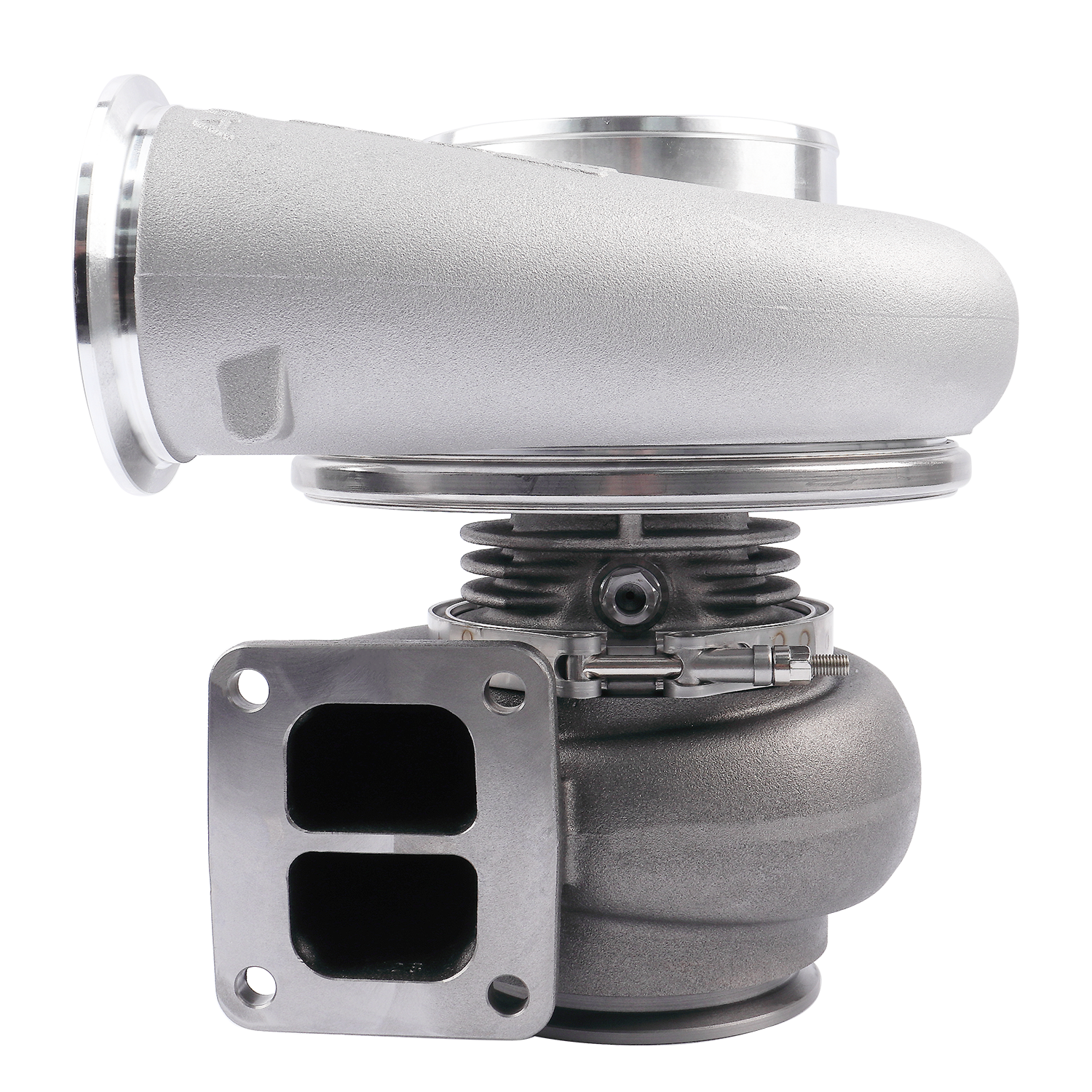

• T4 divided and V-Band In/out are available in turbine housing option

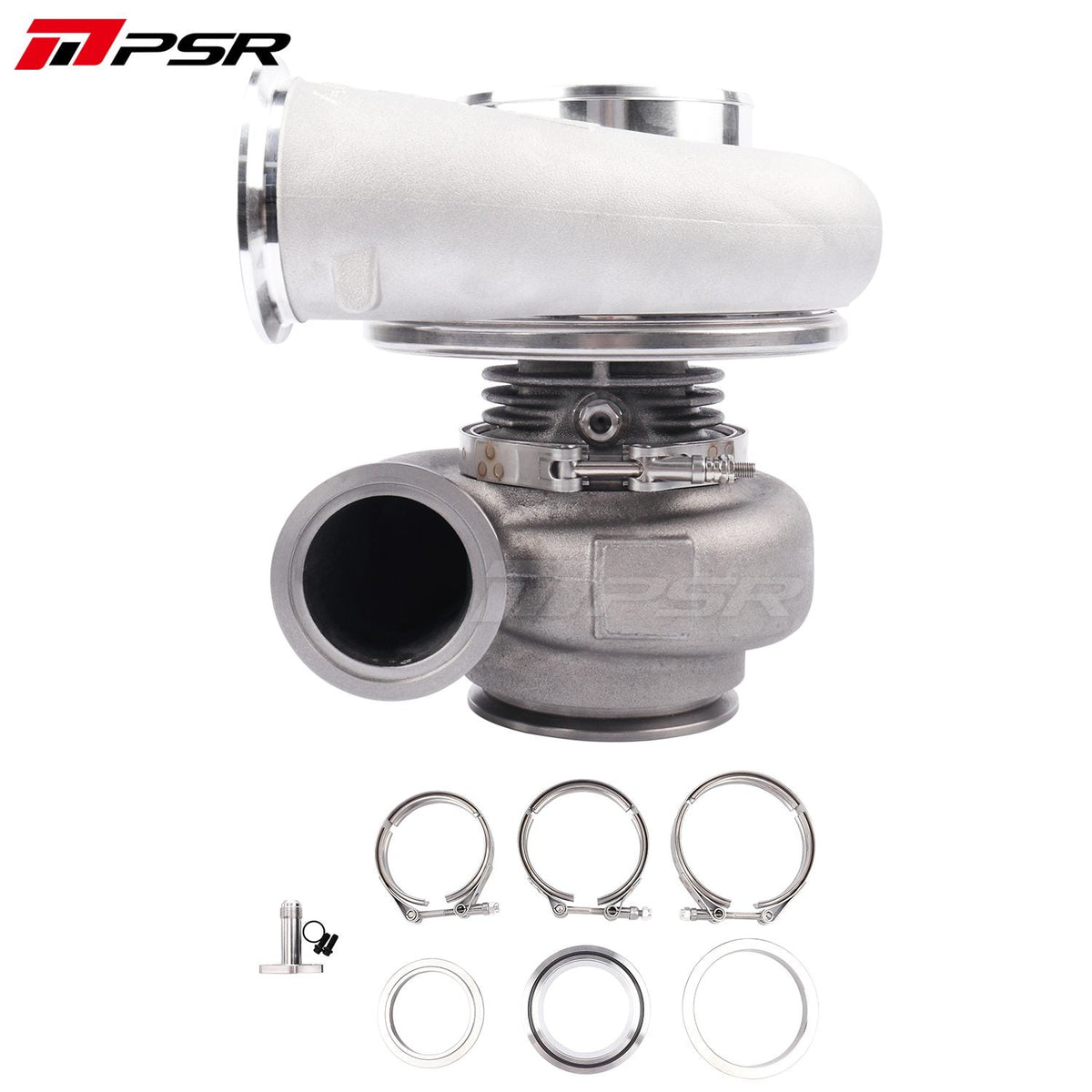

• Vband Flange kit for the exhaust housing included
• Max Engine Horsepower: 1700


Description

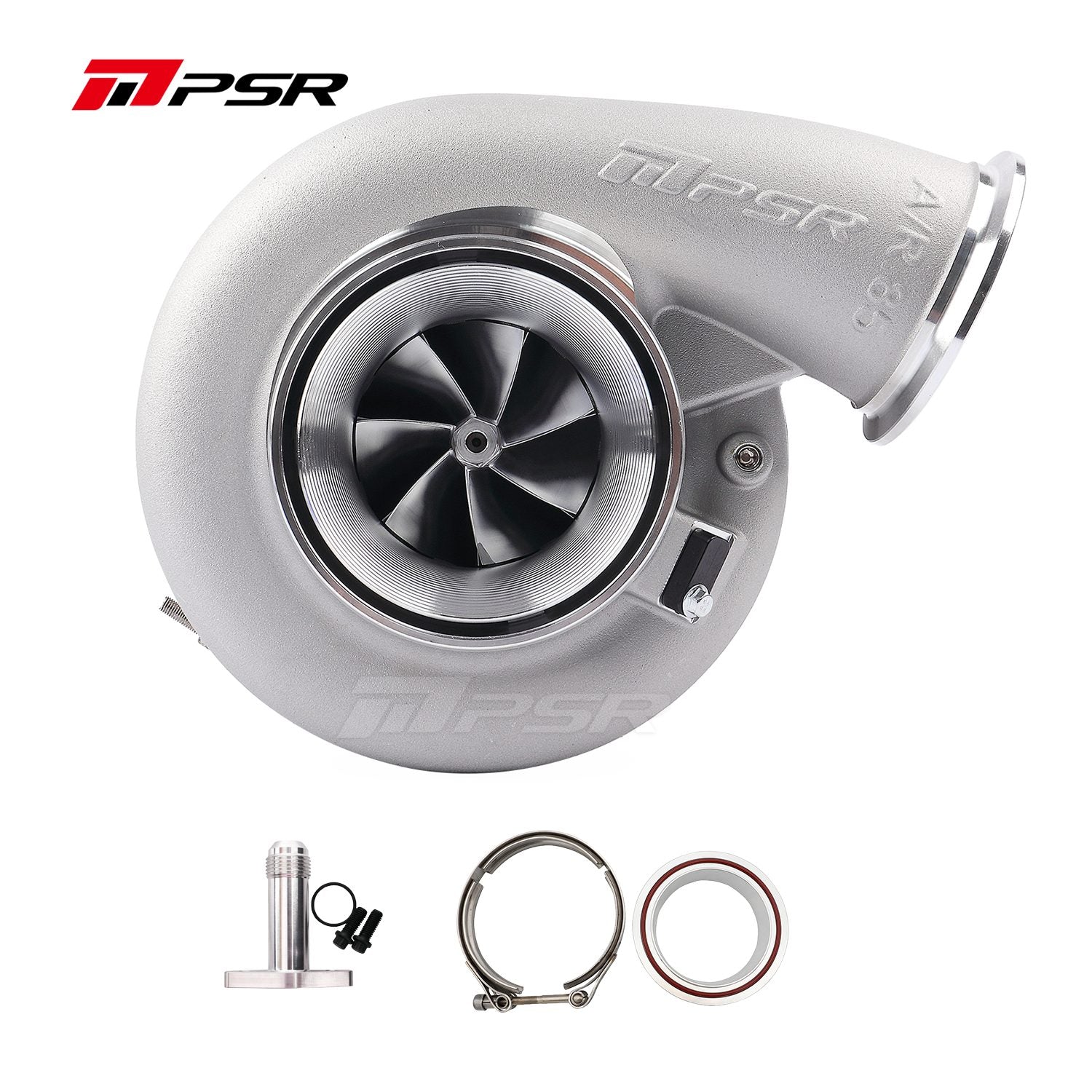

• Billet Compressor Wheel: 83x 110.5mm, 7+7 Blade
• Turbine Wheel: 85 x 89.5mm, 11 Blade
• Bearing System: Dual Ball Bearing (provides optimal turbo response & better durability by reducing the shaft motion)
• Compressor Cover: 5.0” Hose Inlet/3″ V-Band Outlet

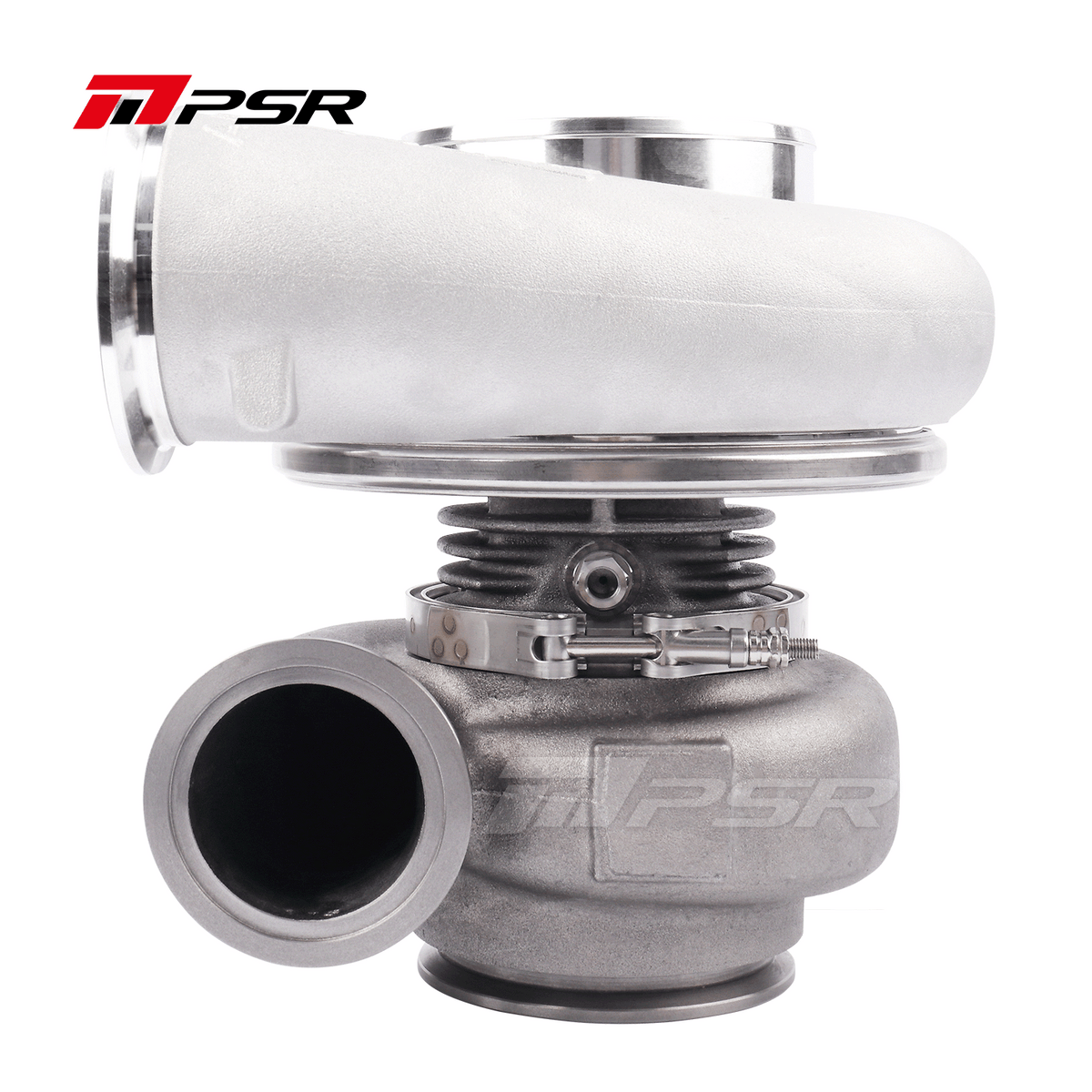

• Turbine Housing: T4 Divided 1.28A/R(4″ V-band Outlet); Dual V-Band 1.15A/R(3″ V-band Inlet, 4″ V-band Outlet); Dual V-Band 1.28A/R(3″ V-band Inlet, 4″ V-band Outlet)
• The internal oil feed port is 0.9mm(An oil restrictor is not needed)

• Oil feed fitting: 1/8-27 NPSF (Drawing 1)
• Oil Drain: -12AN

Oil Drain Fitting:

12 AN_Extended
