Billet Oil Filter Pedestal for Mazda Rotary 13B 20B 12A Engines

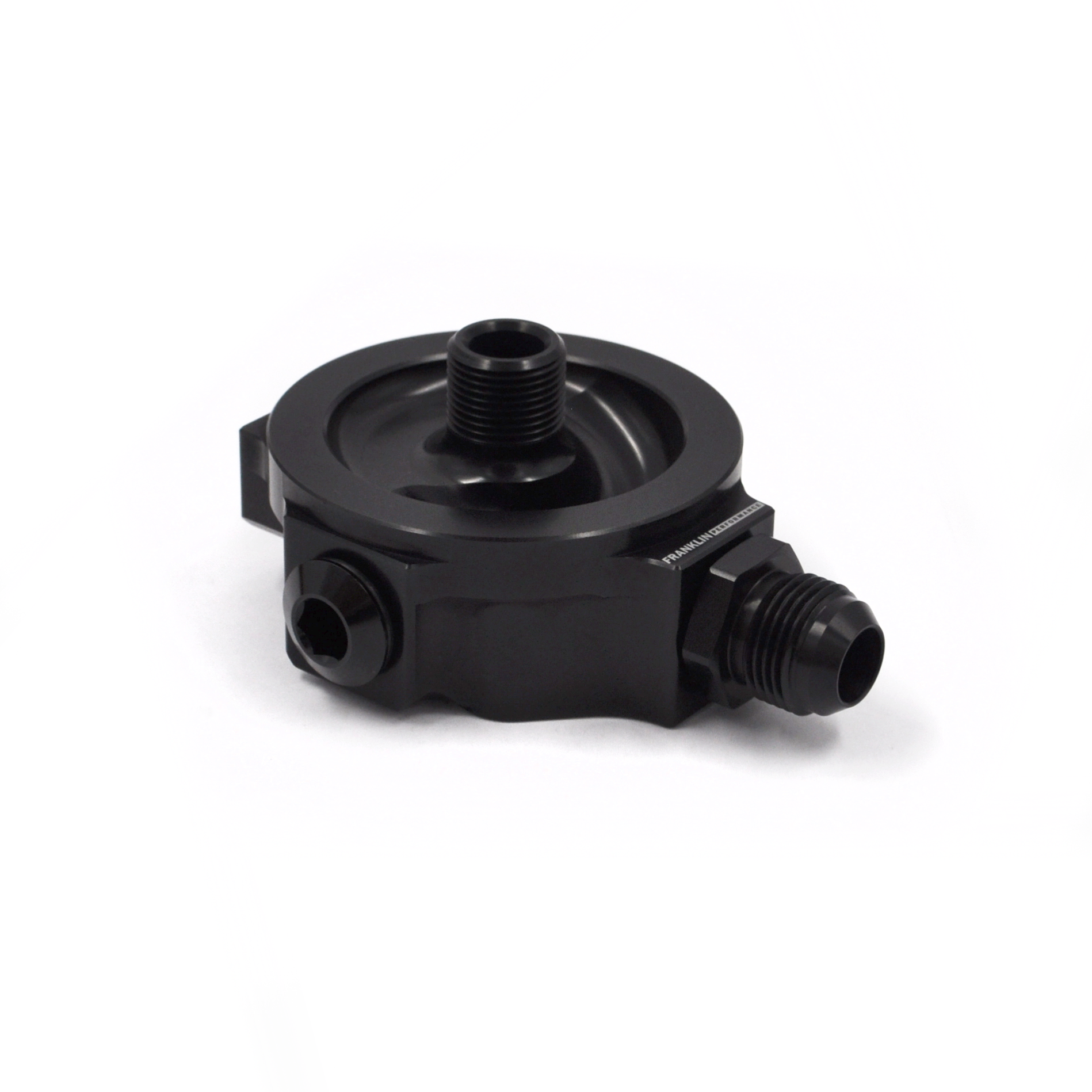

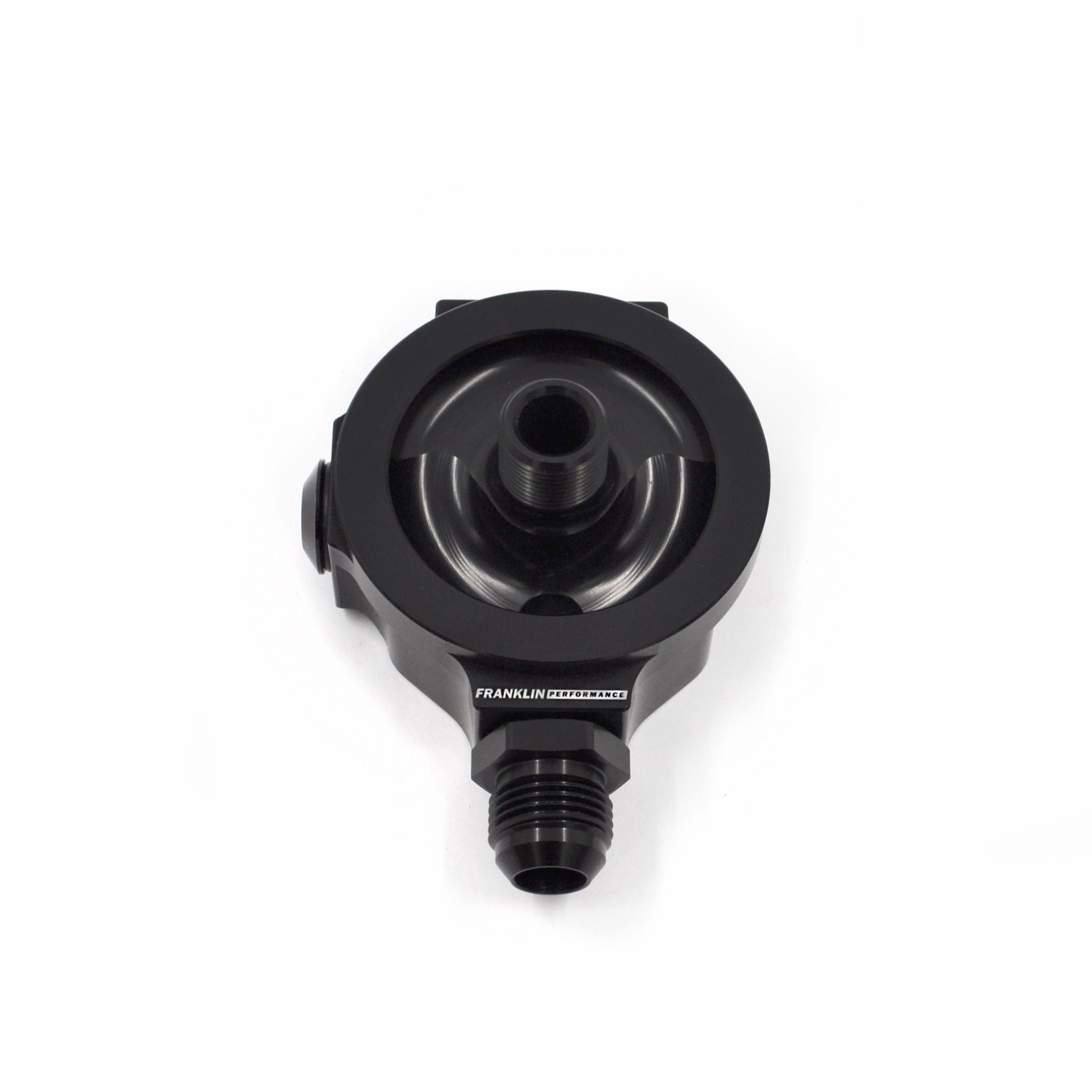

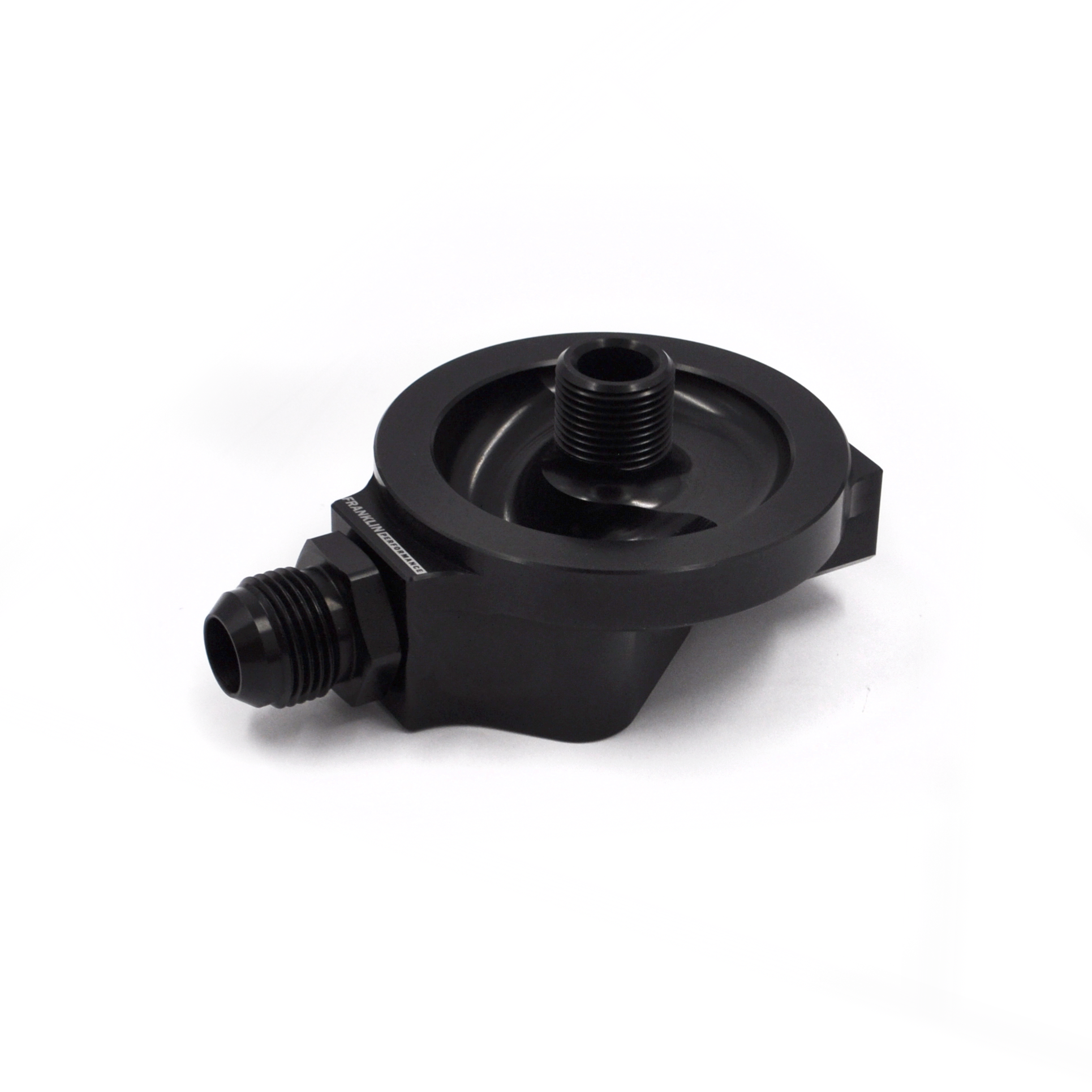

Precision CNC-machined from high-grade 6061 T6 aluminium and finished with a sleek black anodized coating for enhanced durability and corrosion resistance, the Franklin Performance Billet Oil Filter Pedestal is the ultimate solution for integrating AN oil feed lines into your Mazda rotary engine.

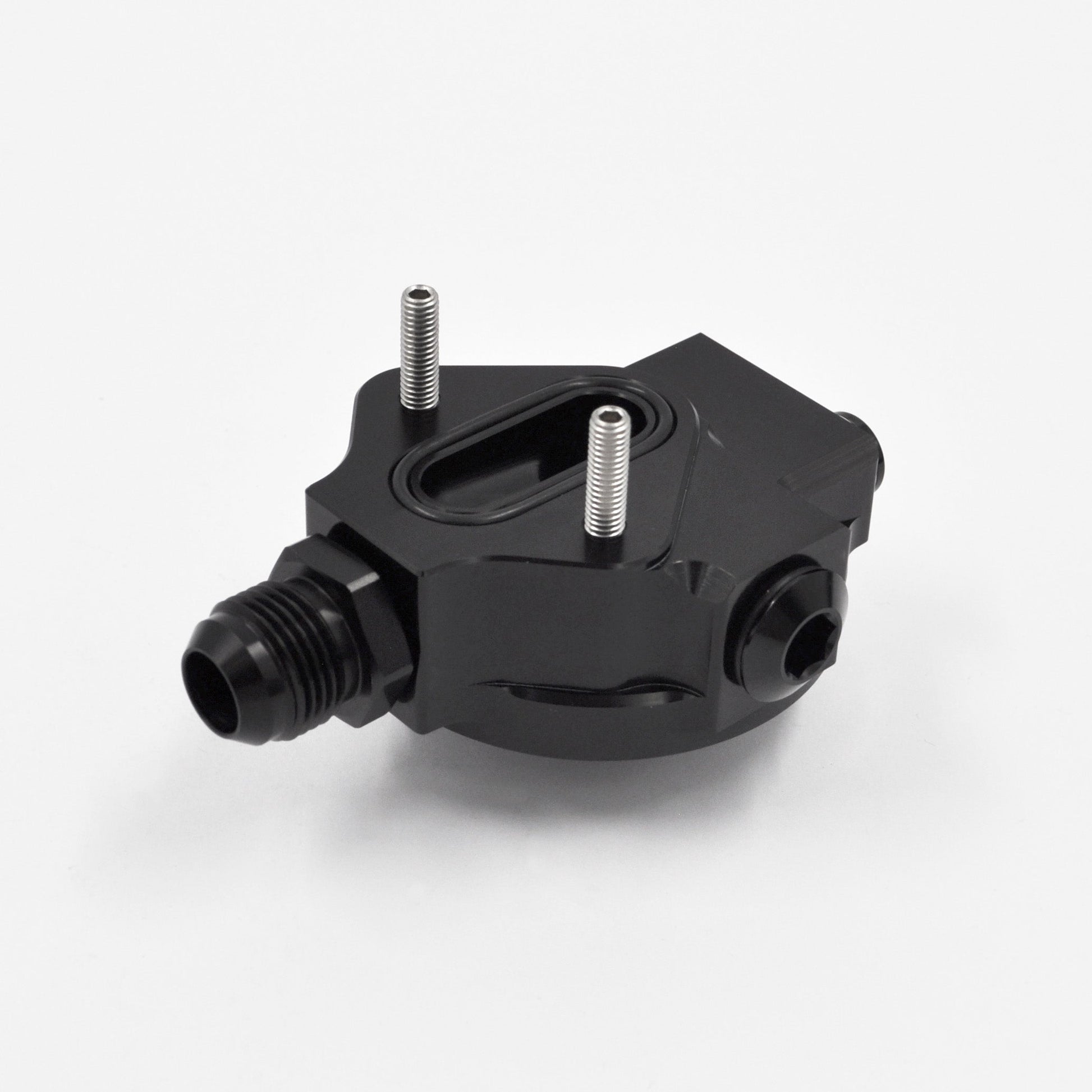

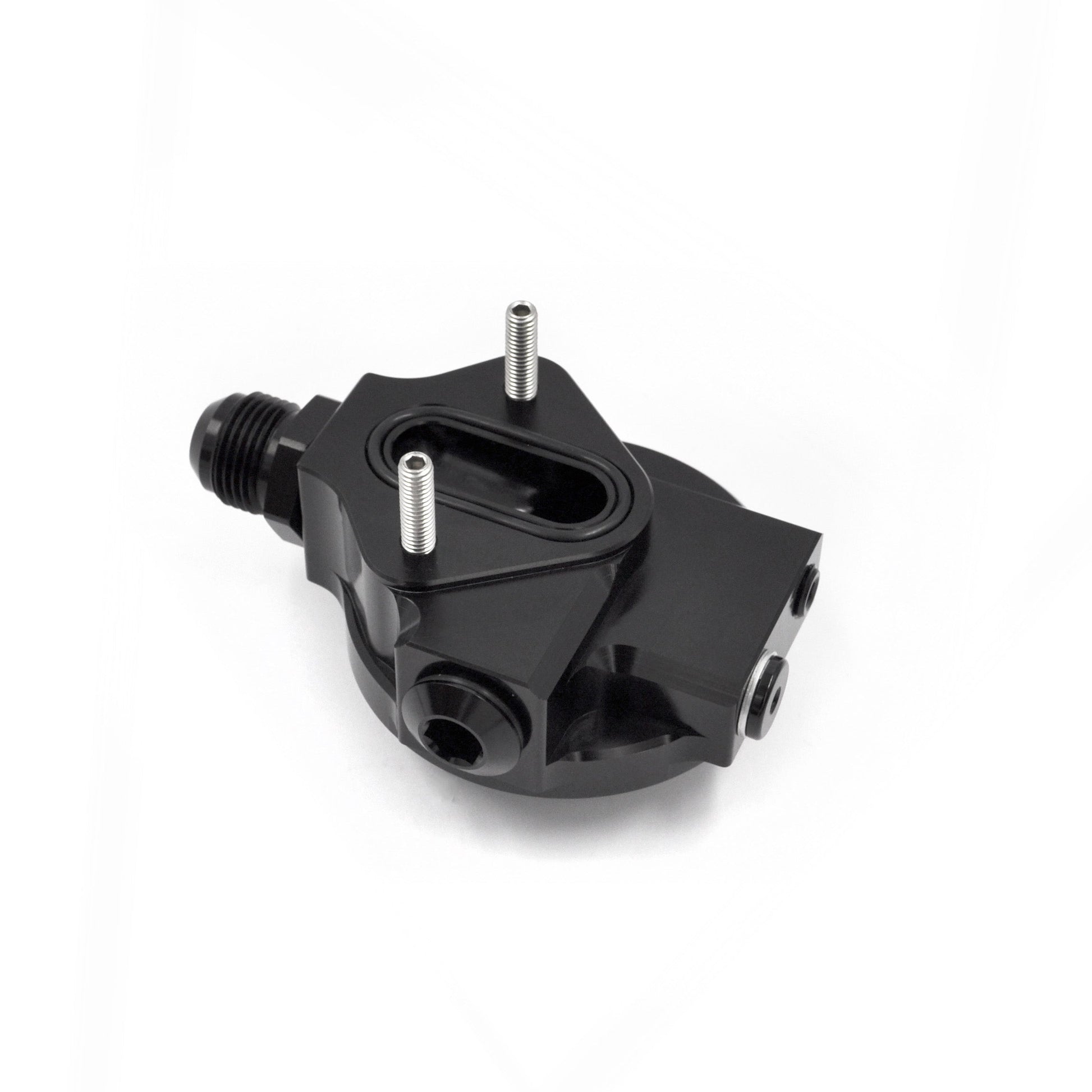

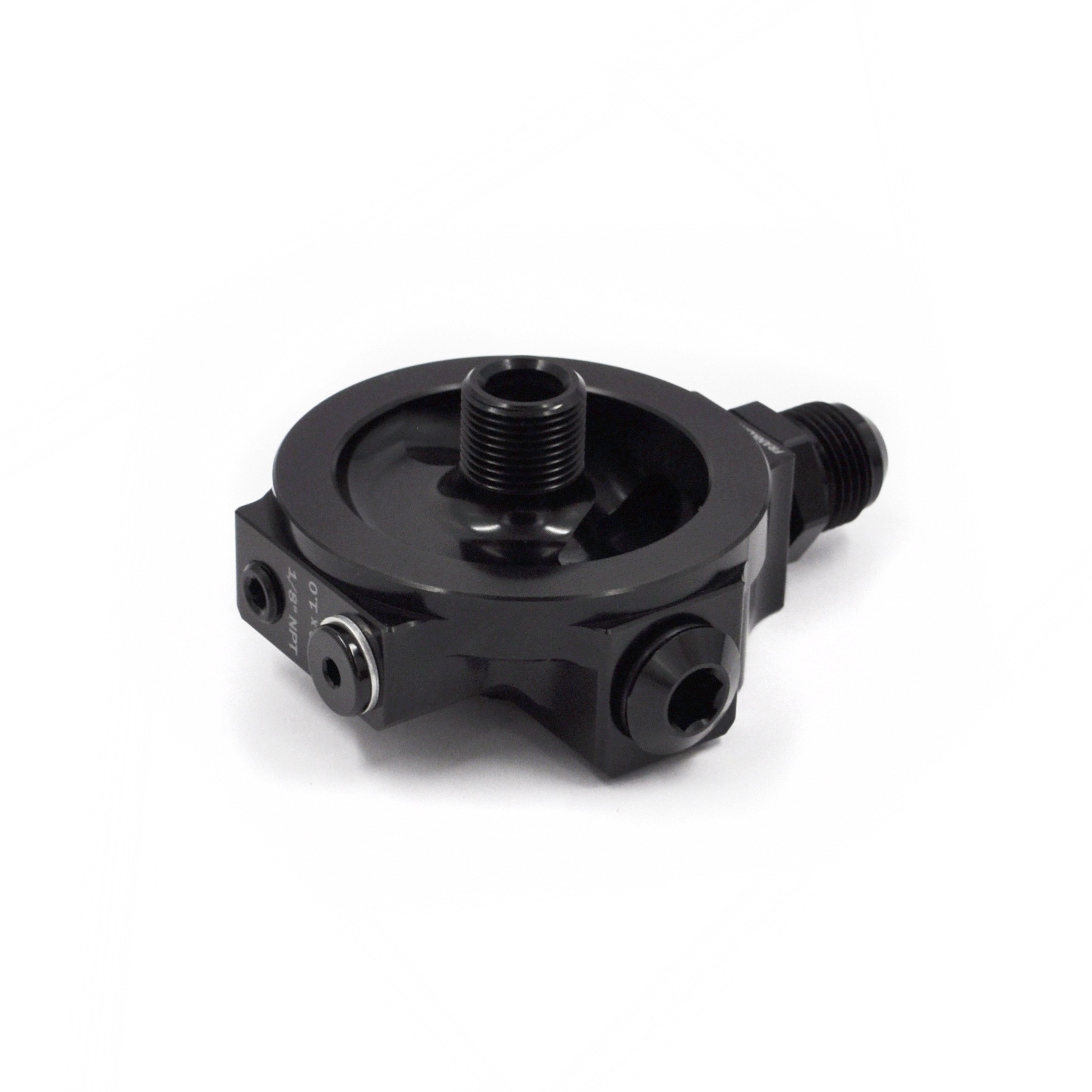

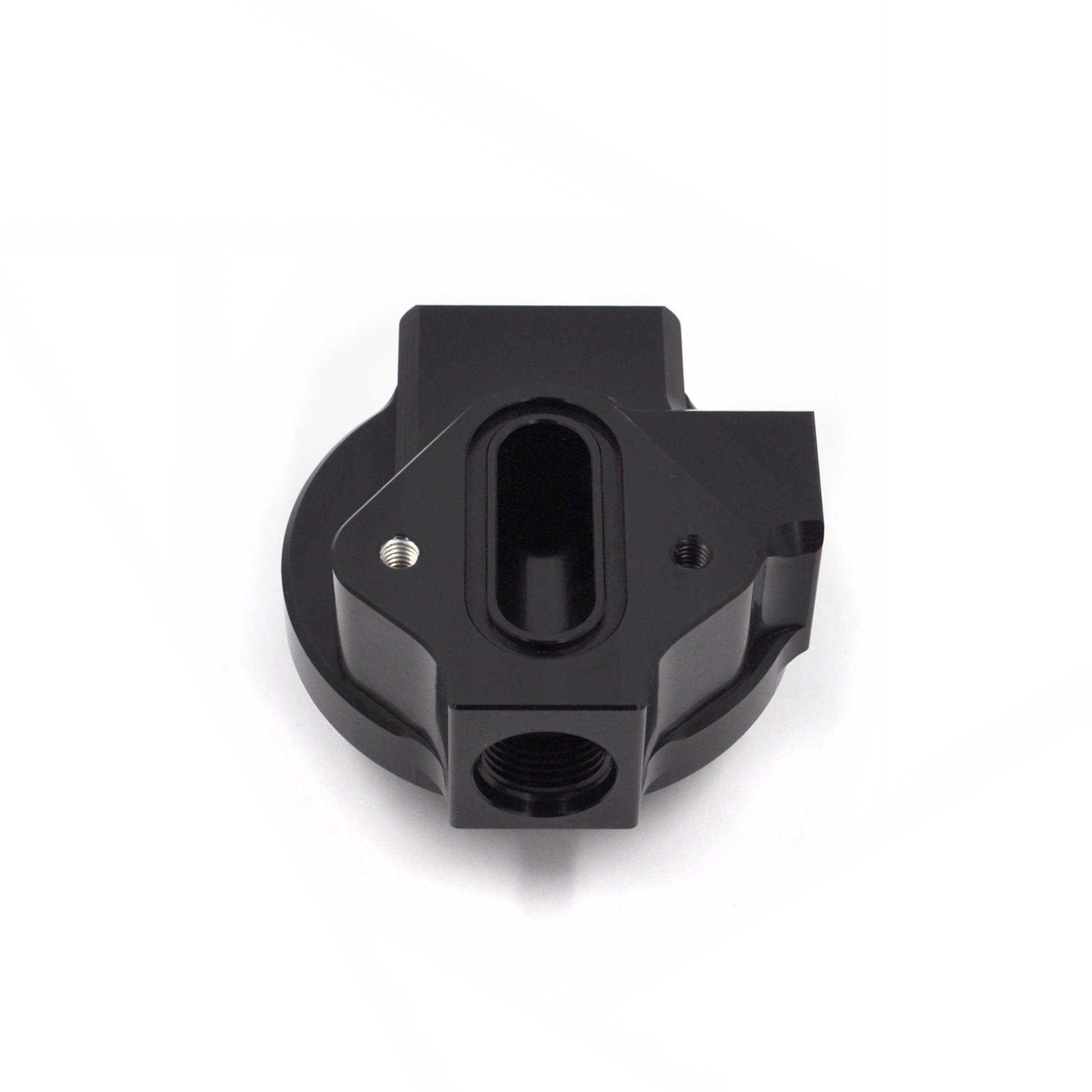

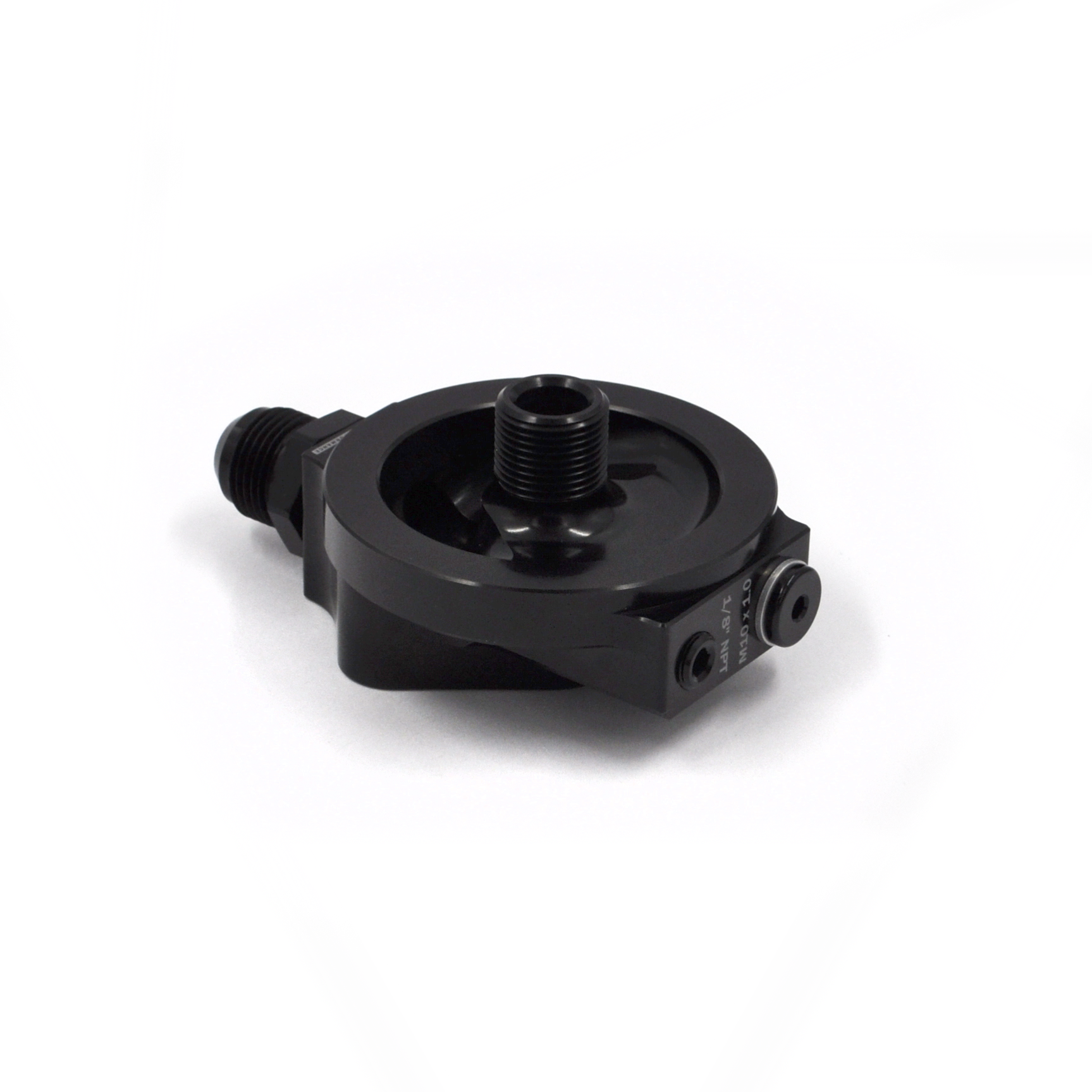

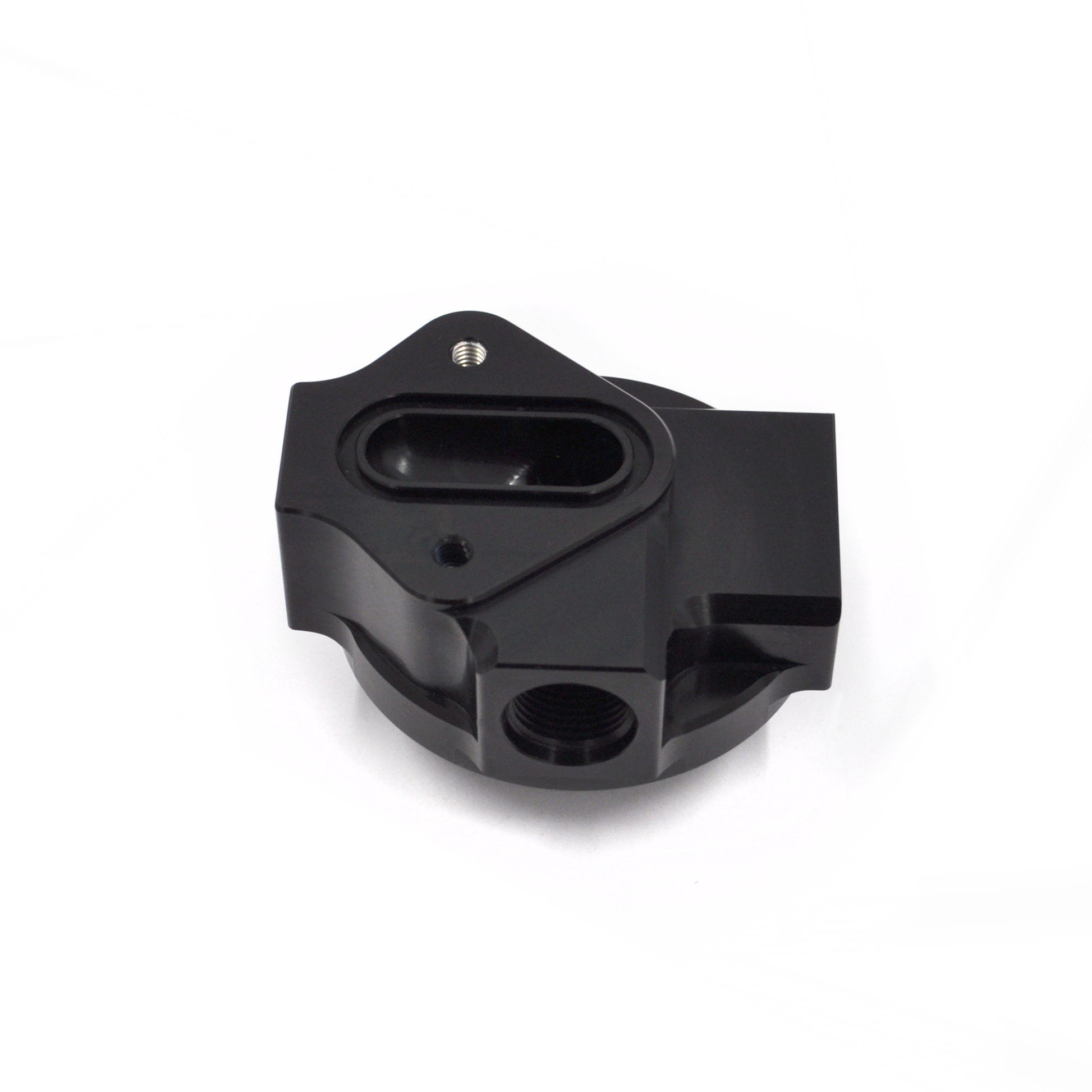

It features an 8AN ORB inlet, supplied with an 8AN ORB to 10AN adapter fitting, as well as two sensor ports—1/8" NPT and M10x1.0—and an auxiliary 8AN ORB feed port, ideal for feeding the centre bearing in custom multi-rotor applications. All sensor ports, the auxiliary feed port, and the underside engine ports are carefully arranged to ensure that oil flows only after it has been filtered, delivering accurate oil pressure readings and supplying your engine with clean, filtered oil.

We include blanking plugs for both sensor ports and the auxiliary feed port, allowing flexibility if these are not required.

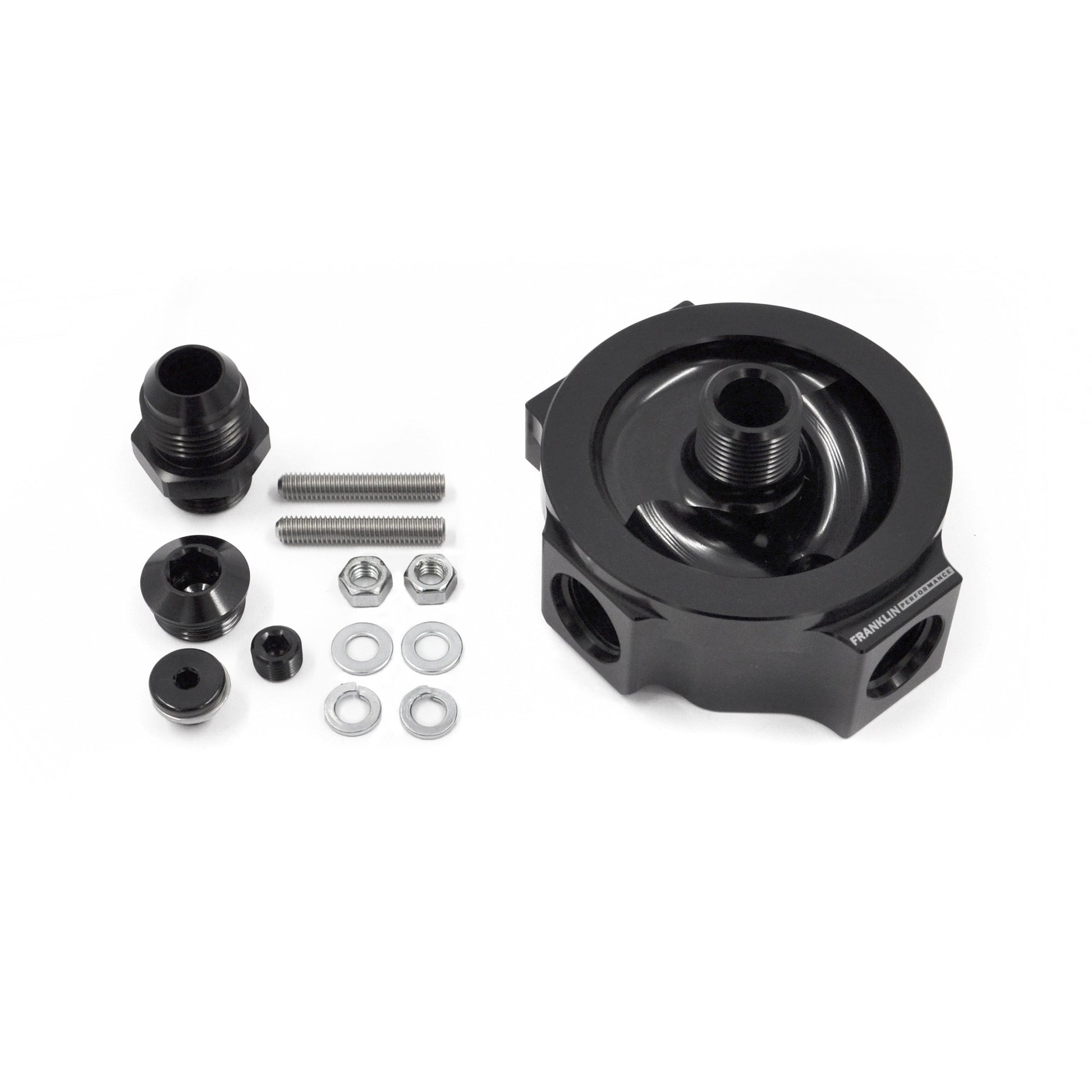

Included in the kit:

• Billet oil filter pedestal
• 8AN ORB to 10AN adapter
• 8AN ORB blanking plug
• 1/8" NPT blanking plug
• M10x1.0 blanking plug

• Mounting hardware

Compatibility: Suitable for 12A, 13B, and 20B engines. Note: Not compatible with RX-8 engines due to a different flange design.

The recommended oil filter is a Sakura C-1032 or equivalent to achieve a correct oil filter seal.
