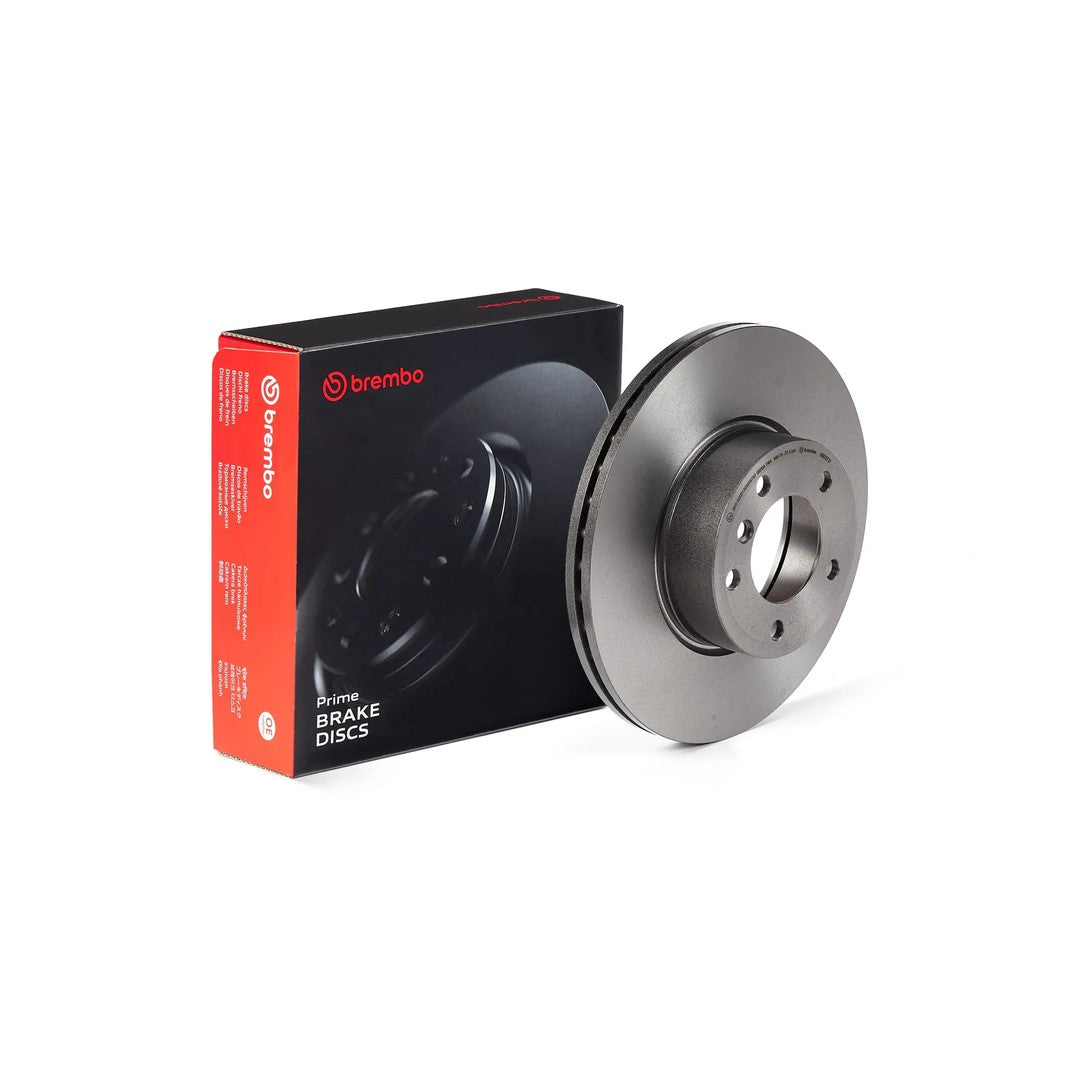

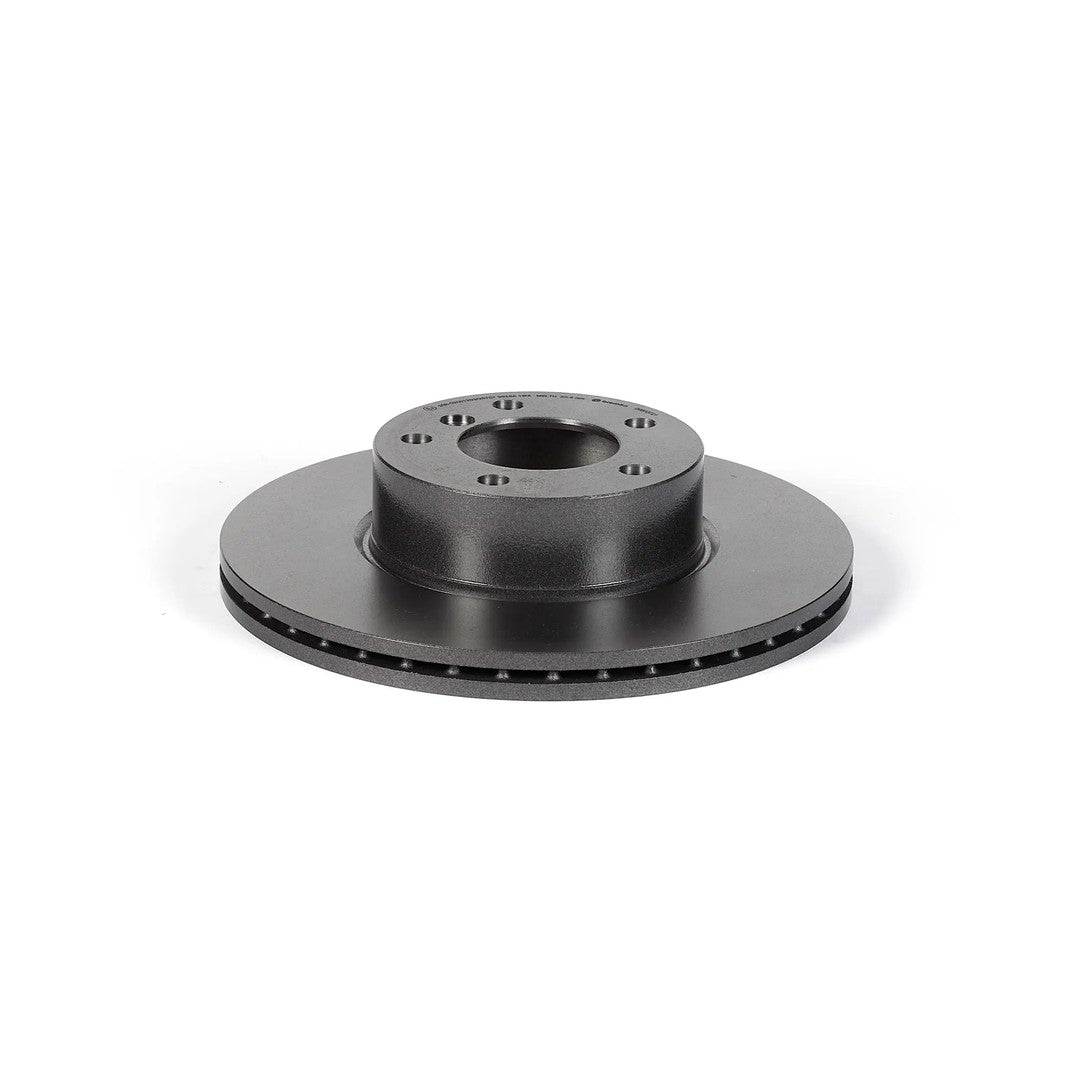

Genuine Brembo Prime front brake disc (diameter 312 mm; thickness 24 mm; minimum thickness 22,4 mm; type Ventilated; number of holes 5; centering diameter 79 mm). Vehicle applications below are taken directly from the Brembo catalogue for part 09.B337.21.
Genuine Brembo, Prime line. Price is per disc — order two for a full axle.
In stock in New Zealand — ships within 1 working day.
Known in NZ / Japan as: 3 Series E90 / E91 / E92; 3 Series F30 / F31; 1 Series F20
Fits (187 vehicle types listed by Brembo):
BMW
-
1 (F20) 2011-2019: 118 d, 125 d, 125 i (2011-2019) Braking System:for vehicles with a standard brake system; 120 d, 120 d xDrive (2015-2019) Braking System:for vehicles with M-performance brakes
-
1 (F21) 2011-2019: 120 d, 120 d xDrive (2012-2019) Braking System:for vehicles with M-performance brakes; 125 d, 125 i (2011-2019) Braking System:for vehicles with a standard brake system
-
2 Convertible (F23) 2014-2021: 220 d, 220 i, 225 d (2014-2021) Braking System:for vehicles with a standard brake system
-
2 Coupe (F22, F87) 2012-2021: 220 d, 220 d xDrive, 220 i, 225 d (2012-2021) Braking System:for vehicles with a standard brake system; 228 i (2014-2016)
-
3 (E90) 2004-2011: 318 i, 328 i (2005-2011) Vehicle Equipment:for vehicles without sports package; 318 i (2007-2011) Payload:for increased payload; Braking System:for vehicles with reinforced brakes; 320 d, 323 i (2004-2011); 320 d xDrive (2008-2011) Special Purpose Vehicle:not for special-purpose vehicles; 320 i (2004-2011) Payload:for increased payload; 325 i, 325 i xDrive, 325 xi (2004-2011) Payload:not for increased payload
-
3 (F30, F80) 2011-2018: 320 d, 320 d xDrive, 330 e (2011-2018) Braking System:for vehicles with a standard brake system; 320 d, 328 i (2011-2018); 320 d (2011-2018) Vehicle Equipment:for vehicles with start-stop function; 320 i, 320 i xDrive (2012-2018) Vehicle Equipment:for vehicles with start-stop function; Braking System:for vehicles with a standard brake system
-
3 Convertible (E93) 2006-2013: 320 d, 320 i, 325 i (2006-2013) Vehicle Equipment:for vehicles without sports package; 323 i (2007-2011)
-
3 Coupe (E92) 2006-2013: 320 d (2006-2013) Vehicle Equipment:for vehicles without sports package; 320 d xDrive, 325 i xDrive, 325 xi, 328 i, 328 i xDrive (2006-2013); 323 i (2006-2012) Vehicle Equipment:for vehicles without sports package; Construction Year from:09/2007; 325 i (2006-2013) Construction Year from:09/2007
-
3 Gran Turismo (F34) 2013-on: 320 d, 320 d xDrive (2013-on) Braking System:for vehicles with a standard brake system; 330 i (2016-on)
-
3 Touring (E91) 2004-2012: 318 d, 323 i, 325 i, 328 i (2004-2012) Vehicle Equipment:for vehicles without sports package; 318 i (2006-2012) Payload:for increased payload; 320 d (2005-2012) Braking System:for vehicles with a standard brake system; 320 d xDrive (2008-2012) Special Purpose Vehicle:not for special-purpose vehicles; 320 i (2005-2012) Vehicle Equipment:for vehicles without sports package; Construction Year from:07/2007; 325 xi (2005-2008) Payload:not for increased payload
-
3 Touring (F31) 2012-2019: 320 d, 320 d xDrive (2012-2019) Braking System:for vehicles with a standard brake system; 320 i, 320 i xDrive (2012-2015) Vehicle Equipment:for vehicles with start-stop function; Braking System:for vehicles with a standard brake system
-
4 Convertible (F33, F83) 2013-2020: 420 d (2013-2020) Braking System:for vehicles with a standard brake system
-
4 Coupe (F32, F82) 2013-2020: 420 d, 420 d xDrive (2013-2020) Braking System:for vehicles with a standard brake system
-
4 Gran Coupe (F36) 2014-2020: 420 d, 420 d xDrive (2014-2020) Braking System:for vehicles with a standard brake system; 420 i (2014-2017)
-
X1 (E84) 2009-2015: sDrive 16 d, sDrive 16 i, sDrive 18 d, sDrive 18 i, sDrive 20 d, sDrive 20 i, xDrive 18 d, xDrive 20 d, xDrive 20 i, xDrive 25 d, xDrive 28 i (2009-2015); xDrive 23 d (2009-2015) Construction Year from:03/2012
Where an entry carries a restriction in italics (PR number, brake disc diameter, brake system, etc.) the part only fits cars built to that specification - VW Group PR codes are on the build sticker in the service book or boot floor. Not sure? Message us with your rego or VIN and we'll confirm fitment before you order.
