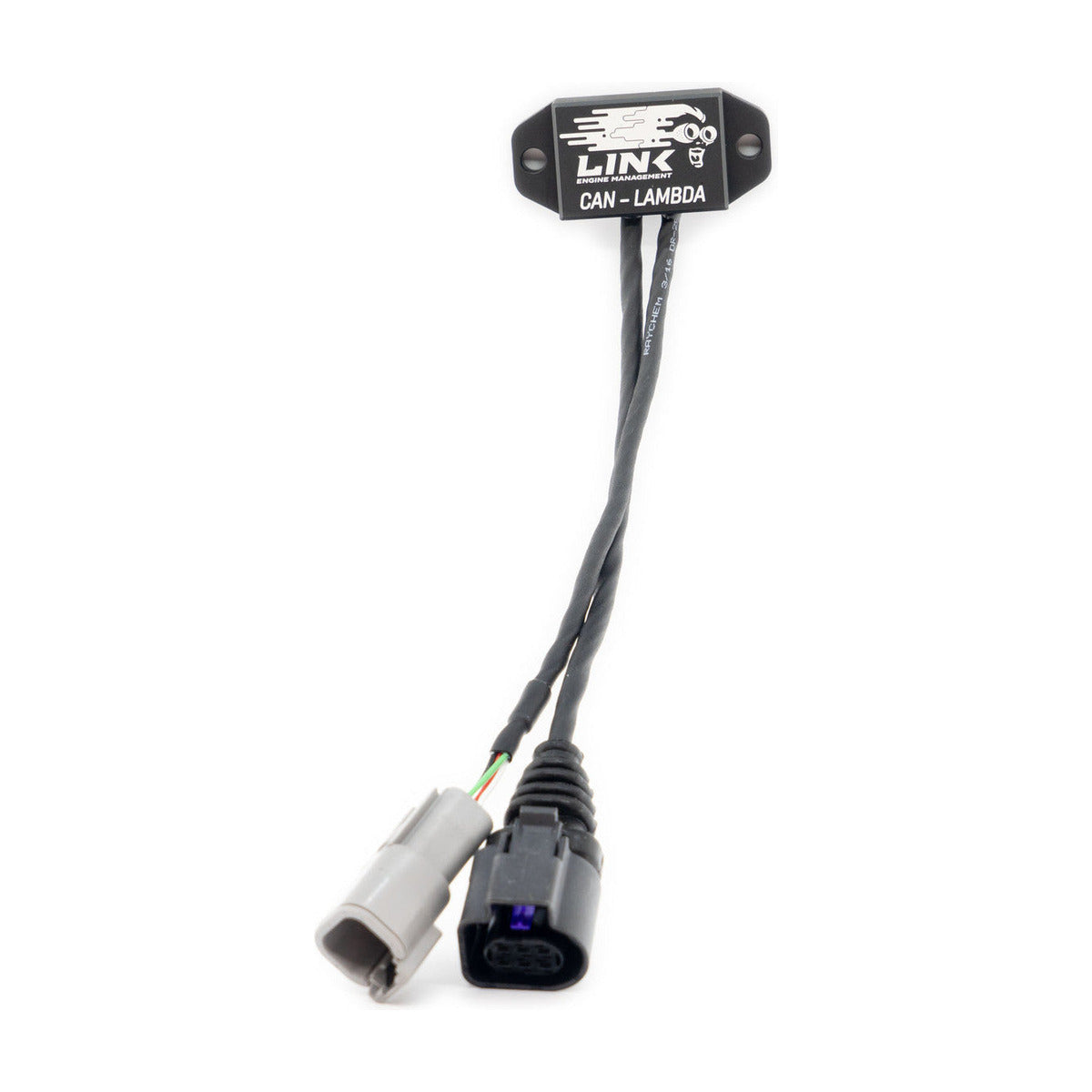

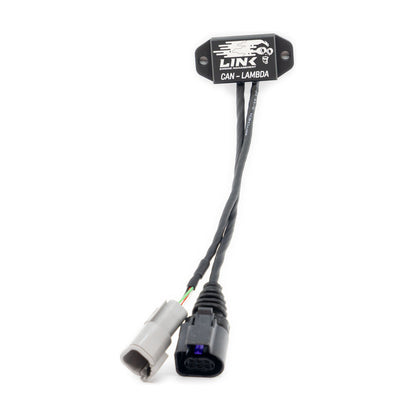

Link CAN Lambda (CANLAM)

If using the CAN Lambda with a G4+/G4X PlugIn ECU use a Link CANPCB cable to access the CAN port on the PlugIn PCB and a Link CANF field insertable CAN plug.


Please note the LSU4.9 sensor in this unit is sold solely for aftermarket use. As Bosch’s warranty excludes aftermarket applications, no warranty is provided on the LSU 4.9 Sensor. We have prepared some information about how to increase sensor lifespan here.


Please note proper CAN protocol must be followed. See manual below for guidance.

Download the CAN-Lambda QuickStart Guide

Download the CAN-Lambda manual

Specifications

Specifications

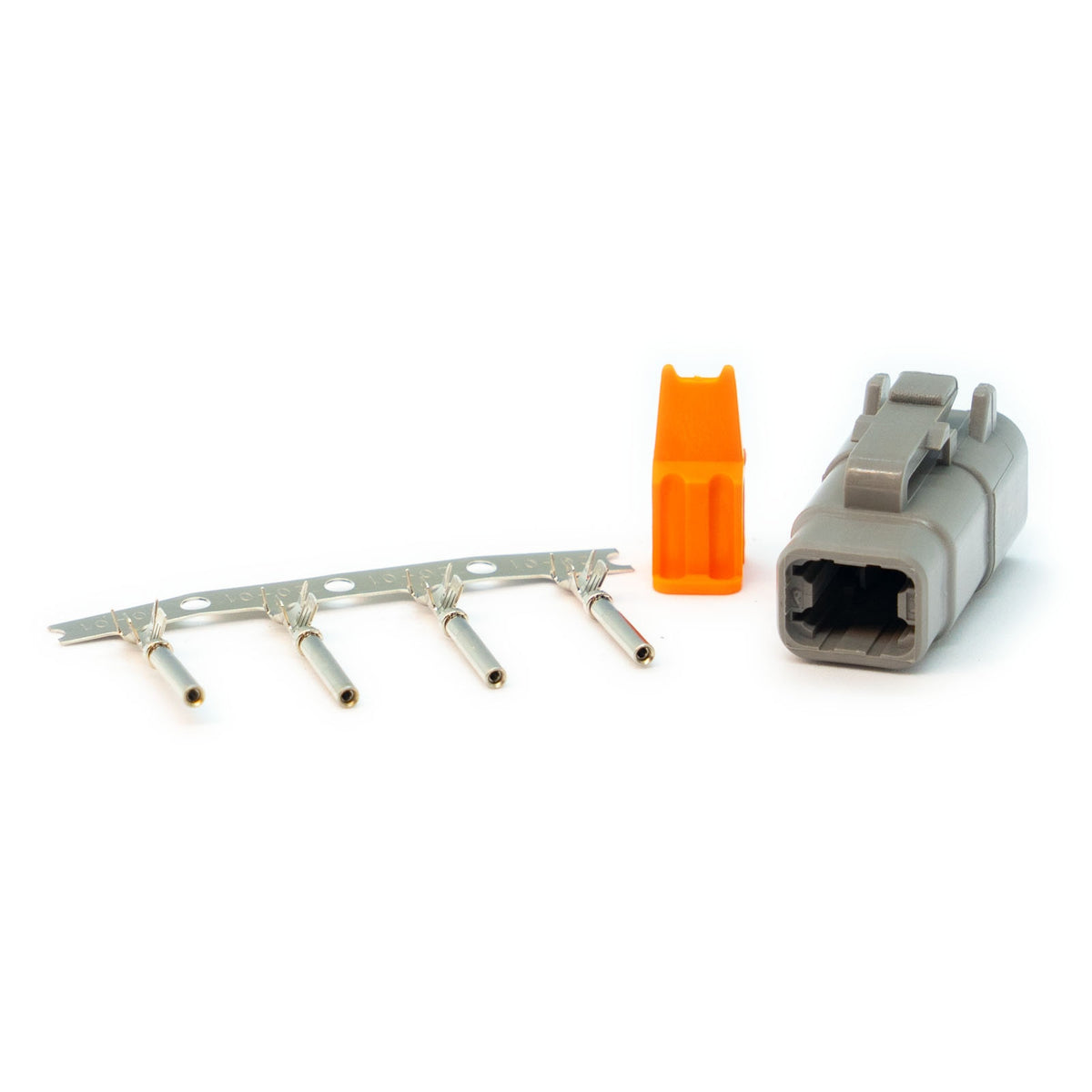

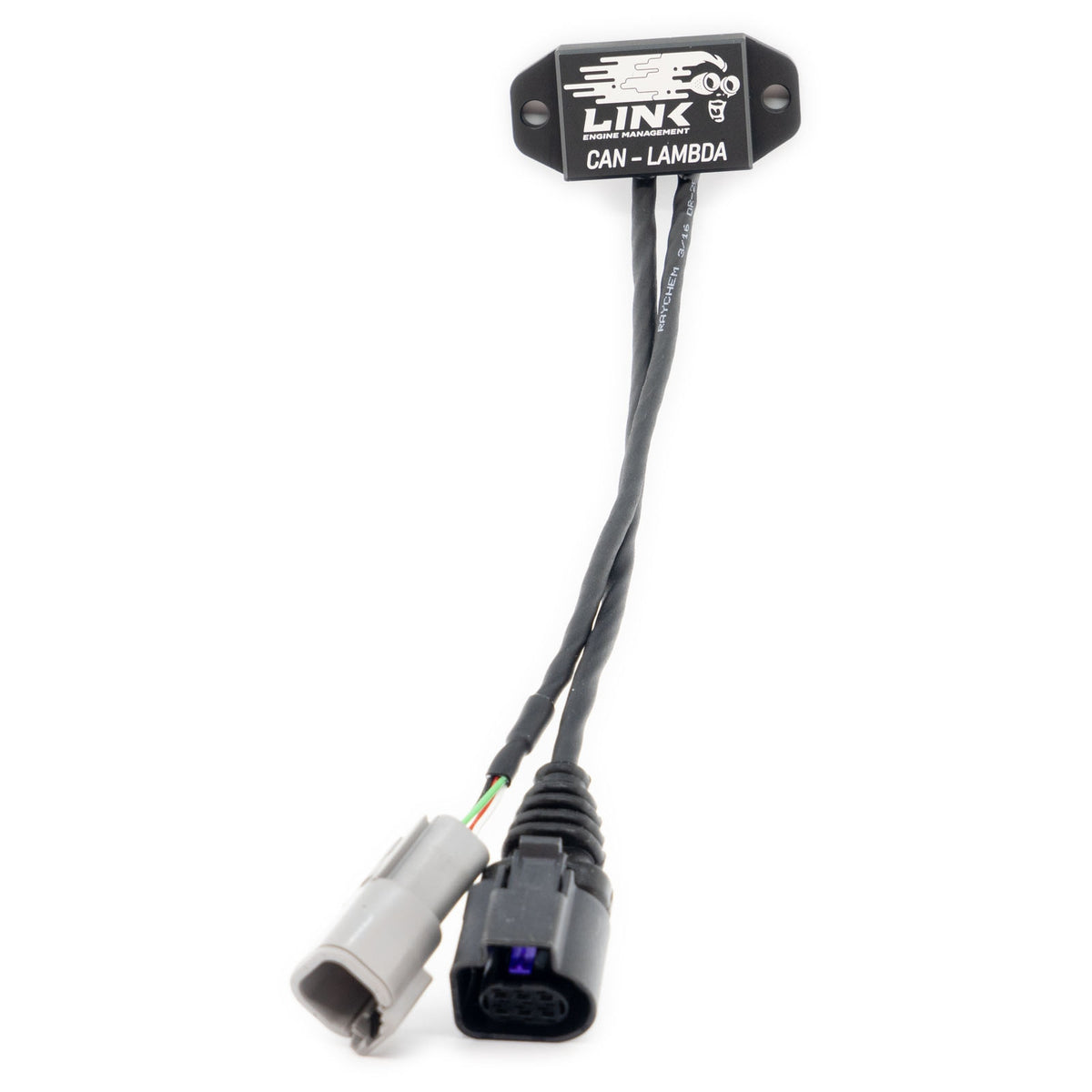

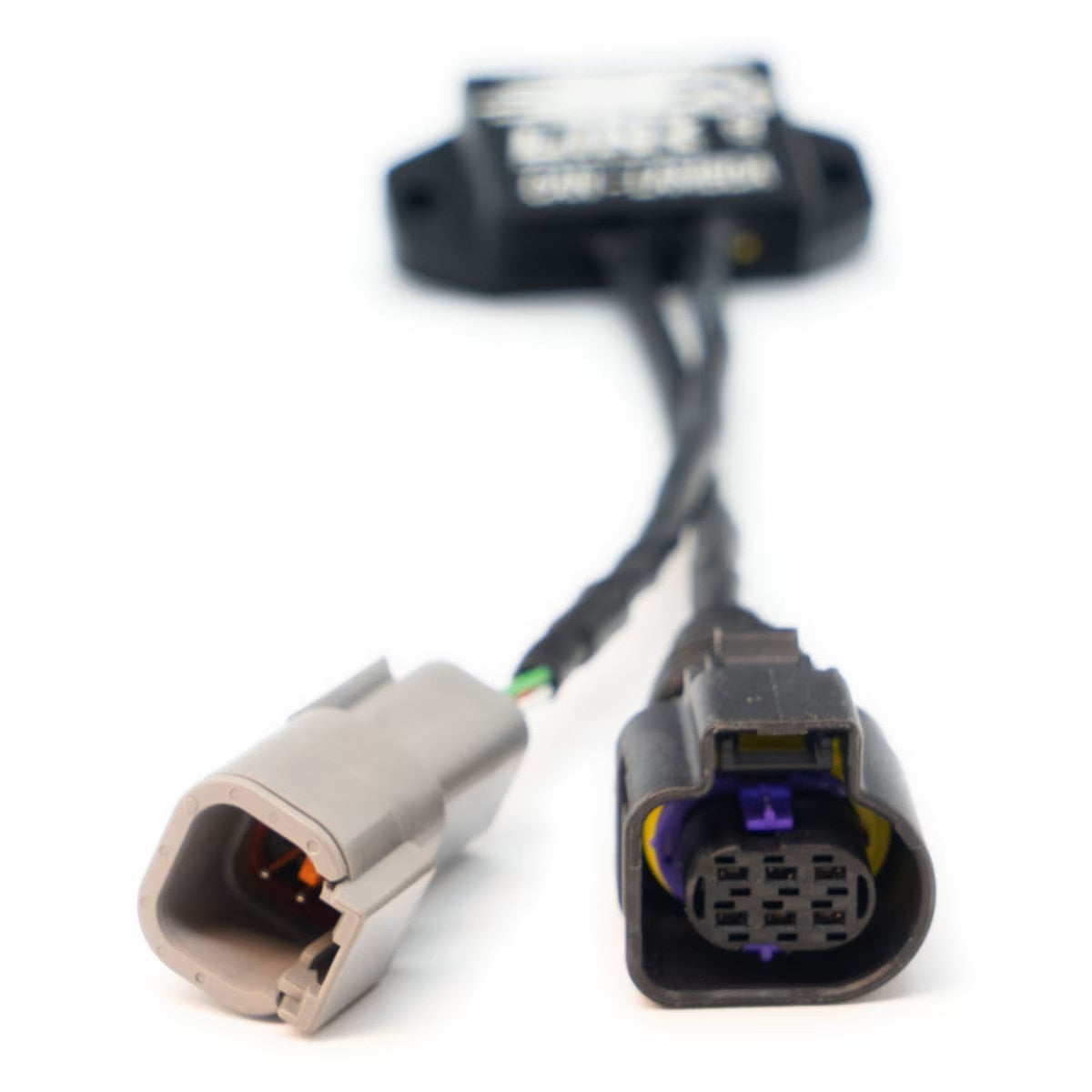

• 1 x 4 pin male DTM connector (power/CAN)
• 1 x 6 pin mating connector for LSU 4.9 Lambda sensor

Dimensions
Enclosure 60 x 26 x 15mm
Lead length 170mm
Weight 70g

Input Voltage
Controller 7.5 - 20 V
Sensor 10.8 - 16.5 V

Input Current
Controller 100 mA
Sensor Heater 8 A

Operating Temp -20 - 100 deg.C

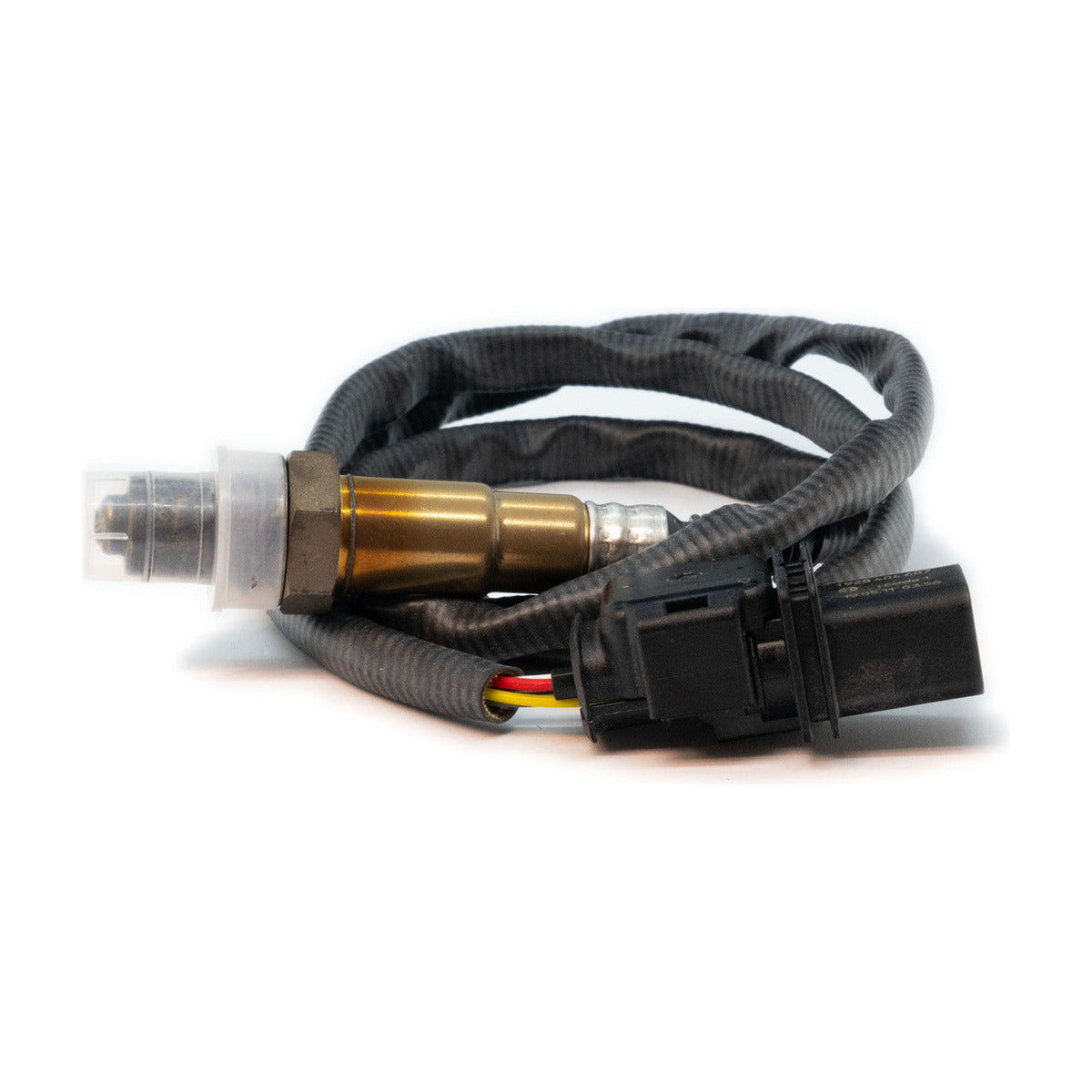

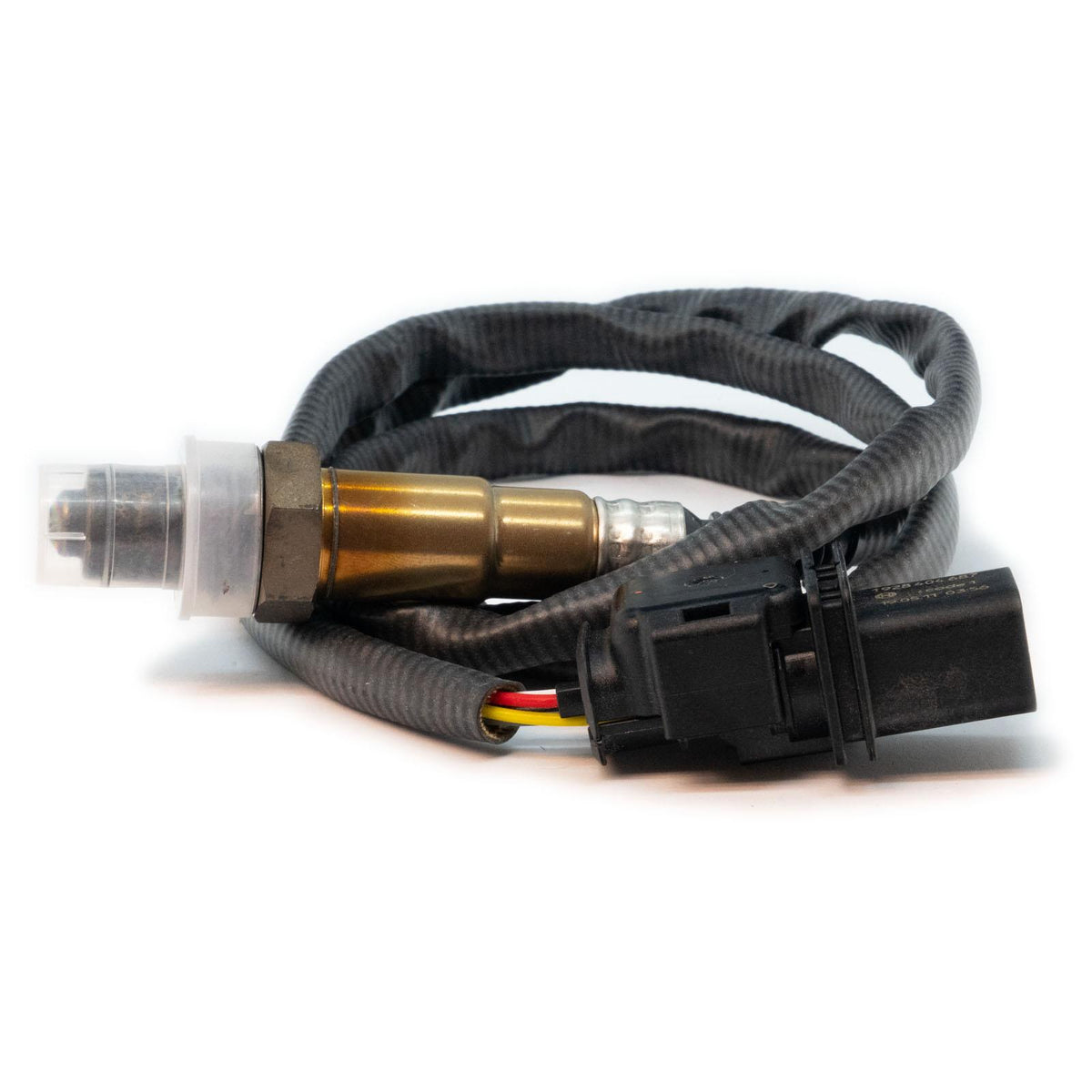

Sensor Bosch LSU4.9
Sensing Range 0.67 - 10 lambda

CAN Frequency 1Mb/s,500kb/s,250kb/s,125kb/s

Documentation & Guides

Official Link Engine Management resources for this product:

• CAN LAMBDA manual (PDF)
• CAN Lambda quick start guide (PDF)
• LSU 4.9 sensor lifespan (Link tech article)
