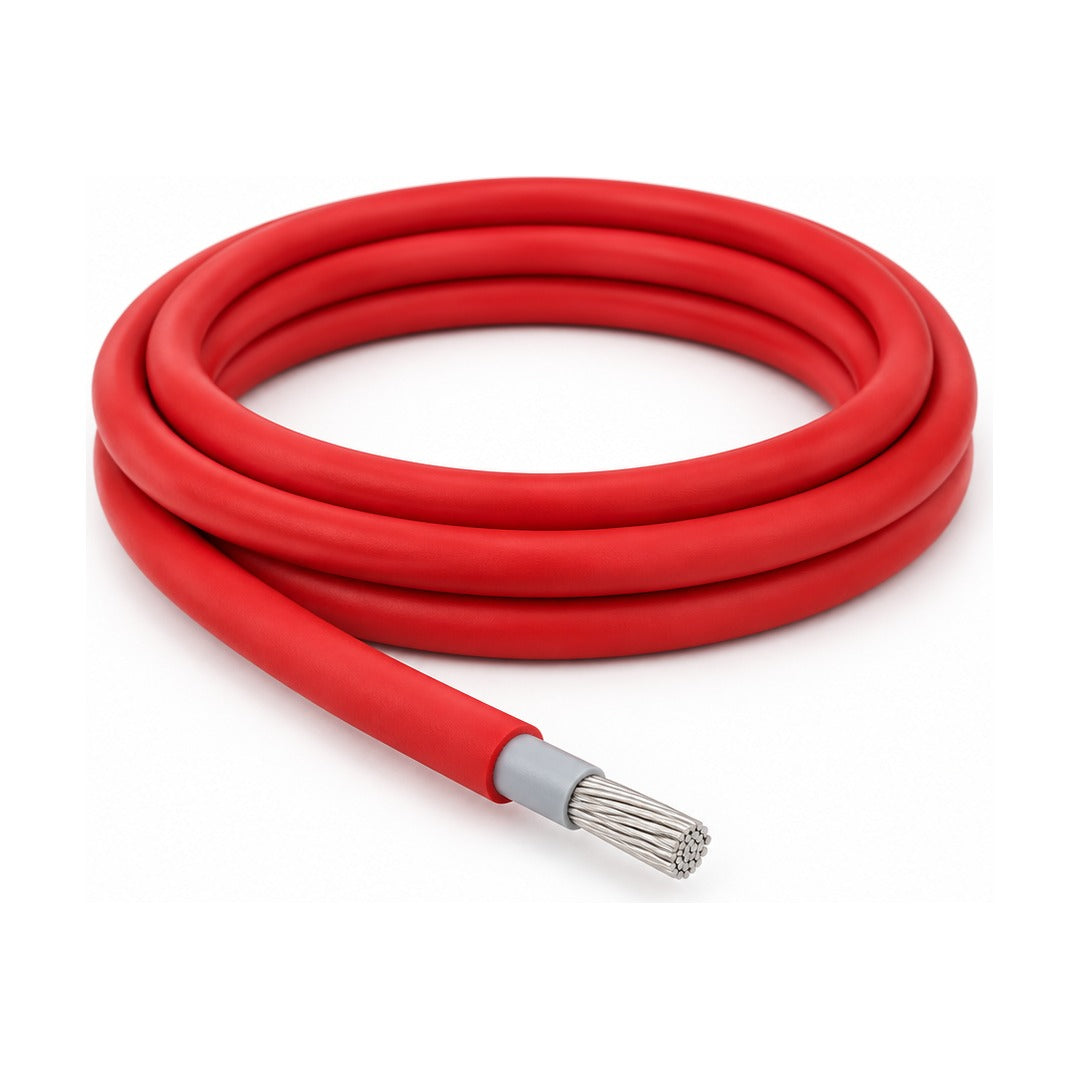

6mm2 Red DC Battery Cable - Double Insulated Tinned Copper (Per Metre)

Sold per metre. Order the number of metres you need and it is supplied as one continuous length.

Red 6mm² single-core DC cable for high-current 12V and 24V work. The conductor is fine-stranded oxygen-free tinned copper, which stays flexible in tight engine-bay routing and resists corrosion far better than bare copper. The double XLPO insulation is UV stable, flame retardant and halogen free, rated from -40°C to +90°C and 1.5 kV DC, so it is happy in the engine bay, under the car or in a boot-mounted battery setup.

Suits battery relocation runs, dual-battery and auxiliary power feeds, alternator charge leads, earth straps, winch and inverter feeds, and solar or camper installs.

Specifications

Tested to EN 60228 (conductor), EN 60811 (tensile and cold bend), EN 60216-2 (thermal endurance), EN 60754 (halogen free), EN 50396 (ozone), HD 605/A1 (UV) and IEC 60332-1-2 (flame).

Double insulated DC cable is also sold as solar PV cable; it is the same AS/NZS 5033 product.
