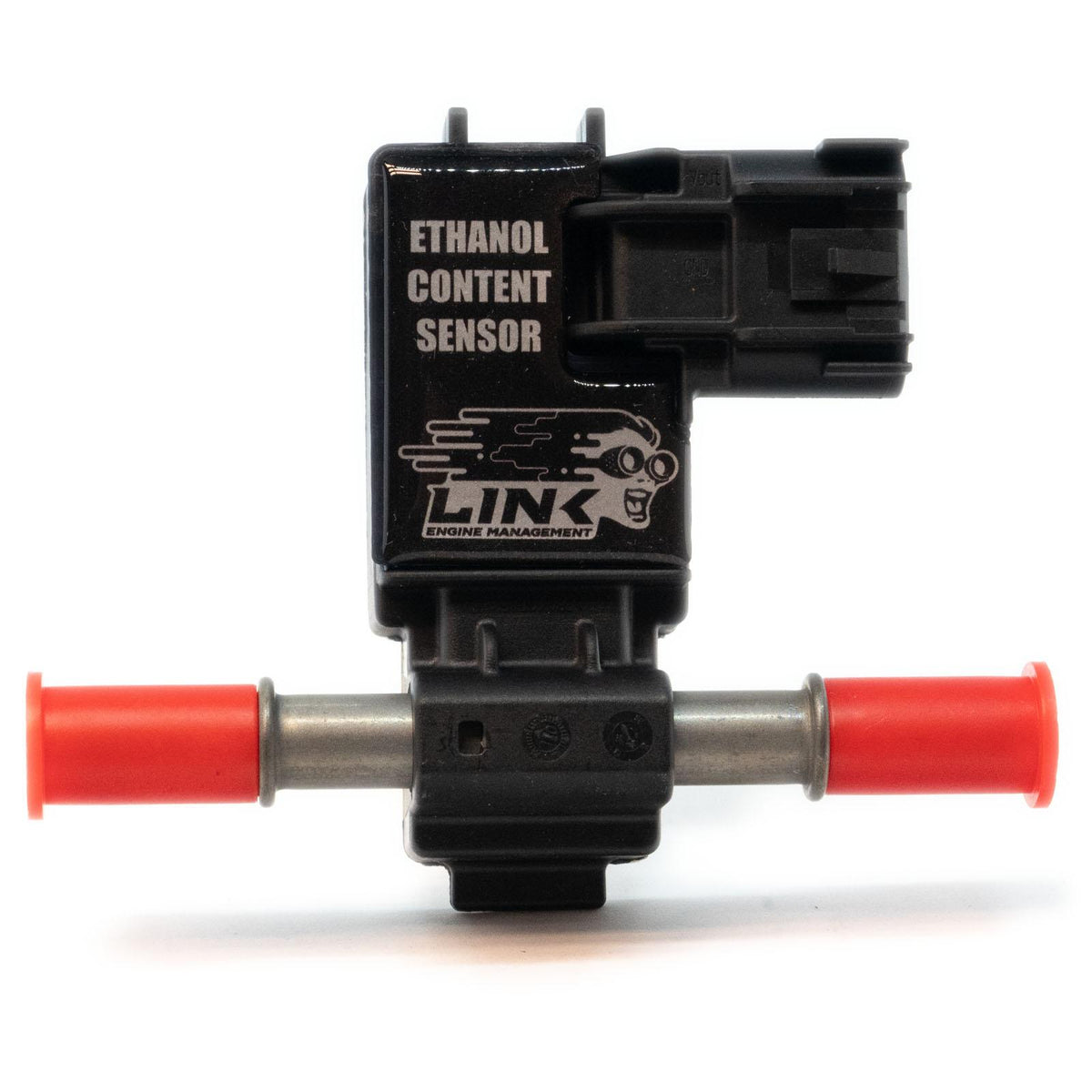

Ethanol Content Sensor (ECS)
Ethanol Content Sensor (ECS)
Regular price
$373.75 NZD
Regular price
$373.75 NZD
Sale price
$373.75 NZD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Looking to run flex-fuel? Then the Ethanol Content Sensor is a must have. The Ethanol Content Sensor measures the ratio of ethanol to petrol in a flex fuel vehicle. This sensor also measures fuel temperature. Compatible with all current Link Wire-In and Plug-In ECU’s. Uses 1 Digital input on the ECU. The sensor is fitted to the vehicle’s fuel return line anywhere between the fuel pressure regulator and the fuel tank.

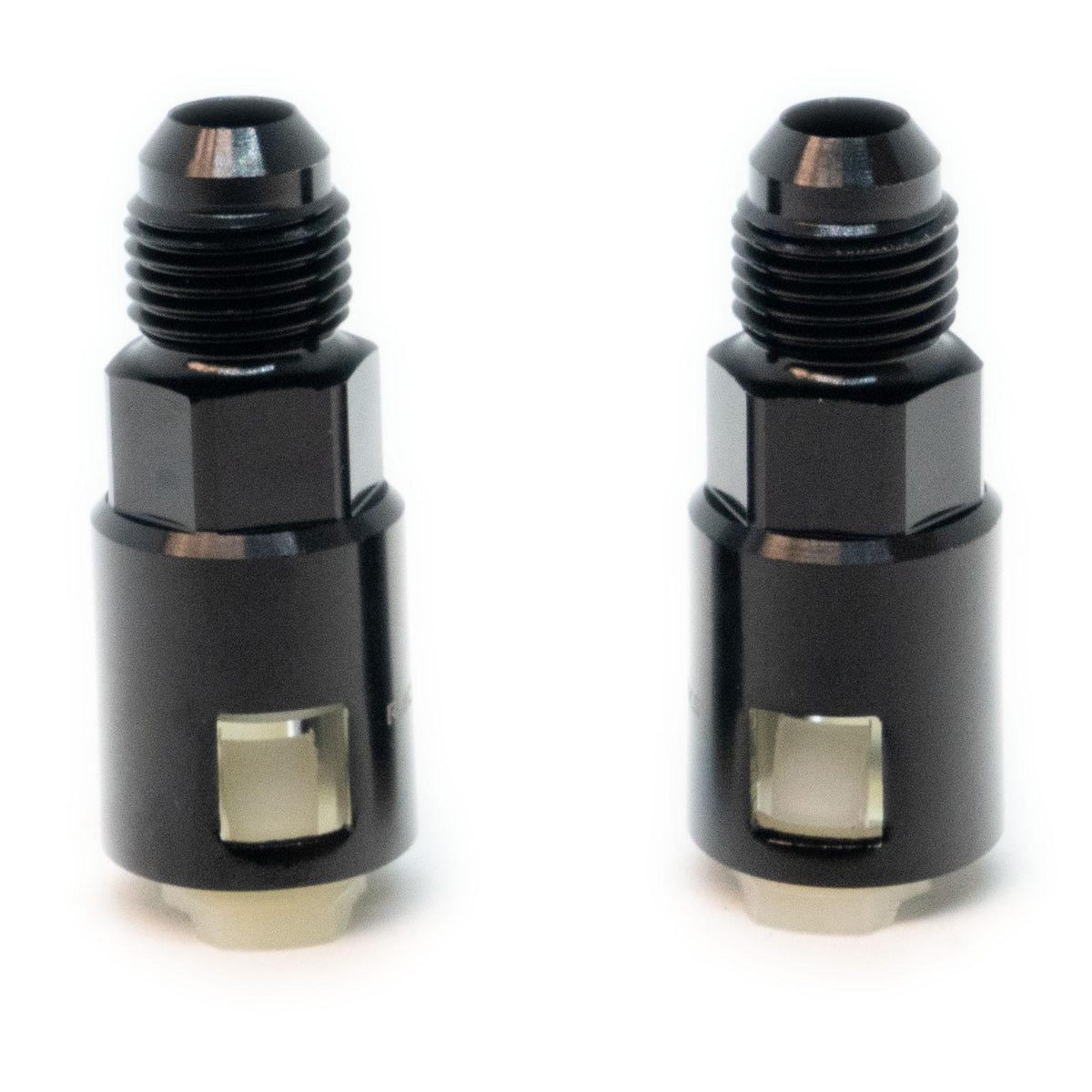

AN-6 Fittings

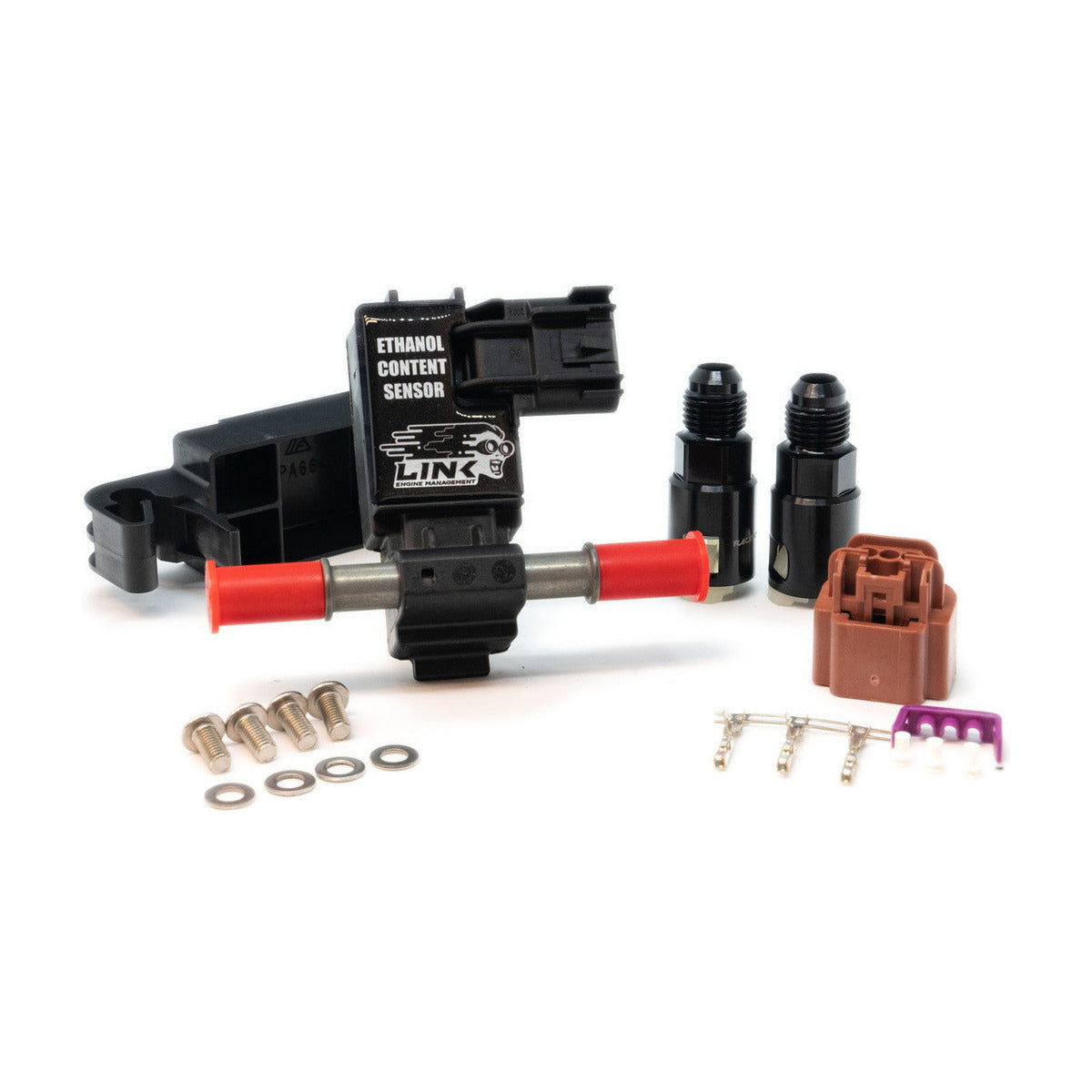

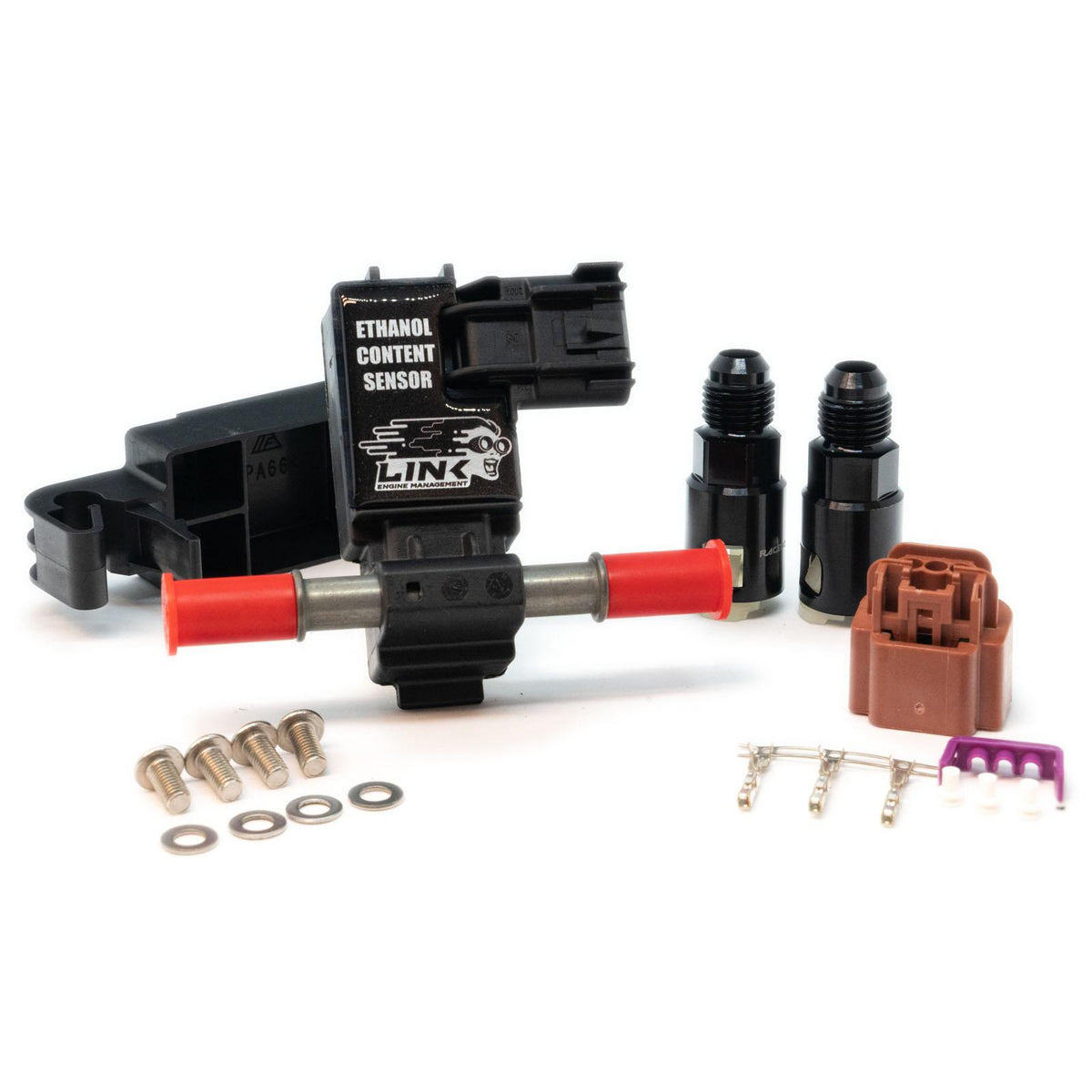

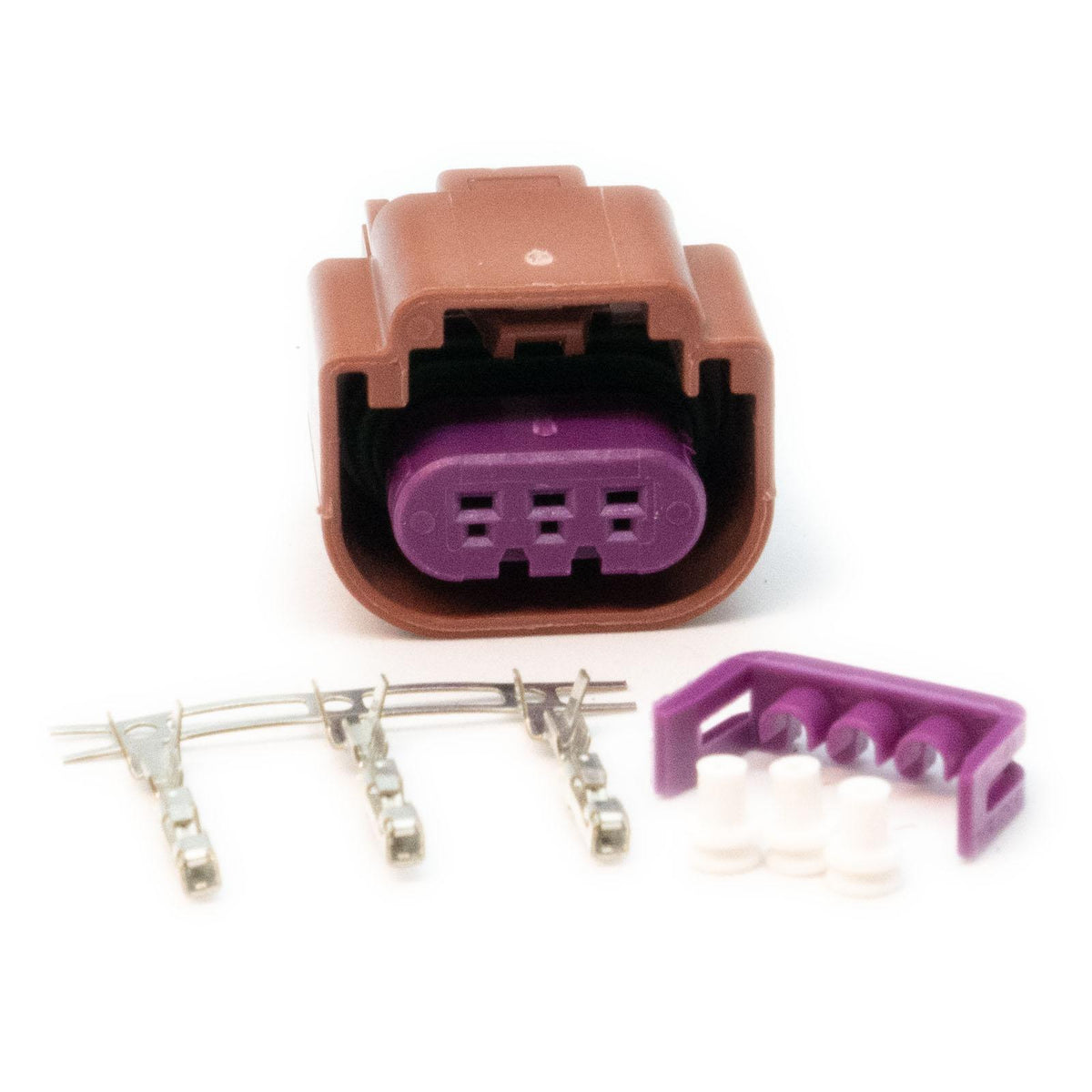

Includes plug and pin kit
Technical Specs
The pinout is indicated on the sensor itself (from left to right looking into connector on sensor) as :
1.) Vcc (+12V supply)
2.) GND (ground)
3.) Vout (digital signal out)
View full details
AN-6 Fittings
Includes plug and pin kit
Technical Specs
The pinout is indicated on the sensor itself (from left to right looking into connector on sensor) as :
1.) Vcc (+12V supply)
2.) GND (ground)
3.) Vout (digital signal out)
