EVOLink - EVO9X
EVOLink - EVO9X
Regular price
$2,984.25 NZD
Regular price
$2,984.25 NZD
Sale price
$2,984.25 NZD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

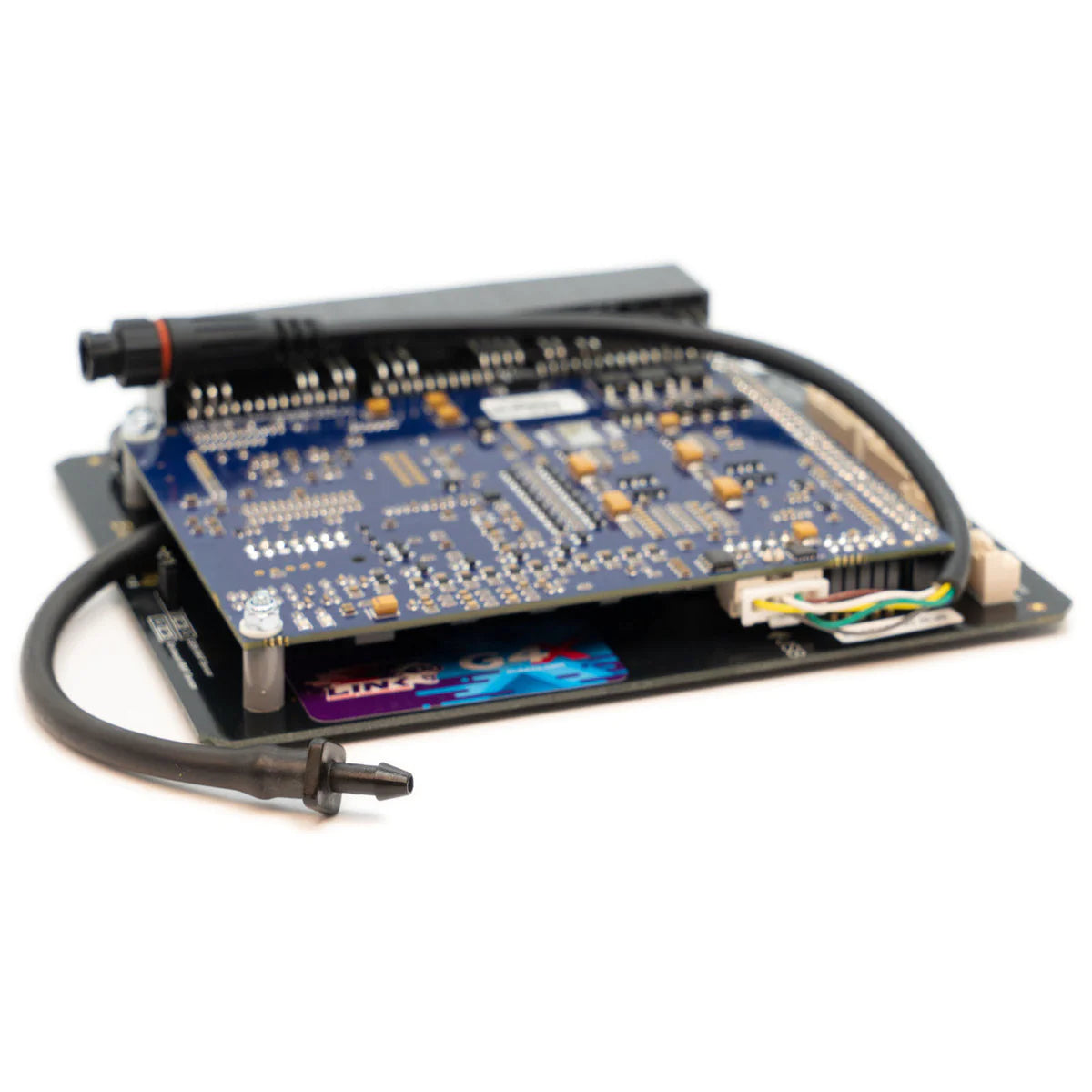

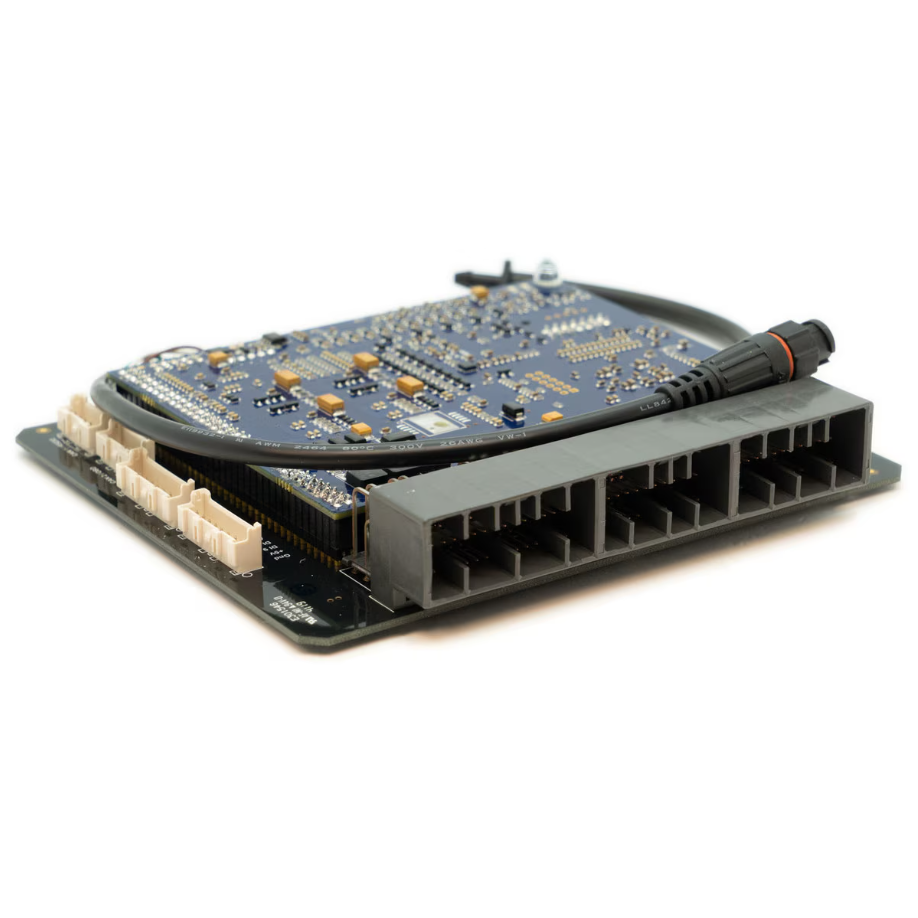

Easy to install. Affordable. Reliable. G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car. This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below. This ECU is designed for the EVO 9 4G63 engine. Please check your connector matches the header in the listed photo before purchasing. This ECU works for manual transmissions only. Includes onboard 7 bar MAP sensor Most factory features are supported Check the features tab for I/O expansion options Suitable Applications: CT9A Lancer Evolution 9, 2005-2007 CT9A Lancer Evolution 8, 2003-2005 with 3 plug ECU ONLY Any EVO8 car with a 3 plug ECU will also require this ECU.
G4X PlugIn Key Features (where applicable): Up to 6D fuel and ignition mapping Precision closed loop cam control (four cam, independent control) Sequential fuel delivery Digital triggering, all OEM patterns OEM idle hardware supported 5D boost control with three switchable tables Motorsport features - antilag, launch, flat shift Continuous barometric correction (on board) CAN port QuickTune - automated fuel tuning Individual cylinder correction USB tuning cable included Stats recording into on-board memory Gear compensations for spark, boost and fuel Real time selectable dual fuel, ignition and boost maps Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical Boost control referenced to gear, speed or throttle position 512 mega bytes data logging memory Staged injection Knock with "windowing" I/O Expansion Options The following expansion connector inputs/outputs are provided: Expansion Connector 1: Gnd Sensor Ground Only +5V Out Low Current +5V Supply DI 9 Digital Input DI 10 Digital Input Aux 11 Auxiliary Output An Volt 11 Analog 0-5V input An Volt 8 Analog 0-5V input An Temp 4 Temperature sensor input Expansion Connector 2: Gnd Sensor Ground Only +5V Out Low Current +5V Supply Aux 9 EThrottle - can't be used as an Aux out Aux 10 Auxiliary Output An Volt 6 Analog 0-5V input An Volt 7 Analog 0-5V input An Volt 9 Analog 0-5V input An Volt 10 Analog 0-5V input Download Manual Click here
View full details
G4X PlugIn Key Features (where applicable): Up to 6D fuel and ignition mapping Precision closed loop cam control (four cam, independent control) Sequential fuel delivery Digital triggering, all OEM patterns OEM idle hardware supported 5D boost control with three switchable tables Motorsport features - antilag, launch, flat shift Continuous barometric correction (on board) CAN port QuickTune - automated fuel tuning Individual cylinder correction USB tuning cable included Stats recording into on-board memory Gear compensations for spark, boost and fuel Real time selectable dual fuel, ignition and boost maps Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical Boost control referenced to gear, speed or throttle position 512 mega bytes data logging memory Staged injection Knock with "windowing" I/O Expansion Options The following expansion connector inputs/outputs are provided: Expansion Connector 1: Gnd Sensor Ground Only +5V Out Low Current +5V Supply DI 9 Digital Input DI 10 Digital Input Aux 11 Auxiliary Output An Volt 11 Analog 0-5V input An Volt 8 Analog 0-5V input An Temp 4 Temperature sensor input Expansion Connector 2: Gnd Sensor Ground Only +5V Out Low Current +5V Supply Aux 9 EThrottle - can't be used as an Aux out Aux 10 Auxiliary Output An Volt 6 Analog 0-5V input An Volt 7 Analog 0-5V input An Volt 9 Analog 0-5V input An Volt 10 Analog 0-5V input Download Manual Click here
