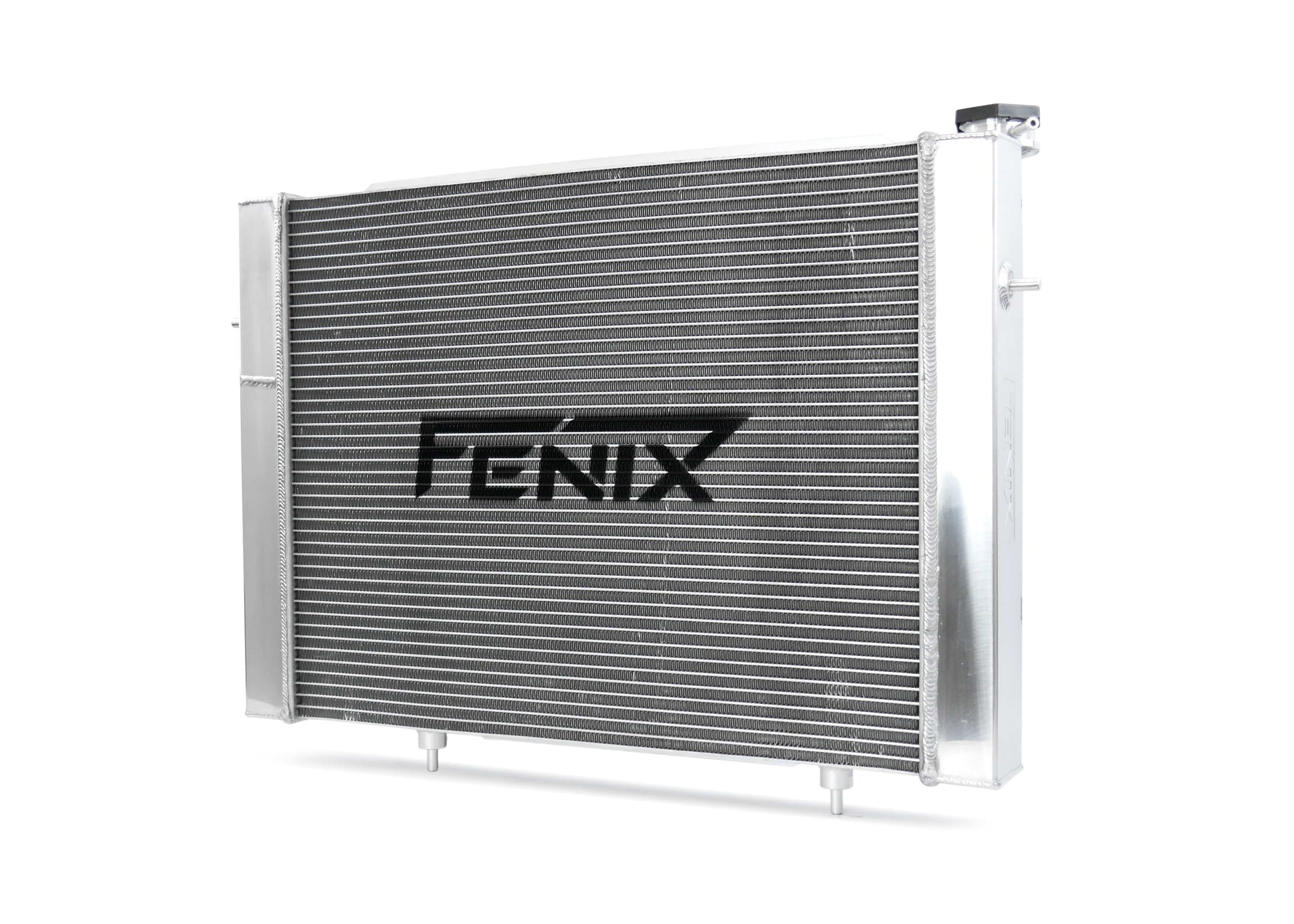

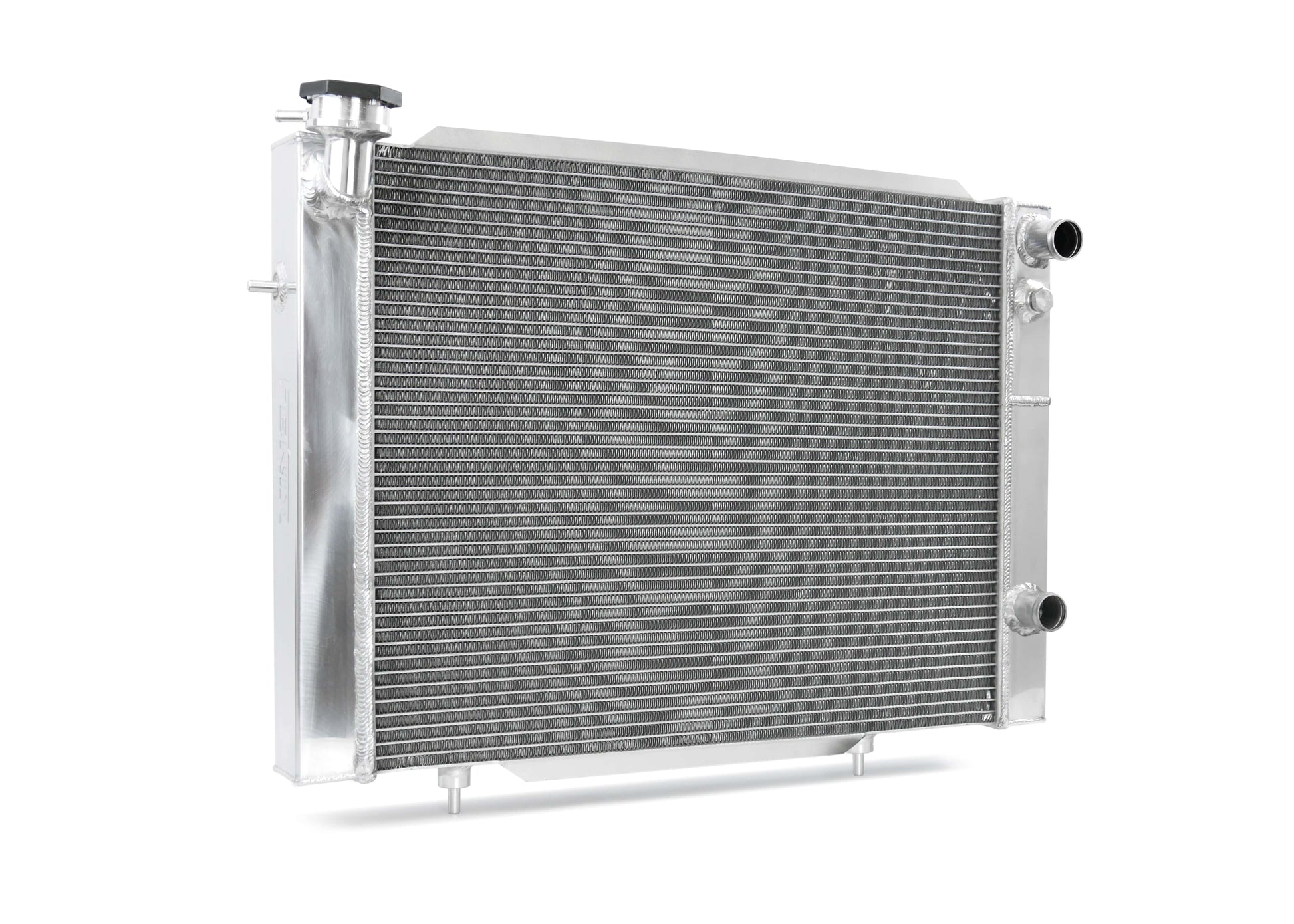

Holden Commodore VB, VC, VH & VK with LS1 | Performance Radiator

FENIX: RACE1092-56M-LS.

Core size: 545mm x 430mm x 56mm.

Replacement for:

1978-80 Holden Commodore VB fitted with LS1.
1980-81 Holden Commodore VC fitted with LS1.
1981-84 Holden Commodore VH fitted with LS1.
1984-86 Holden Commodore VK fitted with LS1.
Transmission: Auto or Manual.

Features:

• Dual pass baffling.
• Full Aluminium construction.

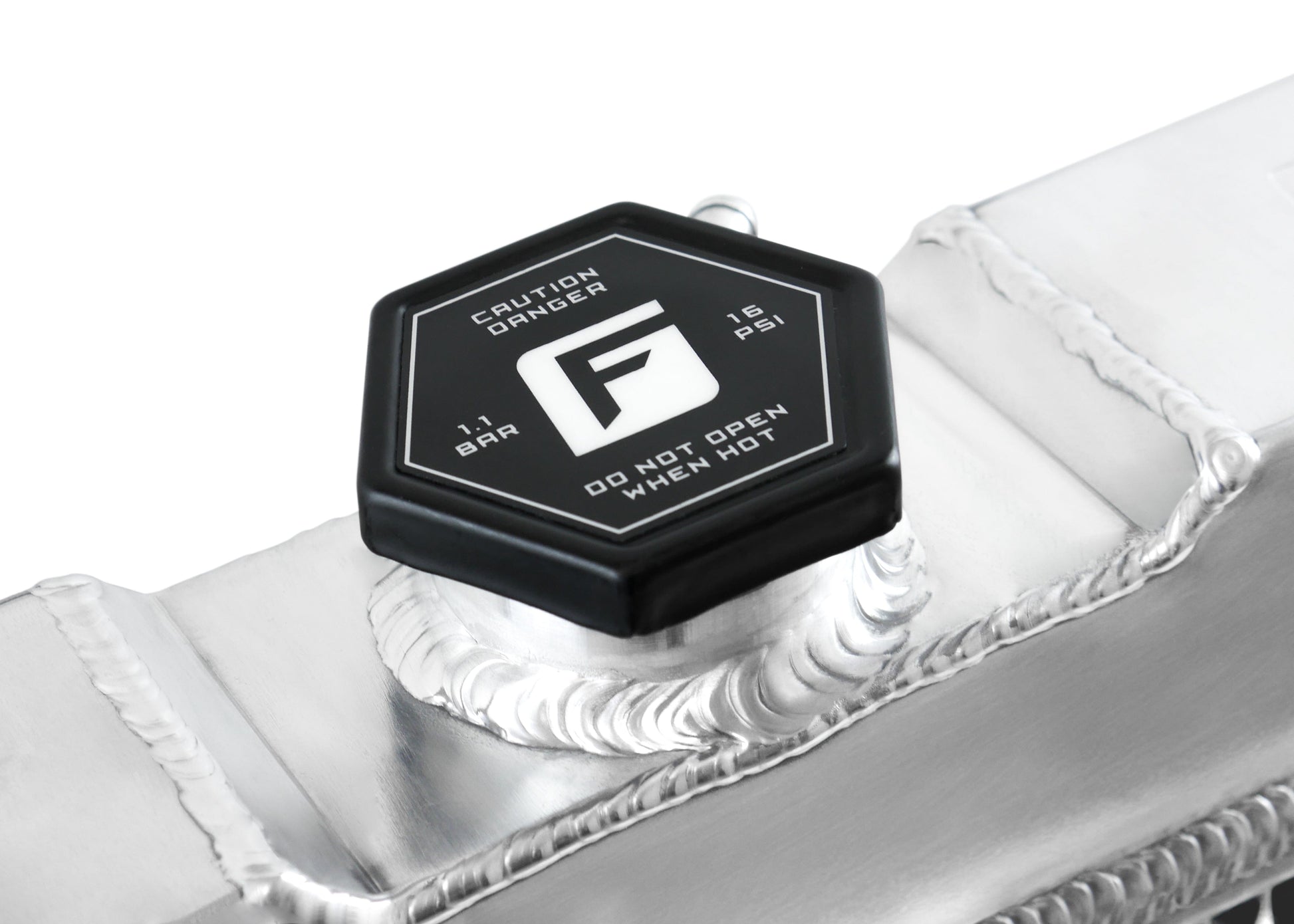

• 38mm Hex Fenix radiator cap.

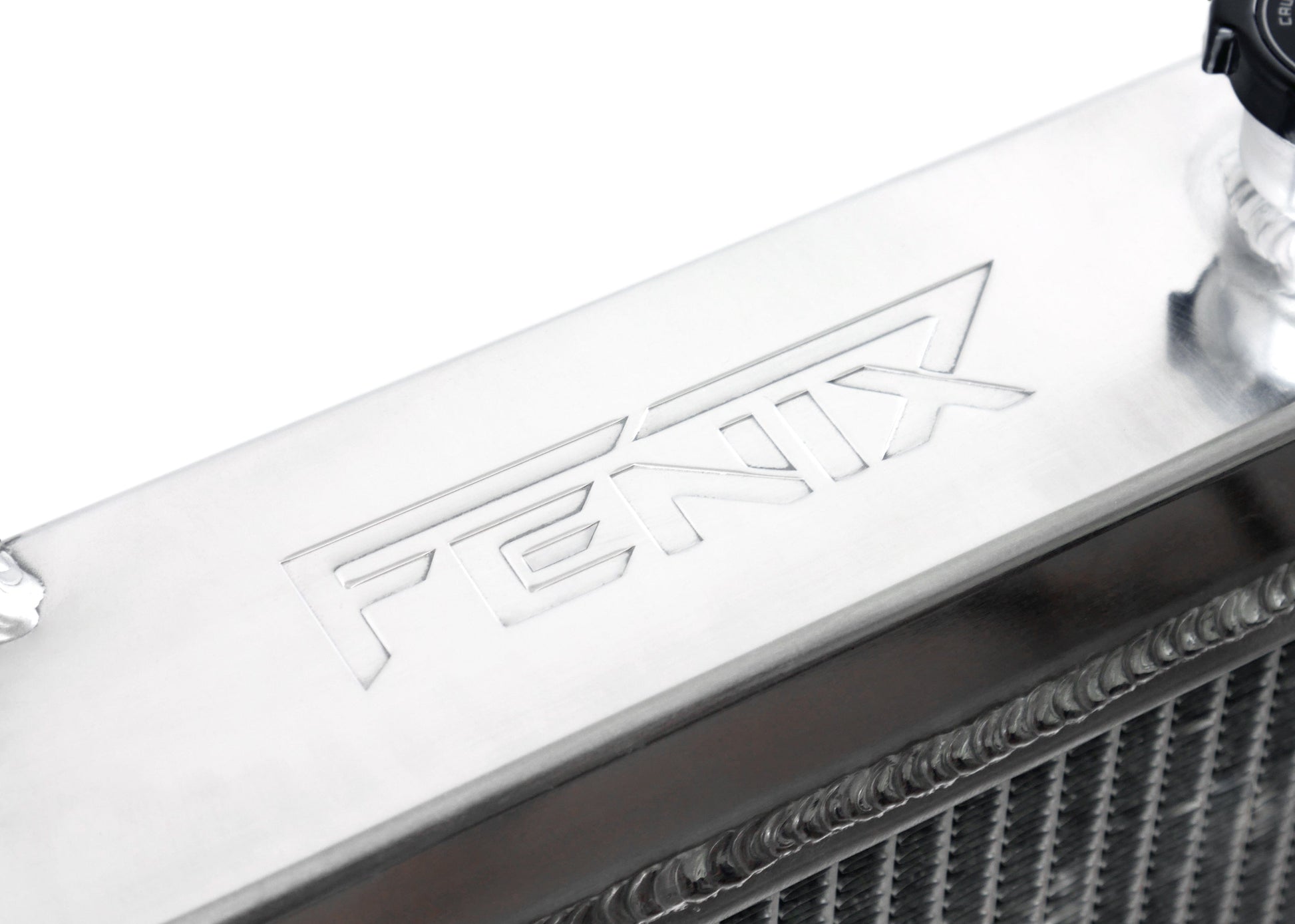

• Embossed Fenix logo on side tank.

NOTE: VT / VX LS1 or 6cyl upper radiator hose and VZ LS1 lower radiator hose are typically compatible with this conversion. If utilising specialty engine mounts or an electric water pump, custom hoses will be required.

__________________________________________________________________________

Designed to bolt directly into a VB, VC, VH & VK Commodore fitted with an LS1 engine conversion. This Fenix Performance Alloy Radiator features a cross-flow 56mm core for ultimate cooling on the street or track.

*Core size is tube and fin area only and does not include tanks or plate under tank.
