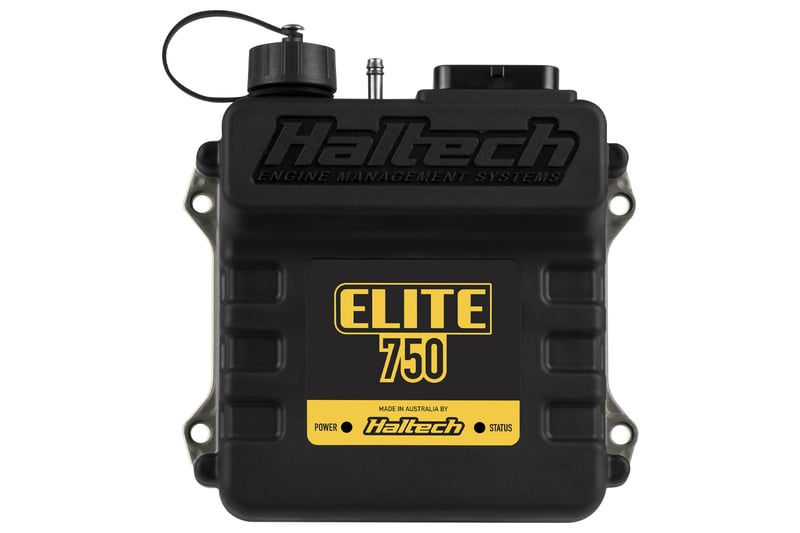

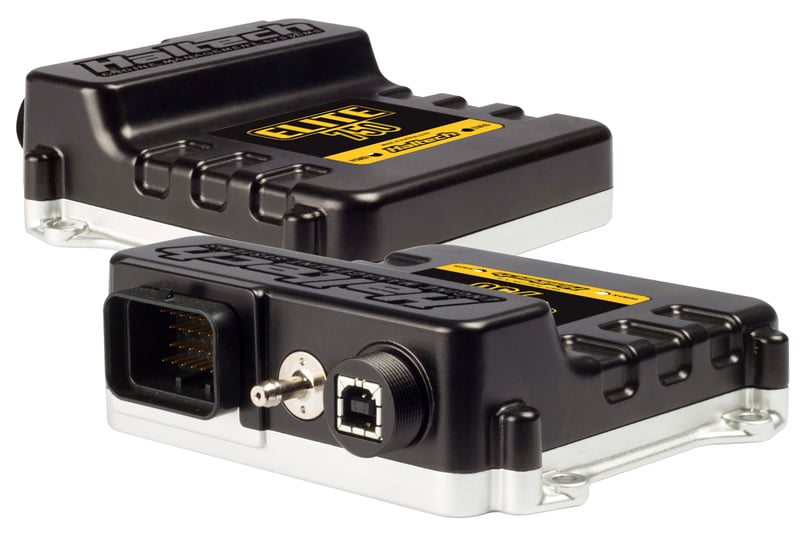

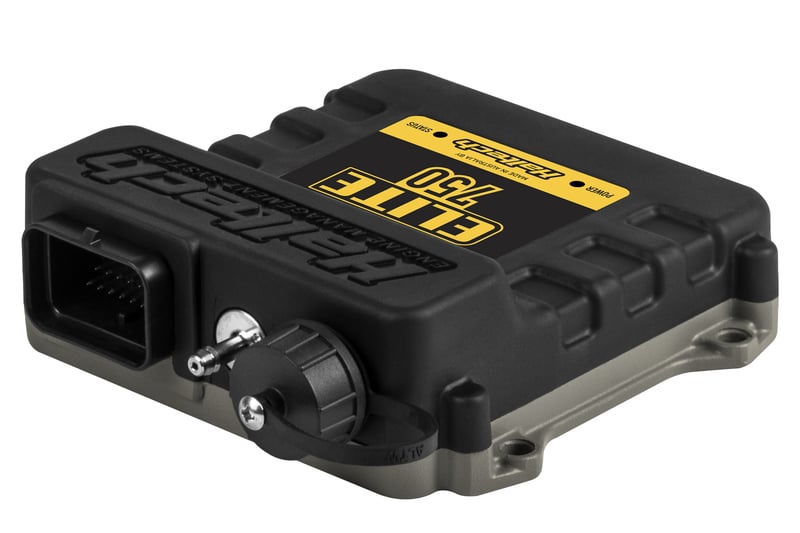

Haltech Elite 750 ECU + Plug and Pin Set - HT-150601 HT-150601

Part Number: HT-150601

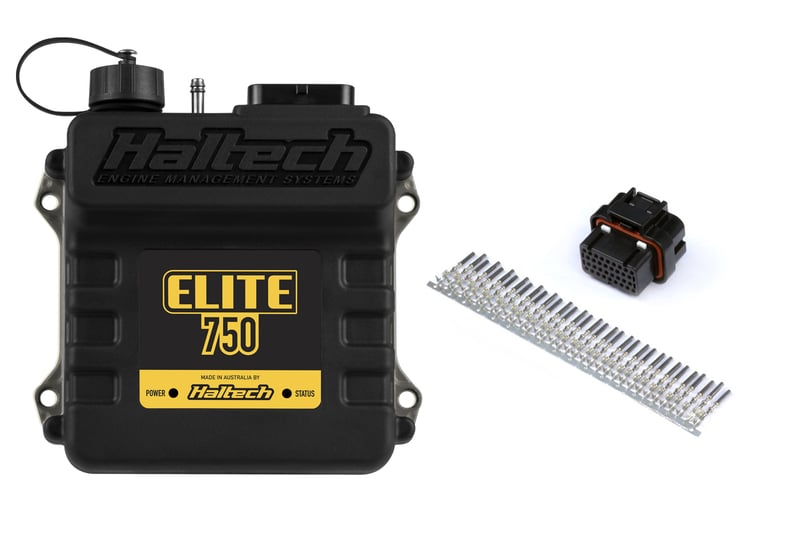

Includes: Elite 750 ECU Plug and Pin set to suit ECU

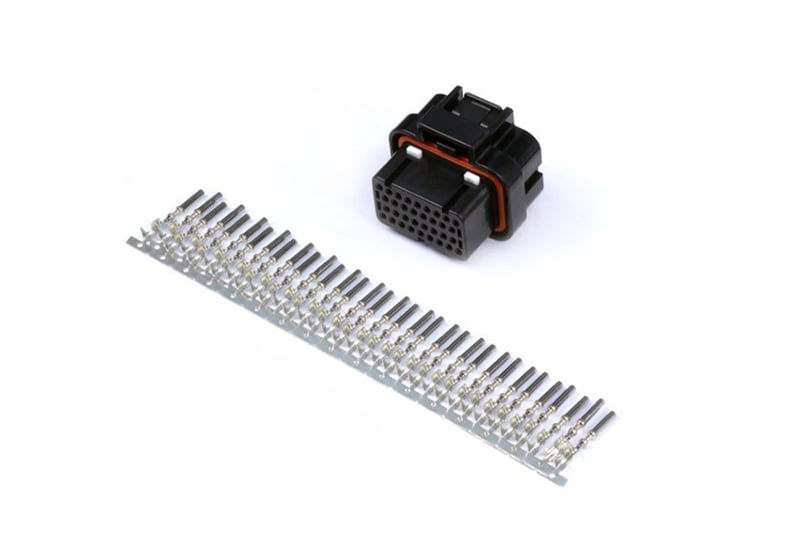

Plug and Pins Only AMP 34 Pin 4 Row 3 Key SupersealECU OVERVIEWThe Elite 750 is an entry-level ECU offering many features available on the more advanced Elite 1500/2500 at an affordable price. Featuring a robust, environmentally sealed, waterproof case, 6 fuel and 6 ignition channels, on-board data logging and flex fuel tuning the Elite 750 is a powerful, compact ECU. Alongside the Elite 750 ECU is the Elite Software Programmer (ESP) that brings levels of functionality and user friendliness never seen before in an engine control package. Together they offer true cutting edge technology to tuners and performance enthusiasts worldwide.

• Supports 1 to 8 Cylinder engines
• 1 to 3 Rotor engines
• Normally aspirated or forced induction
• Load sensing by Throttle Position (TPS), Manifold
• Pressure (MAP) or Mass Air Flow (MAF)
• Staged, Sequential, semi sequential, batch or multipoint injection patterns
• Distributor ignition systems, multi-coil systems, expand CDI range or Haltech Multiplex CDI systems
• Connect to a wide range of display dashes and expansion devices via CAN.
• Waterproof case (IP67) (with USB cover fitted)
• 34 position AMP connector
• 6 x Fuel Injection Outputs (peak and hold (0-8A peak / 0-2A hold)

• 6 x Ignition Outputs
• 2 x Dedicated Engine Position inputs with extensive trigger type support
• 2 x Digital Pulsed Inputs
• 5 x Digital Pulsed Outputs
• 2 x Analogue Voltage Inputs
• 3 x Dedicated Inputs (Throttle Position, Coolant Temperature & Air Temperature)
• Internal 3Bar MAP sensor rated up to 200kPa of boost (2Bar/29psi)
• Up to 45 channels of Input & Output (I/O) expansion (via CAN)
• USB Laptop Communication (Windows)
• On-board data logging
• ESP Calibration Software - Intuitive and easy to use
