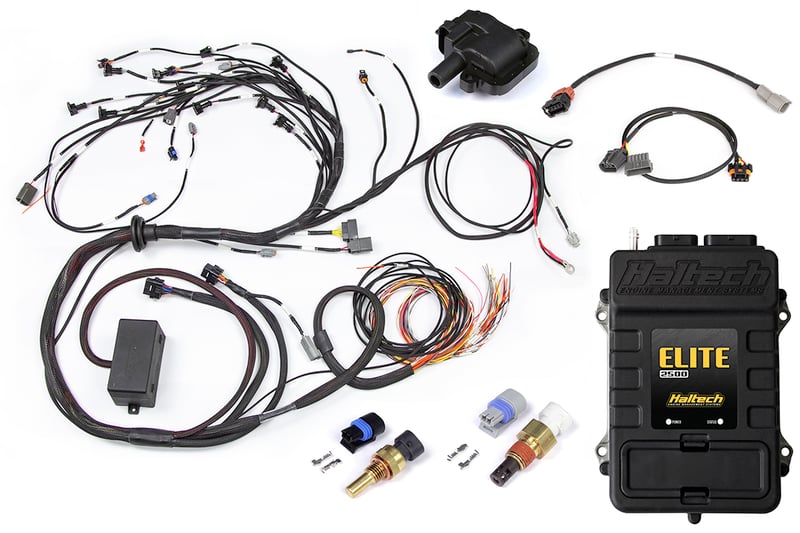

Haltech RB Single Cam Elite 2500 ECU Harness Kit HT-151311

Part Number: HT-151311

Suits: Nissan RB30 Single Cam

Includes: Elite 2500 ECU, Nissan RB Single Cam Terminated Harness (HT-130326), LS1 Ignition Coil and Harness (HT-130343), CAS Harness (HT-130344), Air Temp Sensor (HT-010200), Coolant Temp Sensor (HT-010300), Connector Pack for auxiliary I/O, Quick Start Guide.

Air Temp Sensor - Small Thread M14 x 1.5Coolant Temp Sensor - Small Thread M12 x 1.5LS1 Coil with built-in IgnitorHarness OverviewThe fastest and most cost effective way to wire your race car or engine conversion! Simply connect a handful of labelled wires and this plug and Play product allows you to be up and running in just a few hours.

• An efficient Haltech Plug'n'Play product that allows you to be up and running in just a few hours.
• The quick start guide will walk you through installation of the Haltech Plug'n'Play harness into your vehicle.

• The guide is accompanied by the full ECU manual and Software located on the CD or USB key provided with the ECU to refer to while completing your installation and configuration.

* The fastest and most cost effective way to wire your race car or engine conversion! * Simply connect a handful of labelled wires and this plug and Play product allows you to be up and running in just a few hours.

• An efficient Haltech Plug'n'Play product that allows you to be up and running in just a few hours.
• The quick start guide will walk you through installation of the Haltech Plug'n'Play harness into your vehicle.

• The guide is accompanied by the full ECU manual and Software located on the CD or USB key provided with the ECU to refer to while completing your installation and configuration.

The fastest and most cost effective way to wire your race car or engine conversion! Simply connect a handful of labelled wires and this plug and Play product allows you to be up and running in just a few hours.ECU OVERVIEWElite 2500 is a two-connector, stand-alone ECU ideal for popular late model performance and racing applications. Recommended for 4, 6, 8 cylinder, Drive-By-Wire (DBW) or 2, 3, 4 rotor engines, EFI conversions, engines with multiple variable camshafts. Featuring a robust environmentally sealed water-resistant IP67-rated case, drive-by-wire throttle control, intake and exhaust cam control, short-term and long-term map learning, dual channel knock control, and much more, the Elite 2500 ECU provides engine calibrators with the tools they need to get the job done right. The Elite 2500 ECU is now paired with the new Nexus Software Programmer (NSP) that brings levels of functionality and user-friendliness never seen before in an engine control package. Together they offer true cutting-edge technology to tuners and performance enthusiasts worldwide.

• Supports 1 to 12 Cylinder engines
• 2 to 4 Rotor engines
• Normally aspirated or forced induction
• Load sensing by Throttle Position (TPS), Manifold Absolute Pressure (MAP) or Mass Air Flow (MAF)
• Staged, Sequential, semi sequential, batch or multipoint injection patterns
• Distributor ignition systems, multi-coil systems, expand CDI range or Haltech Multiplex CDI systems
• Connect to a wide range of display dashes and expansion devices via CAN.
• Waterproof Case (With Pocket Cover Fitted)
• 8 x Fuel Injection Outputs

• 8 x Ignition Outputs
• 12 x Digital Outputs
• 10 x Analogue Voltage Inputs
• 4 x Synchronised Pulsed Inputs
• 4 x Dedicated inputs (Dual Knock, ignition Switch & onboard MAP Sensor)
• 2 x Dedicated Engine Position Inputs with extensive trigger type support
• Up to 45 channels of Input & Output (I/O) expansion (via CAN)
• USB Laptop communication (Windows)
• Now using the new NSP Calibration Software

Quickstart guide download: Quickstart guide
