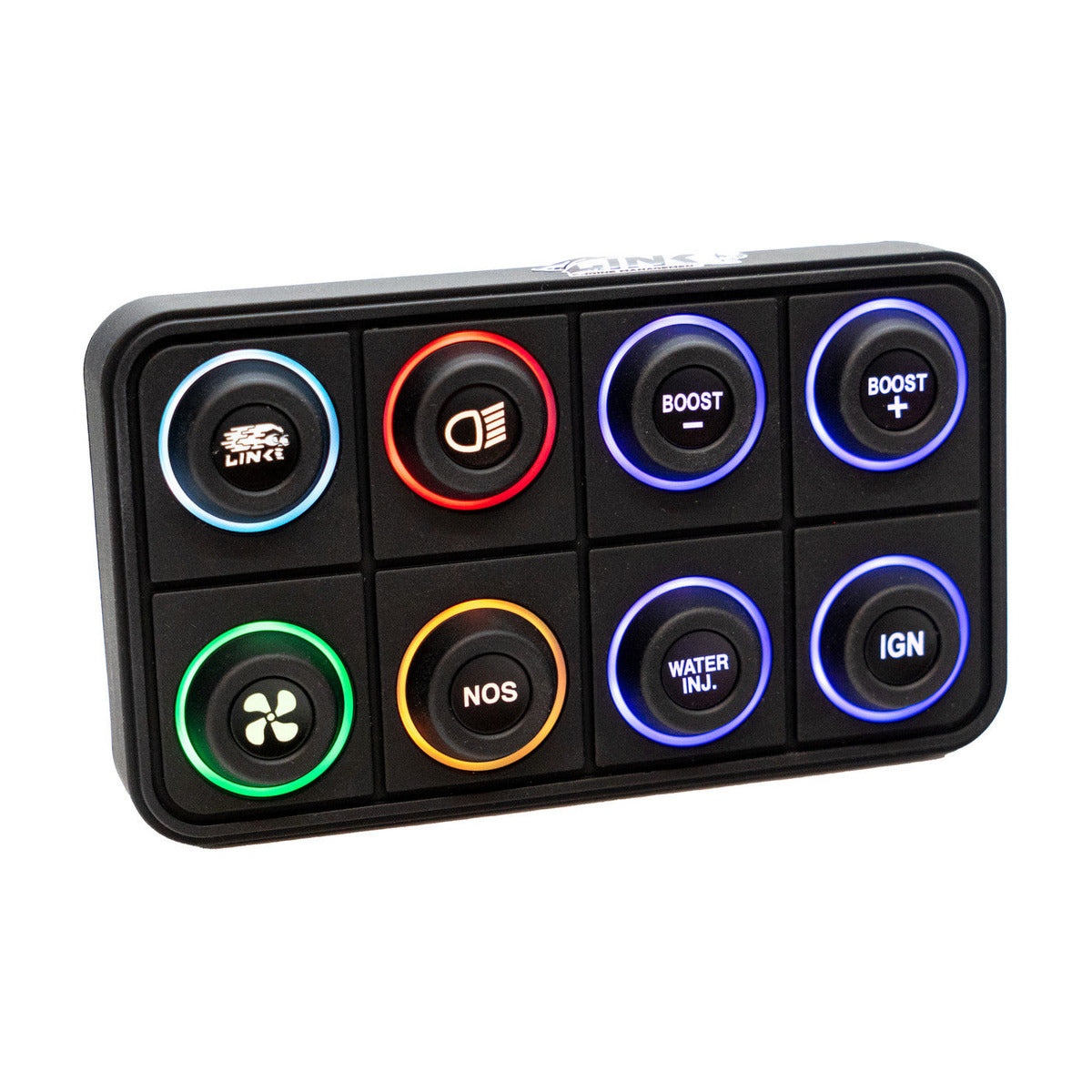

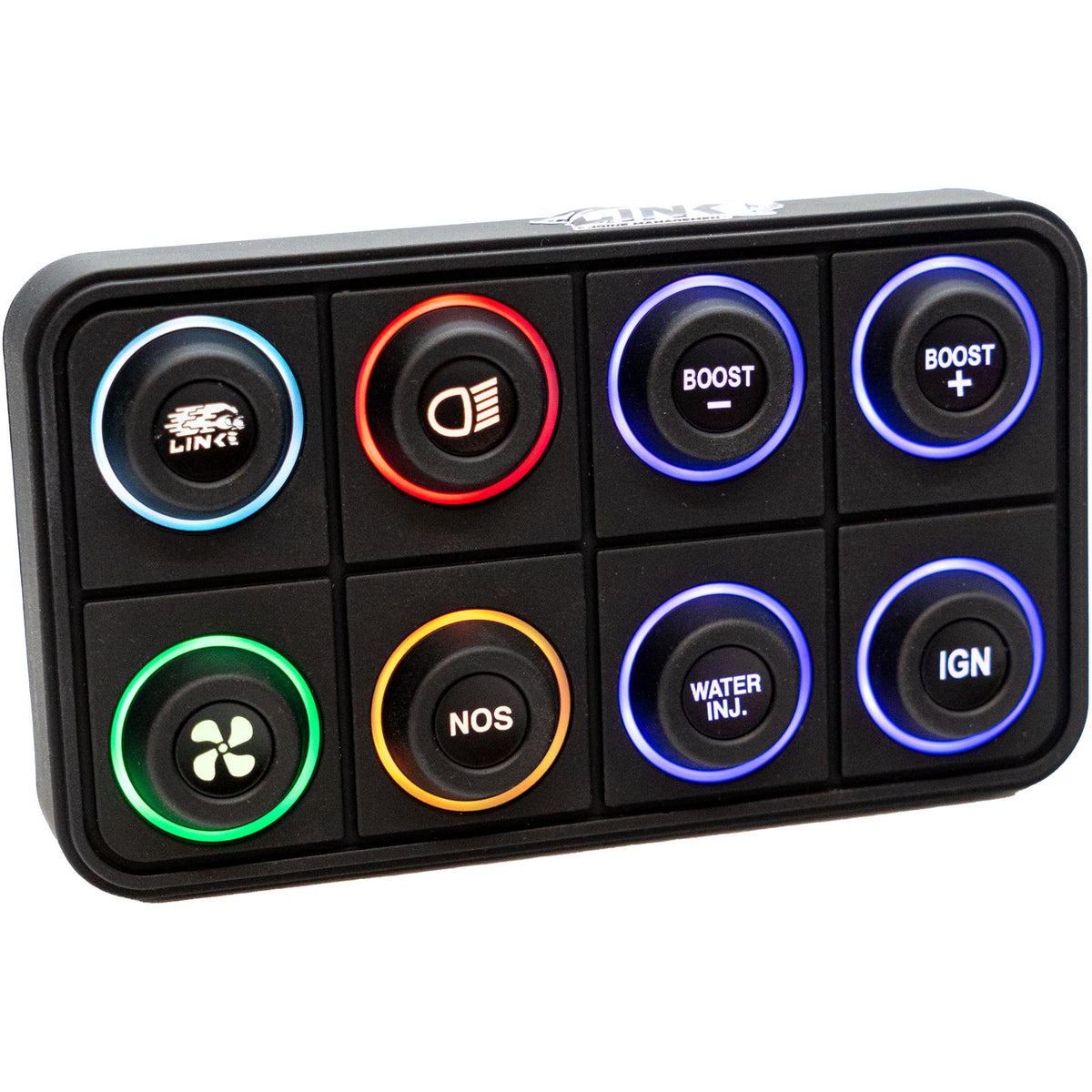

A rugged 8-key CAN keypad with interchangeable 15 mm inserts (sold separately).
Customisable button inserts and configurable RGB indicator rings for each button provide exceptional flexibility across a wide range of applications.
Designed for maximum durability and reliability, the keypad features IP67/IP69K-rated water and dust resistance, an operating temperature range of -40°C to +70°C, 400 hours of UV resistance, salt spray protection, and switches rated for up to 3 million operations.
Suitable for both interior and exterior installation, making it ideal for street, track, and off-road use..
Compatible with all G4X & G5 ECU’s. Built-in support from G4X PC Link vers 6.22 onwards.

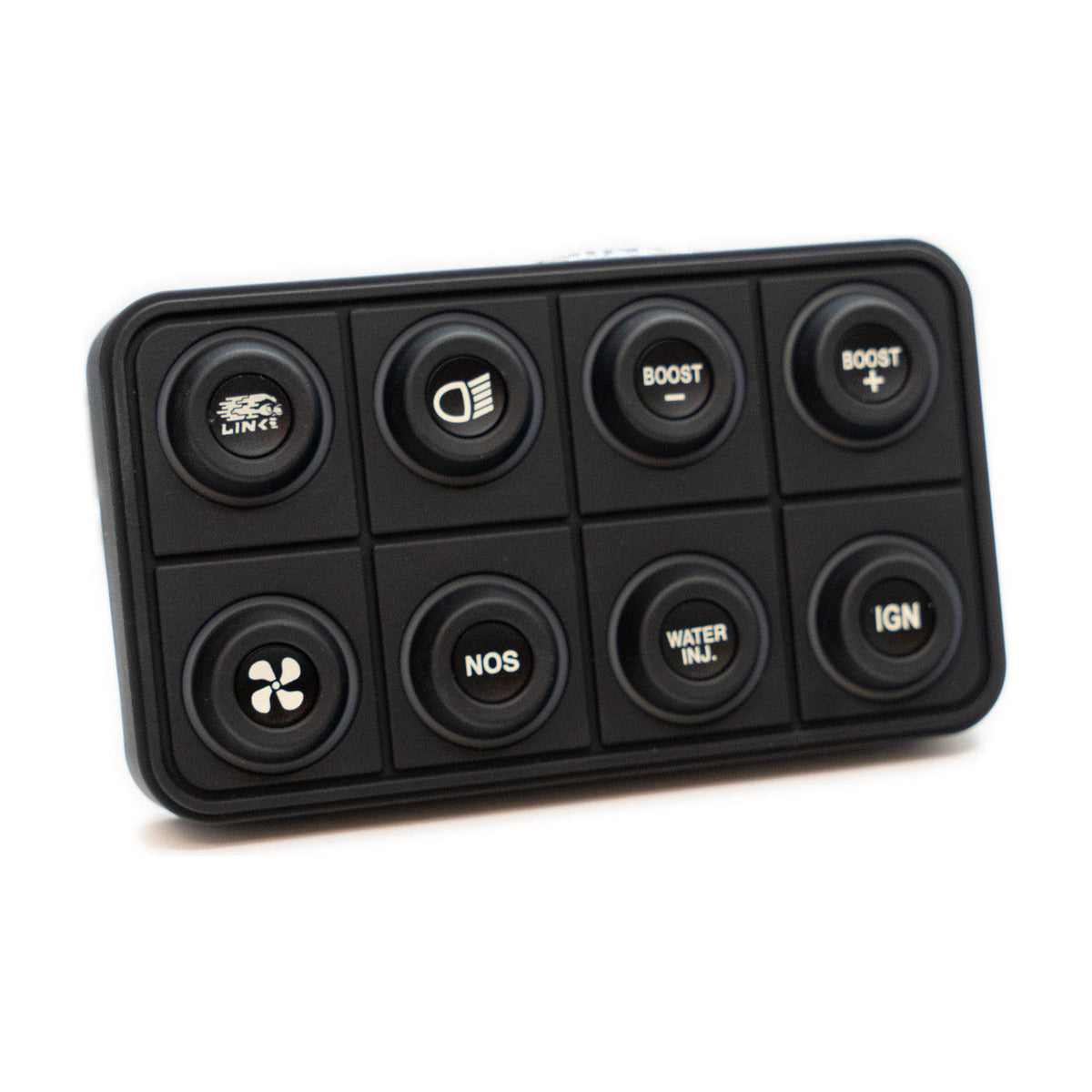

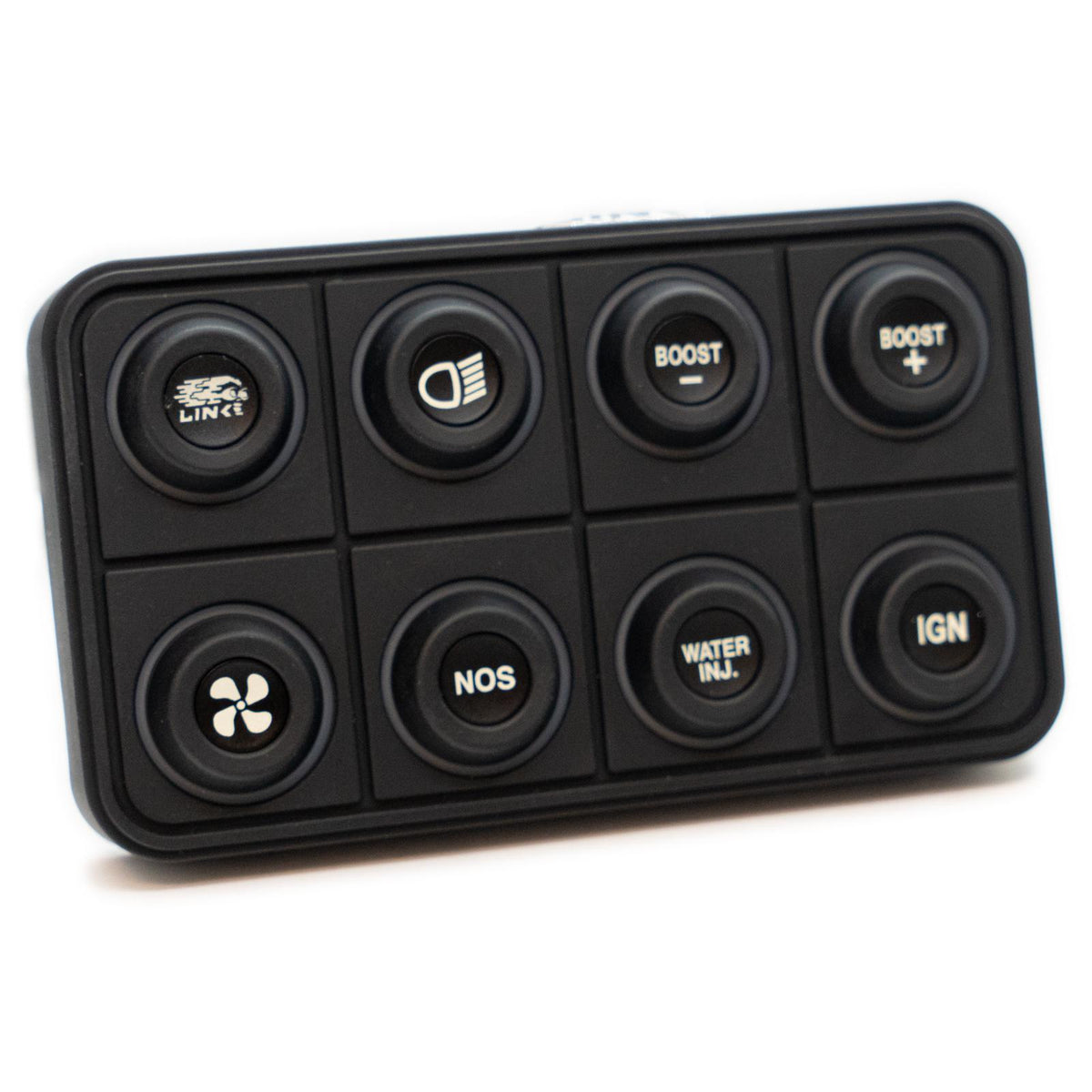

Note: Keypad ships with empty button inserts, inserts need to be selected and purchased individually.
1 x Link ECU Logo Button Insert included in the box which can be fitted.
Download Manual Here
Specifications

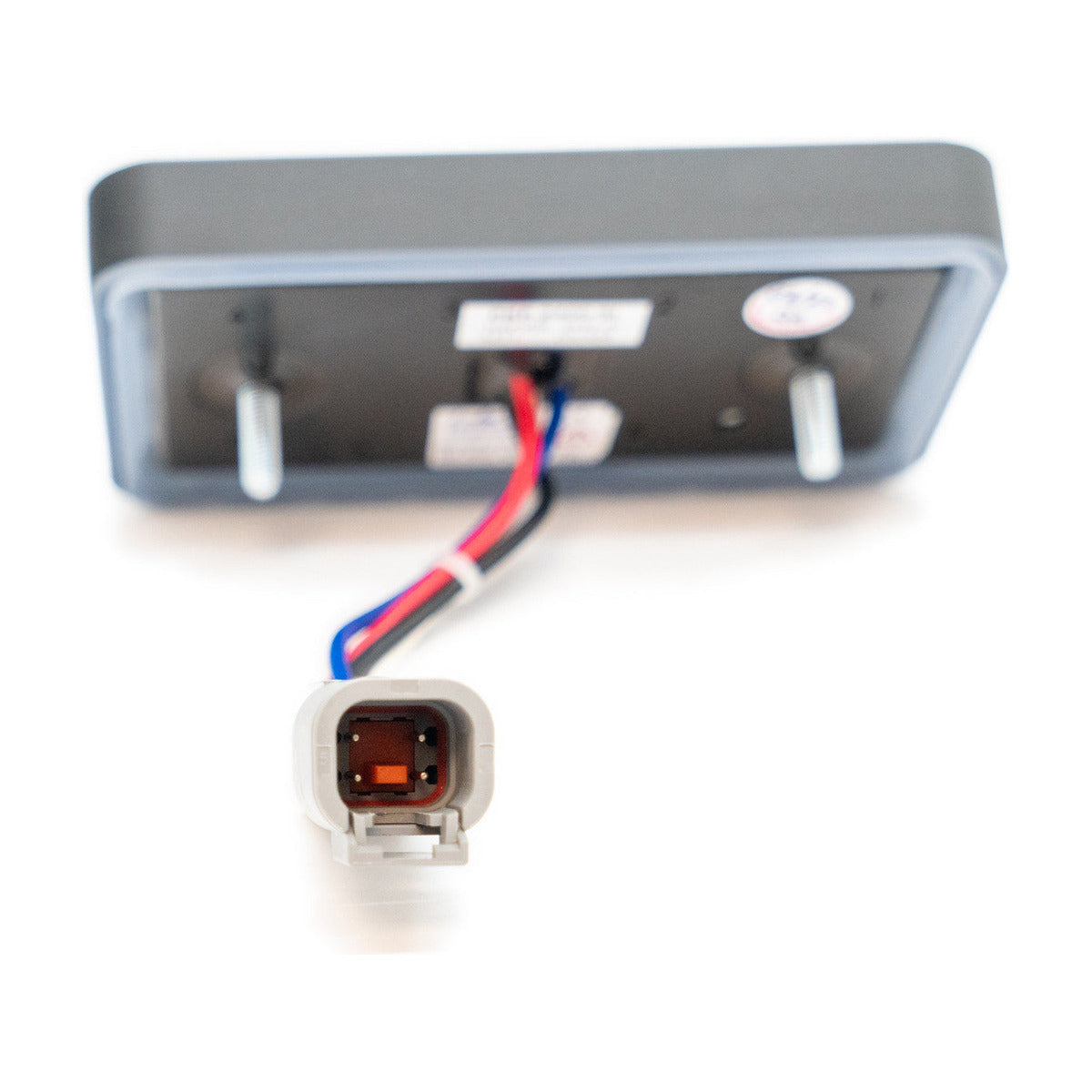

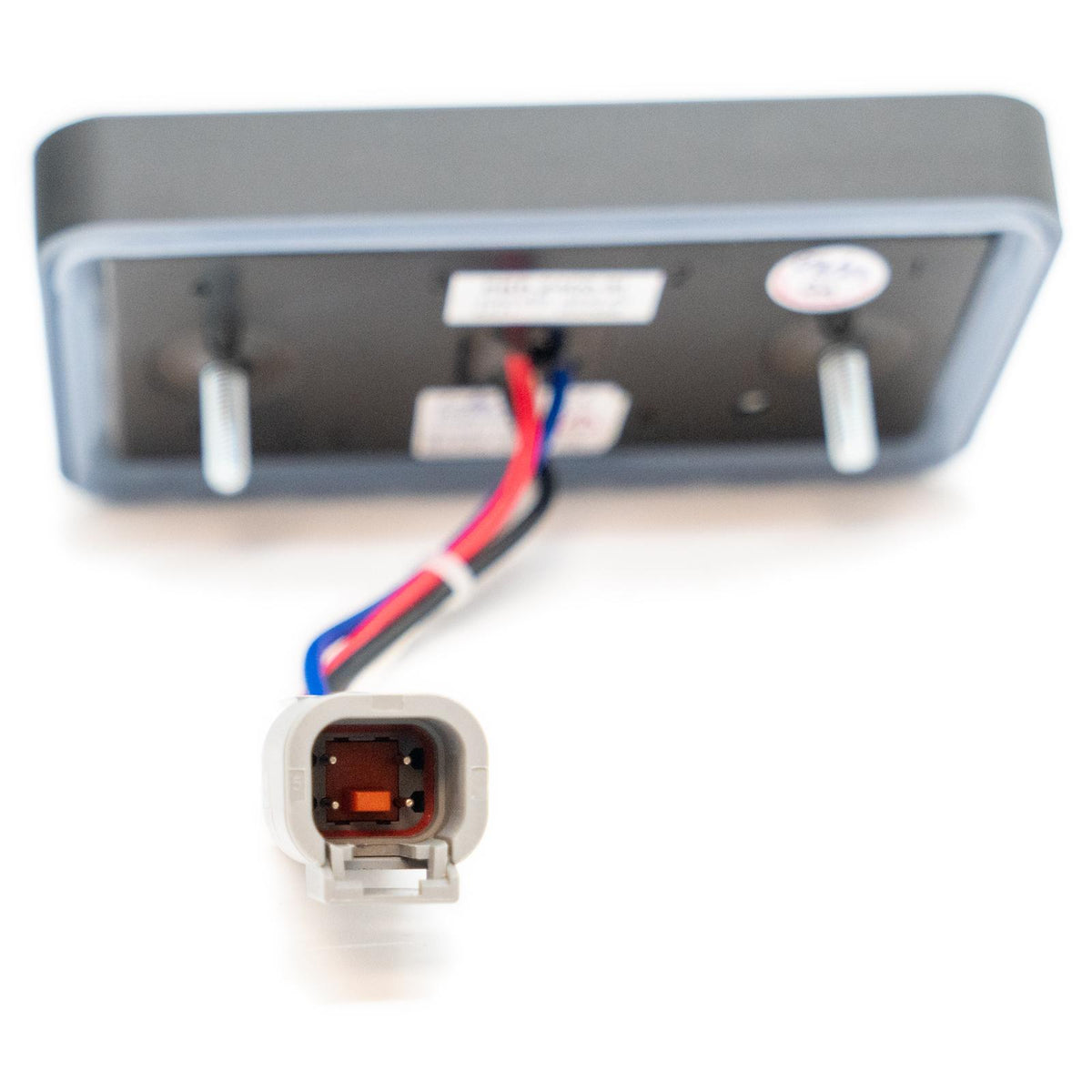

Connector |
DTM4 Connector for CAN and Power
Black = Ground
Red = Power
White = CAN High
Blue = CAN Low
|
Switch Life |
3 million operations |
CANopen Node ID |
0x15 (21) |
Default Baud Rate |
1000kbit/s |
Ingress Protection Rating |
IP67/IP69K |
Chemical Resistance |
Deet
Engine Cleaner
Isopropyl Alcohol
Suntan Lotion
Multi-Purpose Cleaner
Orange Citrus Cleaner
Muriatic Acid
|
UV Protection |
UVB 400 hours |
Mounting Specs |
Mounting Stud Gap (Centre to Centre): 78mm
Nuts thread: #10-32
Maximum torque: 0.8Nm
|
Measurements |
123.5mm (W) x 70mm (H) |
Electrical Specs |
Operating Voltage Range: 8-32V
Maximum Input Voltage: 32V
Maximum Continuous Current Draw: <50mA
Gauges of wire: NA
|
Box Contents |
1 x 8 Button CAN Keypad
1 x DTM4 Mating Connector Kit
1 x Link Sticker
1 x Keypad Button Insert – Link Logo
|
