Link MXT Strada 10-inch dash, powered by AIM.

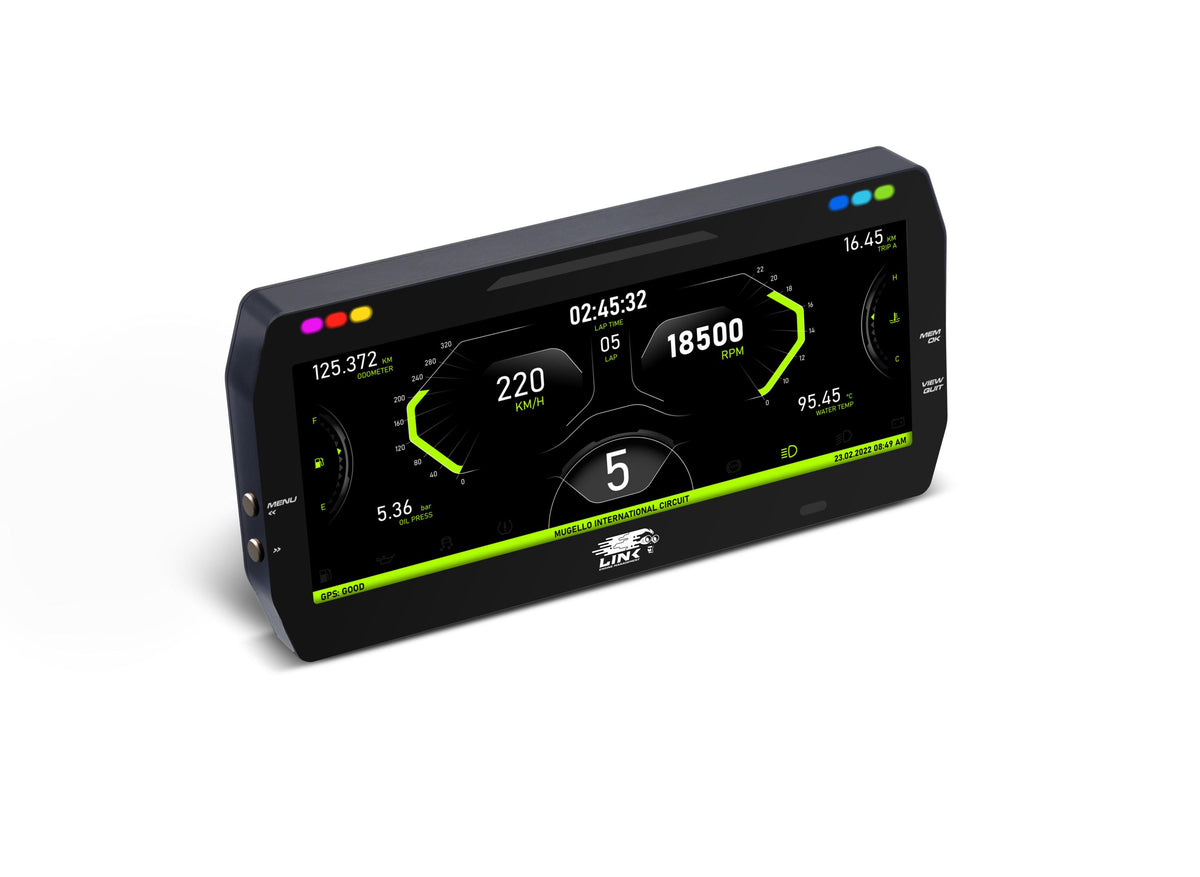

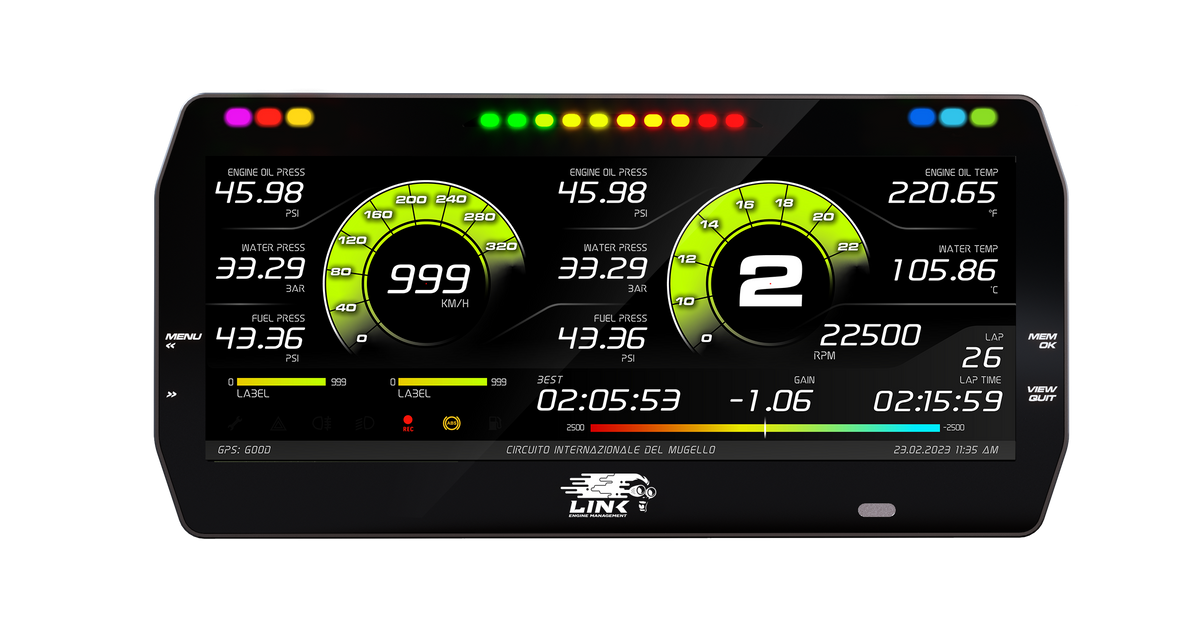

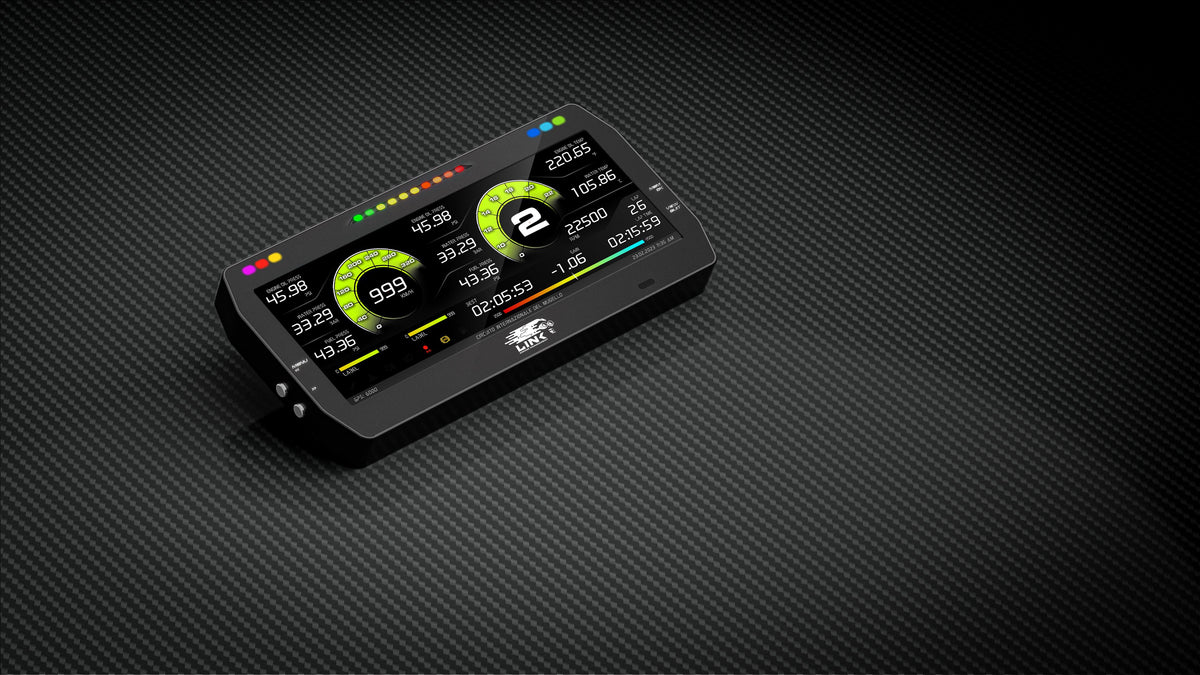

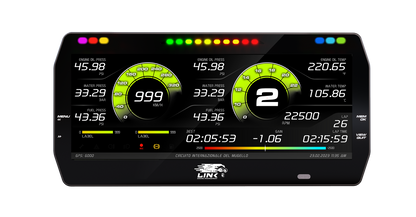

The Link MXT Strada Race edition is a full colour, 10-inch dash display with 10 RGB shift lights and six customisable alarm LED lights. It is pre-configured to work with all Link G4+/G4X/G5 Wire-In and Plug-in ECU's. See features tab for more information.

This listing is for the 'Race edition', please see the 'Street edition' if you are looking for a dash for street use.

The Strada dash is also available in 5-inch (MXS) and 7-inch (MXG) versions.


Specifications

Display 10-inch TFT
Resolution 1280x480 pixels
Contrast 1000:1
Brightness 700cd/m2 - 1,100 Lumen
Ambient light sensor Yes
Alarm LEDs 6 RGB freely configurable
Shift lights 10 integrated freely configurable RGB LEDs
CAN connections 3
ECU connections CAN
Analog inputs 8 fully configurable, max 1,000 Hz each
Digital inputs 1 speed input, coil RPM input
Digital outputs 1 (1 A max)
Second CAN Yes
Body Anodized Aluminum
Pushbuttons Metallic
Connectors 2 AMP connectors + 1 Binder connector
Power consumption 400 mA
Dimensions 278x135x43.2 mm
Weight 1200 g
Waterproof IP65

Link MXG dimensions
