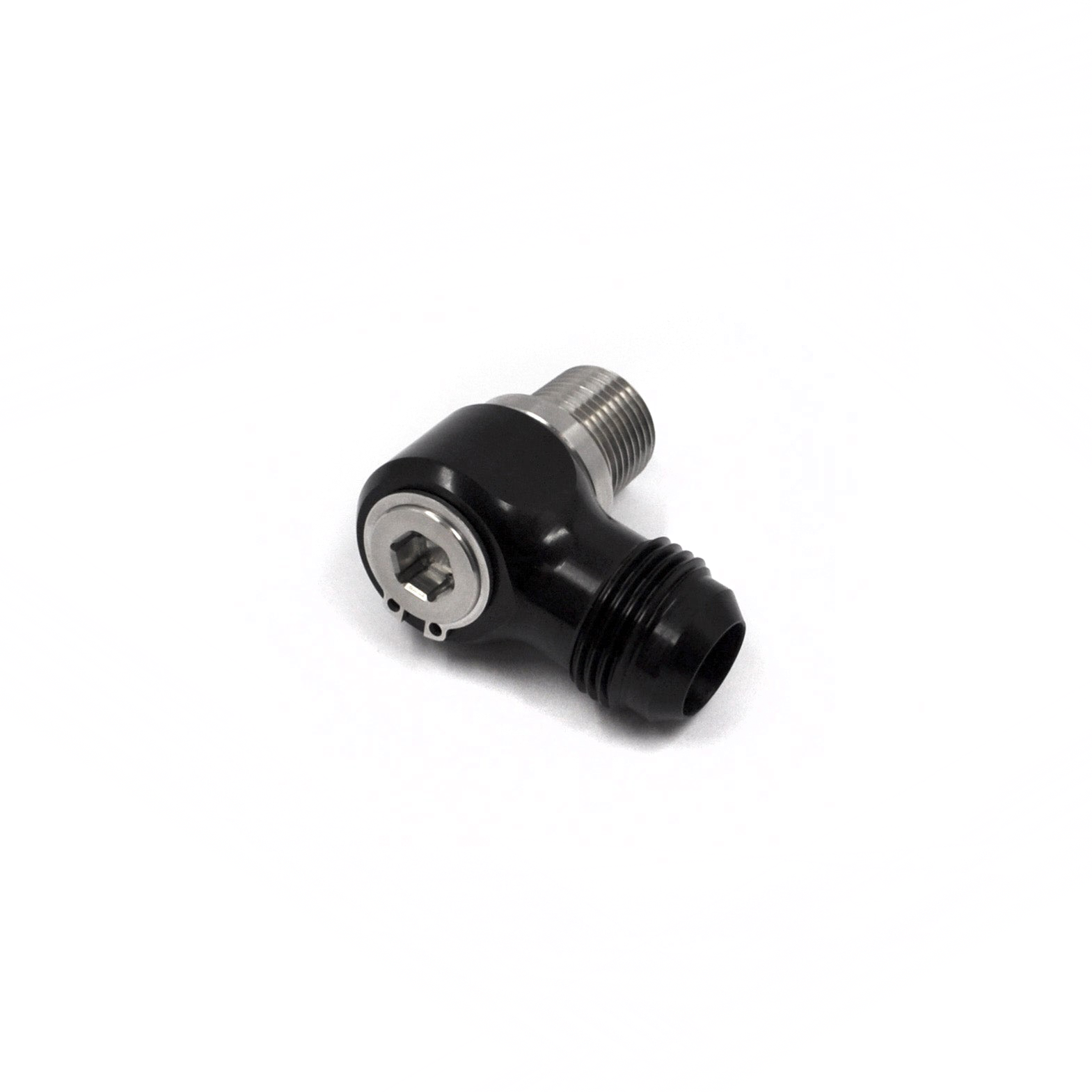

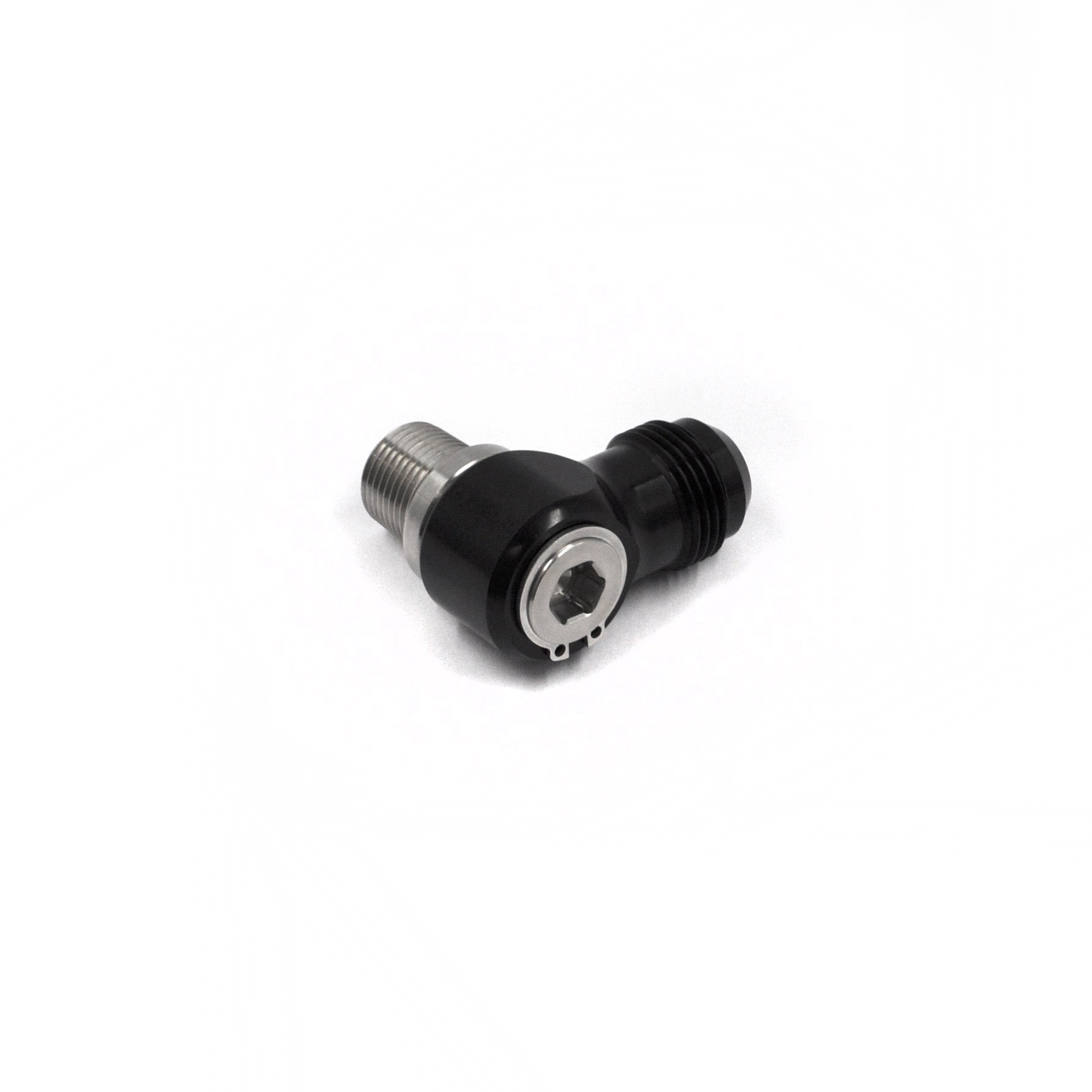

Low Profile Metric to AN Banjo Fittings

Perfect for using as rocker-cover breather fittings or areas in your engine bay with limited space. The double o-ringed banjo allows the AN fitting to rotate as required for easier installation of hoses or without moving engine components.

The AN banjo fitting is CNC machined from billet 6061-T6 aluminium and black anodised for great looks and light weight. The metric threaded insert is machined from 304 stainless steel and features an M10 internal hex for tightening.

Available in the following configurations:

• M16x1.5 to 8AN Banjo (Installed height: 28.5mm)
• M16x1.5 to 10AN Banjo (Installed height: 28.5mm)
• M18x1.5 to 8AN Banjo (Installed height: 28.5mm)
• M18x1.5 to 10AN Banjo (Installed height: 28.5mm)
• M18x1.5 to 12AN Banjo (Installed height: 32.5mm)
• M22x1.5 to 10AN Banjo (Installed height: 32.5mm)
• M22x1.5 to 12AN Banjo (Installed height: 32.5mm)


Supplied with a copper washer.

Sold individually, not as a pair.

All machined components are proudly manufactured at our factory in Napier, New Zealand.

We also have NPT & AN ORB to AN banjo fittings available in our other listings.
