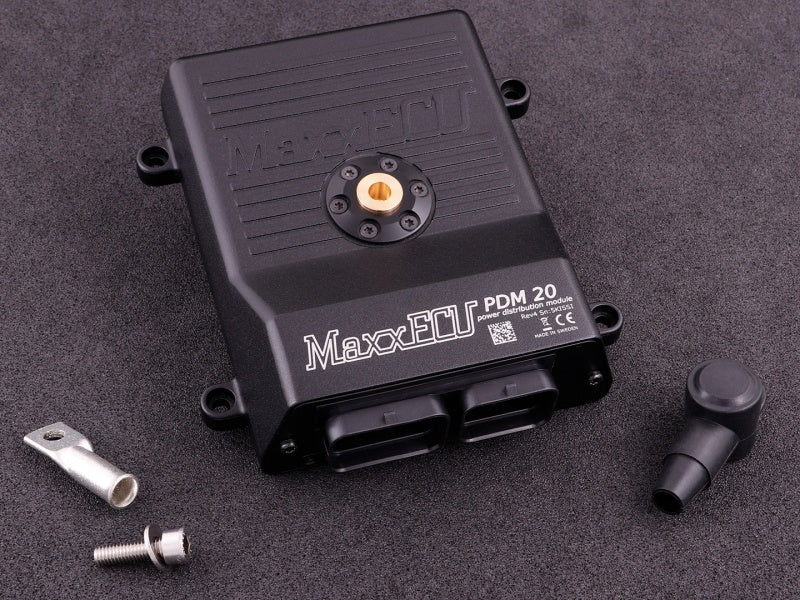

MaxxECU PDM20

The MaxxECU PDM20 is an advanced Power Distribution Module for MaxxECU units and is designed to replace fuses and relays in a modern way.

• Max 230A.
• 20 outputs (8x25A, 8x15A, 4x8A).
• 7 digital / analog (0-24V) inputs.
• All outputs can be PWM controlled.
• Dedicated +5V power supply and sensor ground.
• CAN bus for communication and setup management with MaxxECU MTune PC software.
• Overcurrent protected adjustable levels with automatic restart with soft start option.
• Warning levels for under / over currents.
• Works with all MaxxECU devices.
• Error code handling.
• Support for CAN keypads.
• Built-in energy saving mode that draws only 0.004A.
• For high loads, outputs are connected in parallel.
