Oil Filter Relocation Block Fitting

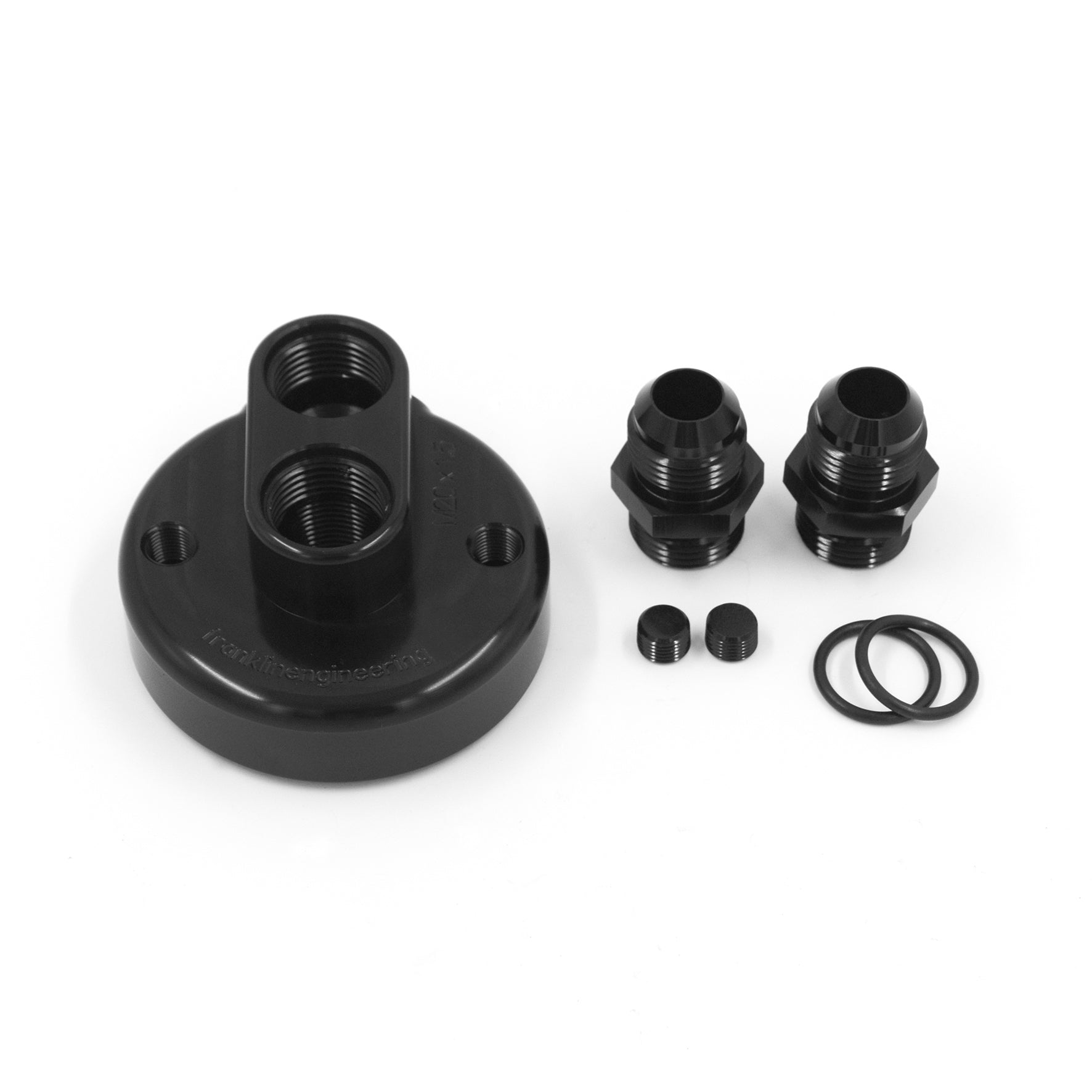

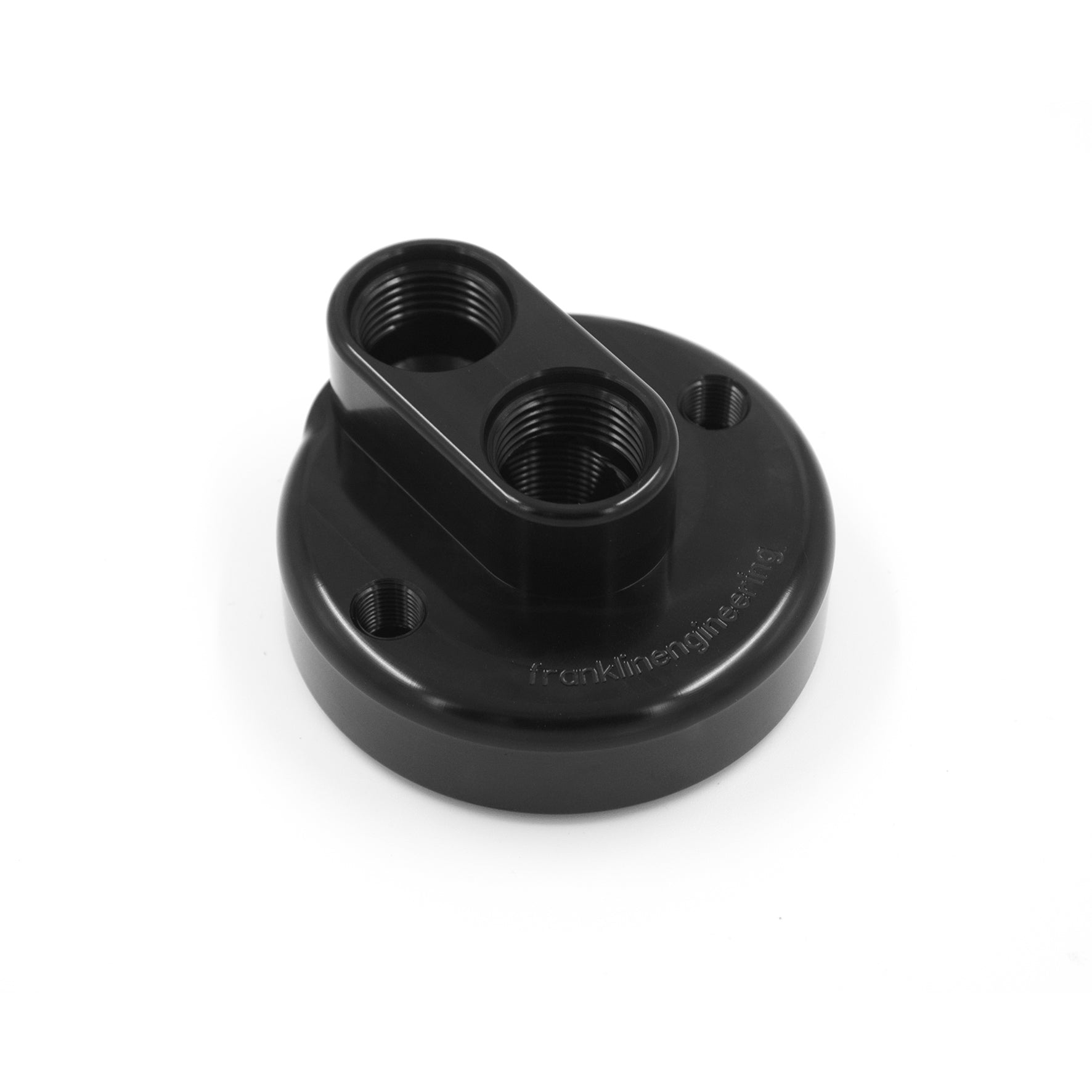

Remote oil filter block fitting manufactured by Franklin Performance for plumbing a remote oil filter, making filter changes easier or where space is limited in the engine bay.

This is high quality product that we have designed and manufacture at our factory in Napier, New Zealand. The product has many features to improve oil flow that you won't find on other remote filter block fittings

10AN sized ORB ports are provided for plumbing the engine oil to and from a filter mount. Two 1/8” NPT ports are also provided for filtered oil feeds to gauges or a turbo.

The block adaptor is manufactured with either a 3/4" UNF, 13/16"-16 UNF or M20x1.5 internal thread to screw on to the same location as your factory oil filter. Please choose the adaptor you require from the dropdown menu.

O-Ring inside diameter: 62mm
O-Ring outside diameter: 70mm

It is manufactured from billet high-grade 6061 aluminium, then anodised black for great looks and corrosion resistance.

We also stock remote filter mounts, oil coolers, braided hoses and manufacture many other automotive performance parts. Please have a look at our other listings.
