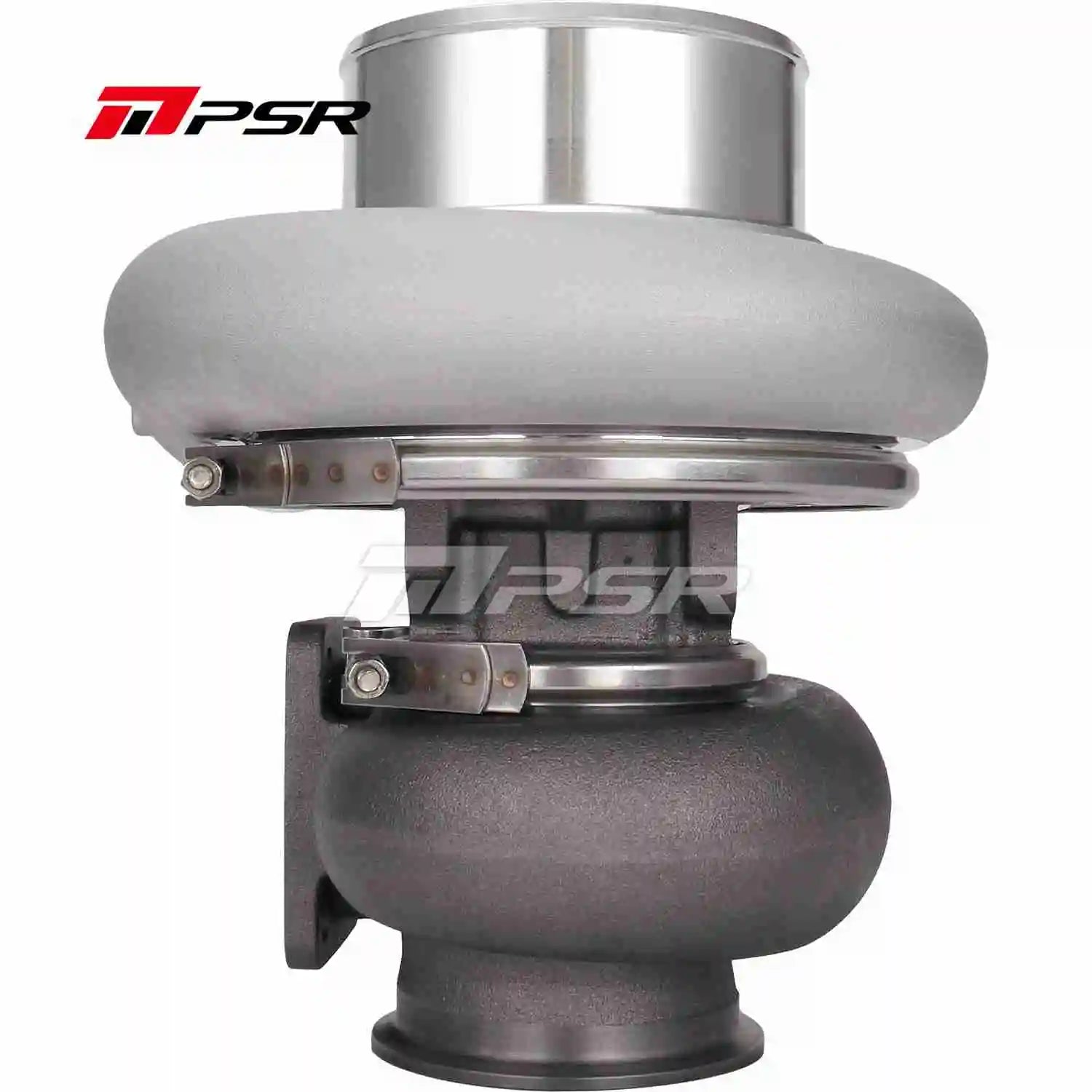

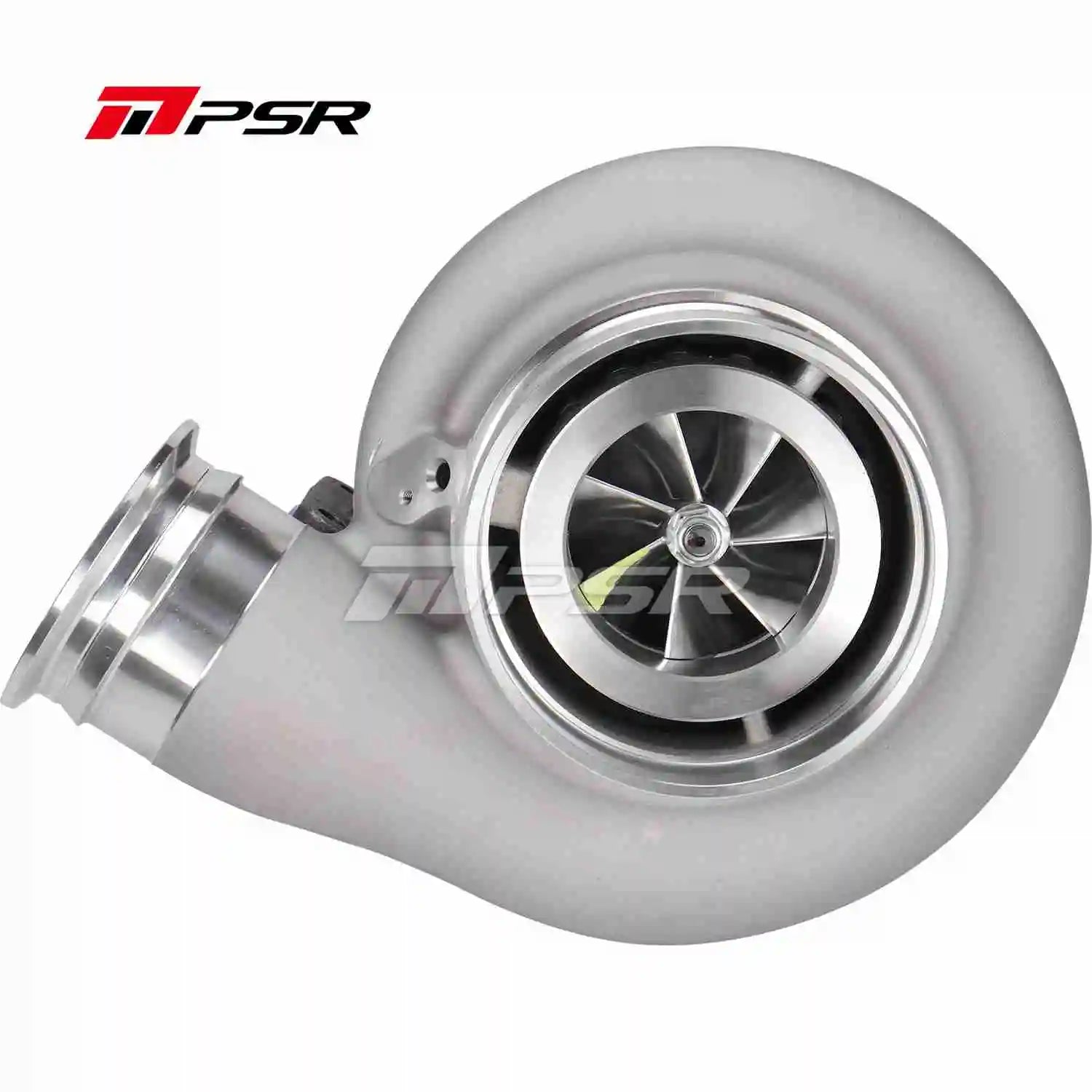

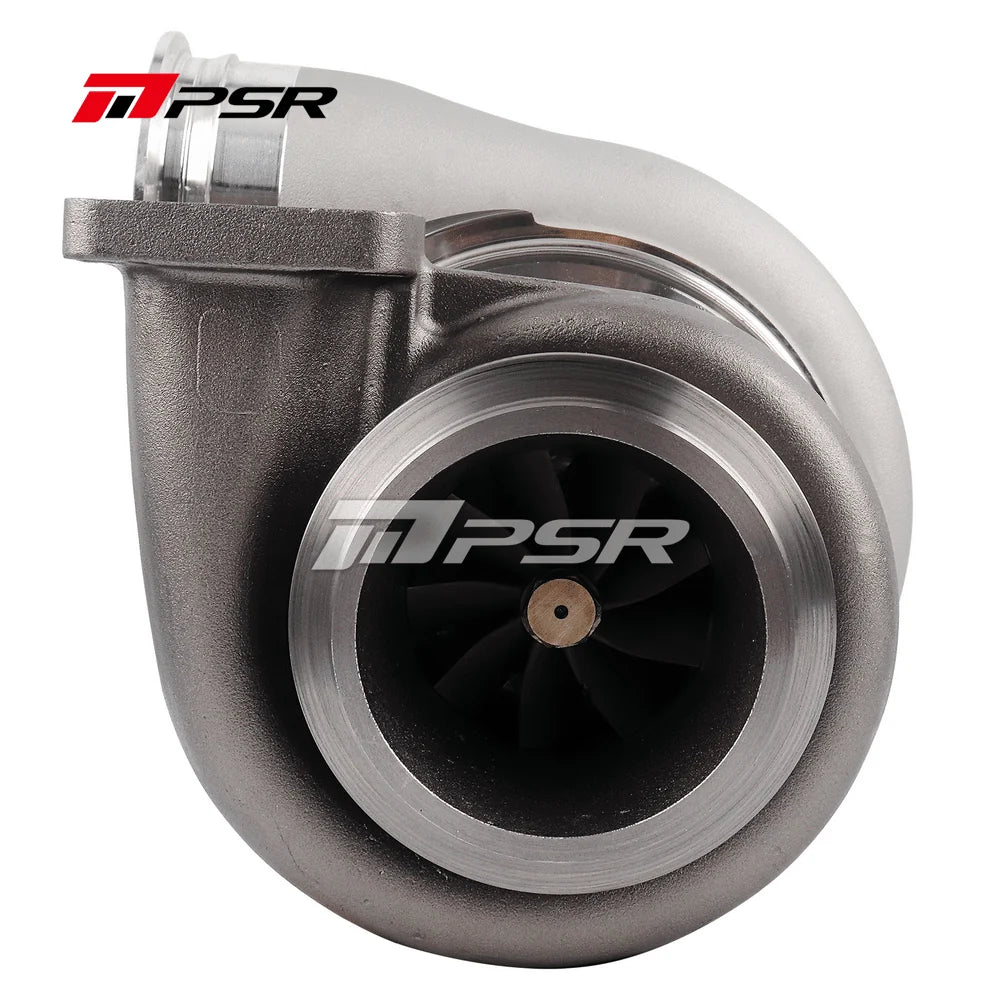

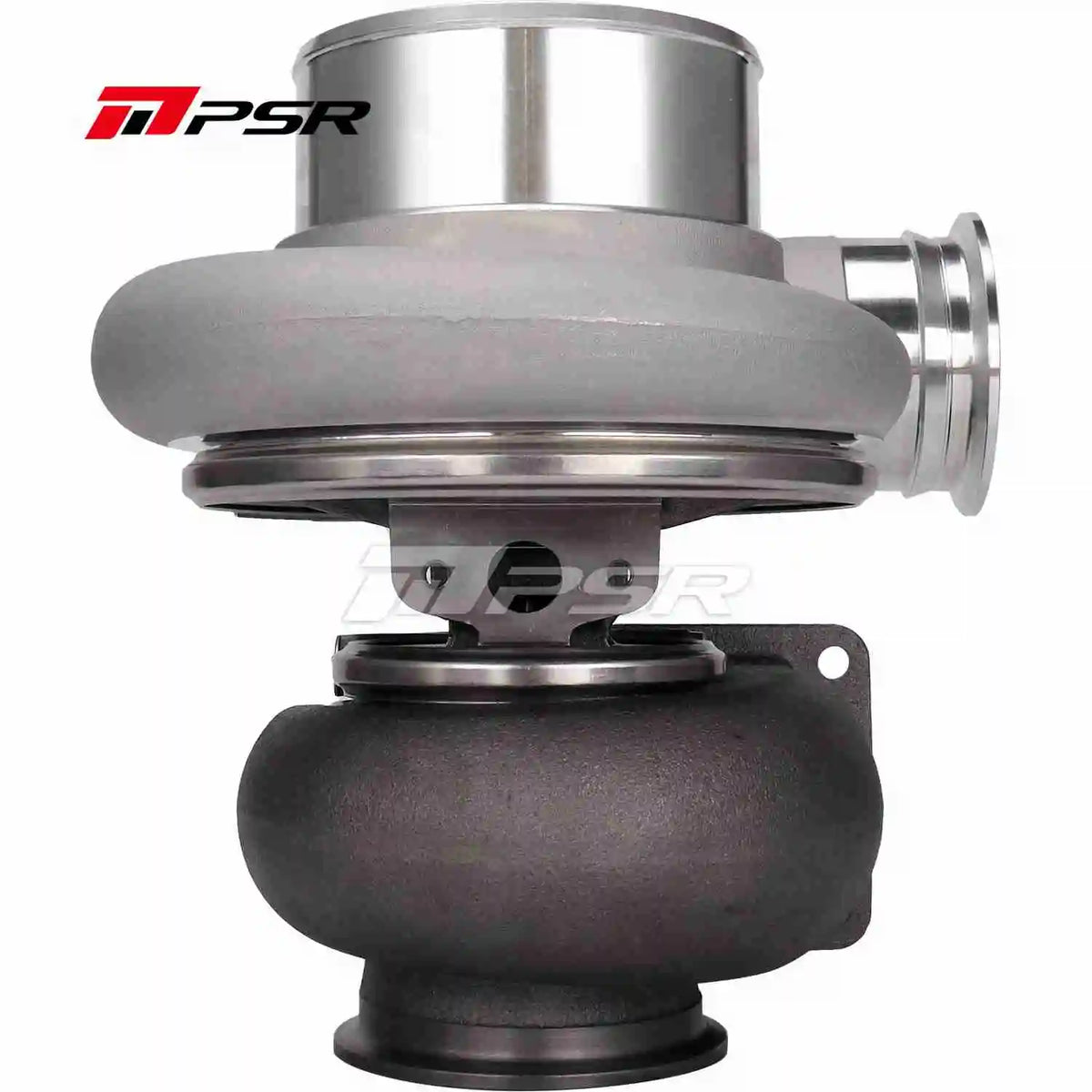

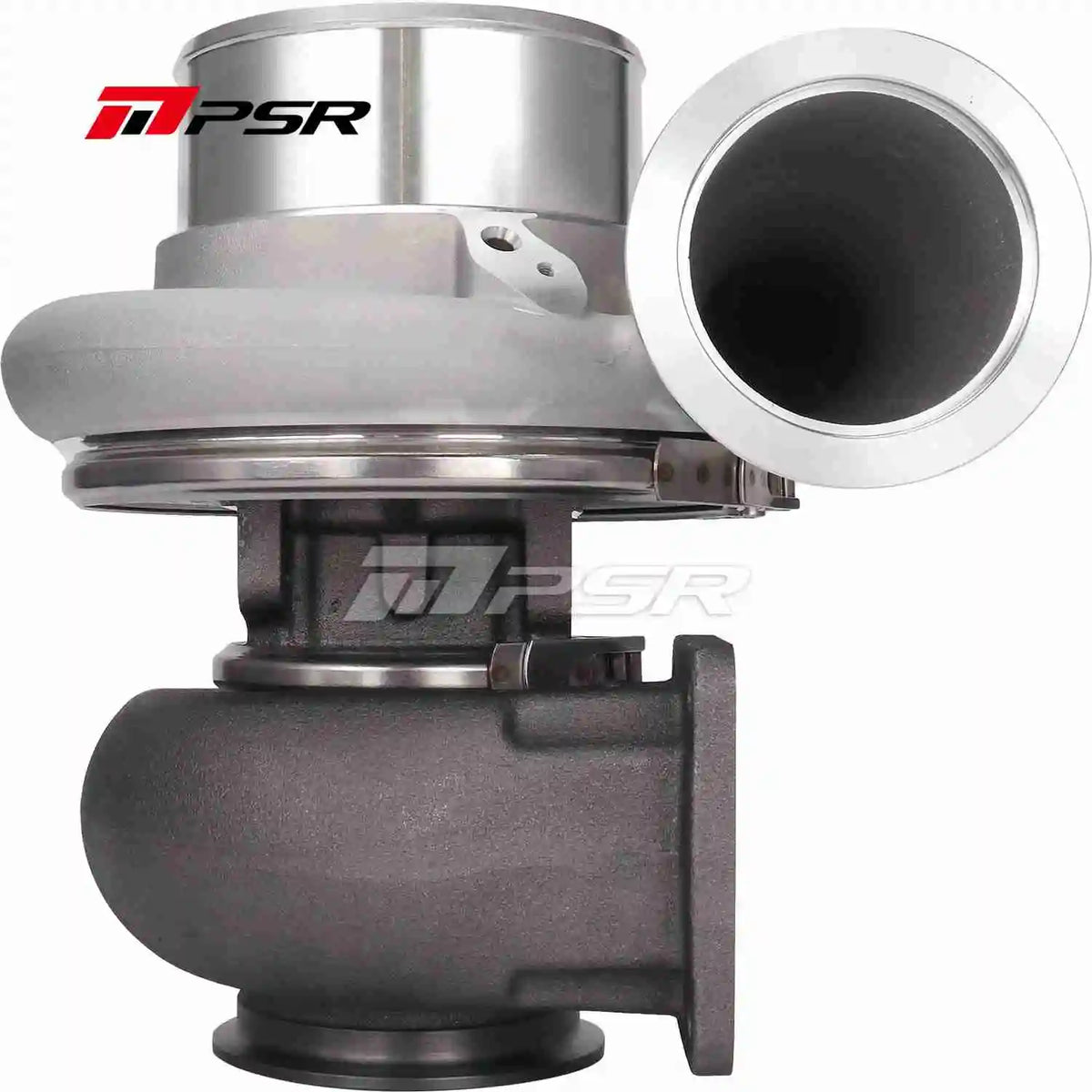

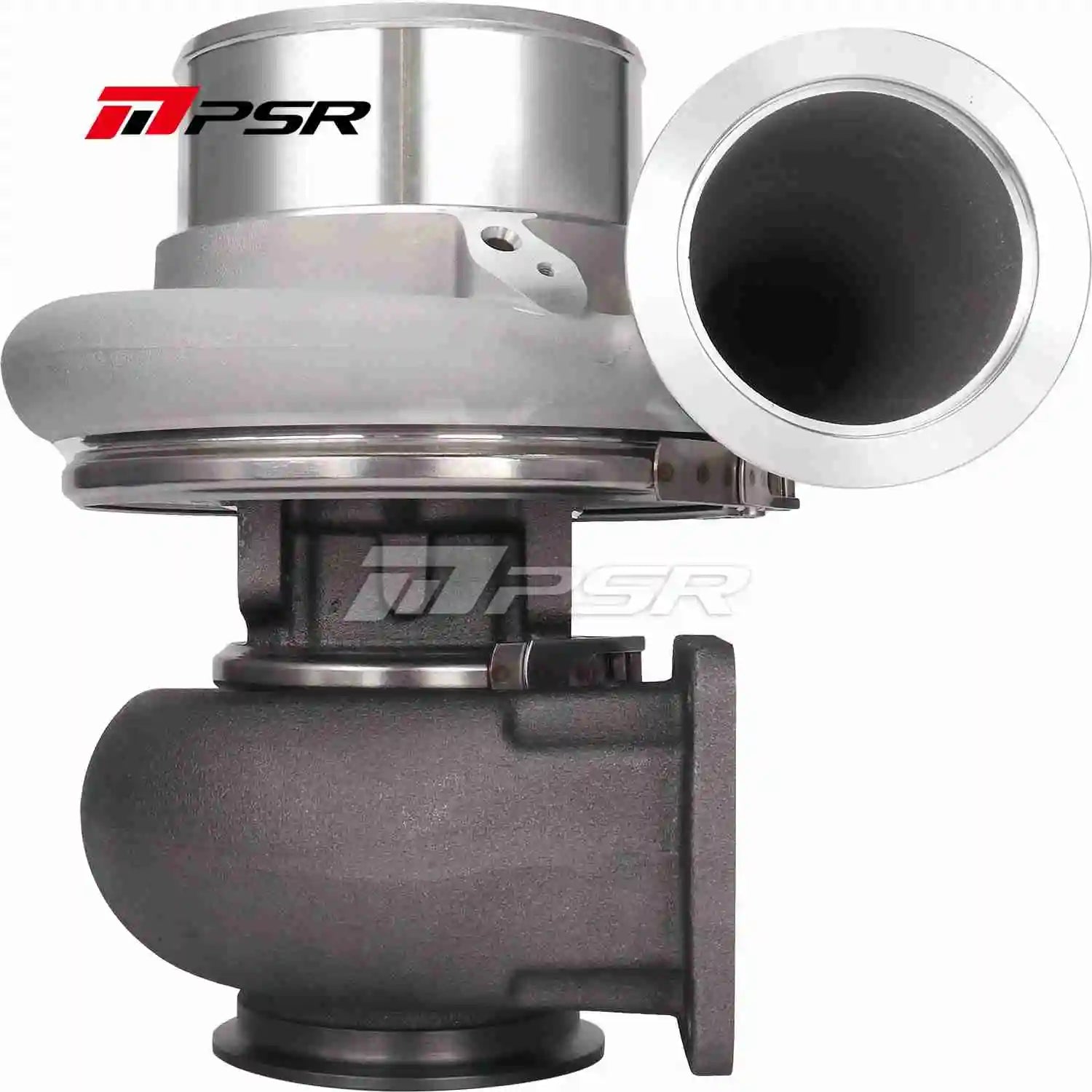

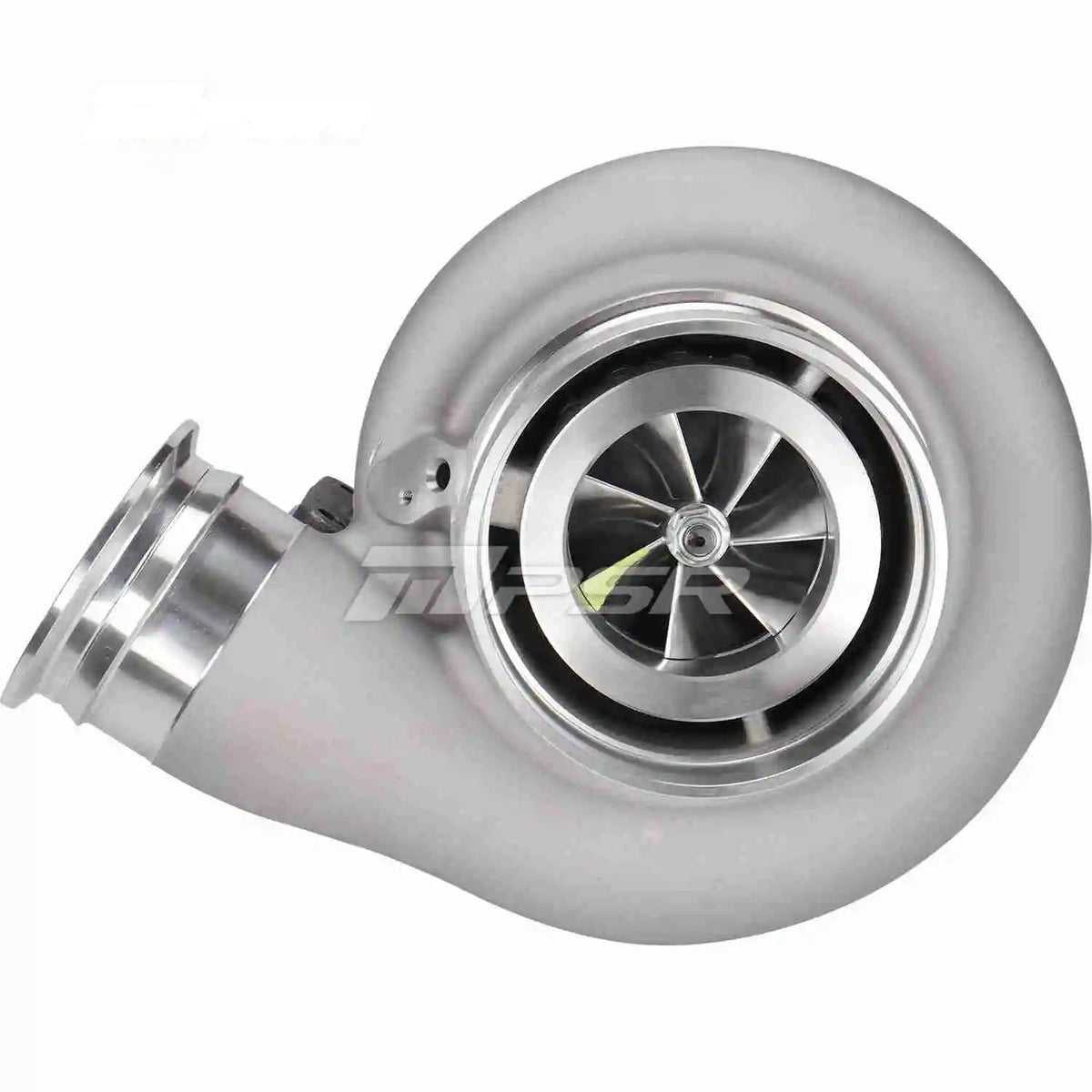

PSR 492G Journal Bearing Billet Compressor Wheel Turbocharger

• Billet compressor wheel with extended tip technology for the ultimate in aerodynamics
• Inconel 713 turbine wheel for high-temperature operation

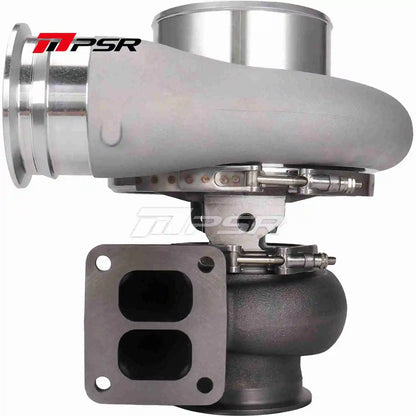

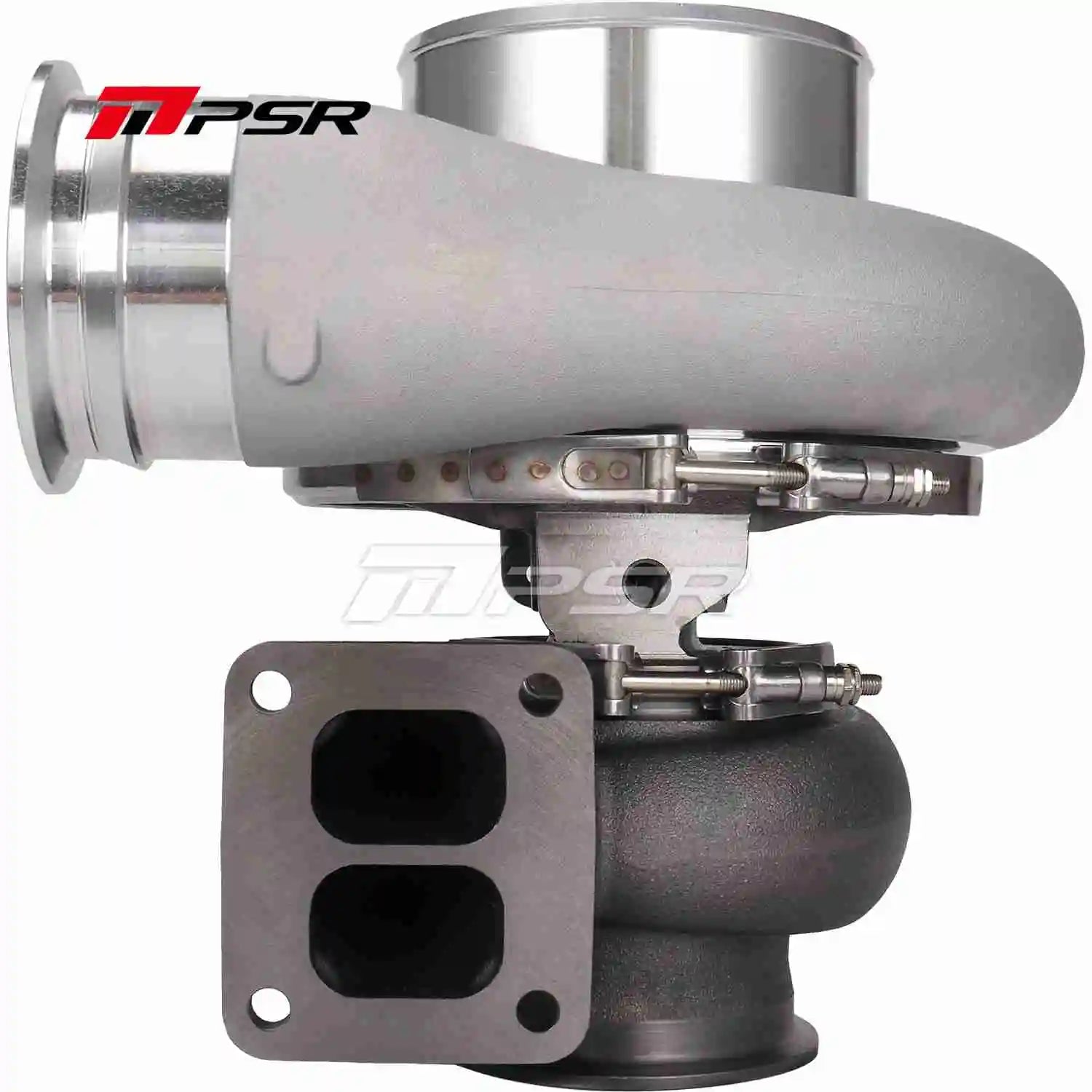

• T6 Divided turbine housings in 1.15A/R 1.32A/R 1.45A/R or 1.58 A/R with 5″ V Band Outlet 5.75 OD Marmon flange
• T4 Divided turbine housing in 1.25 A/R with 4” Vband Outlet

Description

Recommending Engine Displacement: 3.0-8.0L

HP Rating 750-1650

Features:

• Compressor Wheel Options: 92x122mm 7+7 Blade
• Billet Compressor Wheels with Extended Tip Technology
• Turbine Wheel: 96x88mm 9+0
• STD and T51R MOD in option for Compressor Cover with Speed Sensor Port integrated
• -12AN Oil Drain Flange and TRB. Inlet Gasket Come in Box

Details:

• Compressor Inlet: 5.5” Slip-Fit
• Compressor Outlet: V-band
• Turbine Housing A/R: 1.25, 1.15, 1.32,1.45 and 1.58 in Option
• Turbine Housing Inlet: T4 Divided and T6 Divided in Option

V-band Flange Kits are available:

PULSAR 400 T6 Turbo 5" to 4″ Stainless Steel Flange Clamp Kit

PULSAR 400 T6 Turbo 5″ Stainless Steel Flange Clamp Kit

V-Band Flange Clamp Kits for PTG42 PT/X42 PT/X45 PT/X47 PT/X50 PT/X55 400 etc. Compressor Outlet
