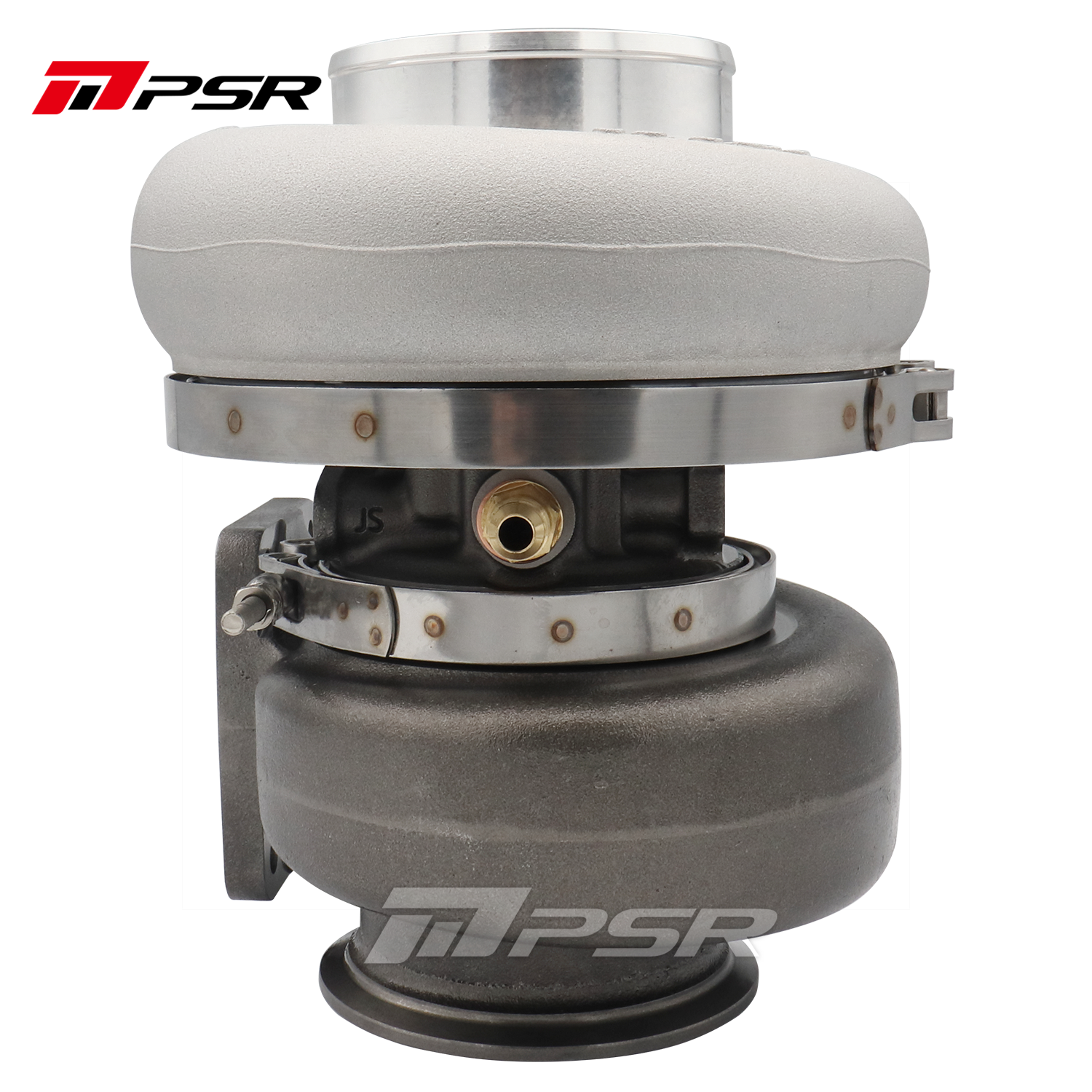

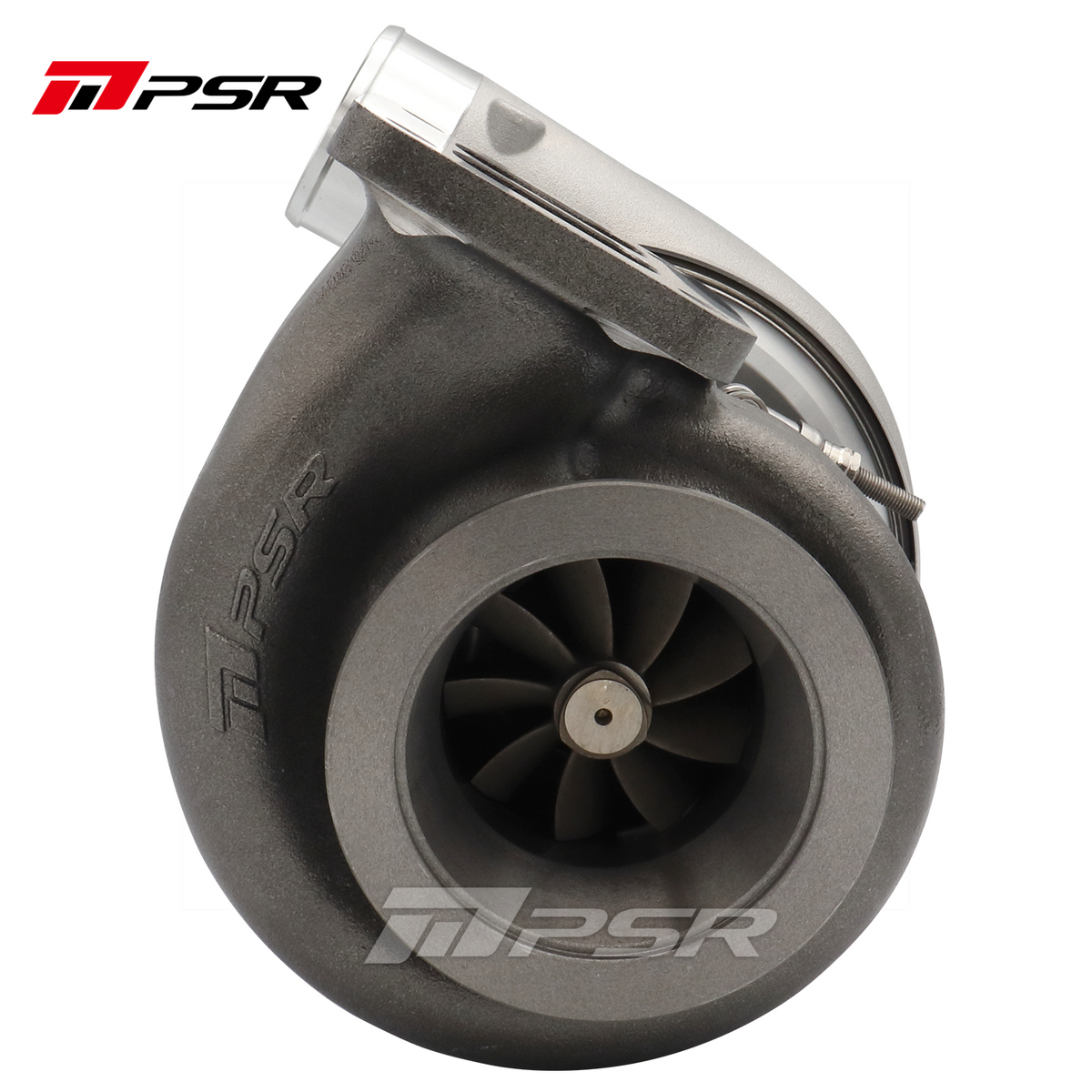

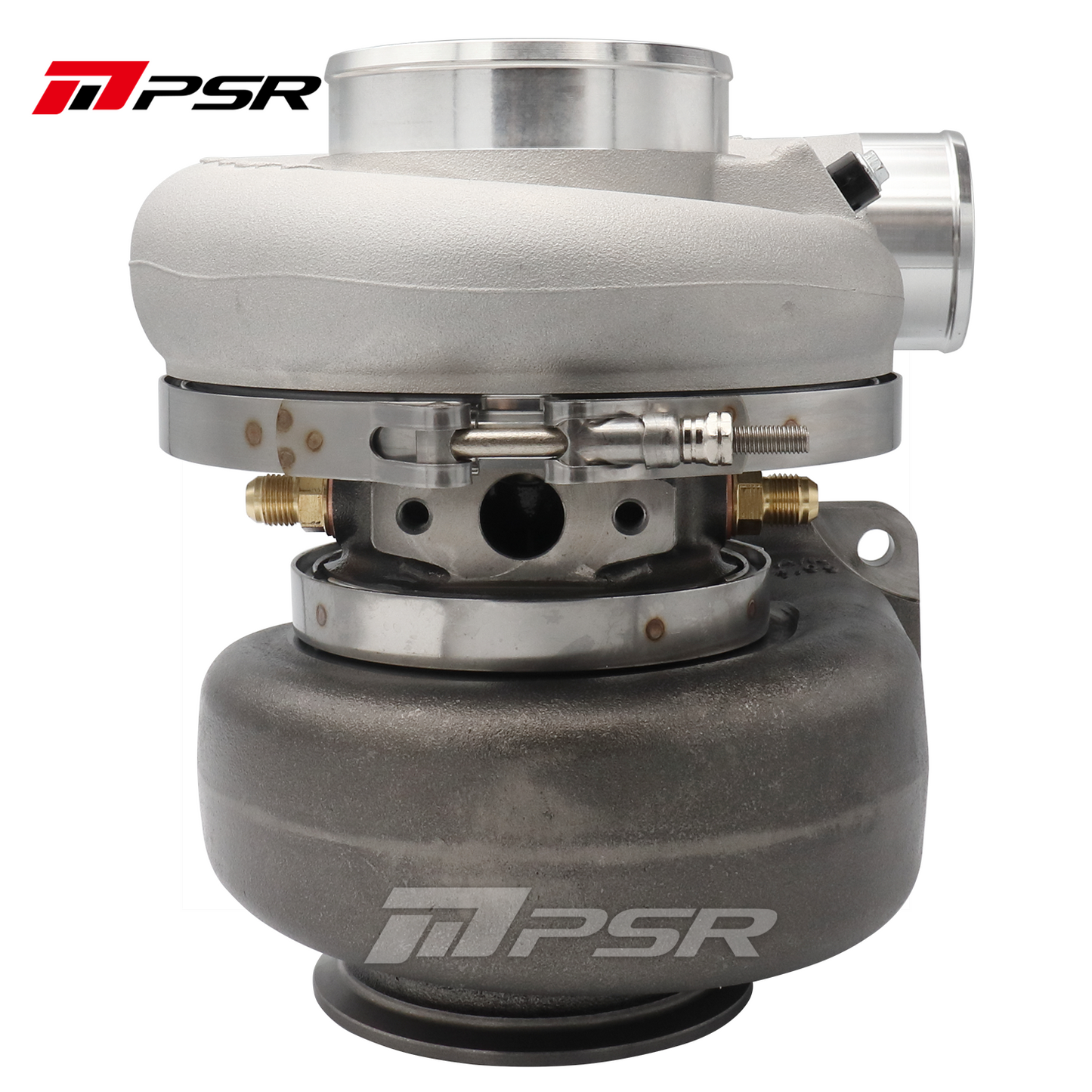

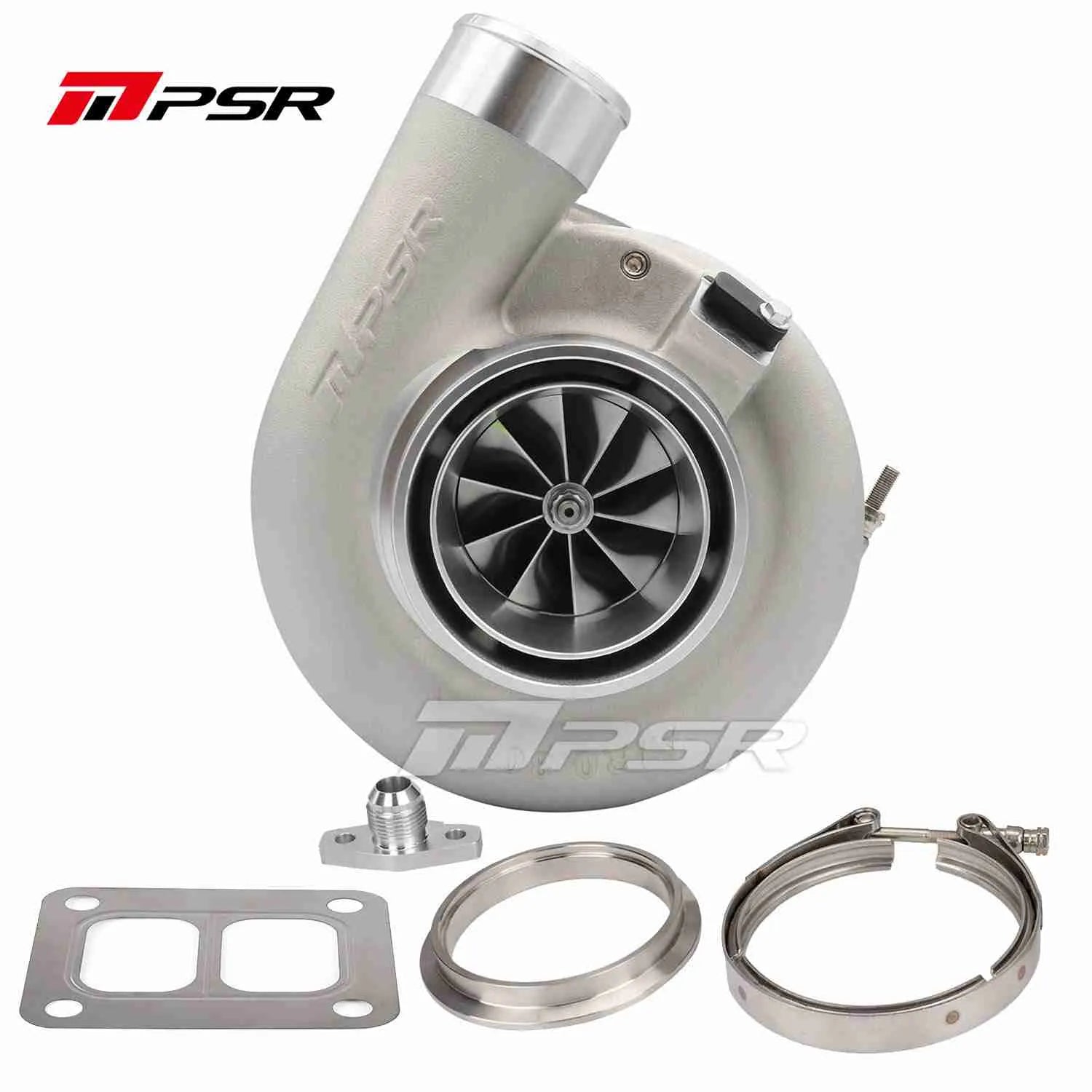

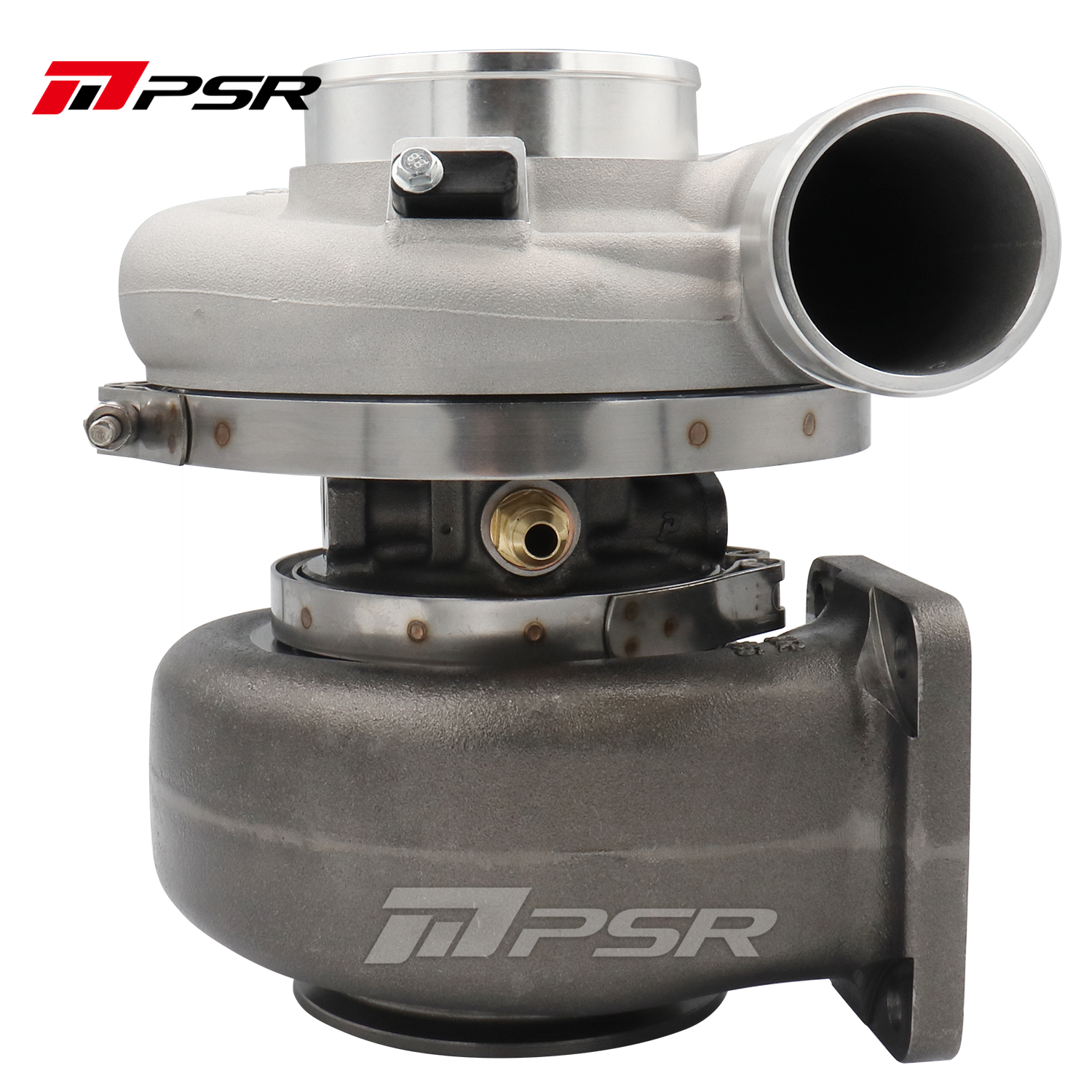

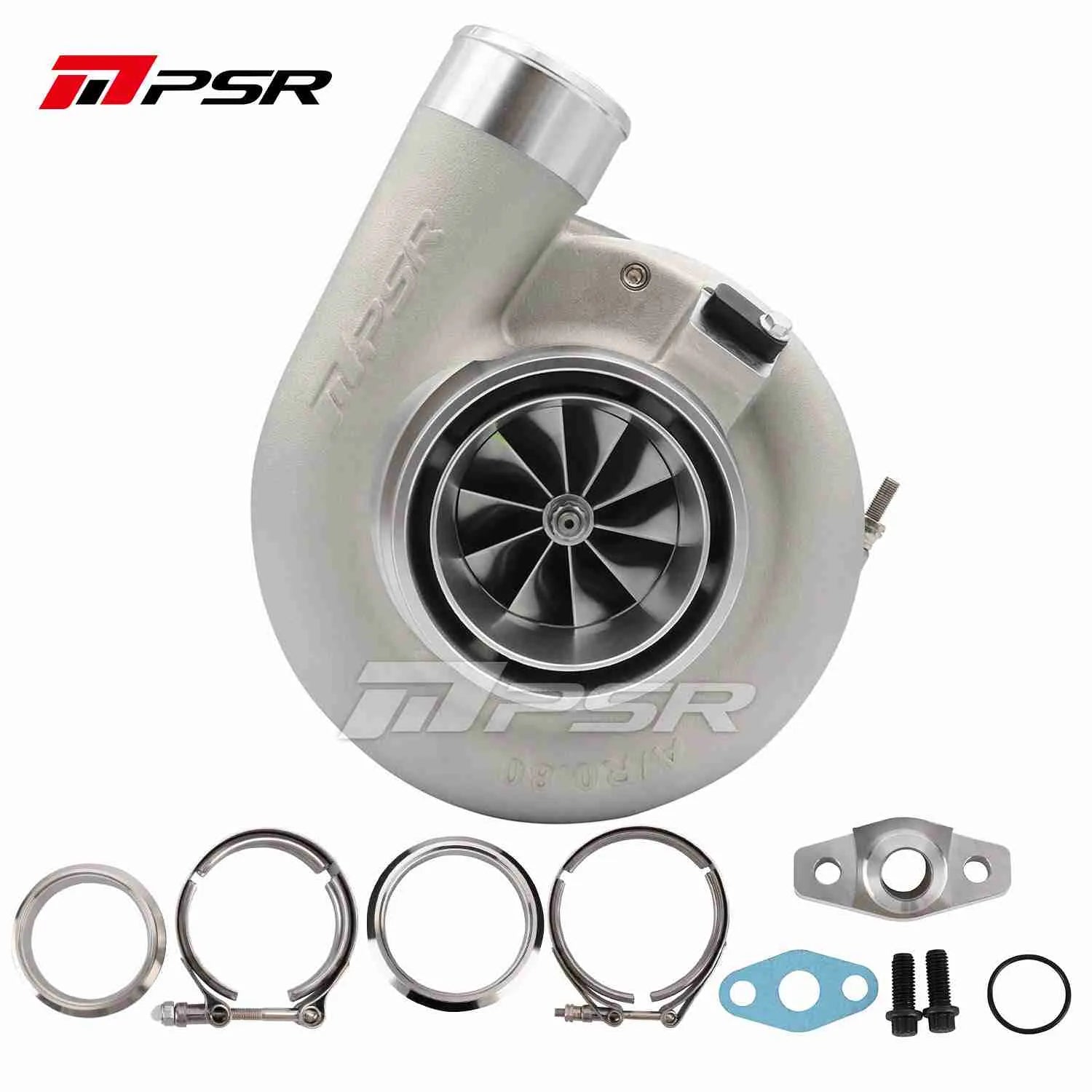

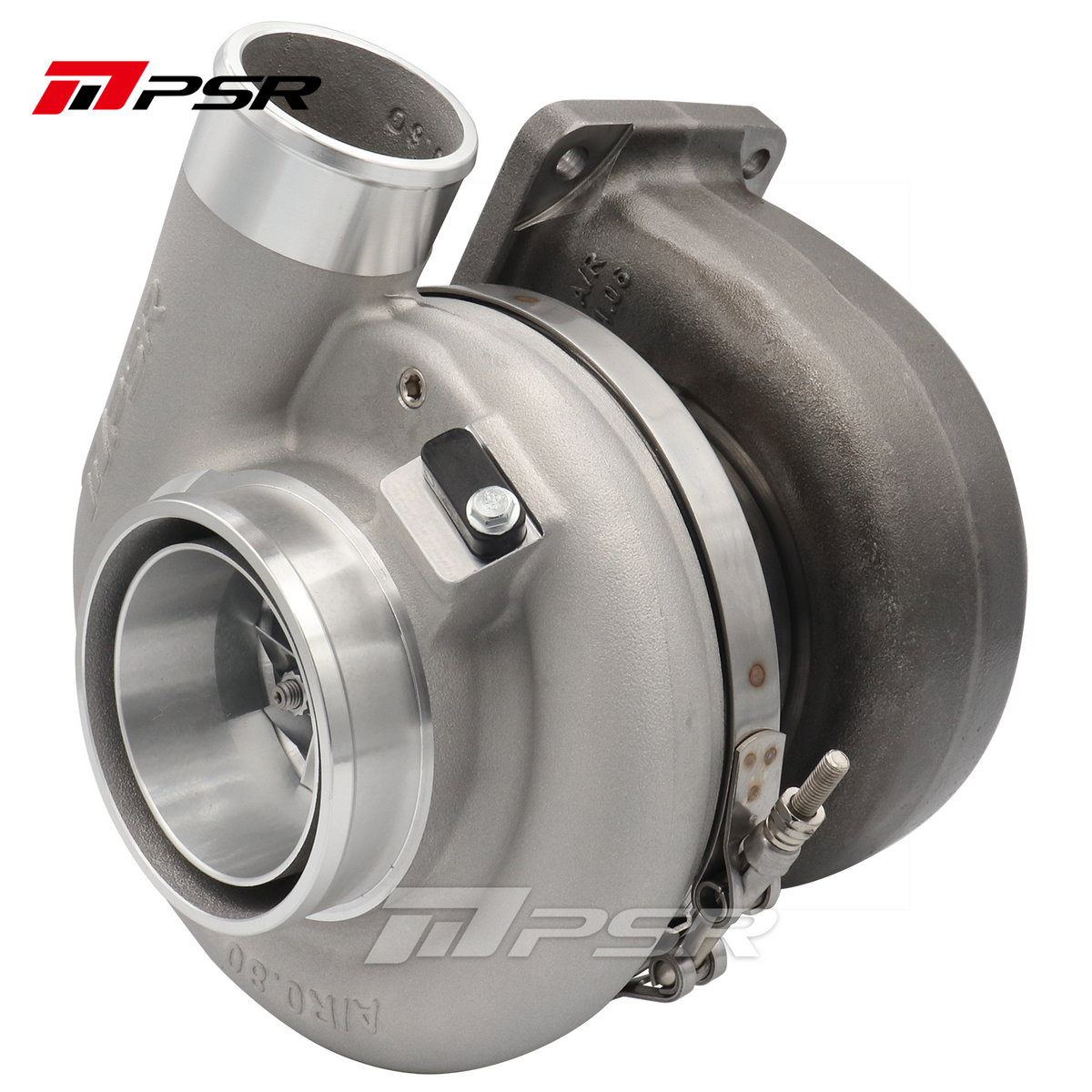

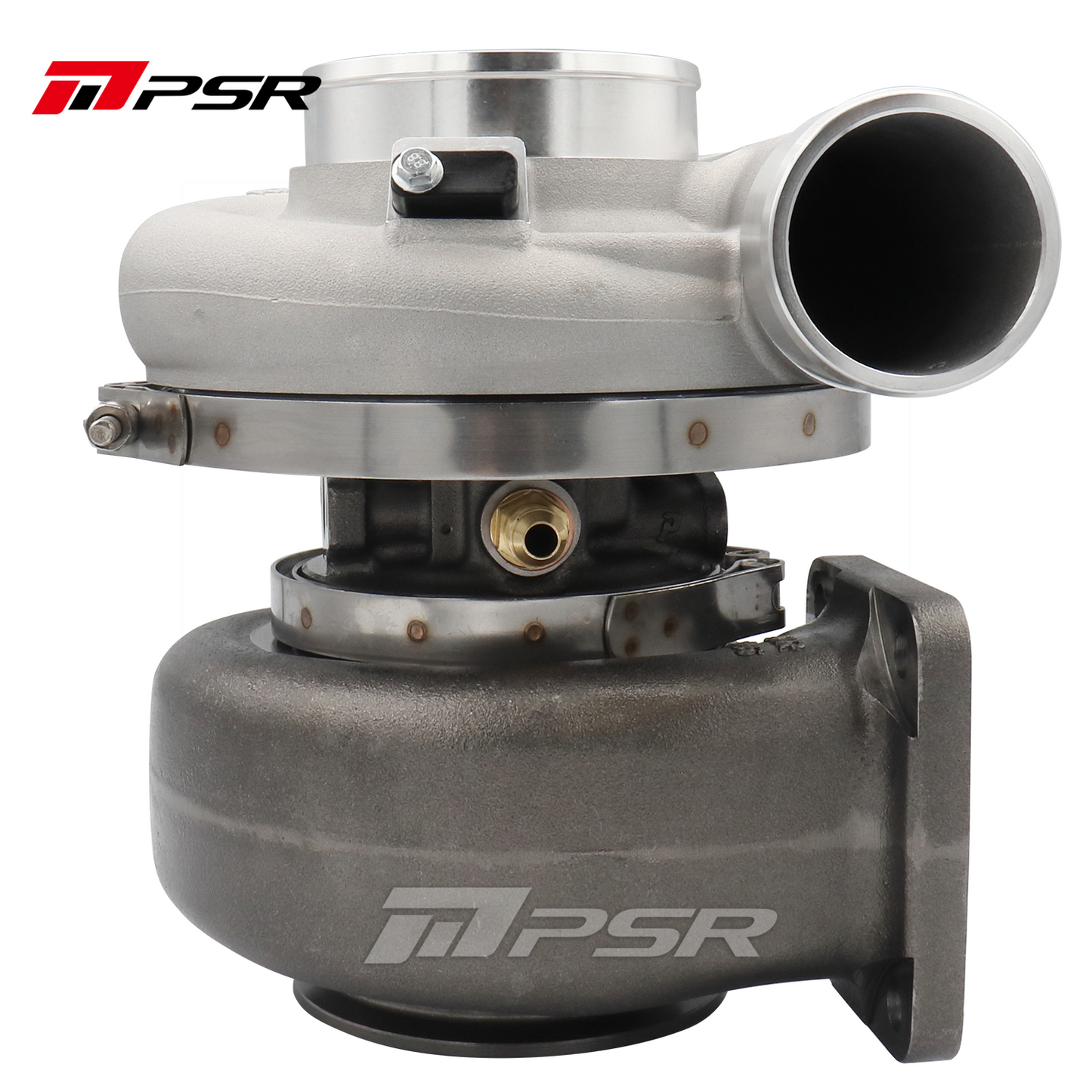

PSR 7170G Dual Ball Bearing Turbocharger HP Rating 1150

• Dual ceramic ball bearing with steel cage provides optimal turbo response &
  better durability by reducing the shaft-motion
• 71mm inducer 10 Blade G-Aero billet compressor wheel with extended tapered tip technology
• 9 Blade G-Aero Inconel 713c turbine wheel
• Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor and pressure ports
• Water fittings included with the super core
• 3 Options in Turbine Housing
• Suitable engine size: 2.0-6.0L
• HP rated at 1150HP at the flywheel

Description:

• Bearing Systems: Dual Ceramic Ball Bearing
• Compressor Wheel: 71*88mm
• Turbine Wheel: 77*70mm
• Compressor Inlet: 4″ Hose
• Compressor Outlet: 2.5″ Hose
• Turbine Inlet: V-band or T4 divided
• Turbine Outlet: 3.5” or 4″ V-band (see details after housing selection)
• Water Ports: -6AN
• Oil Feed(excl’): Flange Required (Recommended size: -4AN Std T4 Flange)
• Oil Drain: -12AN (O-Ring sealed Flange Kit Incl’)

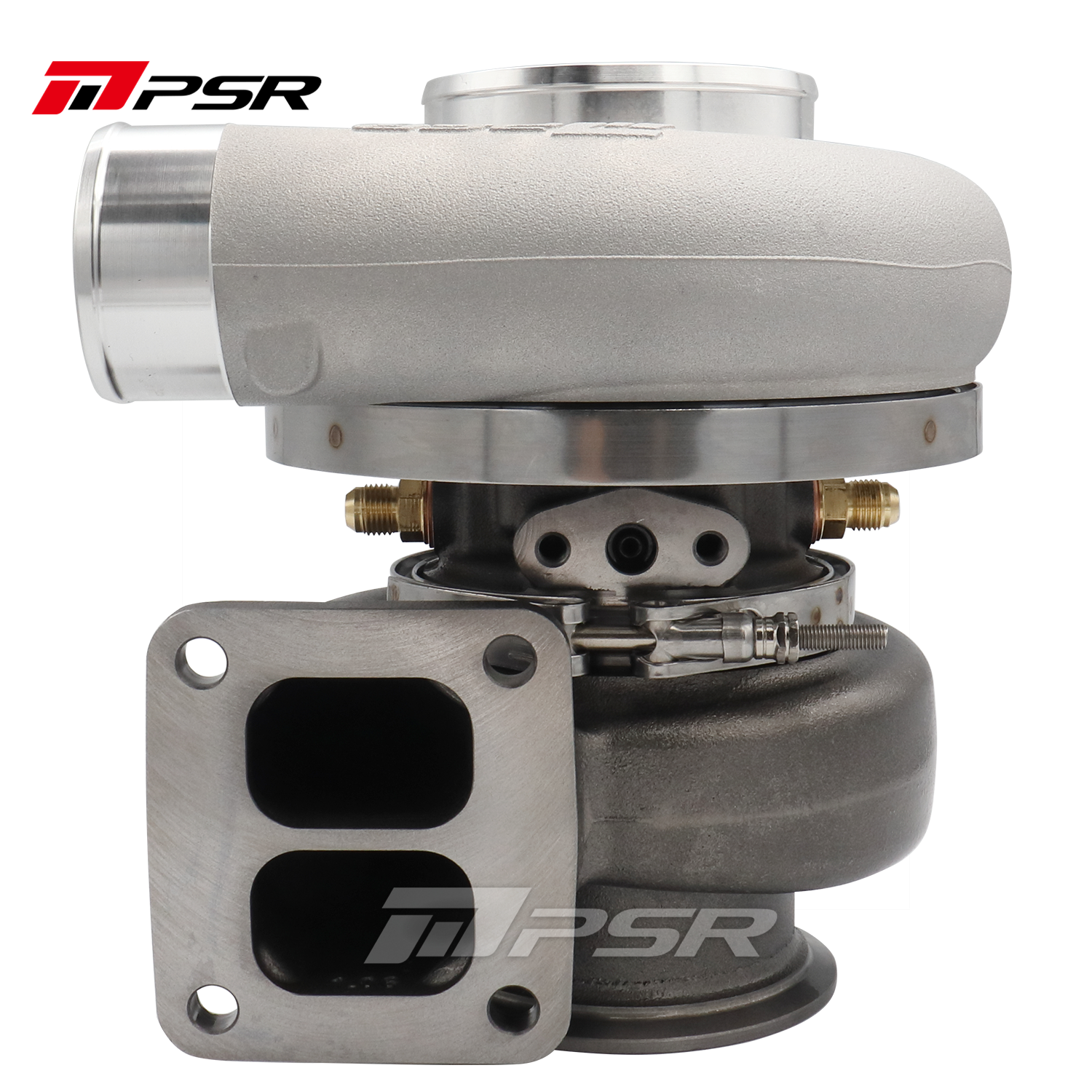

• Turbine Housing Options: T4(Divided) 0.95 A/R, 1.06 A/R, Dual V-band 1.06A/R
