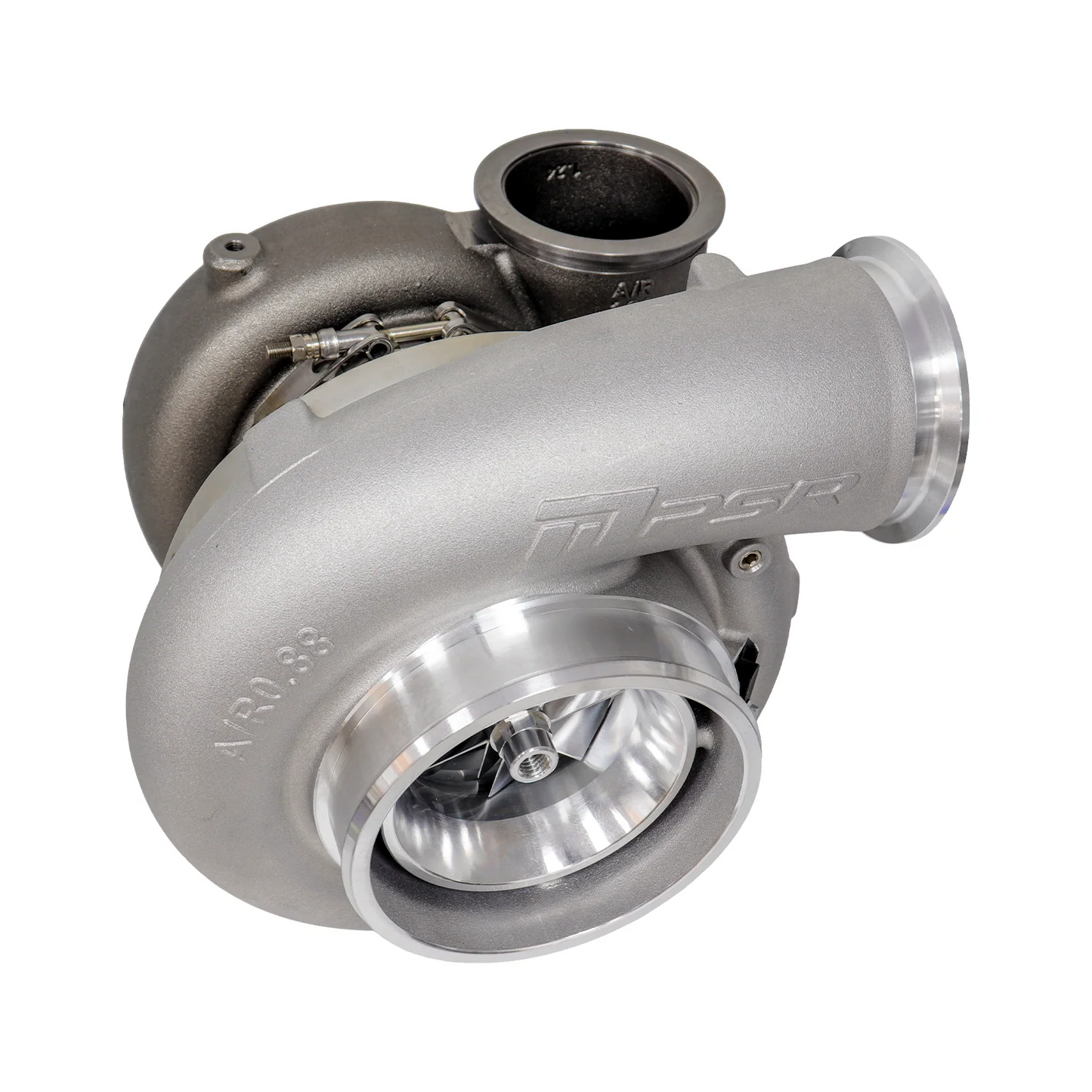

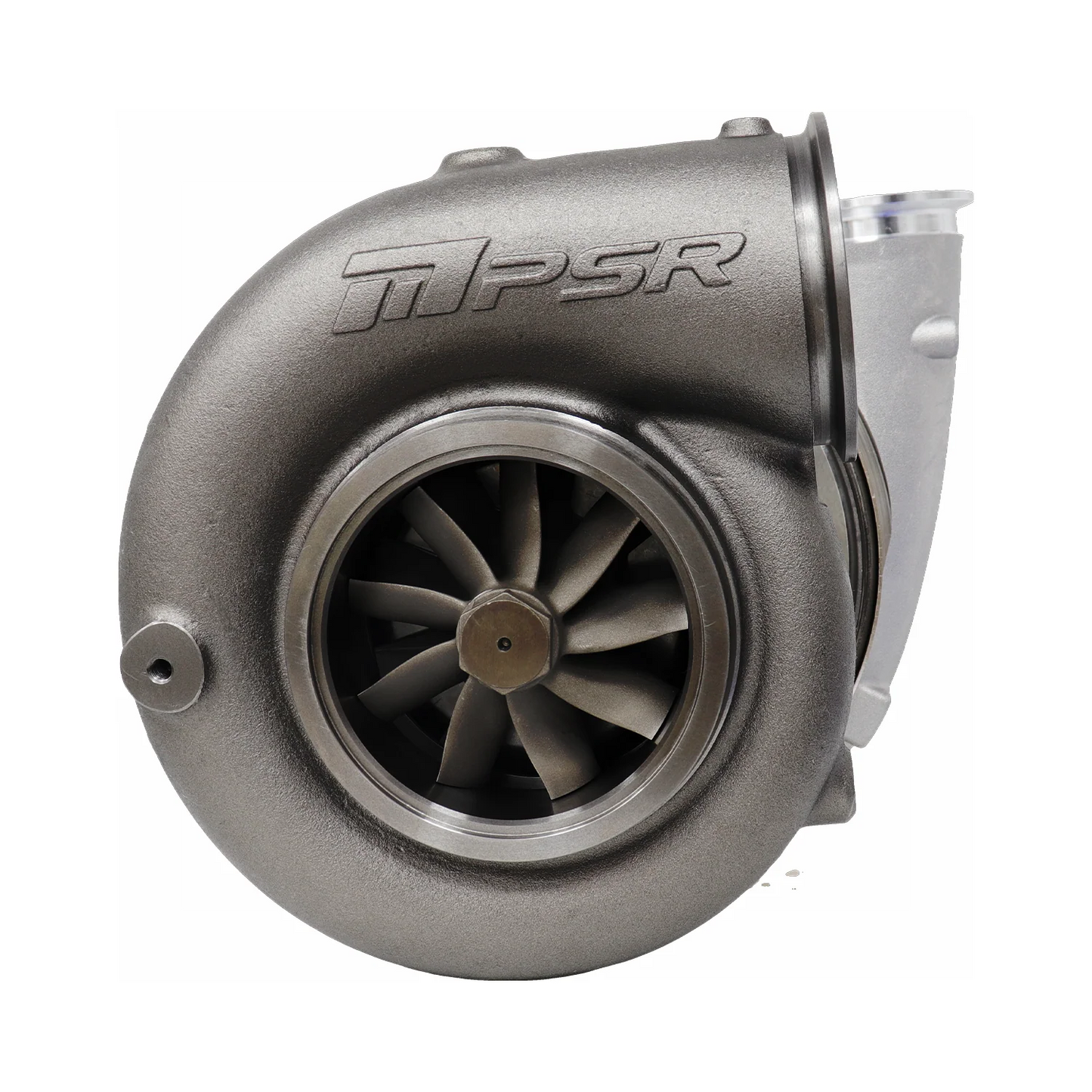

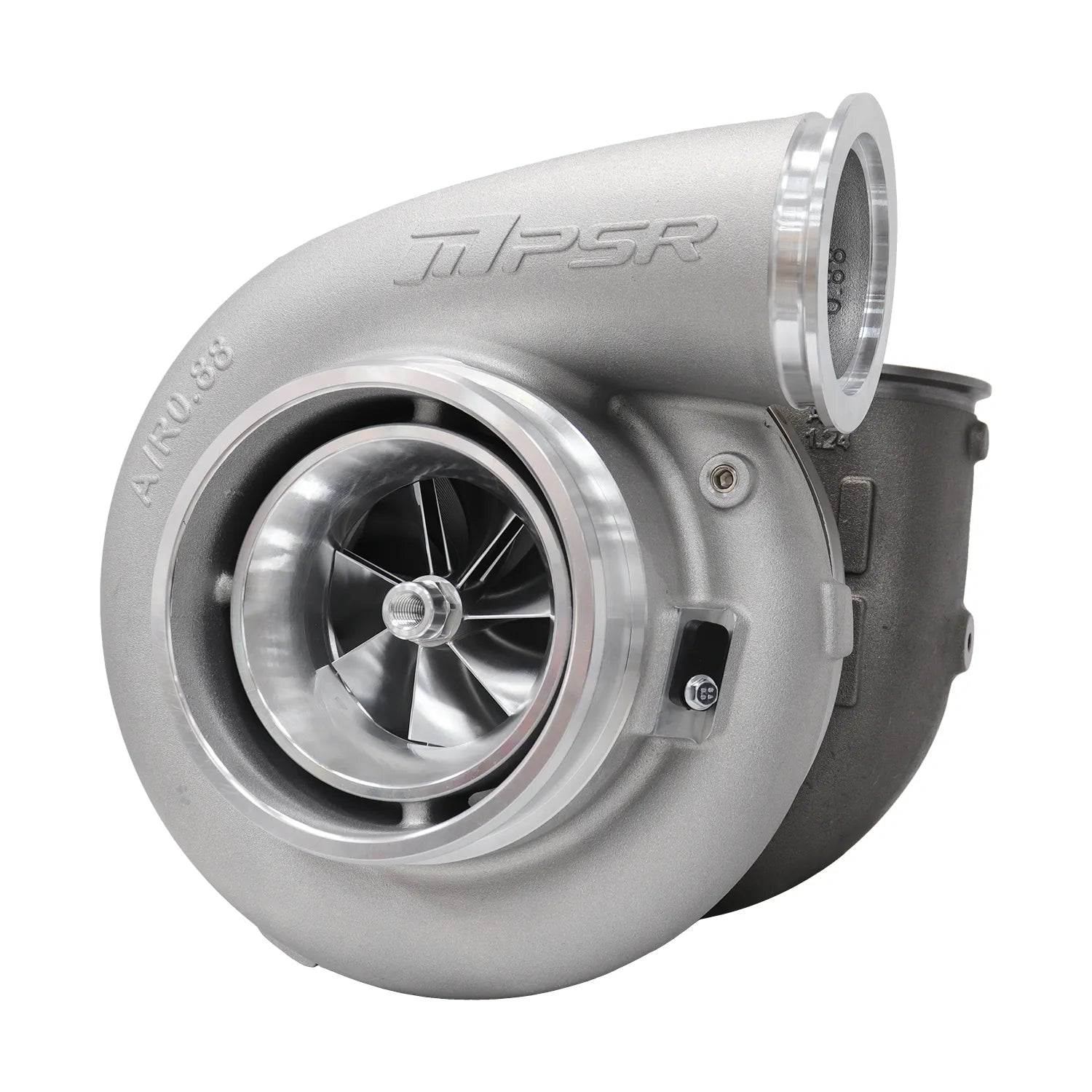

PSR 8806GR — Dual Ball‑Bearing Turbo (Up to 2350HP)

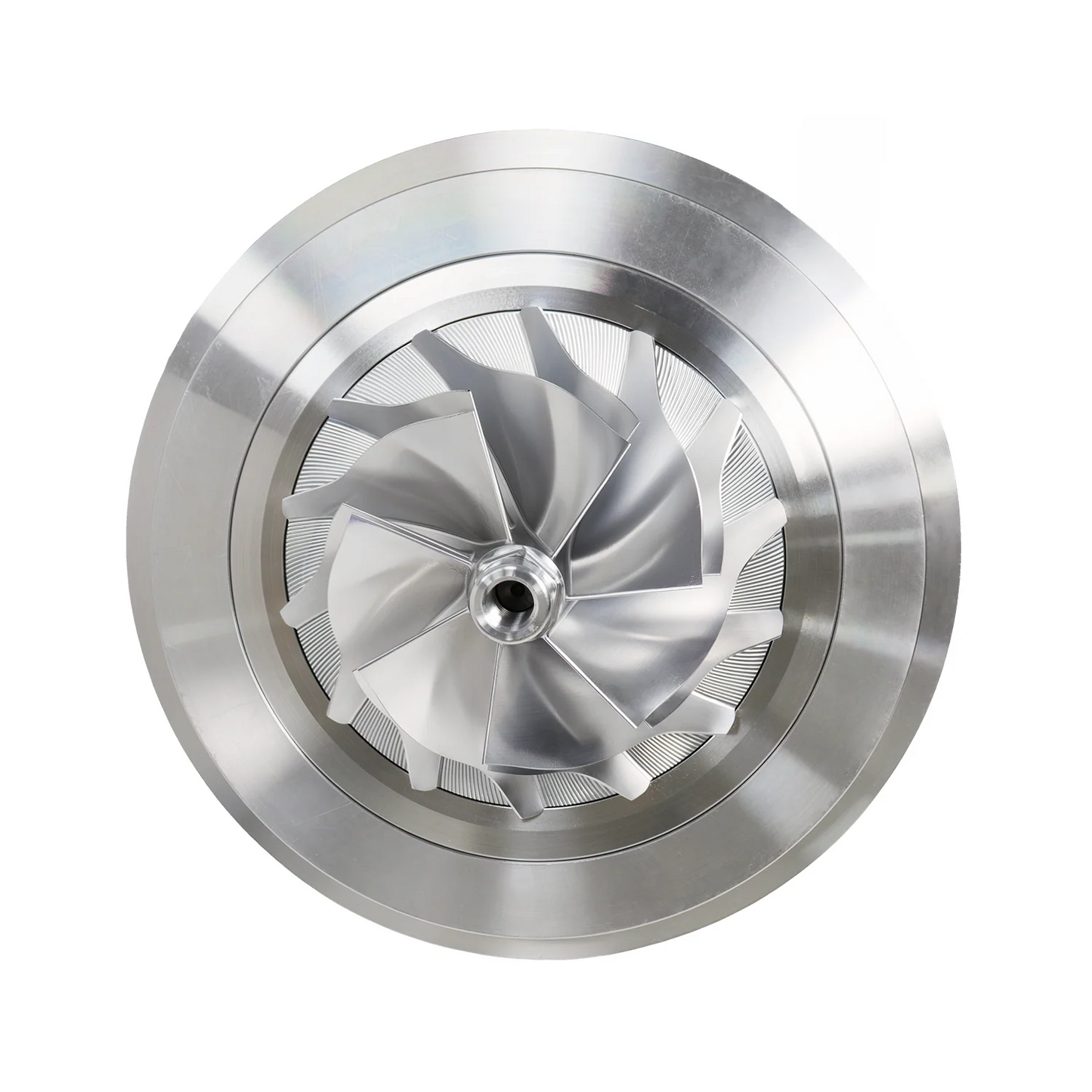

• 7+7 Blade GR compressor wheel will get more air flow

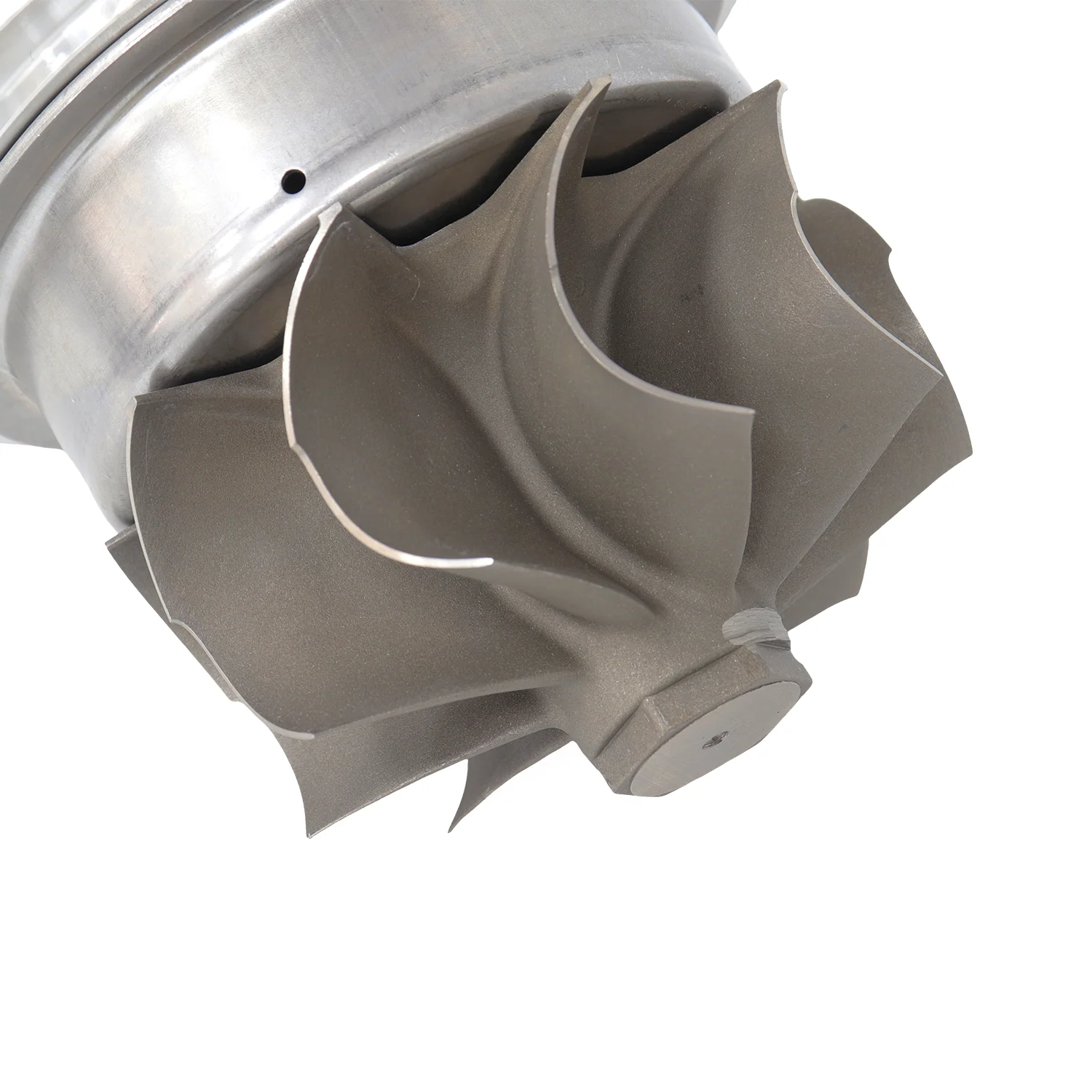

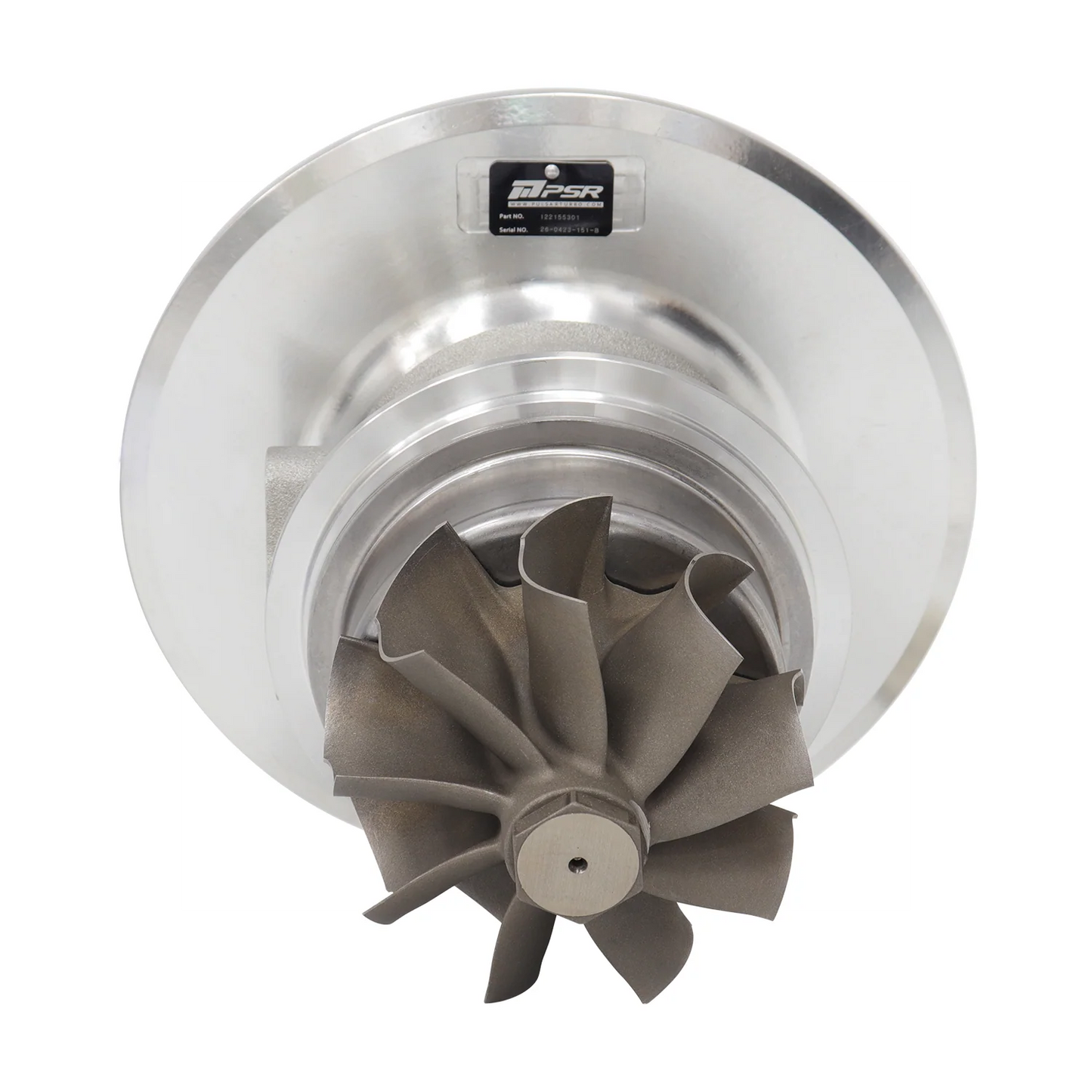

• 9 Blade PTG-Aero Inconel 713c turbine wheel
• Anti-Surge ported-shroud compressor inlet, with 0.25 inches MWE Groove, cover integrated with the speed sensor and pressure ports

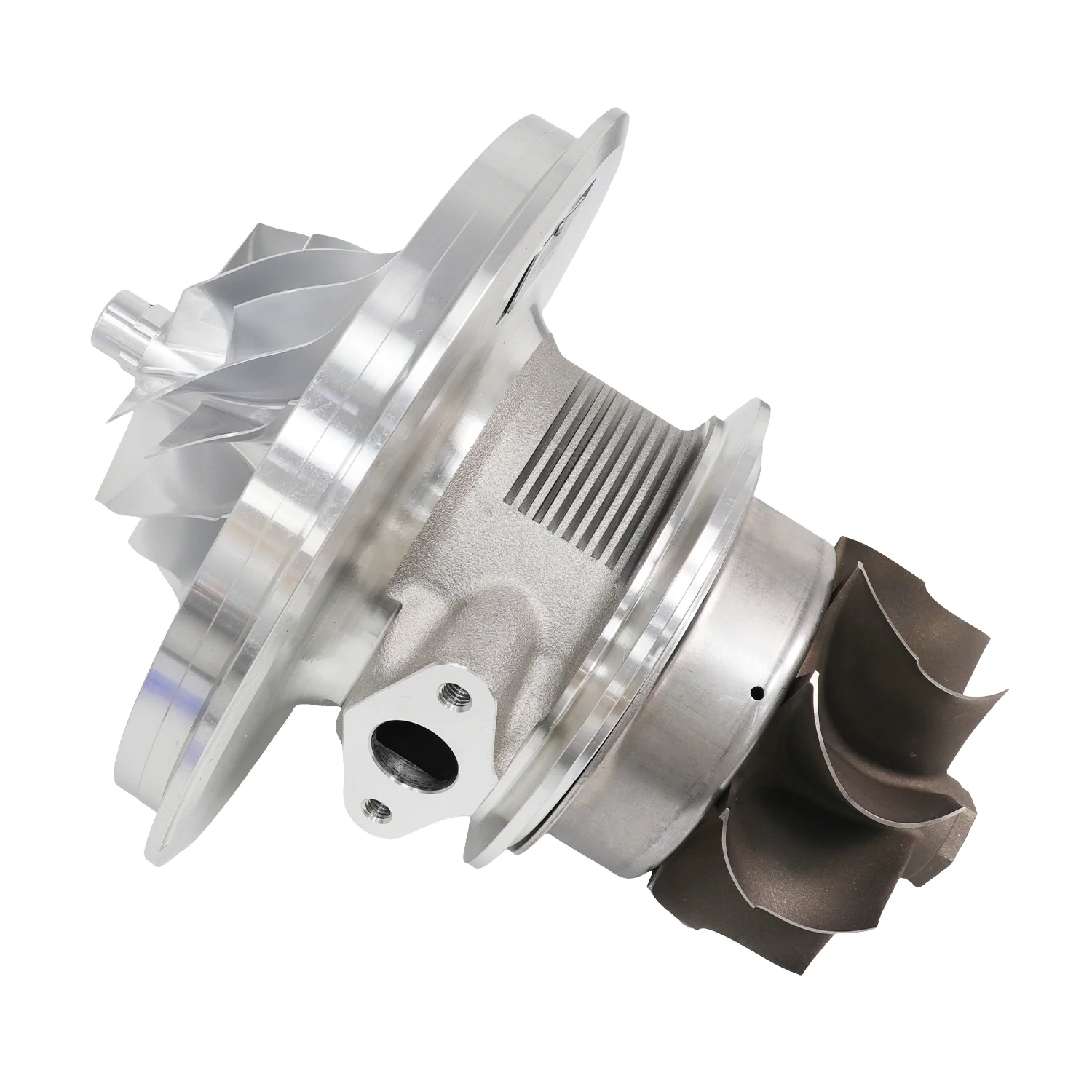

• Dual ceramic ball bearing system provides optimal turbo response & better durability by reducing the shaft motion
• Installation Hardware: 4” flange kit for Comp. Outlet, T6 Gasket/3.5” flange kit for Turb. Inlet, 5” flange kit for Turb. Outlet and oil Drain Fitting kits are included by default
• Oil Feed Fitting (-4AN 1.65mm (0.065″) Orifice) included
• Max Engine HP: 2350

Description

• Compressor Wheel: 88.9*133mm, 7+7 Blade
• Turbine Wheel: 112*106mm
• Oil Feed: See graph below (OIL INLET), an oil feed flange included: -4AN ∅ 1.65mm (0.065″) Orifice
• Oil Drain: See graph below (OIL OUTLET)

• Compressor Inlet: 6″ Hose
• Compressor Outlet: 4″ V-Band
• Turbine housing option:

Turbine Housing Options:

1. T6(Open) inlet, V-Band outlet (fits 5″ OD tubing), 1.08 A/R
2. T6(Open) inlet, V-Band outlet (fits 5″ OD tubing), 1.23 A/R
3. V-Band inlet (fits 3.5″ OD tubing) and V-Band outlet (fits 5″ OD tubing), 1.08 A/R
4. V-Band inlet (fits 3.5″ OD tubing) and V-Band outlet (fits 5″ OD tubing), 1.24 A/R
