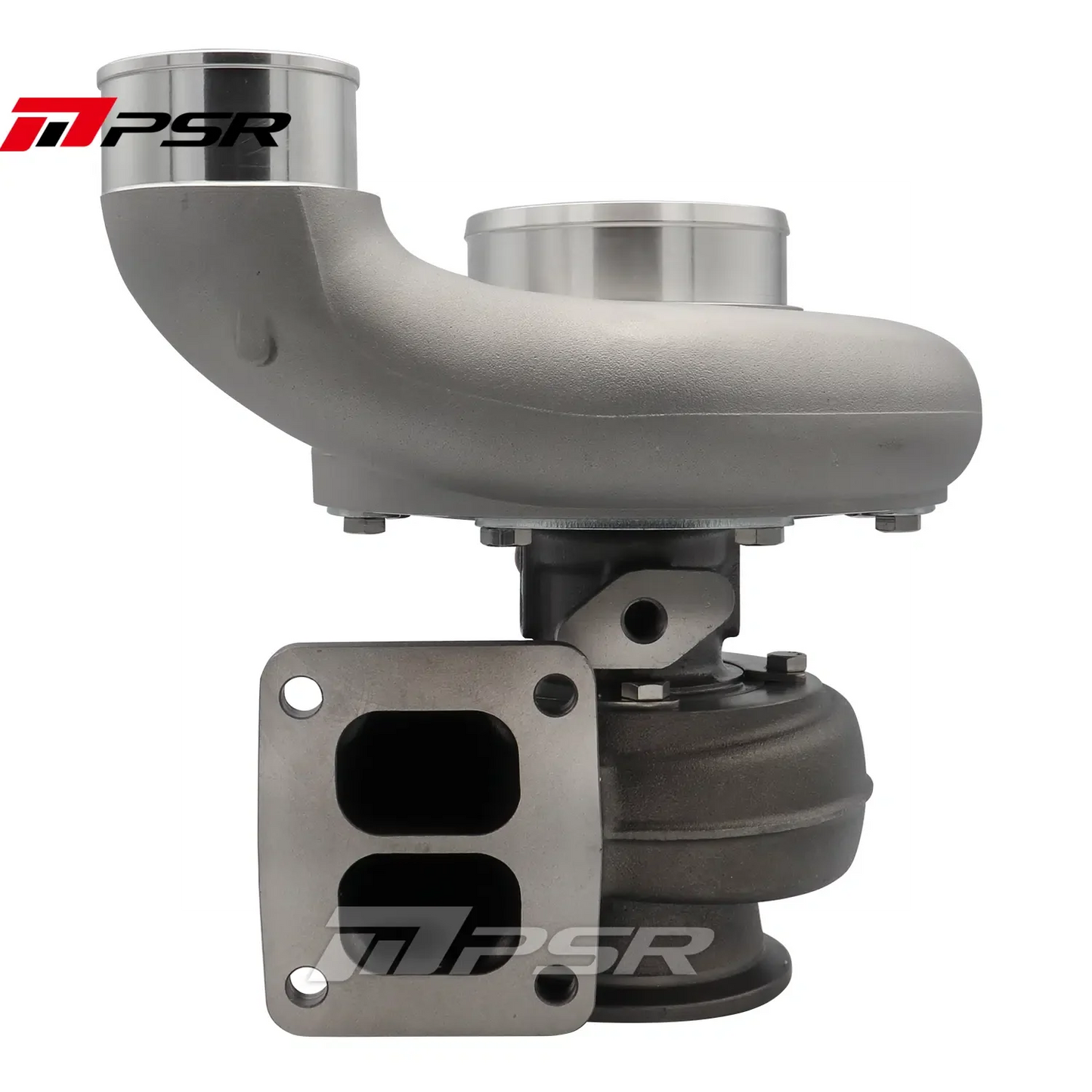

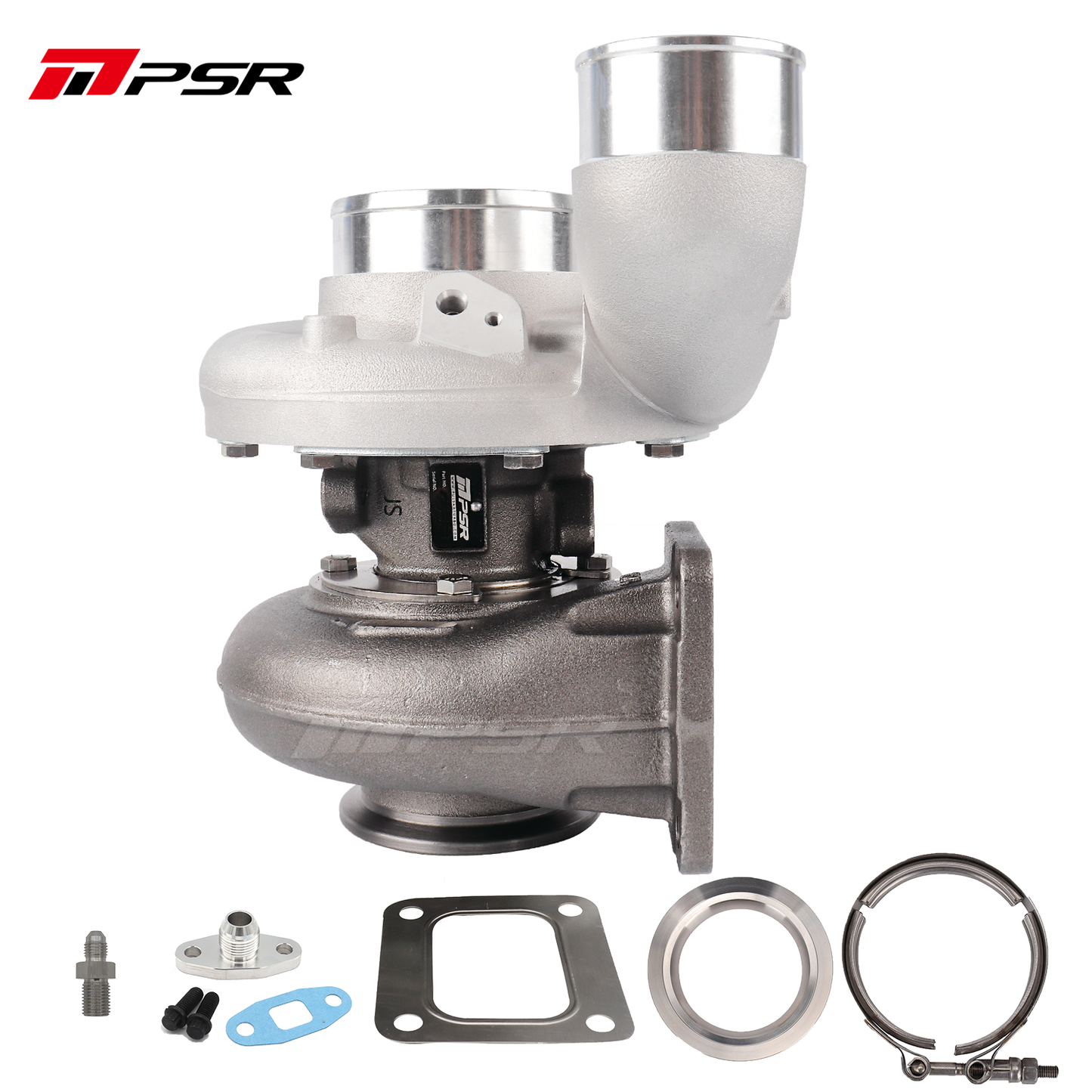

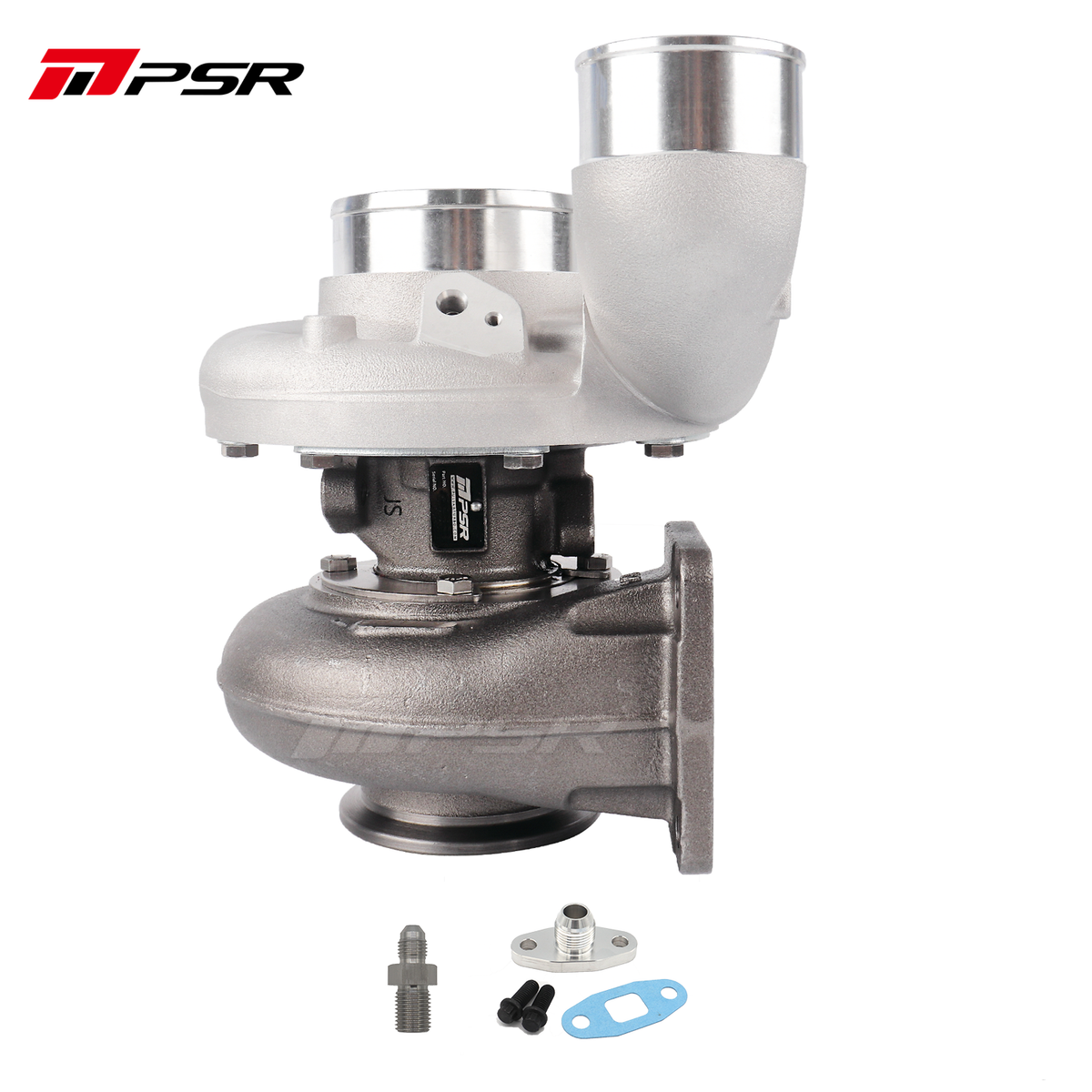

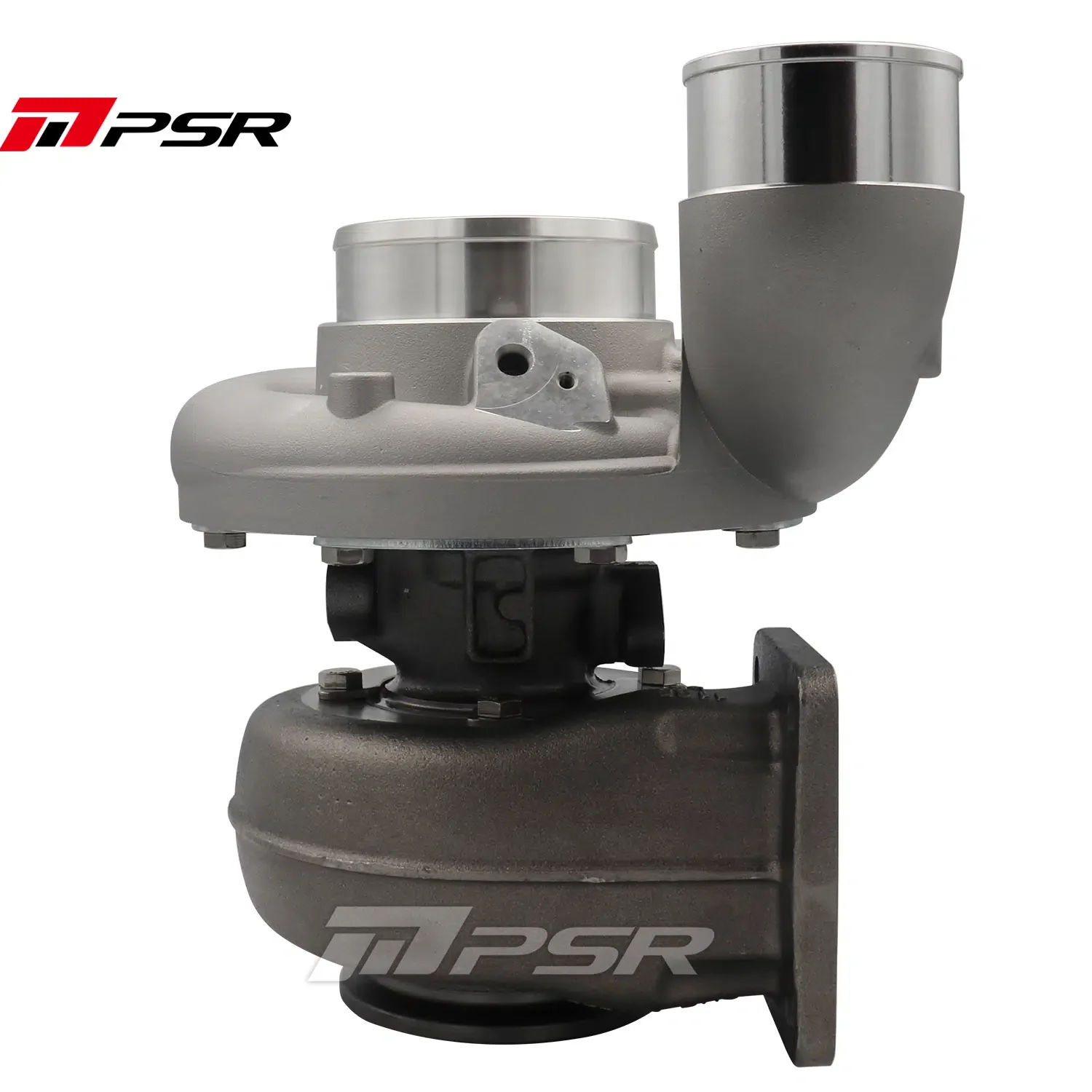

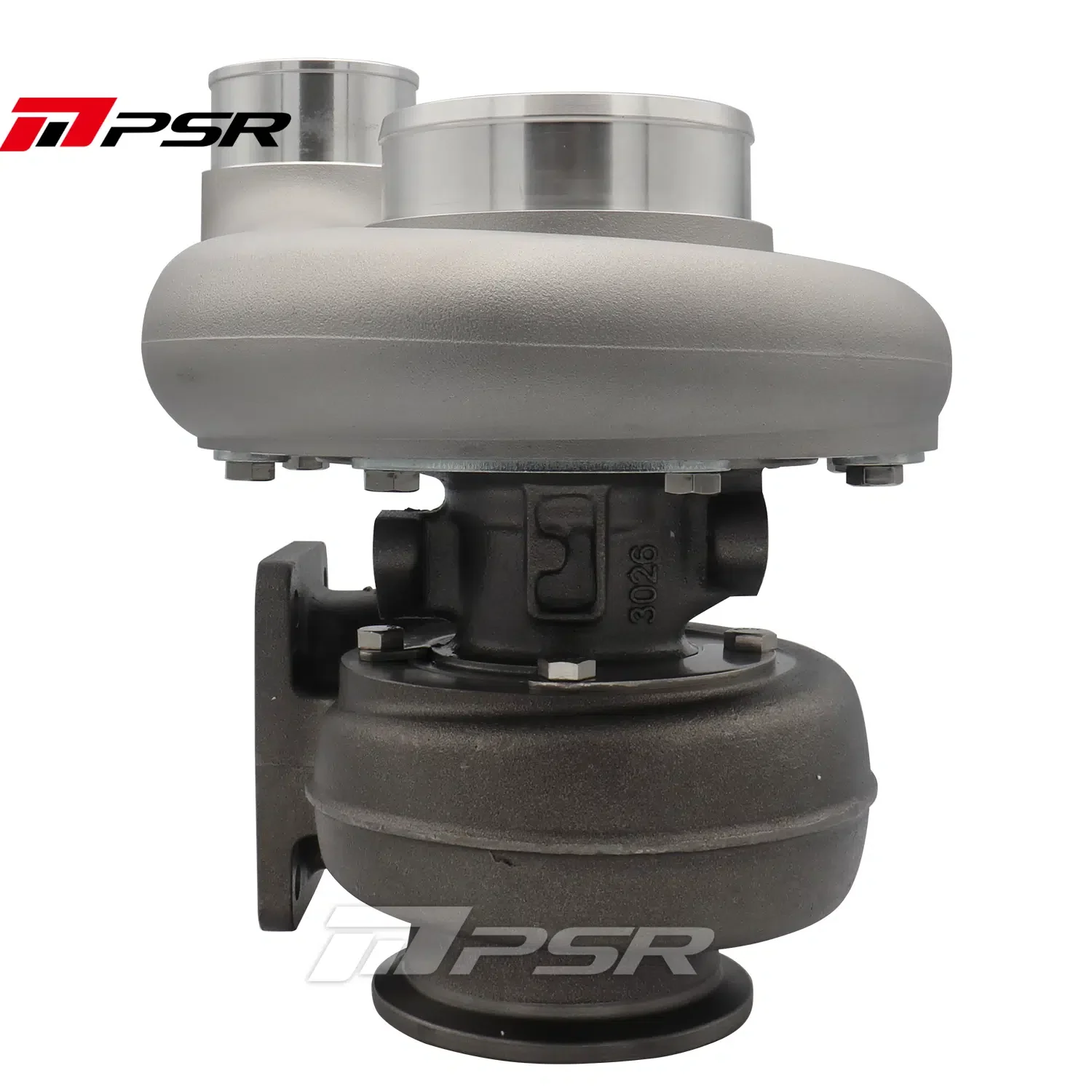

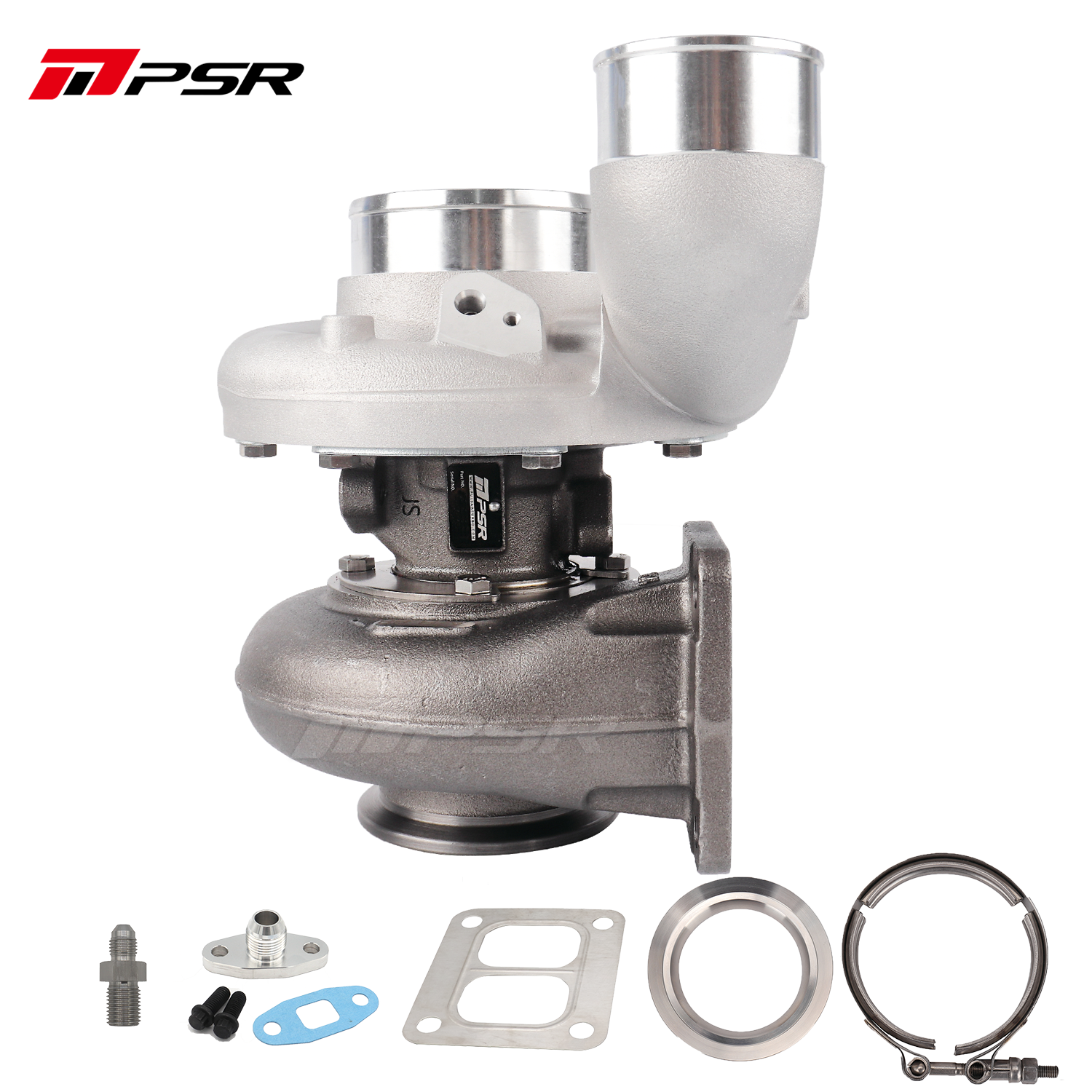

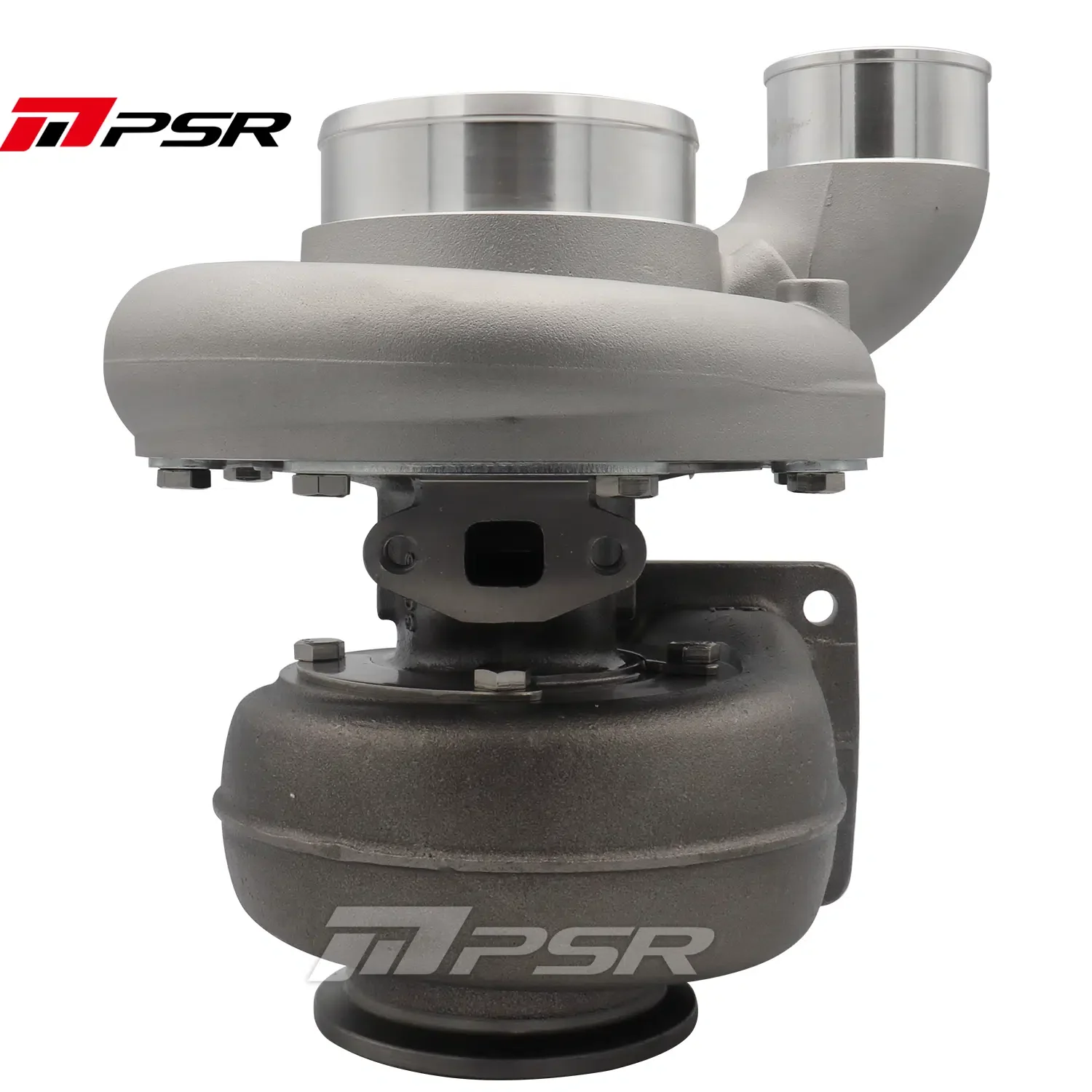

PULSAR Billet 363D 366D 369D DUAL CERAMIC BALL BEARING Turbo with 90° Elbow Outlet Compressor

• 90° Outlet Compressor Cover
• Dual Ceramic Ball Bearing Systems
• 3 Options in Billet Compressor Wheels with Extended Tapered Tip Technology
• Inconel 713c 80*73mm Turbine Wheel
• Compressor cover with ported-shroud inlet and integrated with the speed sensor port
• Max Flow Rate: 100+ lb/min, rated @ 950FWHP

Description:

• Bearing Systems: Dual Ceramic Ball Bearing
• Compressor Wheel: 363D (63*87mm, 7+7), 366D (66*91mm, 7+7), 369D (69*94mm, 6+6)

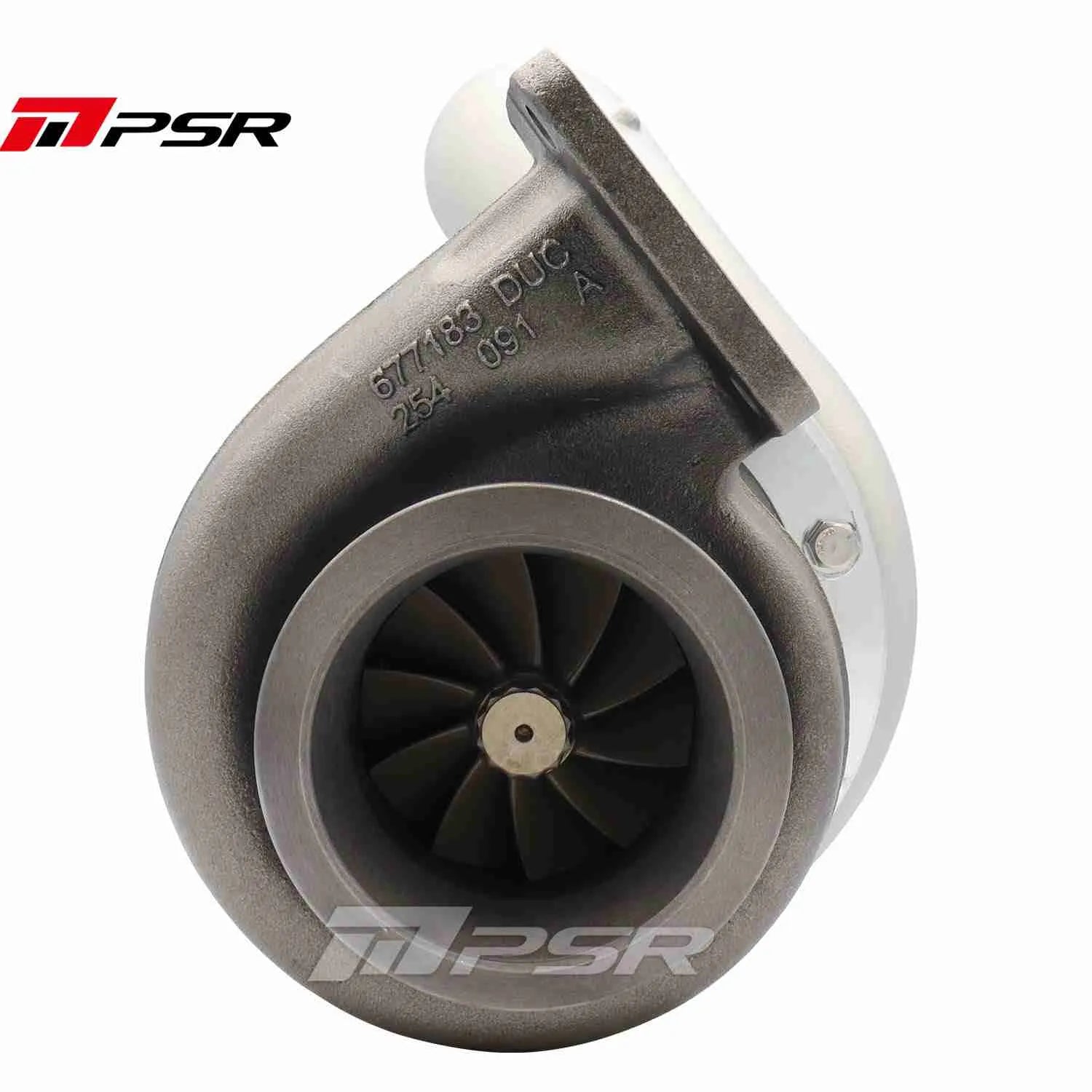

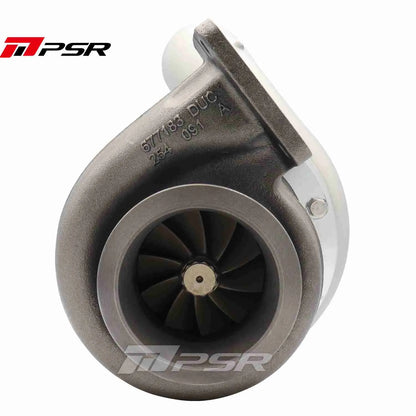

• Turbine Wheel: 80*73mm
• Compressor Inlet: 4.0” Hose
• Compressor Outlet: 90°, 2.5” Hose

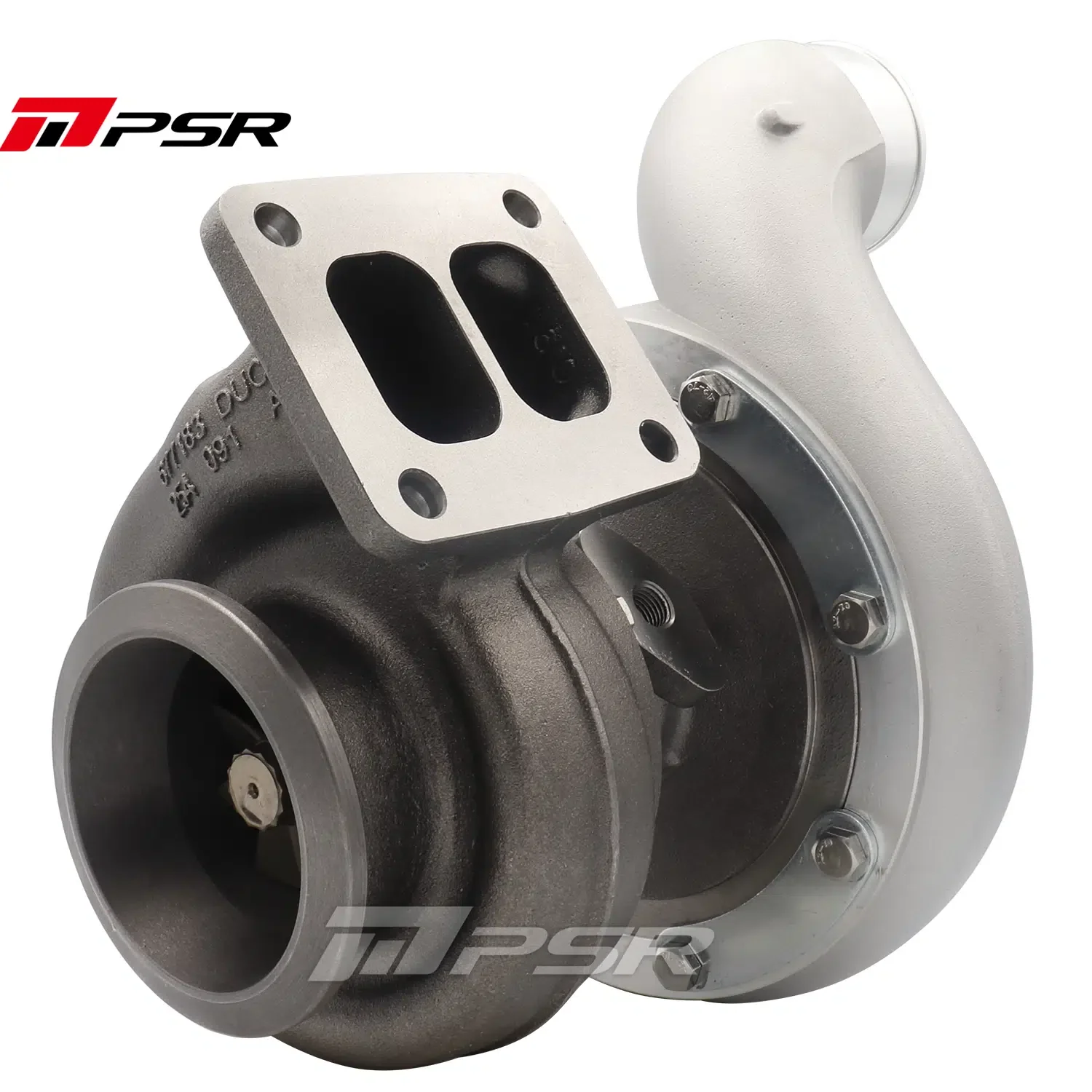

• Turbine Inlet: T4 Divided
• Turbine Outlet: 4.21″ Marmon
• Oil Feed: 1/4″ NPT
• Oil Drain: Std T4 Flange
