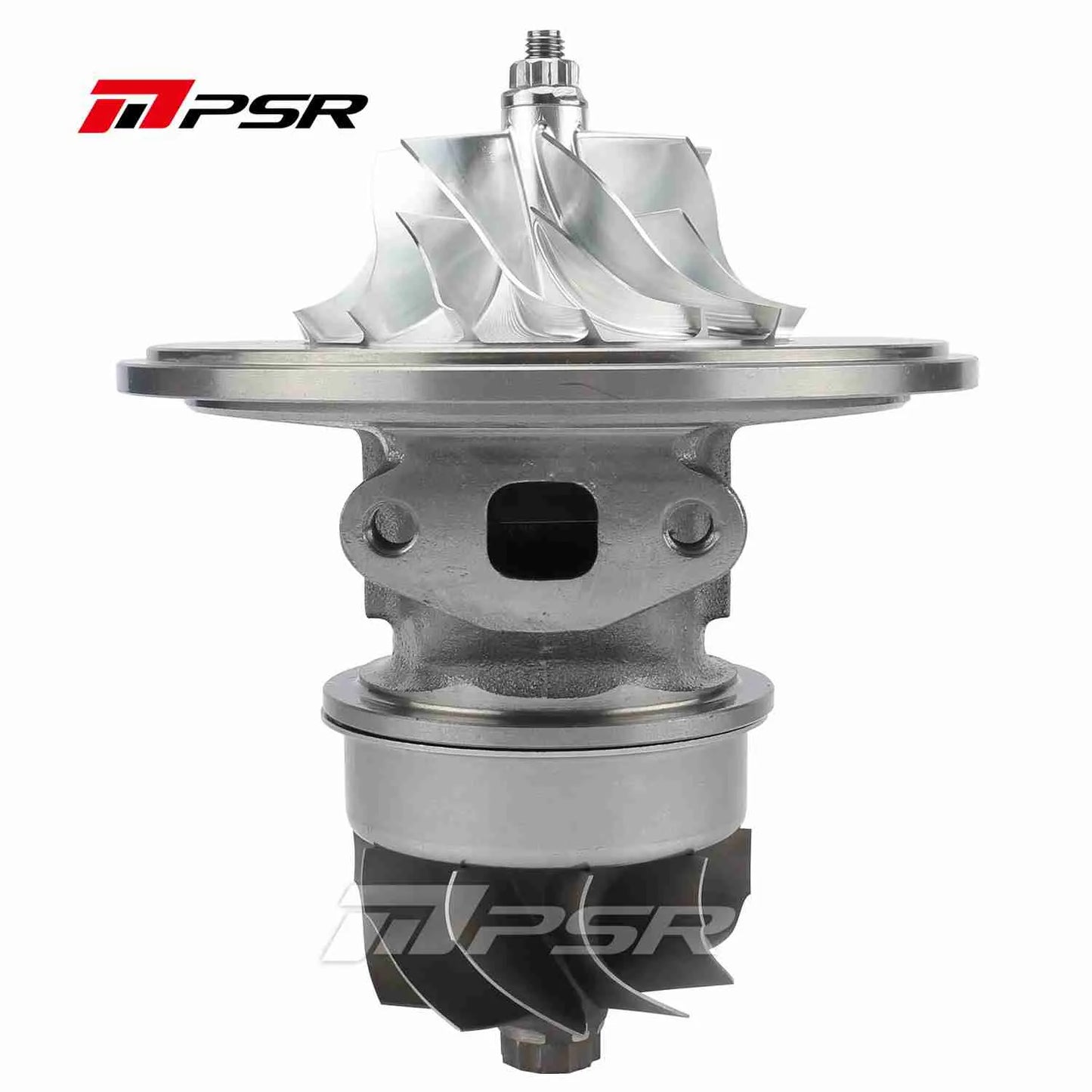

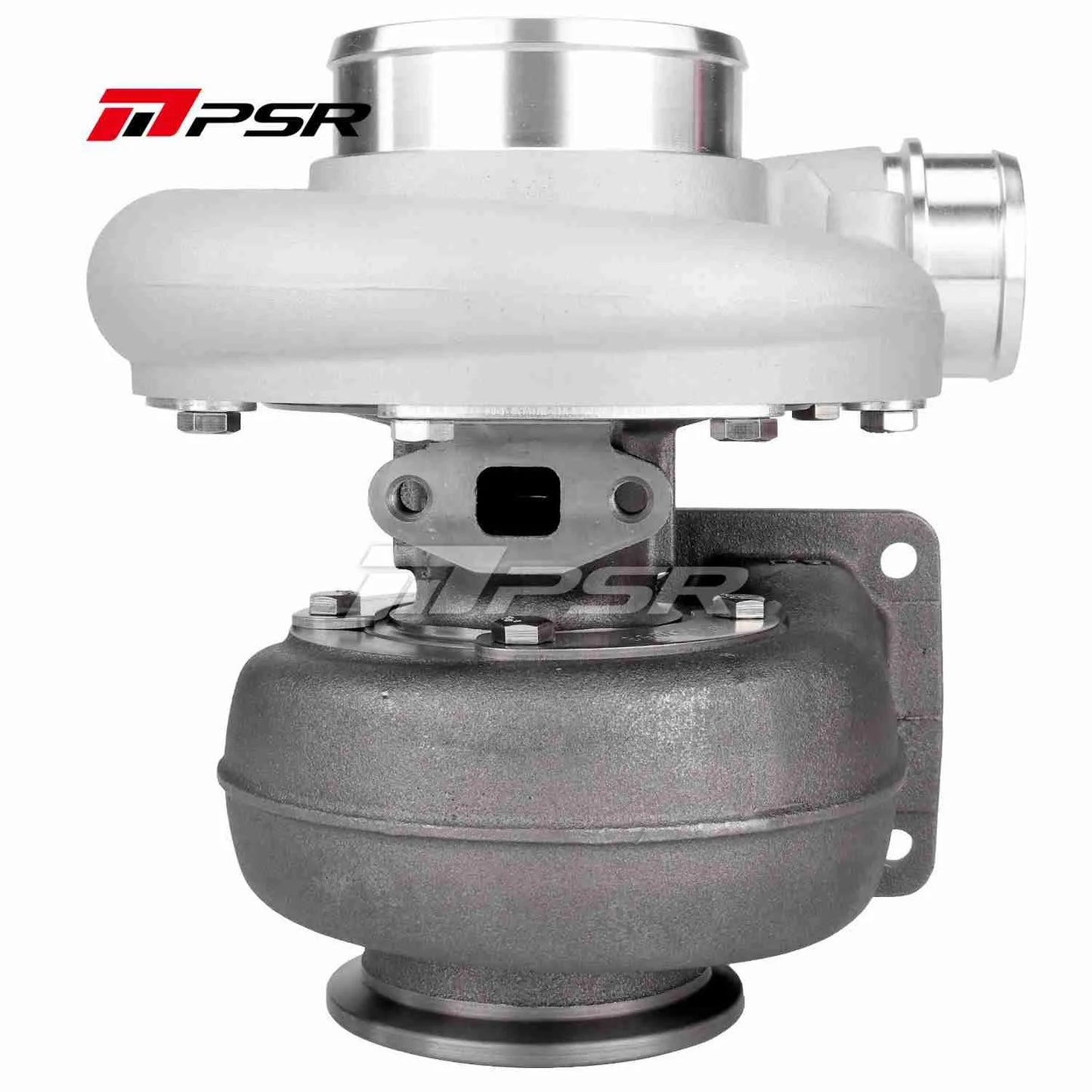

- Dual Ceramic Ball Bearing Systems

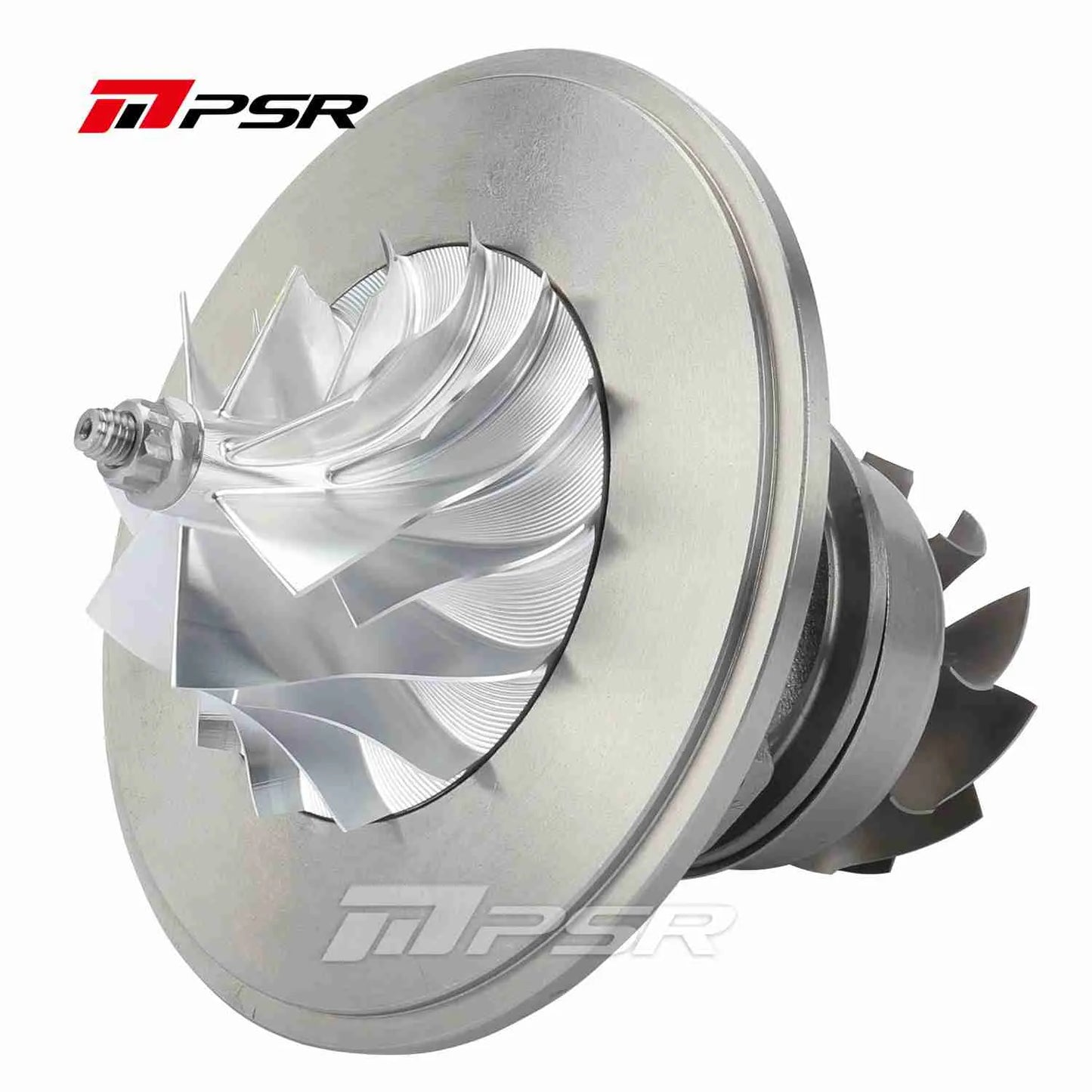

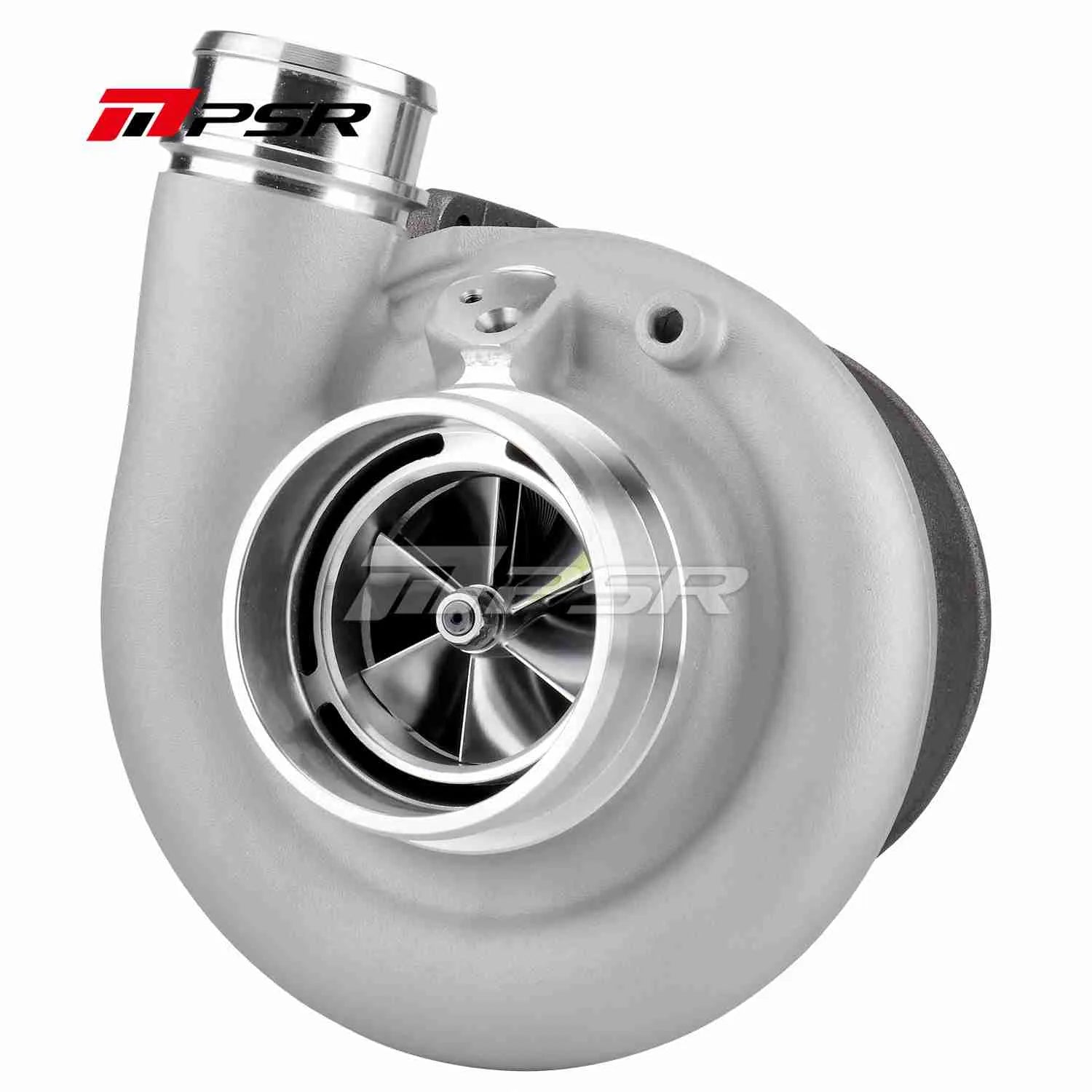

- 3 Options in Billet Compressor Wheels with Extended Tapered Tip Technology

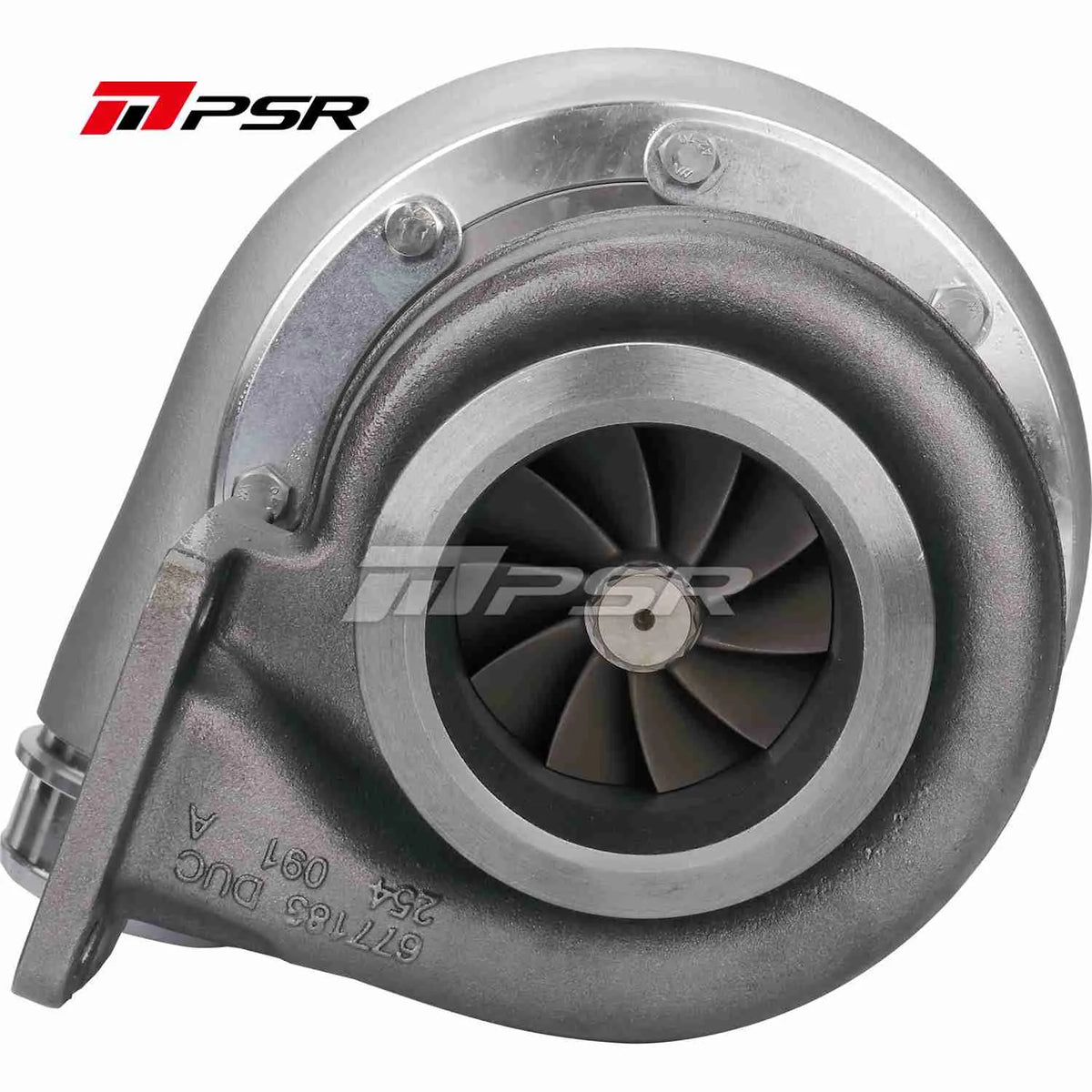

- Inconel 713c 80*73mm Turbine Wheel

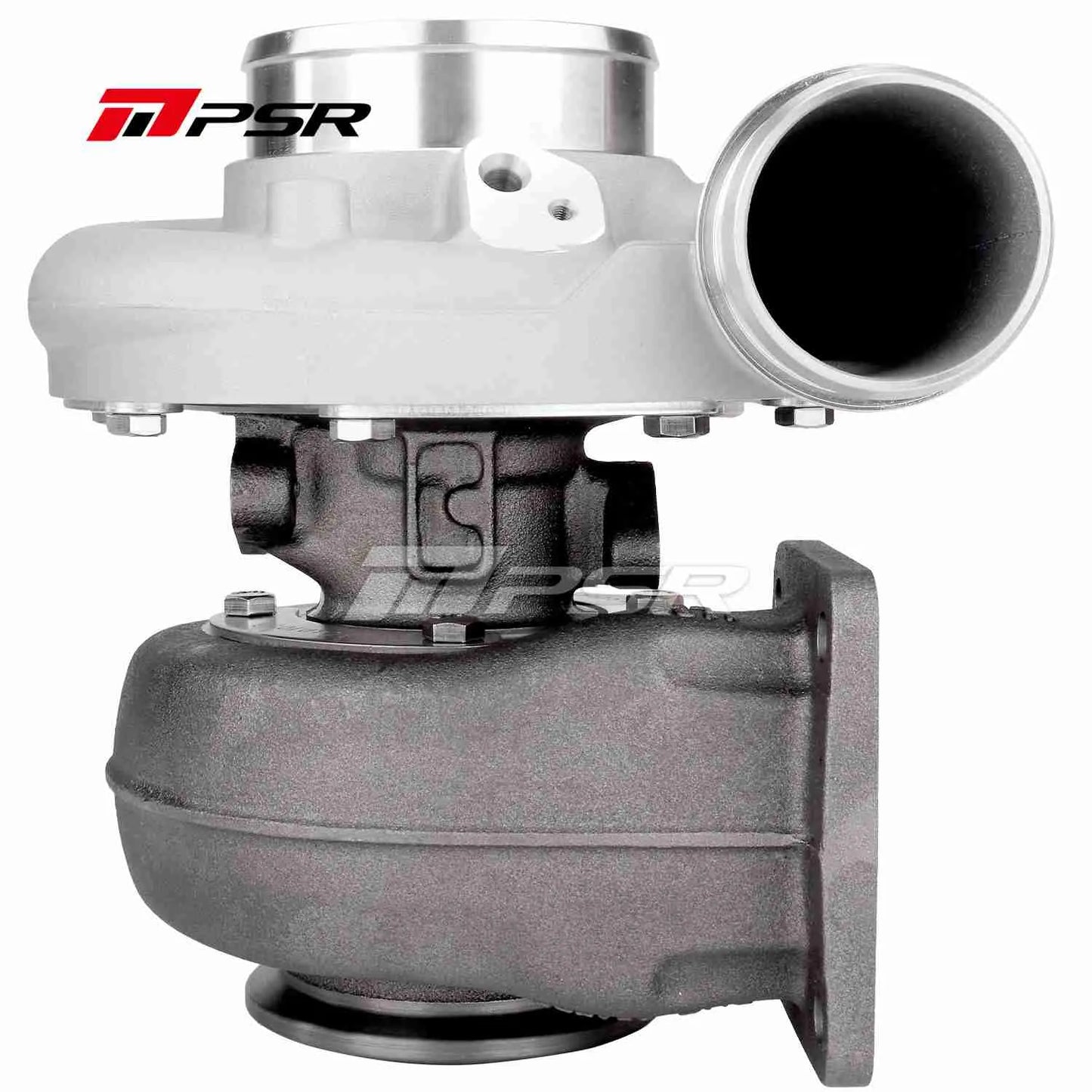

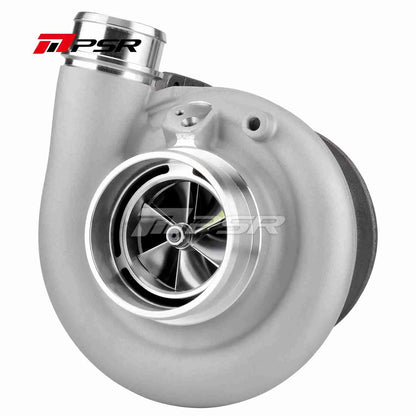

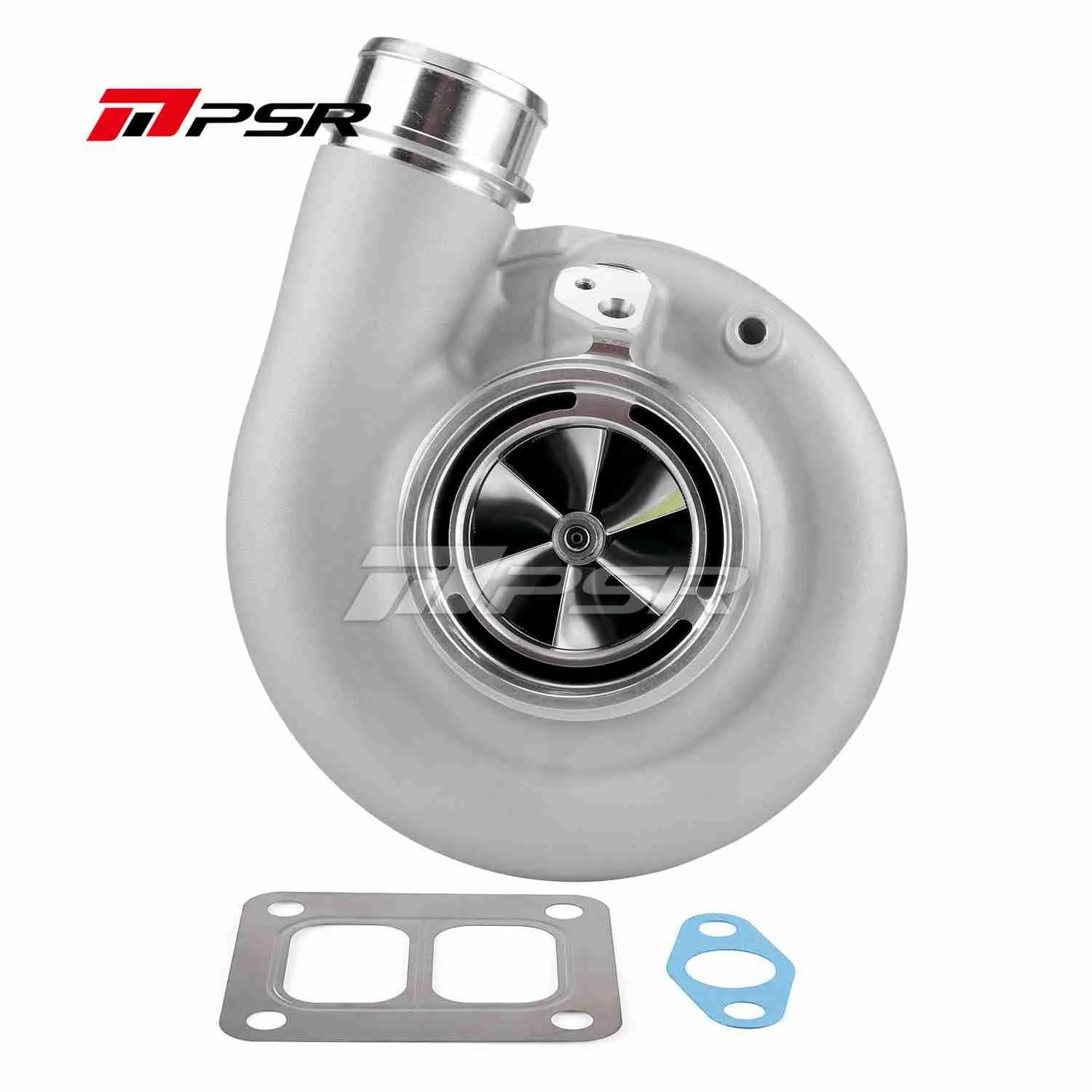

- Gen2 compressor cover with ported-shroud inlet and integrated with the speed sensor port
- Max Flow Rate: 100+ lb/min, rated @ 950FWHP
Description:
- Bearing Systems: Dual Ceramic Ball Bearing

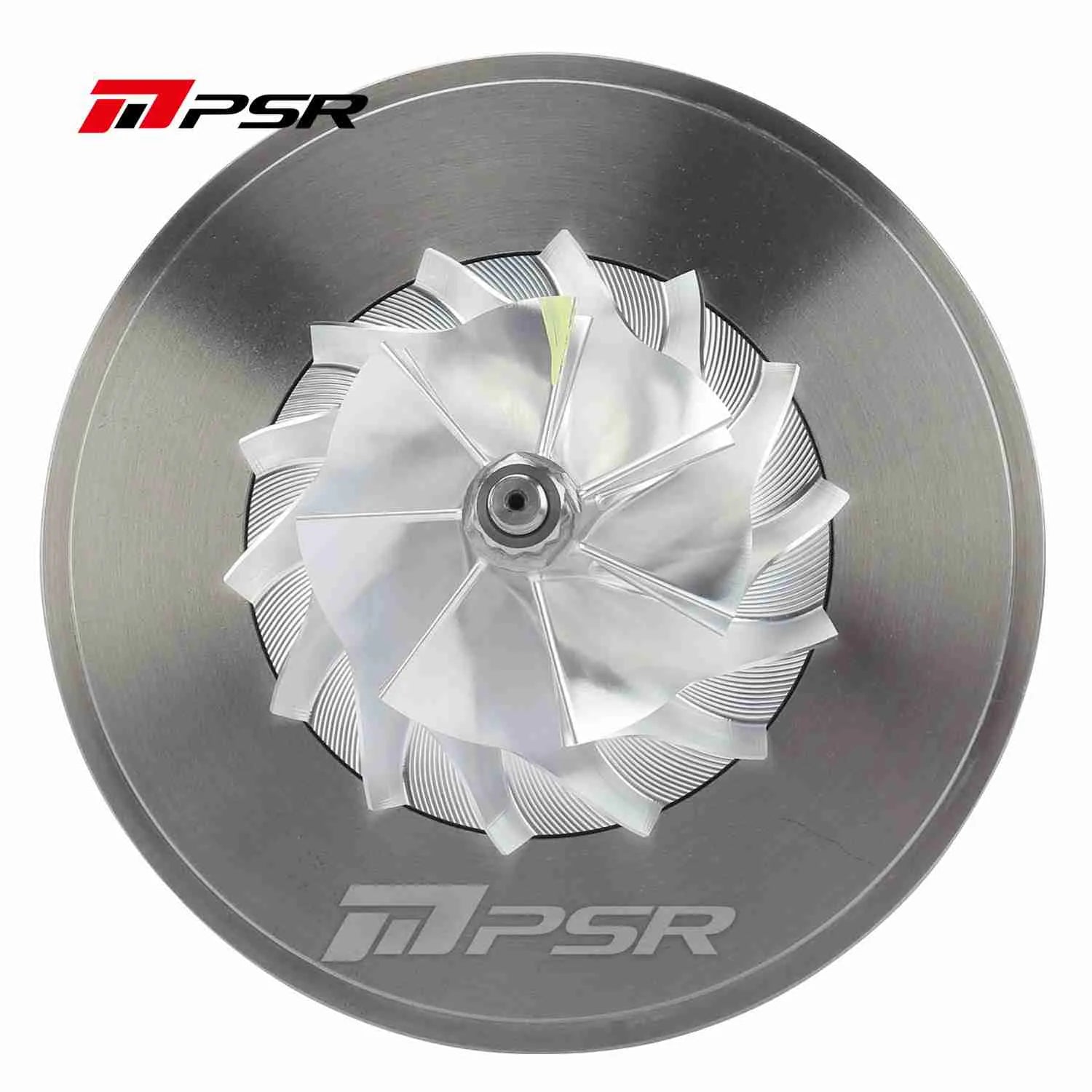

- Compressor Wheel: 363D (63*87mm, 7+7), 366D (66*91mm, 7+7), 369D (69*94mm, 6+6), 372D (72*96mm, 10+0)

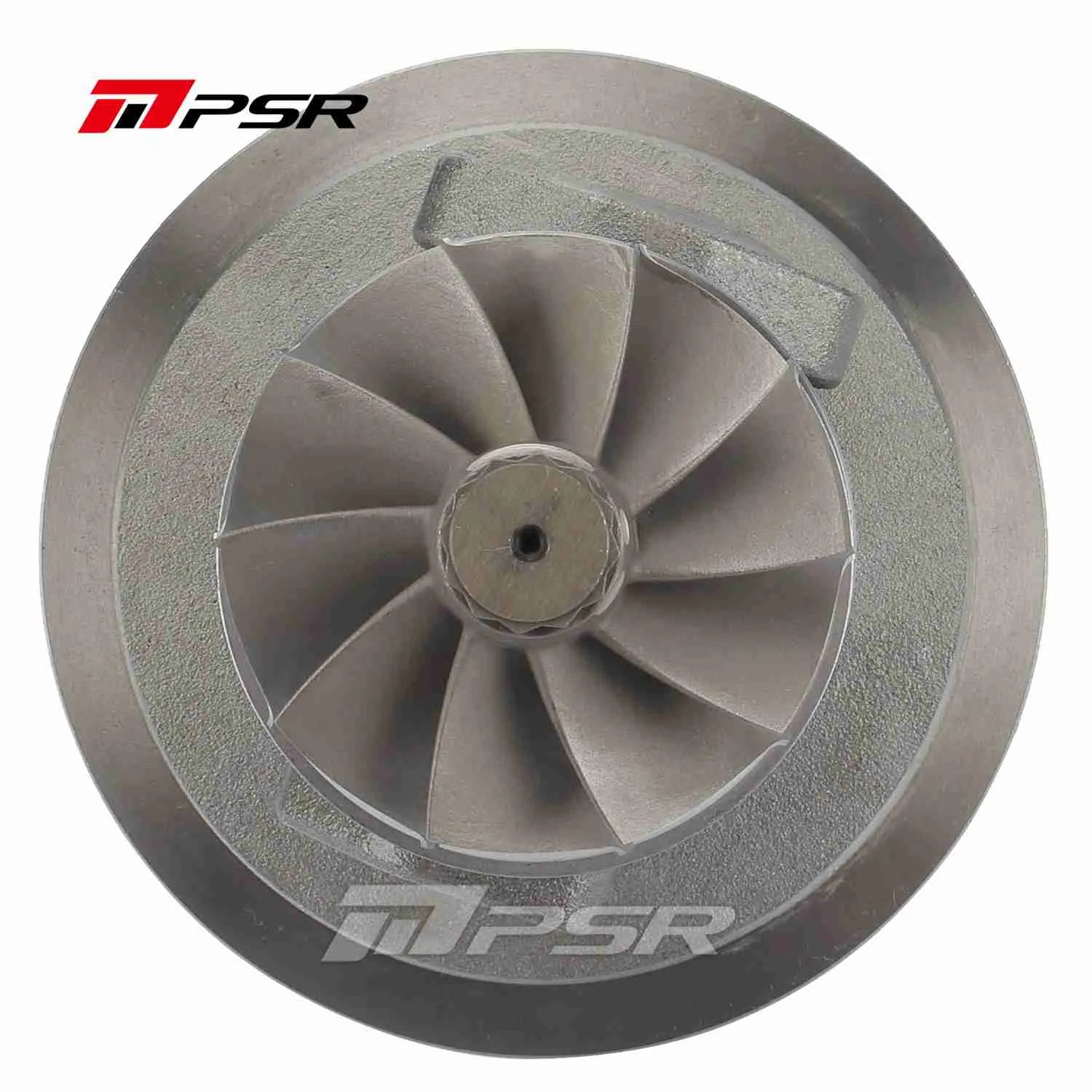

- Turbine Wheel: 80*73mm
- Compressor Inlet: 4.0 Hose
- Compressor Outlet: 2.5 Hose
- 2 Options in Turbine Housing: T4 Divided 0.91A/R, T4 Open 0.88A/R
- Turbine Outlet: 4.21″ Marmon
- Oil Feed: 1/4″ NPT
- Oil Drain: Std T4 Flange
