Pulsar 05-07 6.0 Powerstroke Turbo Compressor Drop In DIY Upgrade Kit

Application:

Stock turbo parts Fitment – No modifications required.

2005-2007 Ford 6.0L Powerstroke Stock Size Garrett GT3782VA Turbo ONLY.

Description:

DIY Upgrade Turbo Rebuild Kit Compressor Housing, Billet Wheel, Backing Plate, Turbine Wheel for 05-07 Ford 6.0L Powerstroke Diesel Stock GT3782VA Turbo Only

Description:

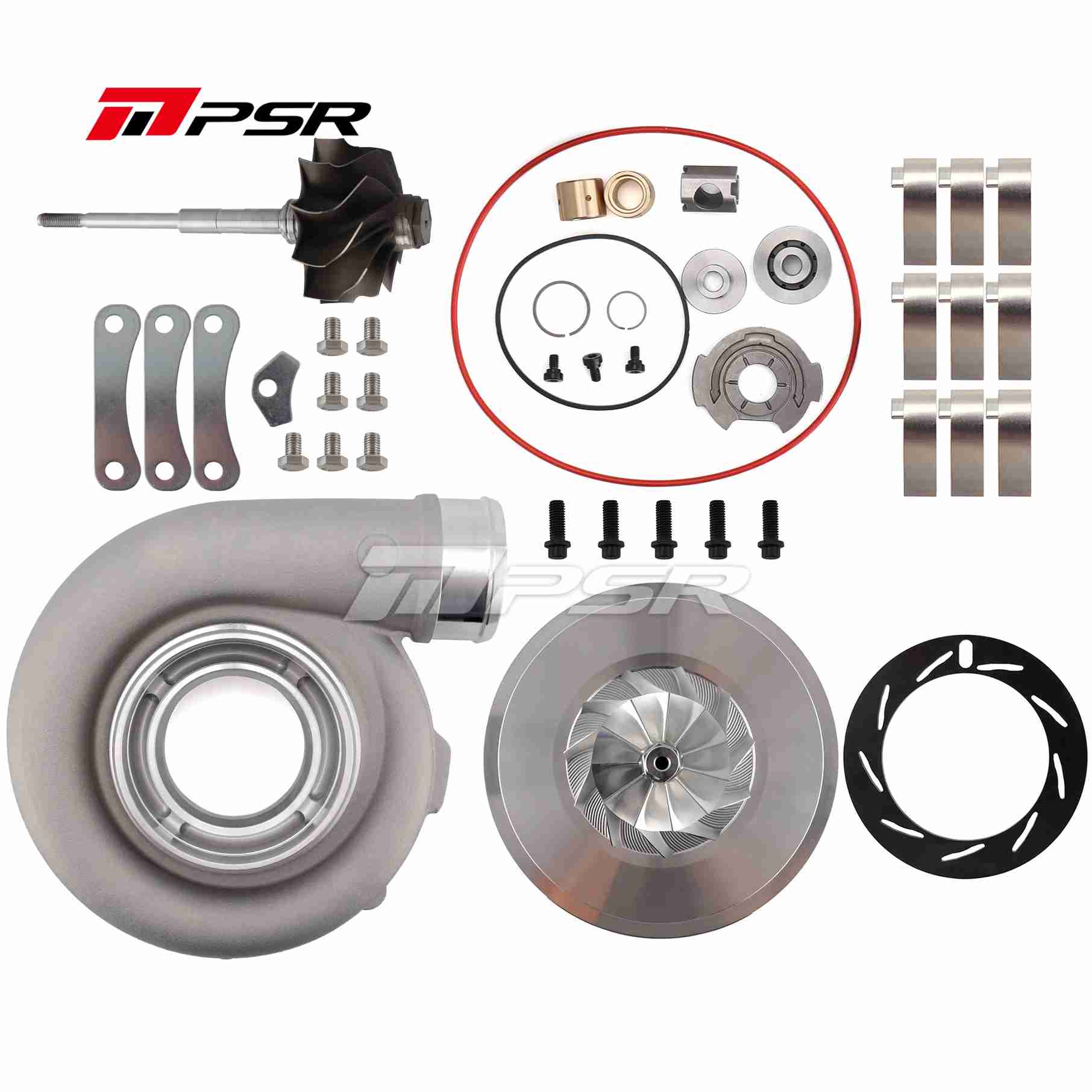

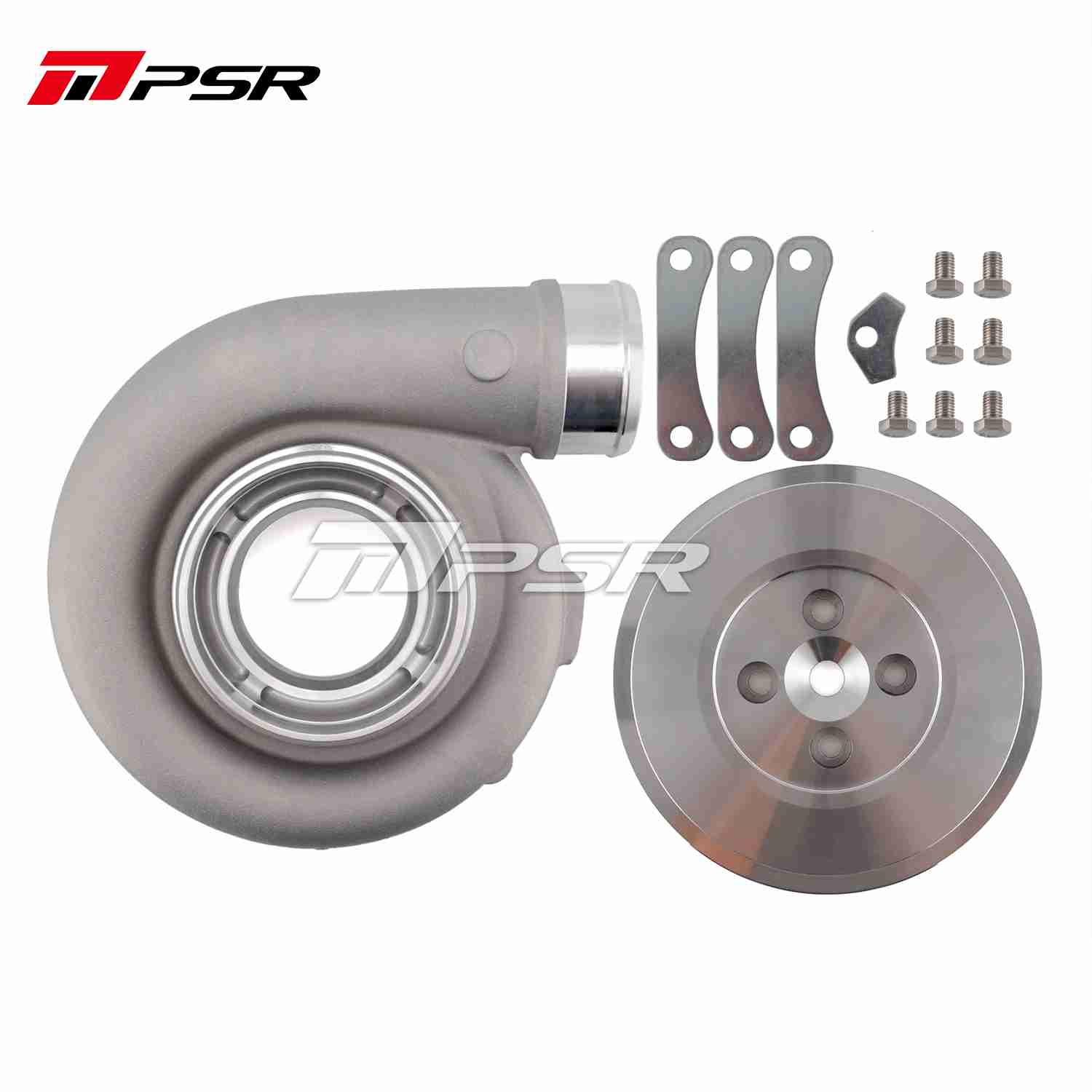

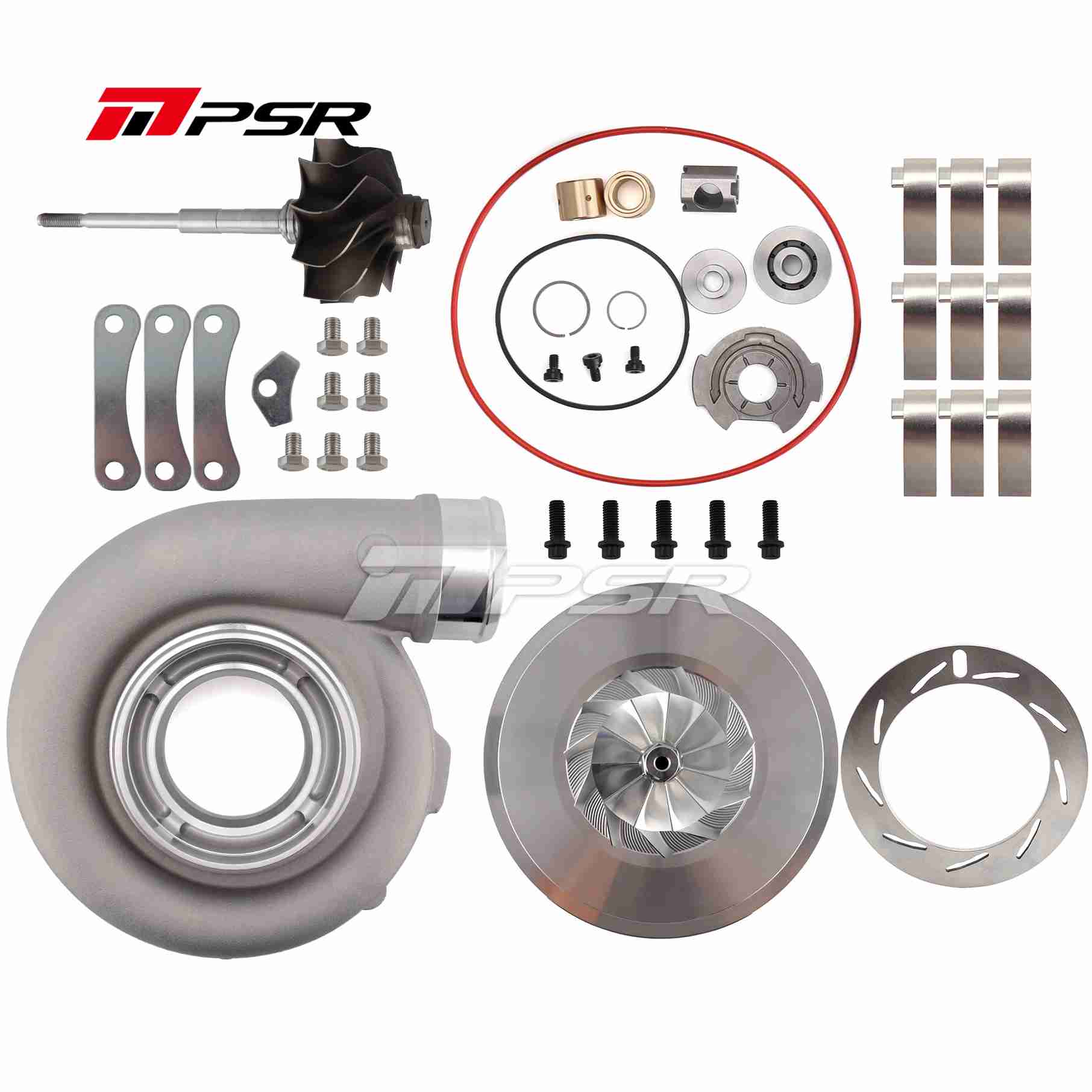

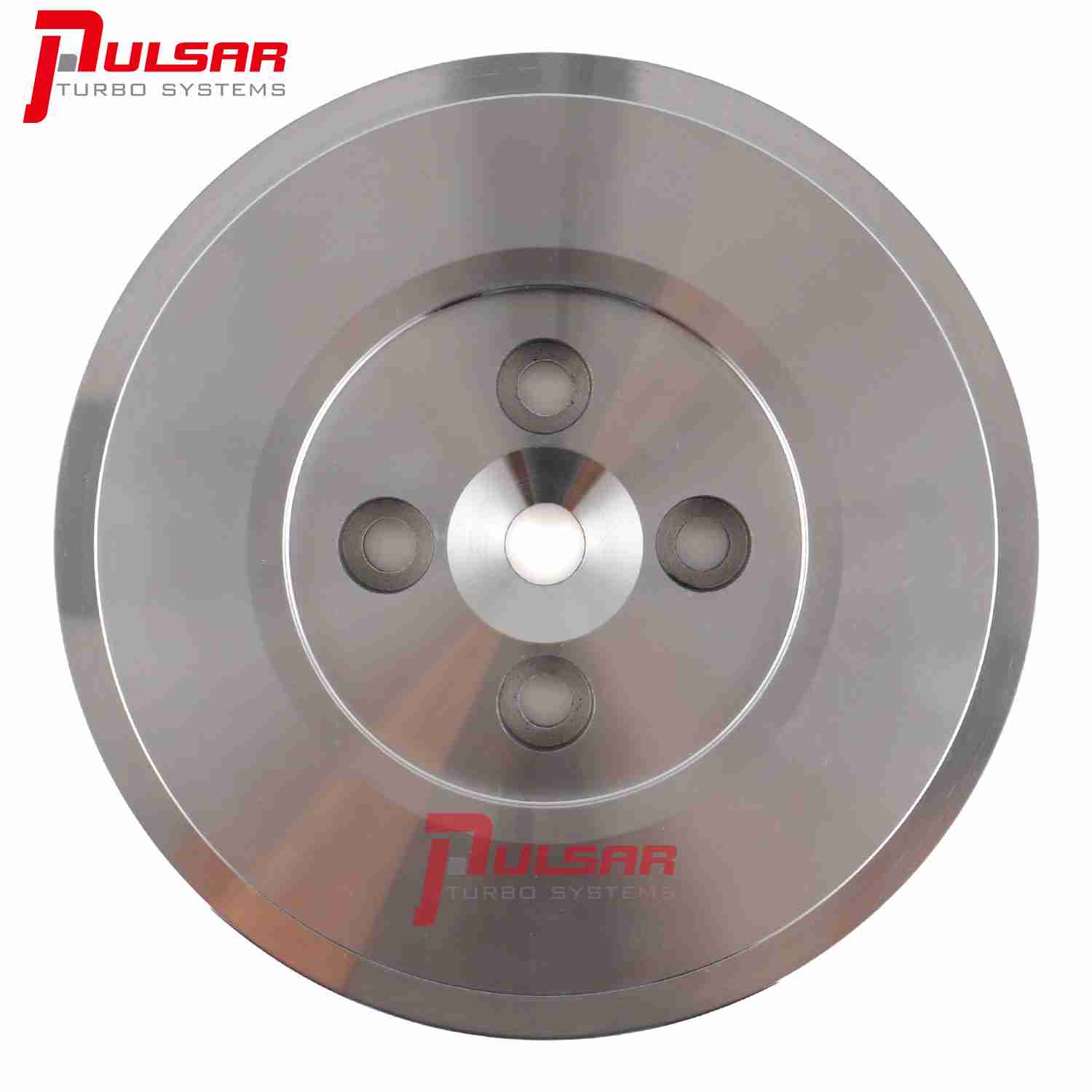

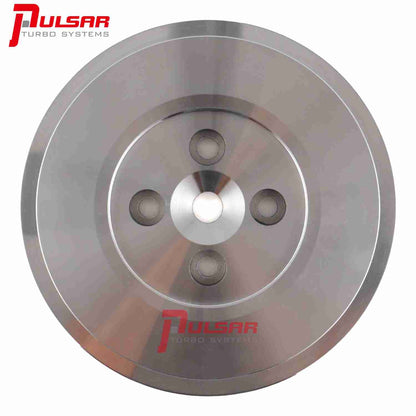

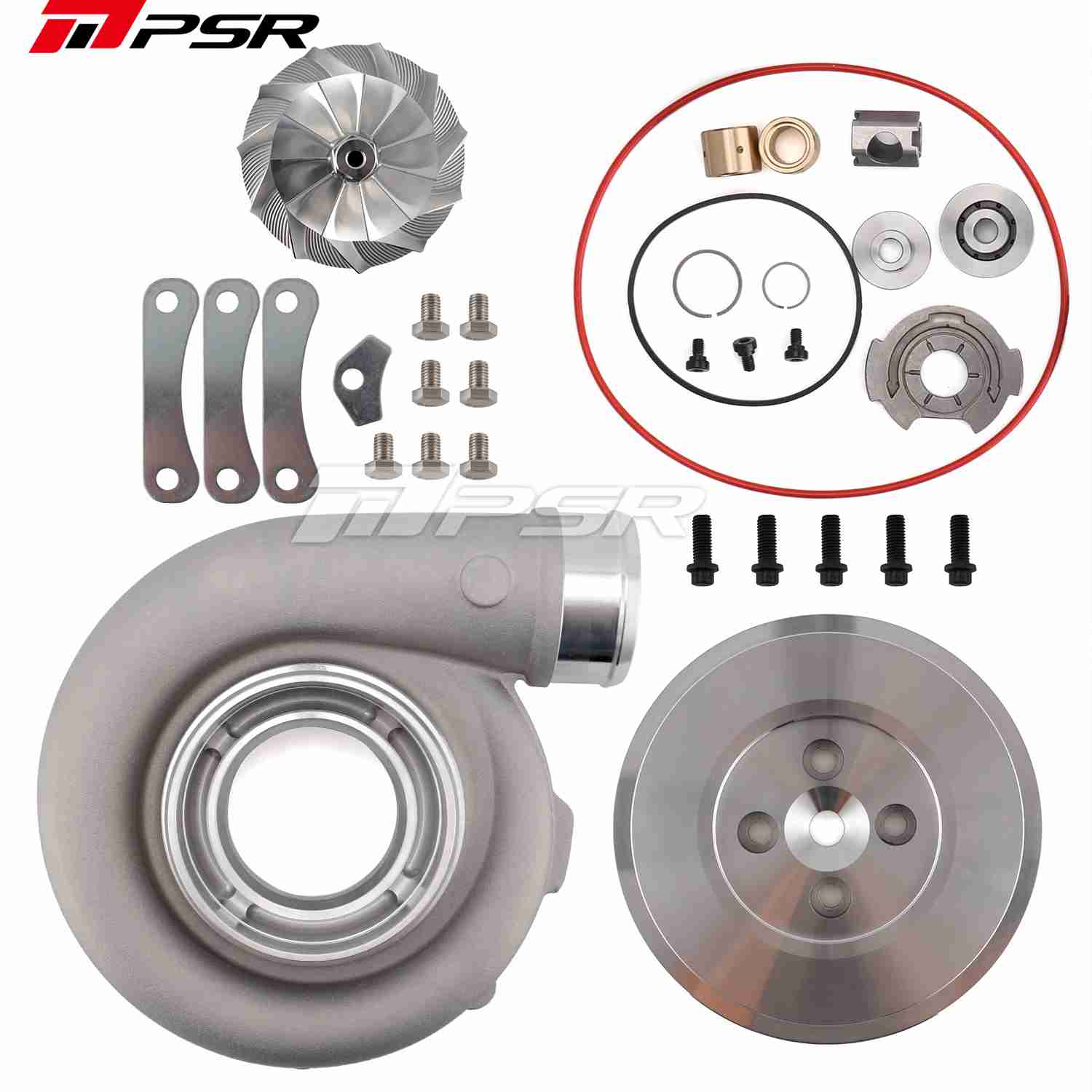

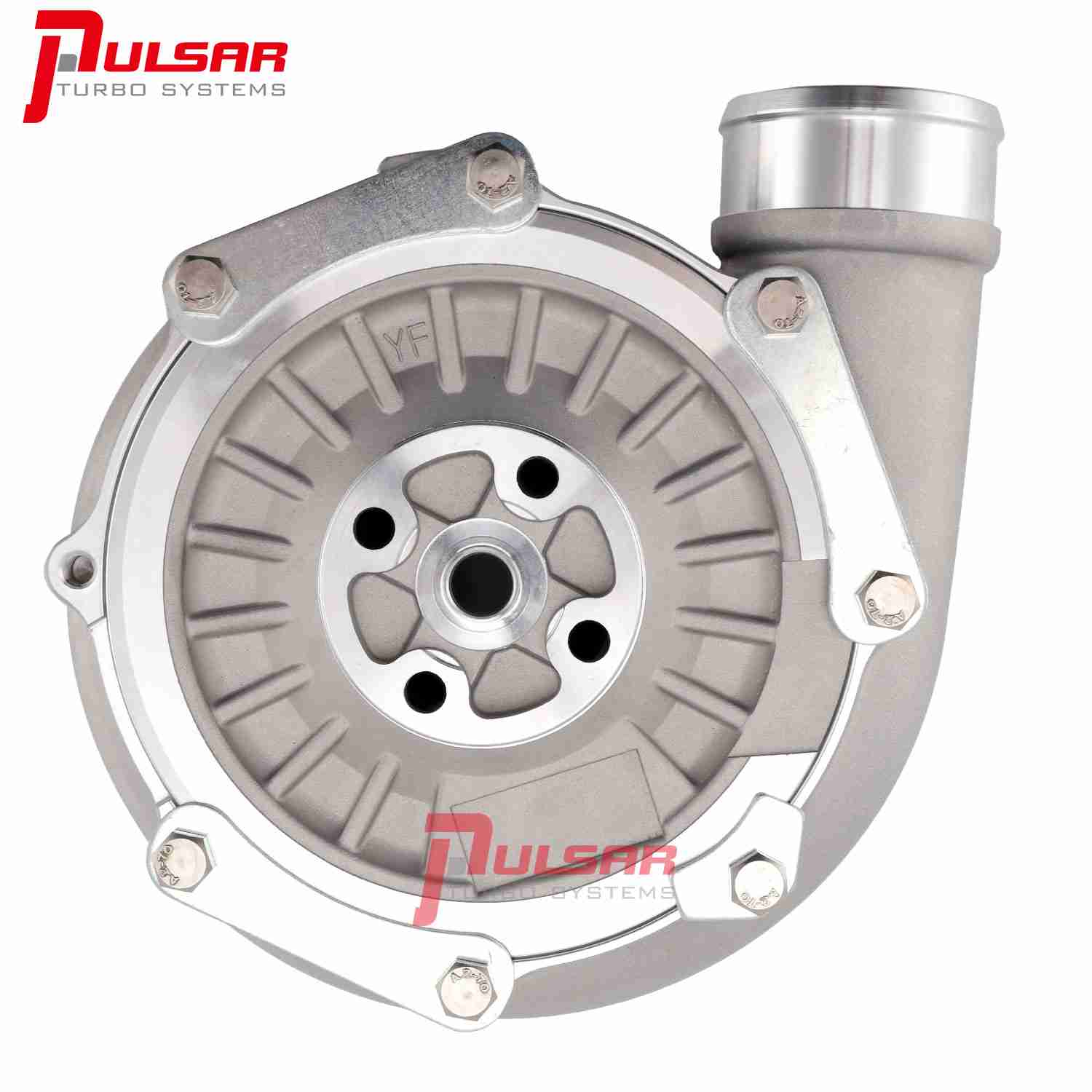

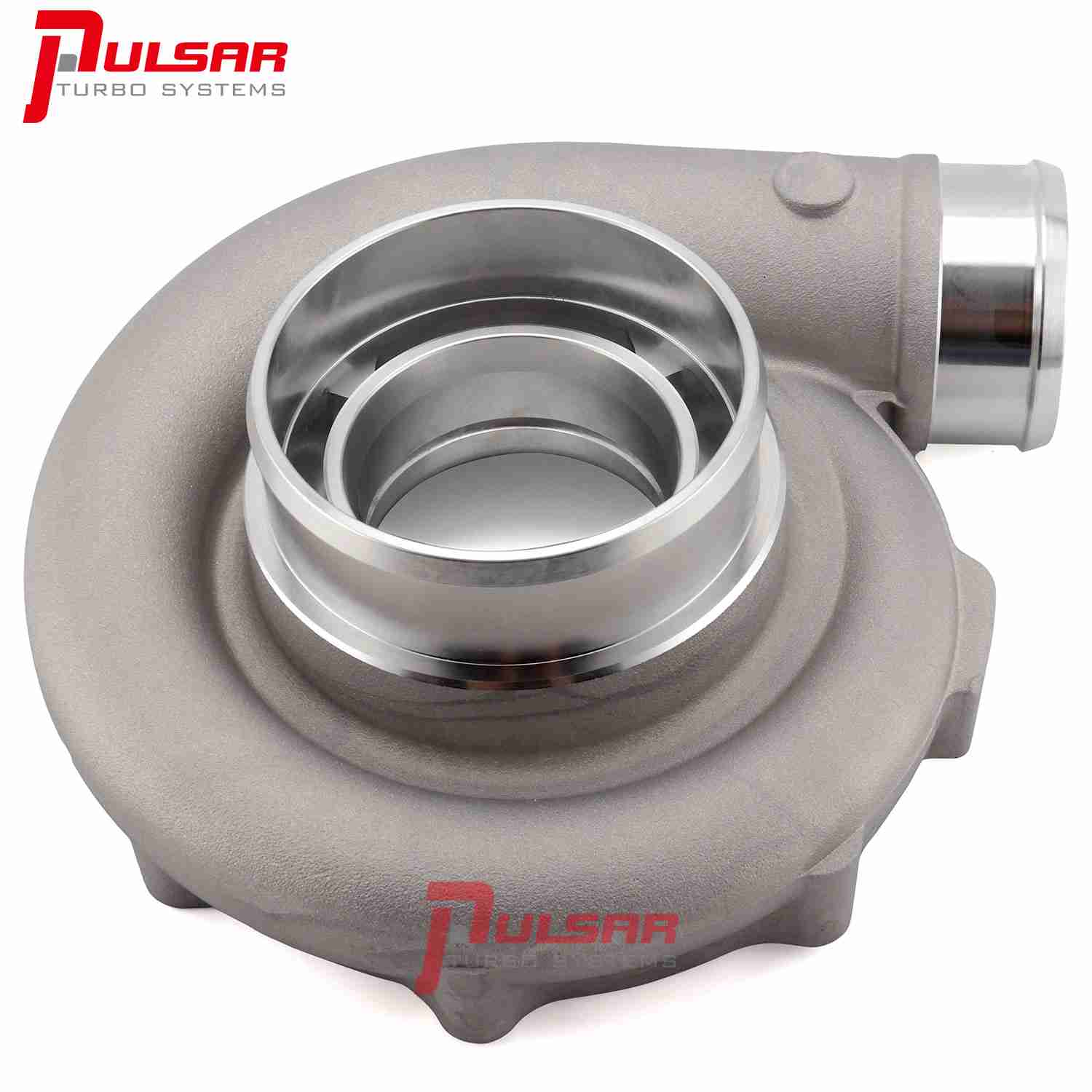

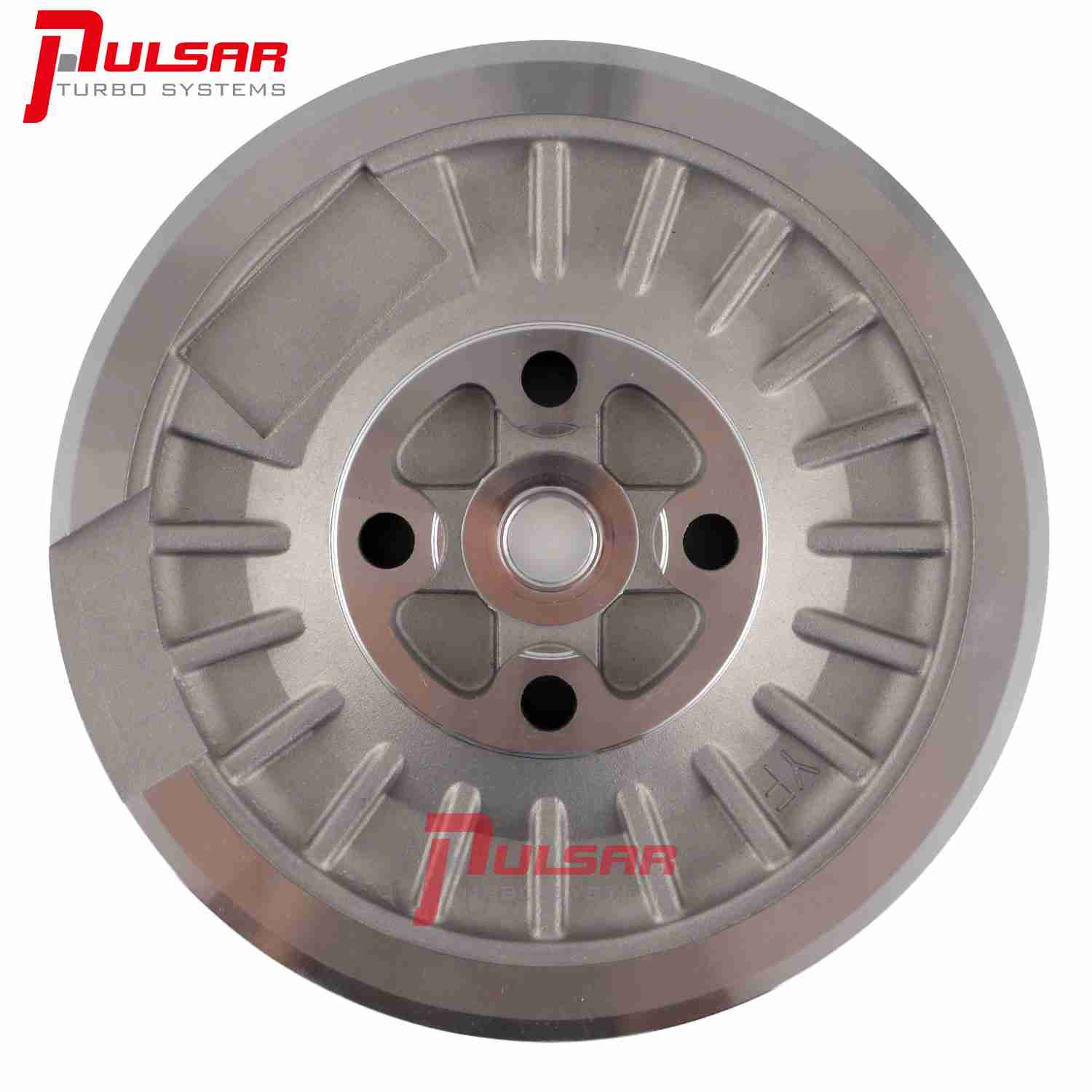

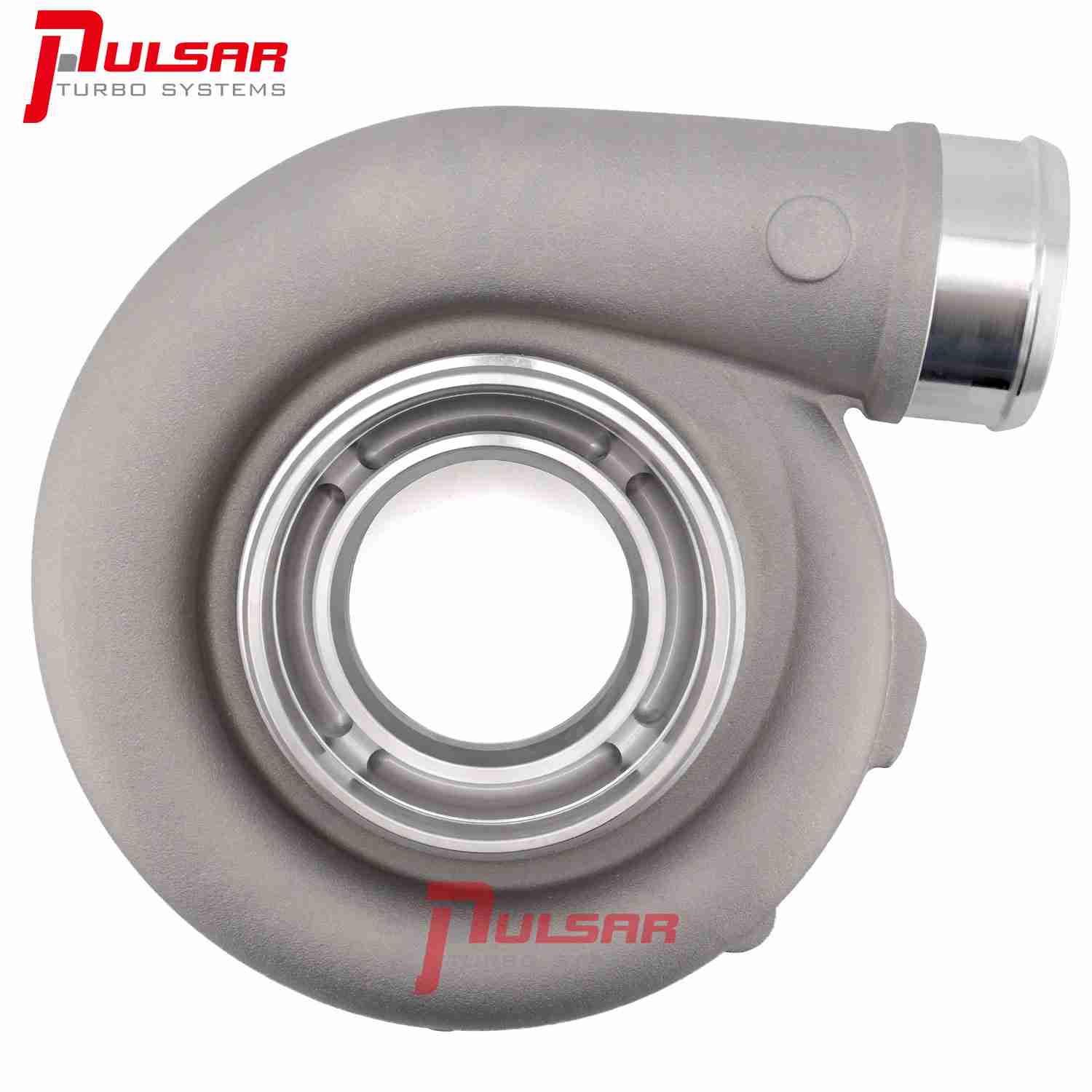

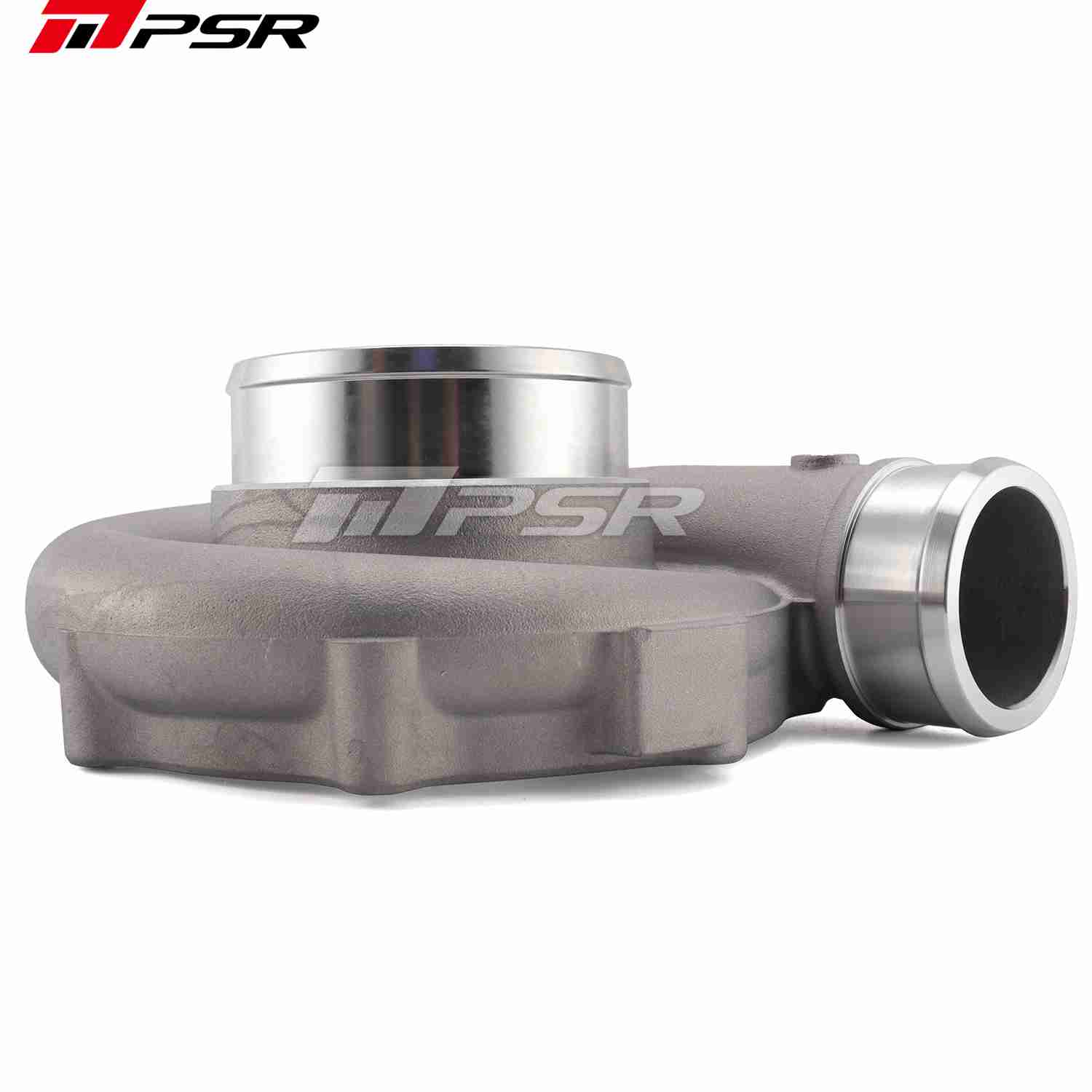

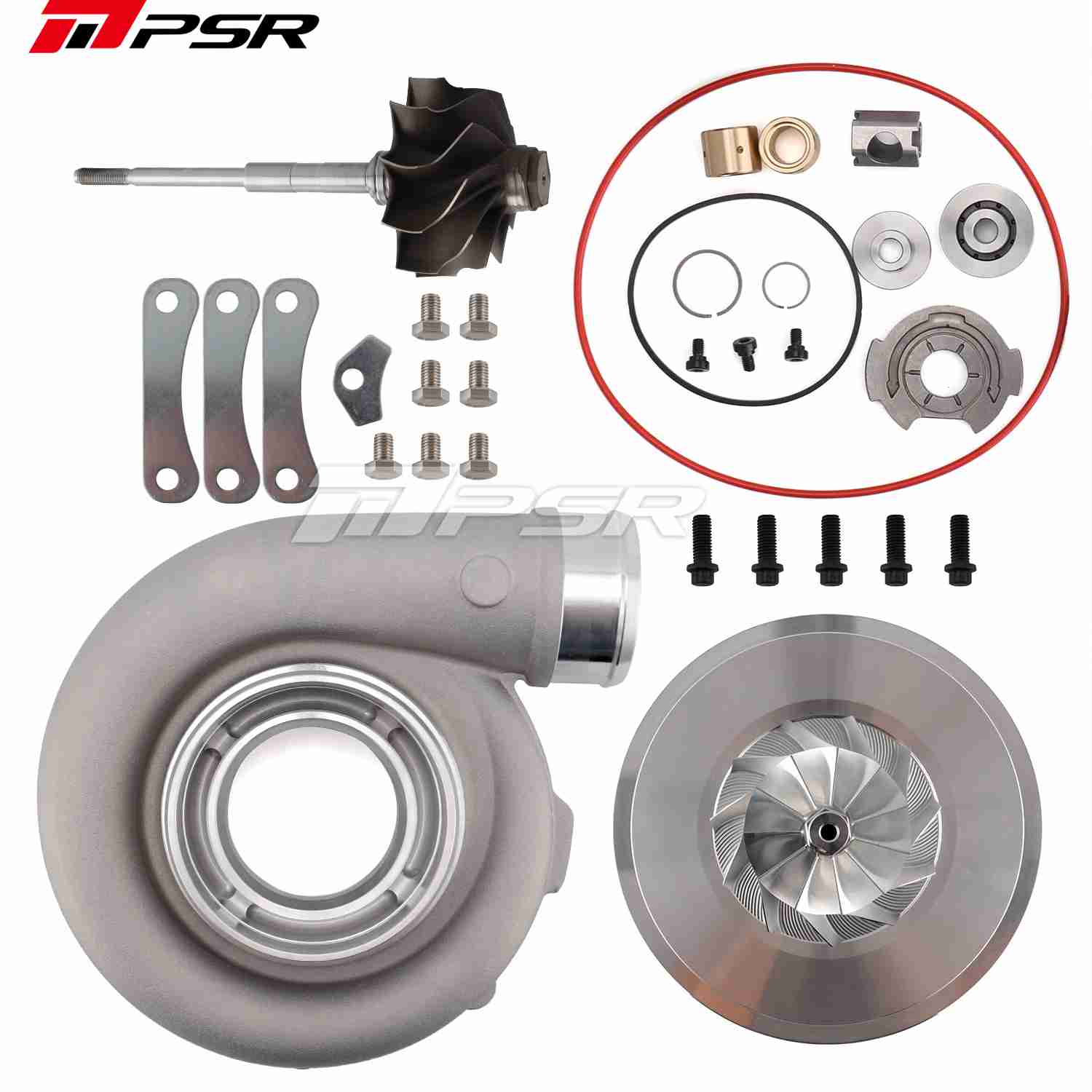

This is an upgraded turbo rebuild kit for any 05-07 stock Ford Powerstroke 6.0 turbo. It comes with Compressor housing, Backing plate, Rebuild Kit, Stainless Steel Clamp, bolts, 63.5/88.25mm upgraded billet compressor wheel. It can direct bolt on your 6.0 turbo and turn it into a billet Powermax on the compressor side. The bigger billet compressor wheel spools fast and make great top-end power. It is very suitable for someone who wants to squeeze a little more power out of their turbo without having to buy or build a complete upgraded turbo. Install Kit included for easy installation. Just swap your stock parts with our billet wheel, cover, and backing plate.

This is 10 blade turbine upgrade for the 13-bladed 2005-2007 turbos. This is a nice upgrade for the DIY builder that wants a little more flow and likes the sound of the 2003 whistle turbo.

Item Details:

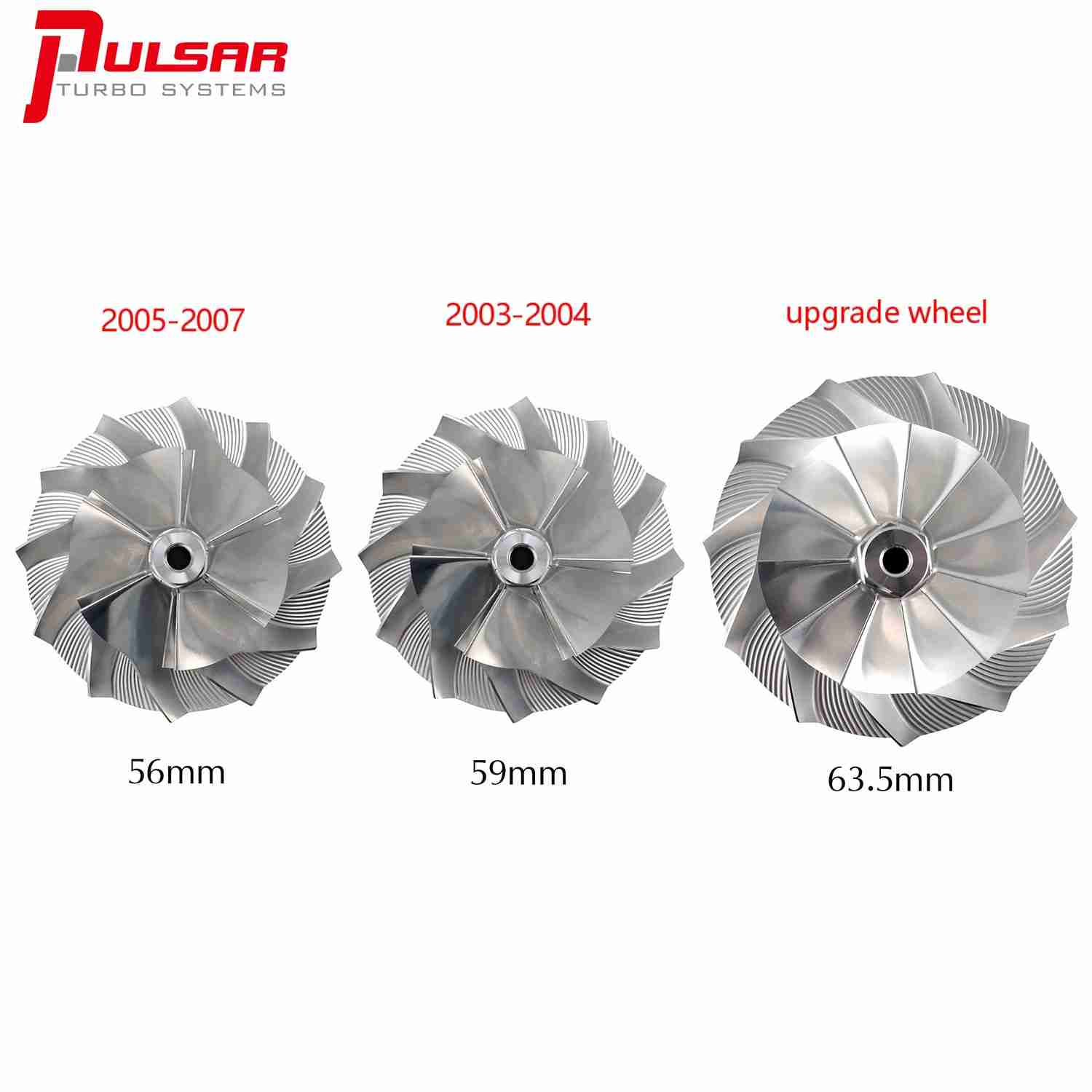

Billet compressor Wheel:

Inducer: 63.5mm
Exducer/Tapered Tip Exducer: 88.25mm/91.78mm
Superback: 5.3mm
Bore: Threaded-M7x1.0LHT
Blades: 11+0

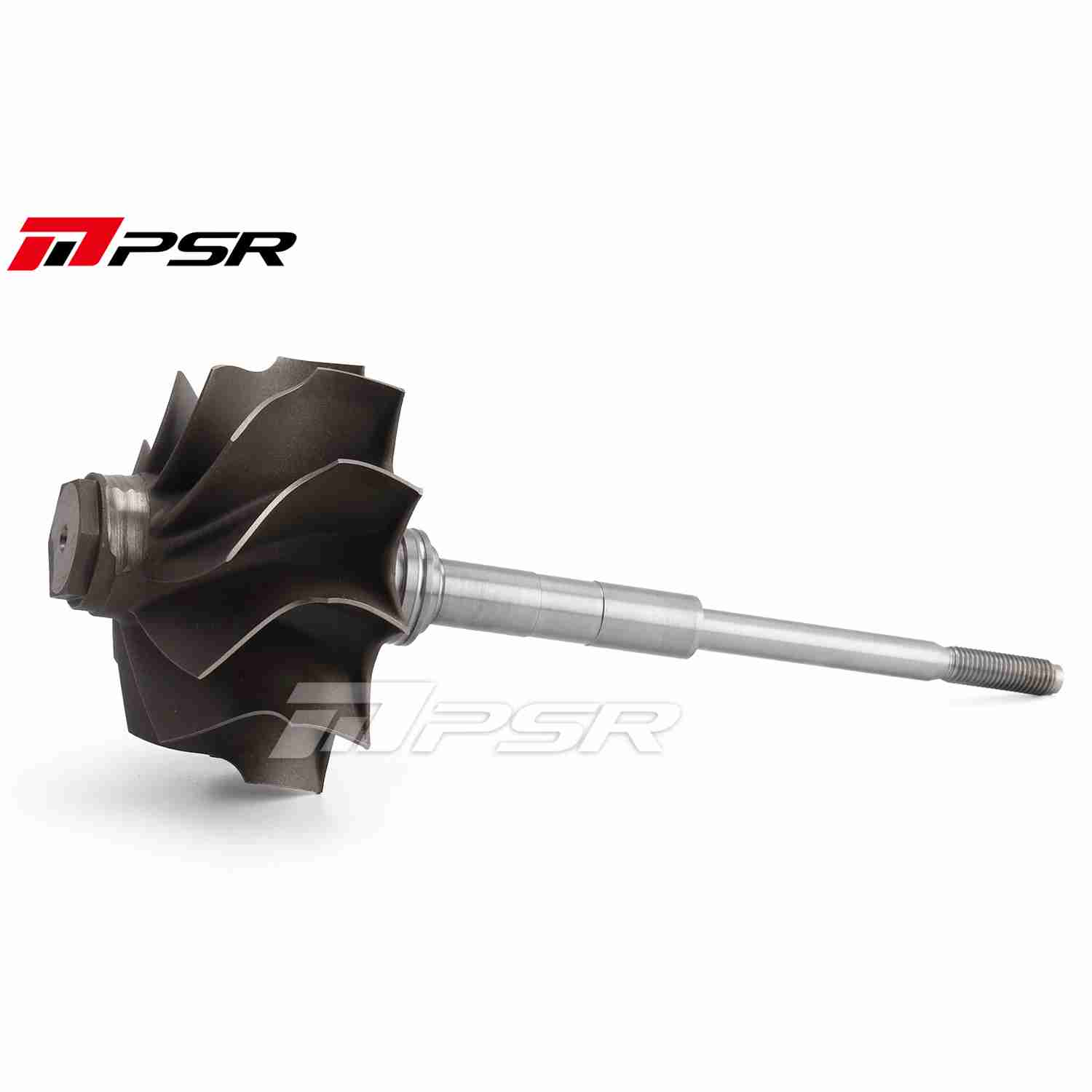

Turbine Wheel:

Blades: 10

Inducer: 72.7mm

Exducer: 64mm

Tip Height: 14.5mm

Journal Dia: 11.5mm

Stem Dia: 7.50mm M7x1.00 LHT

Reference Part #: 743250-0014

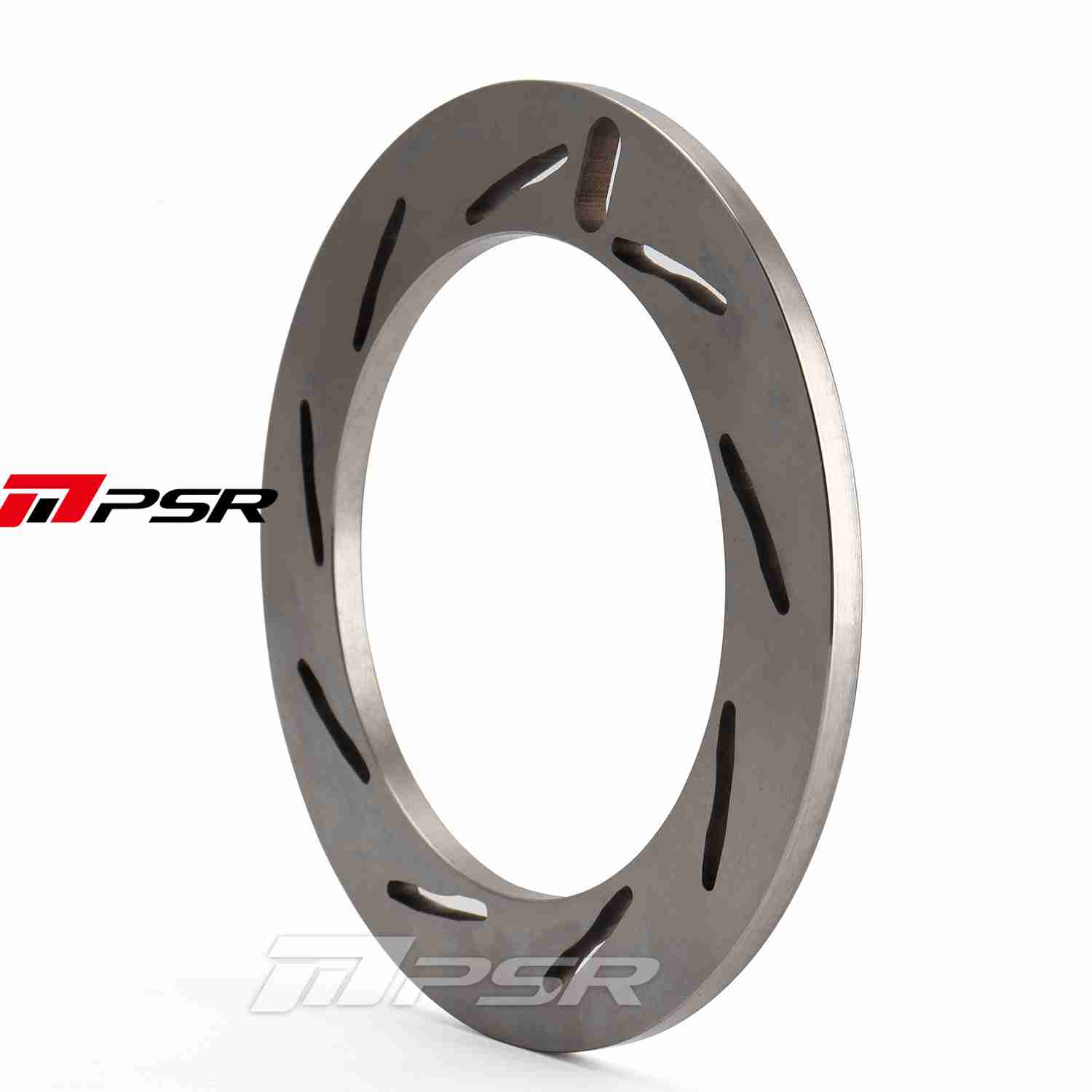

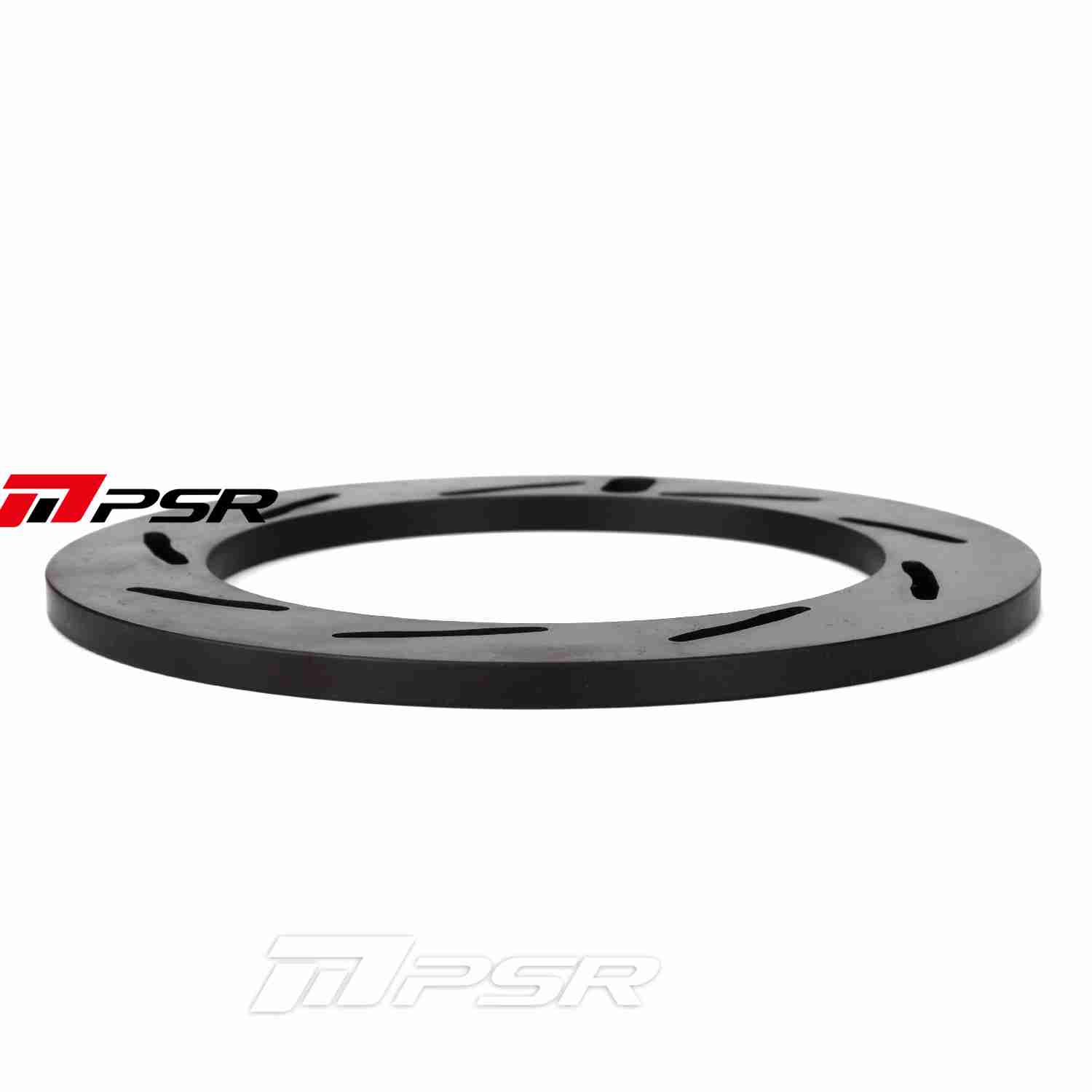

High-quality stainless-steel unison ring, Nitride Hardened

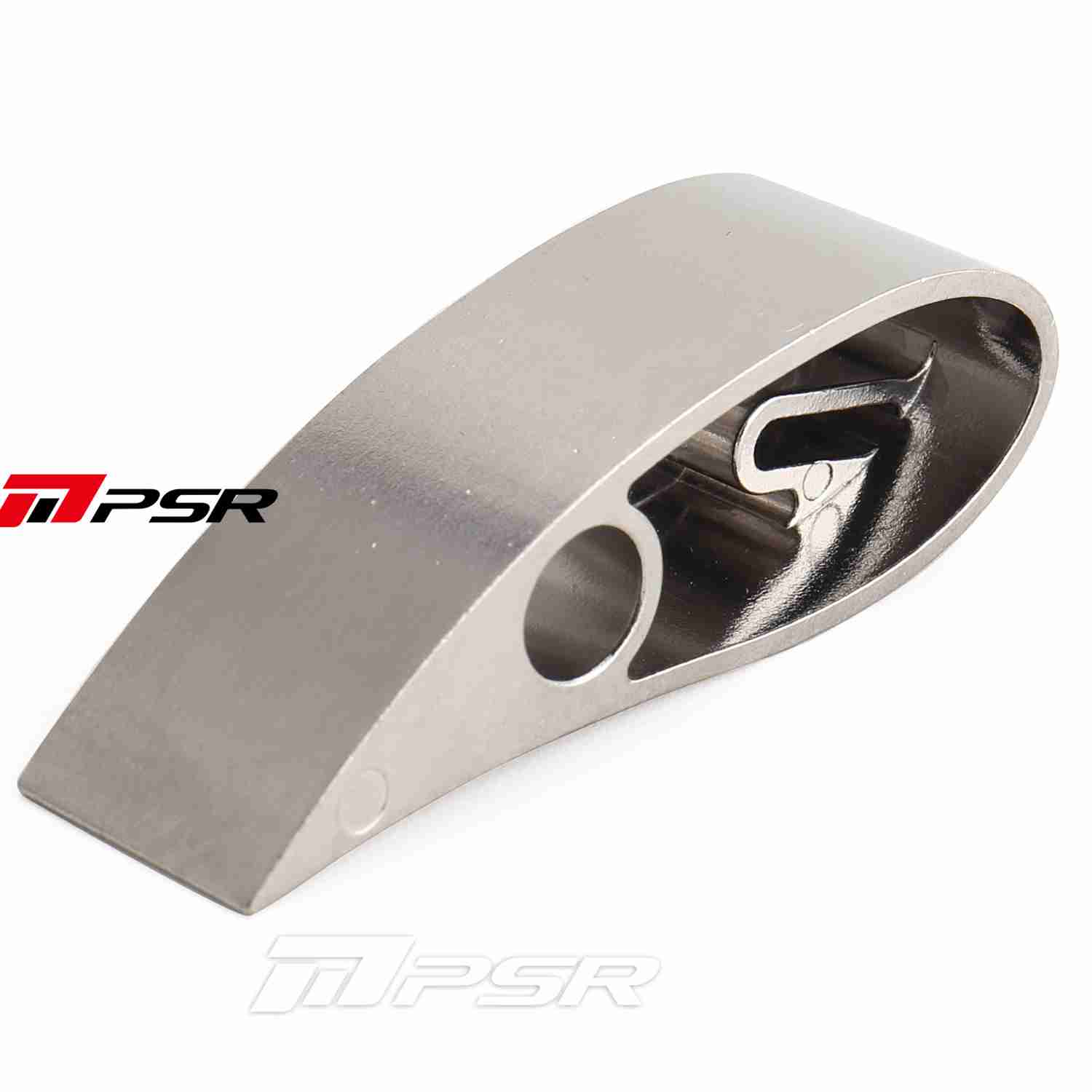

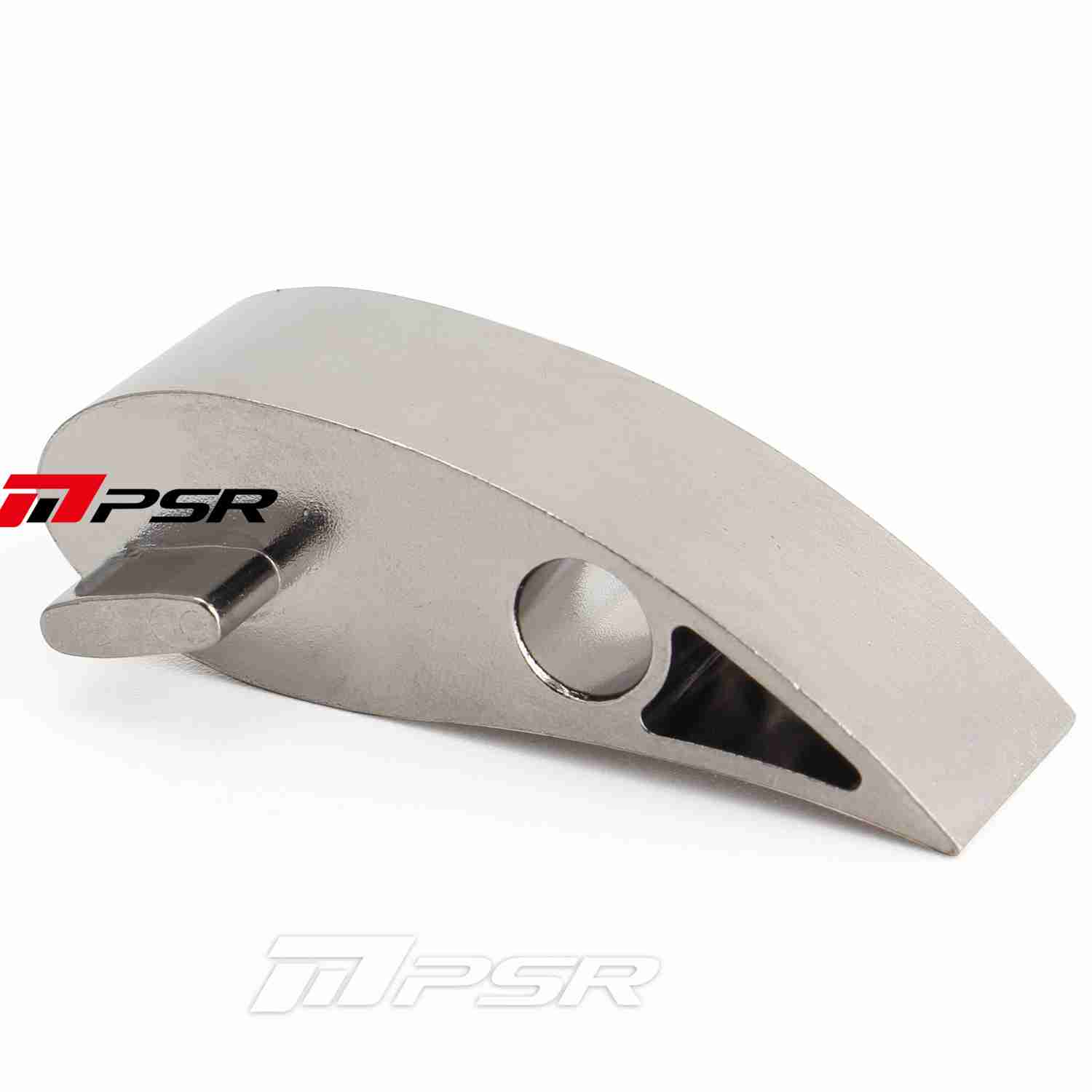

13.2mm vanes

Twin hydrodynamic journal bearings

360-degree thrust bearing system
