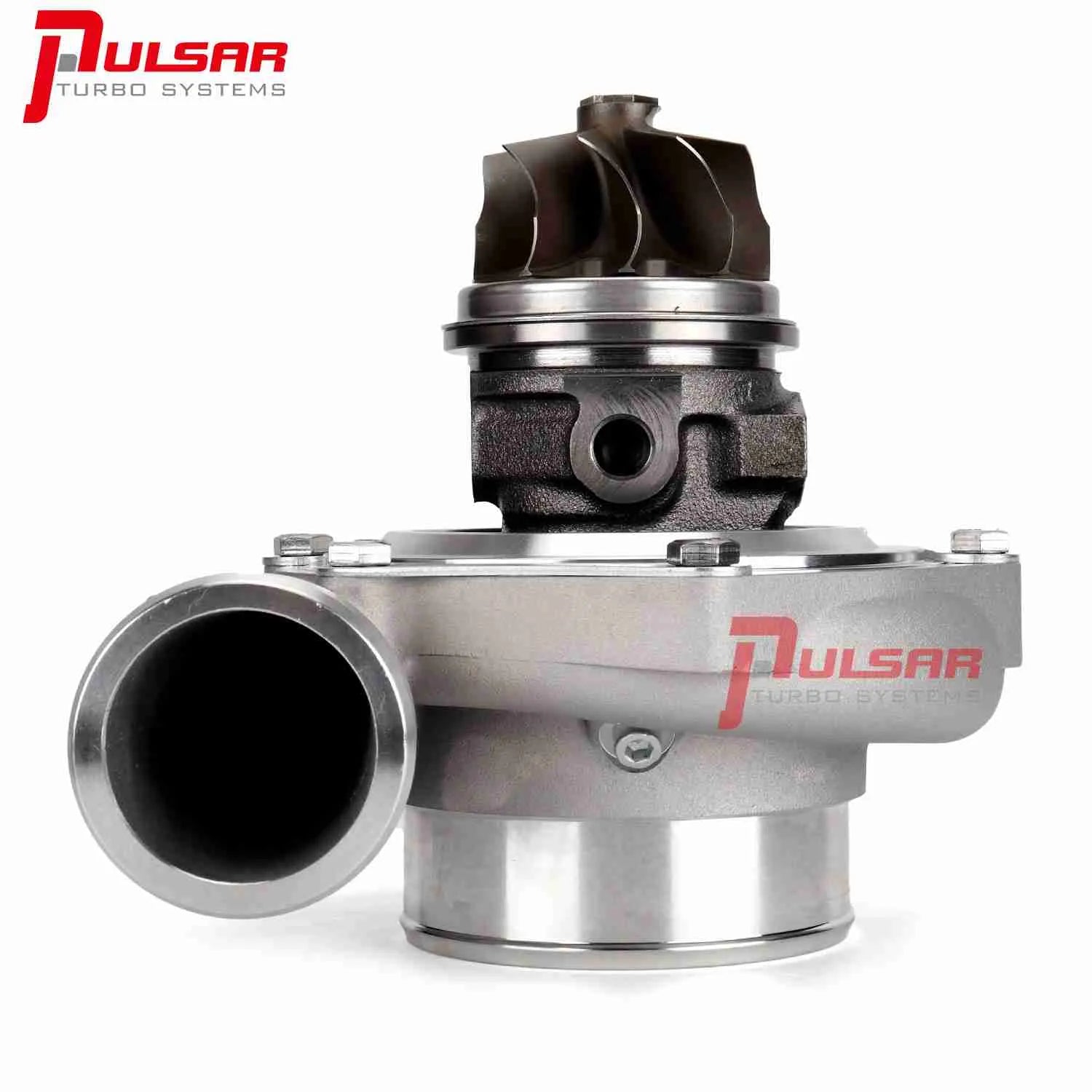

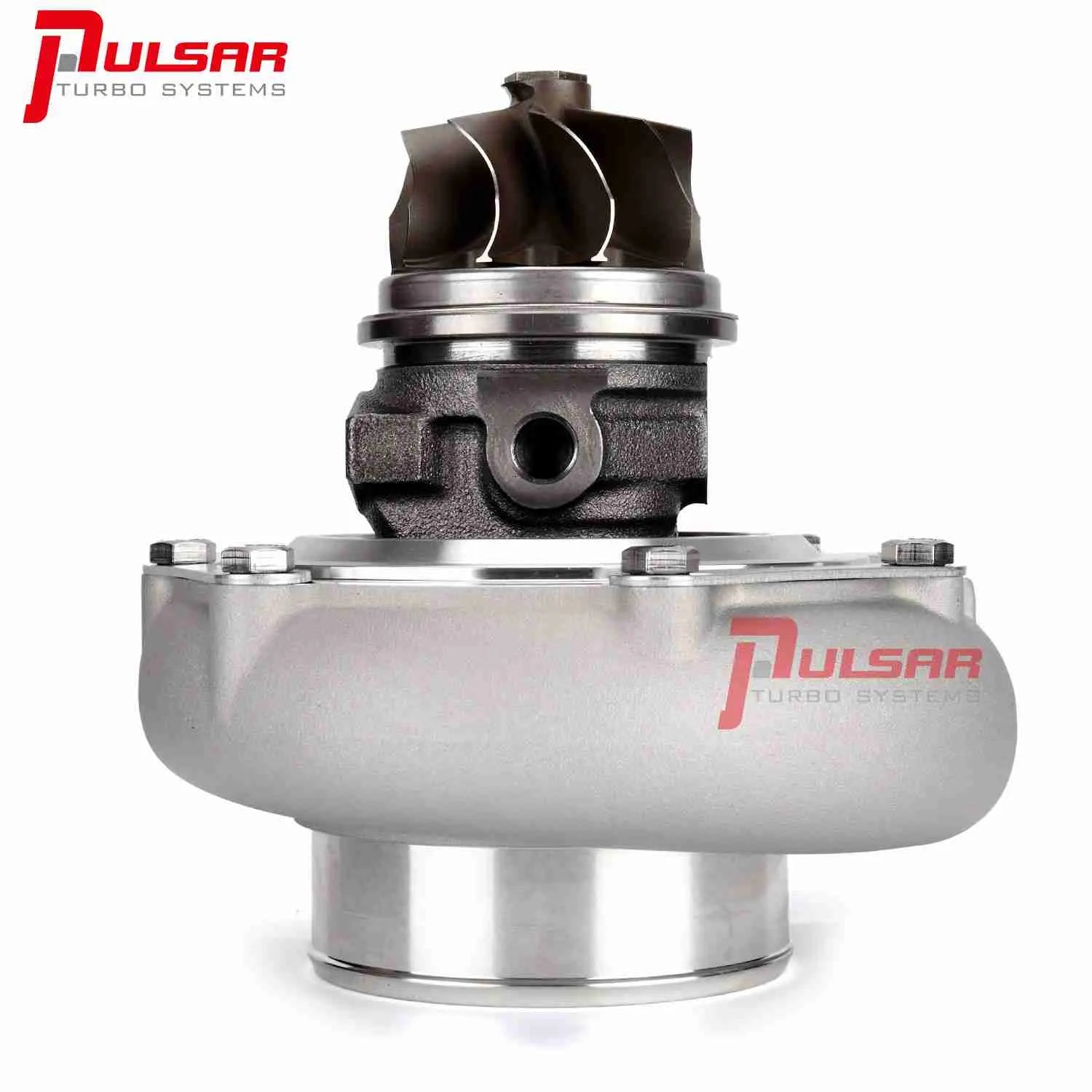

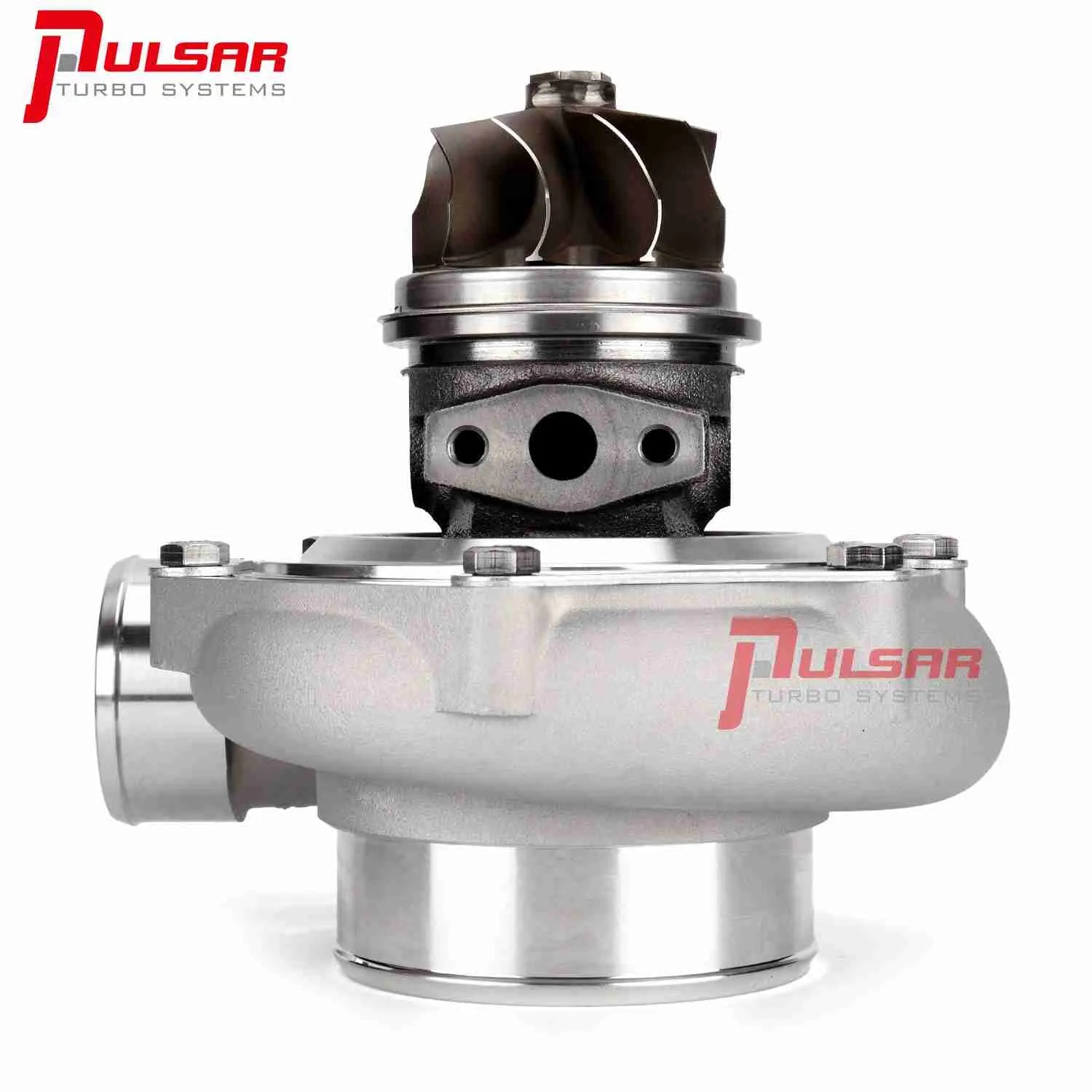

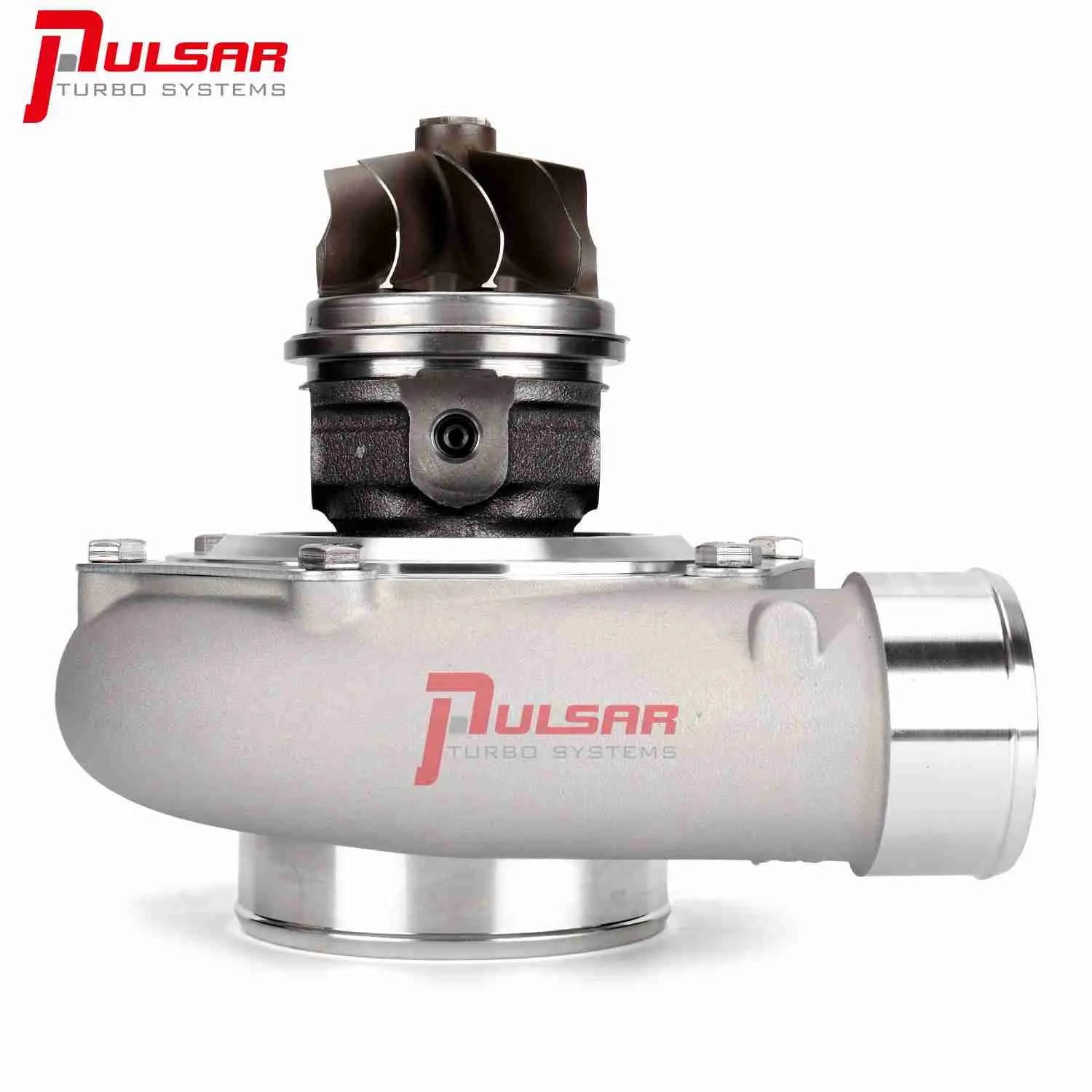

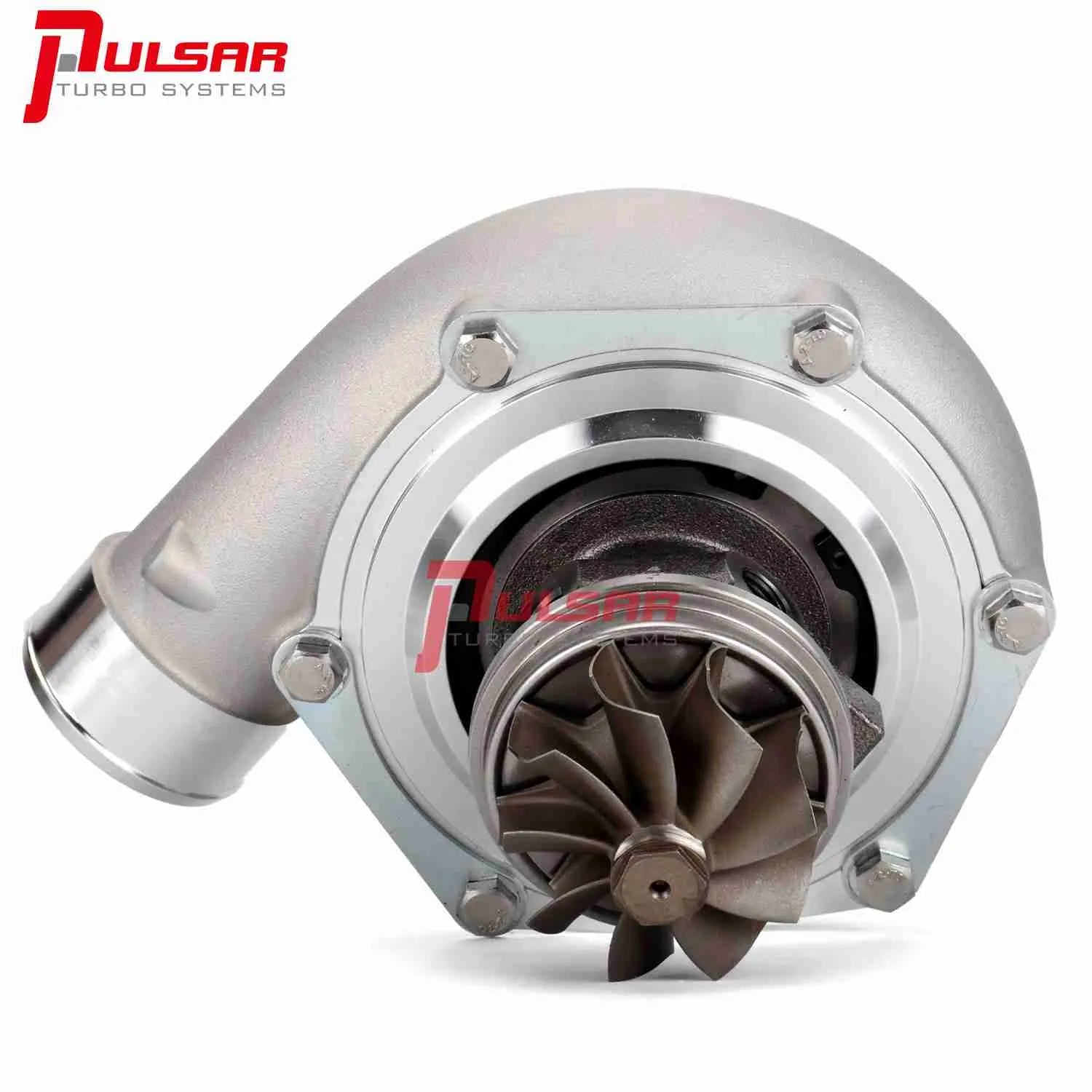

Pulsar Next GEN PSR6682 Supercore for Ford Falcon to replace the factory PT3582R

• Supercore, without turbine housing
• New Aerodynamic 10 blade billet compressor wheel flow more air over the stock cast or Gen1 11 blade billet wheel
• New Aerodynamic 9 blade turbine wheel, less weight, lower inertia, and higher flowability
• Genuine structure and rebuildable dual ceramic ball bearing system
• Larger 0.72A/R compressor cover with Anti-Surge 4″ inlet

Description:

If you have a genuine PT35 exhaust housing and modified (or plan to modify) with an external gate for your XR6, this Super Core could be dropped-in directly. There is no modification needed.

• Compressor Wheel: 65.7*82.6mm (extended tip diameter: 85.29mm)
• Turbine Wheel: 68*62.3mm
• Compressor Inlet: 4″ Hose
• Compressor Outlet: 2.5″ Hose
• Turbine Inlet: T3 Open
• Water Ports: -6AN
• Oil Feed: -4AN to the Oil Restrictor
• Oil Drain: Std T3 Oil Drain Flange

Application:

Replacement for factory XR6 PT3582R PT3576R Turbos.

• 2002- BA FALCON XR6
• 2004- BF FALCON XR6
• 2008- FPV F6/TYPHOON/TORNADO
• 2006- TERRITORY
• 2008- FG FALCON XR6
• 2008- FG FALCON G6E
