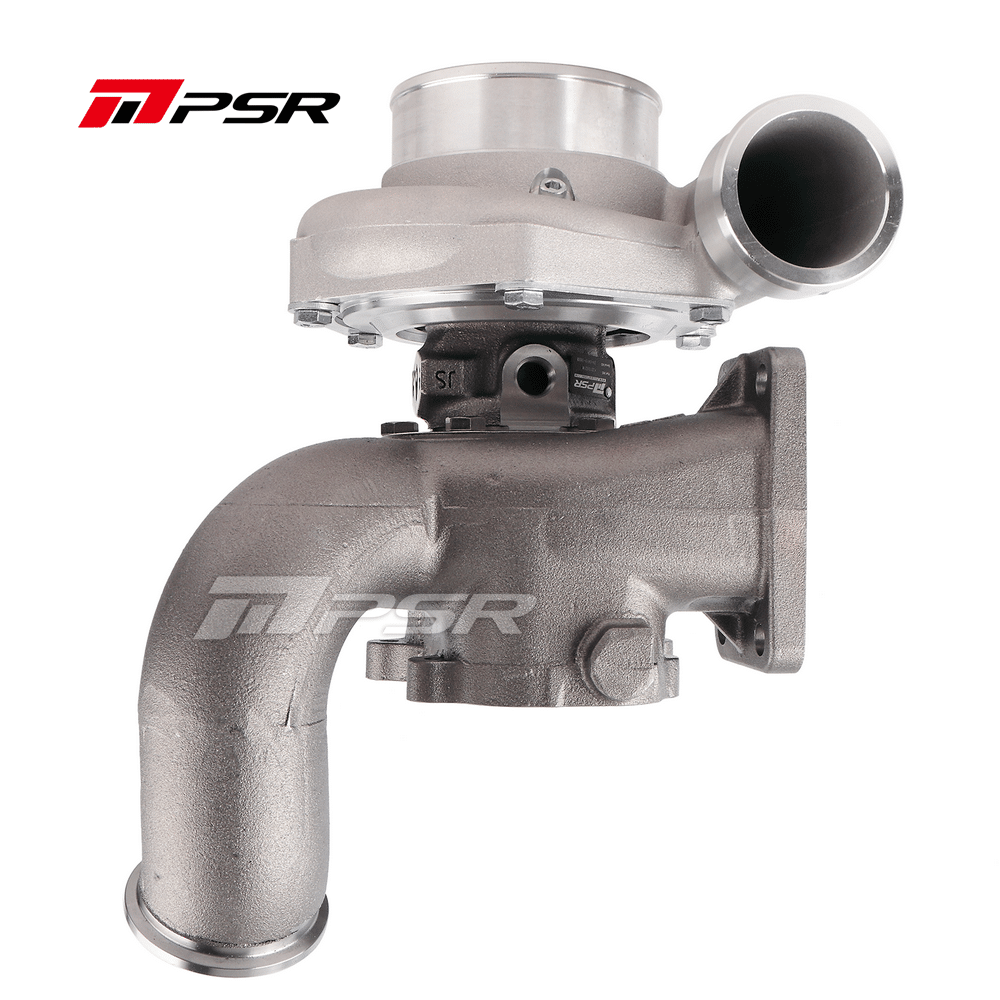

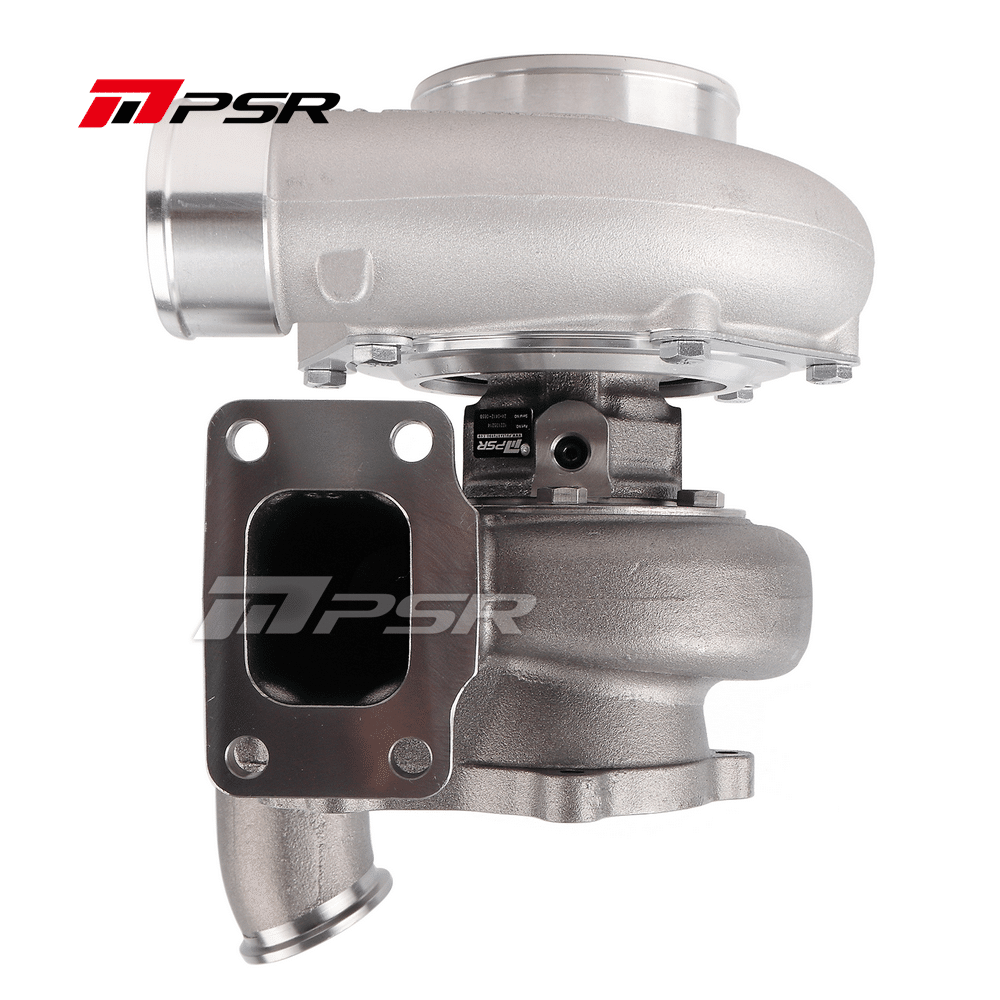

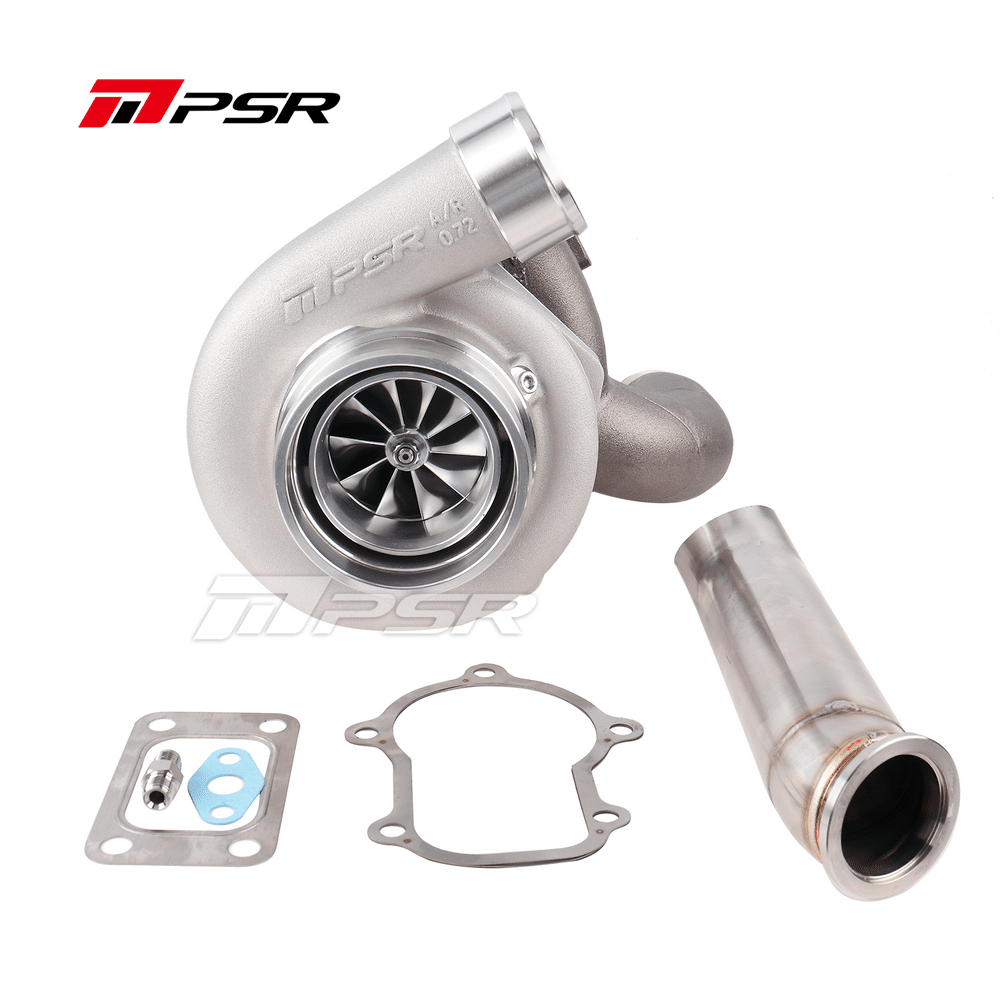

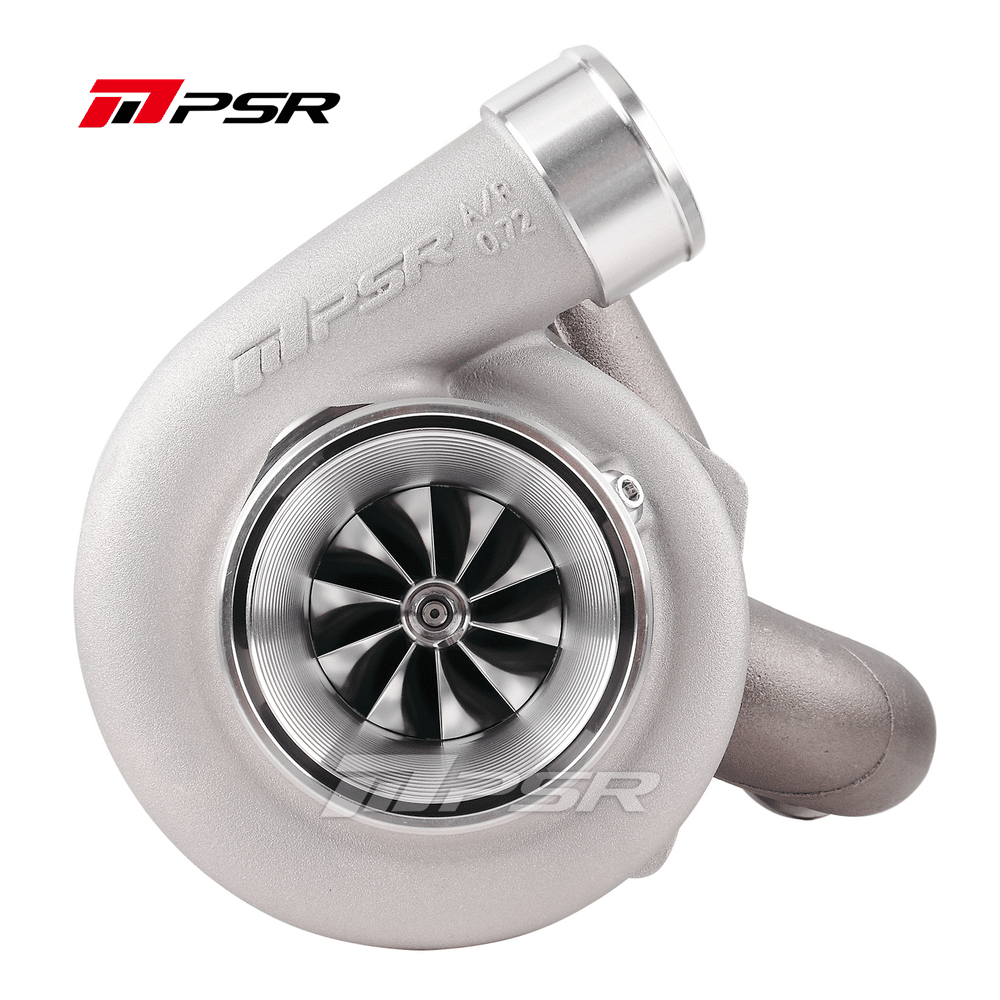

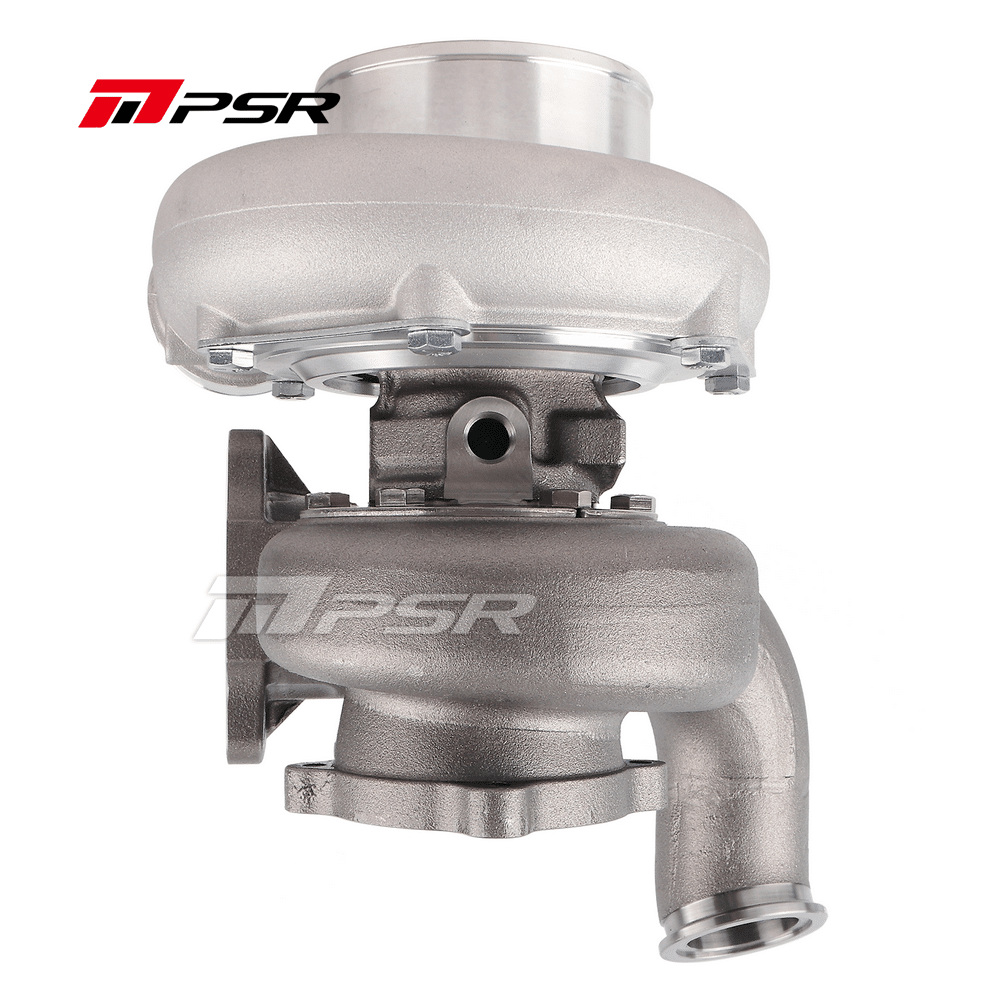

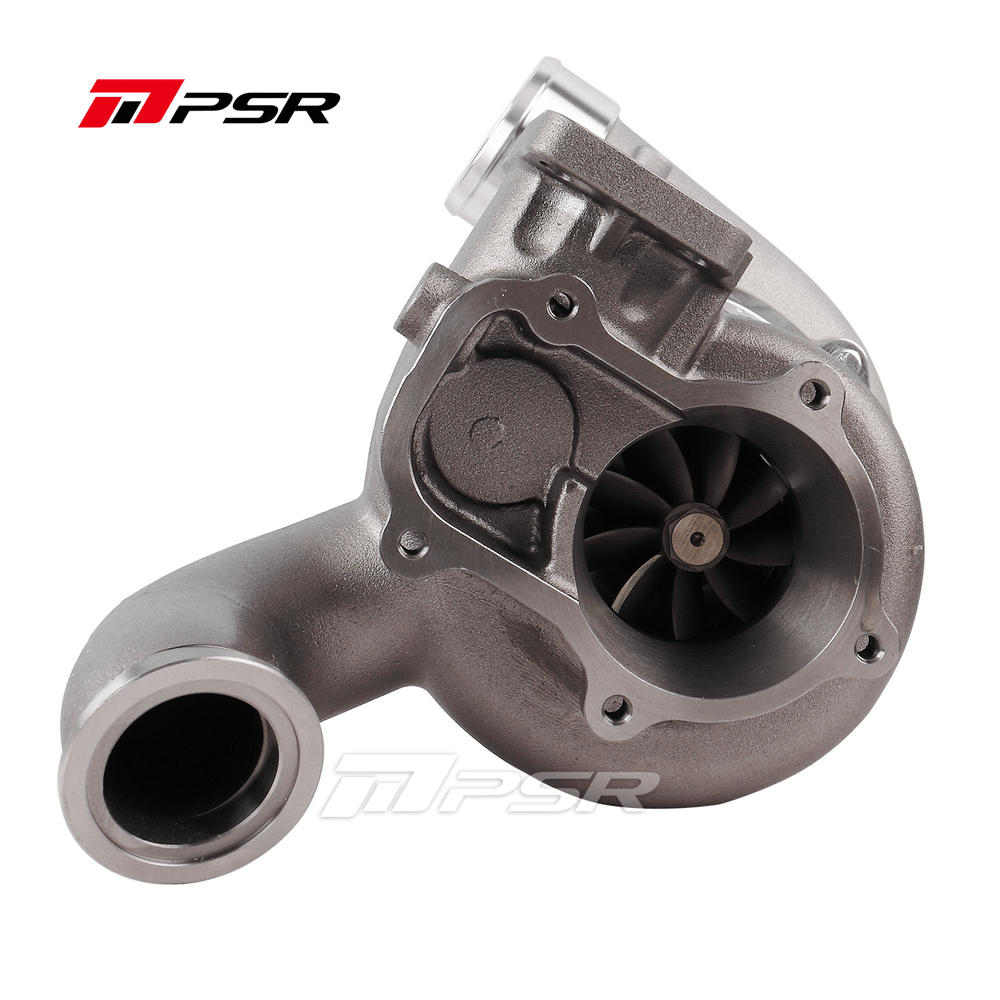

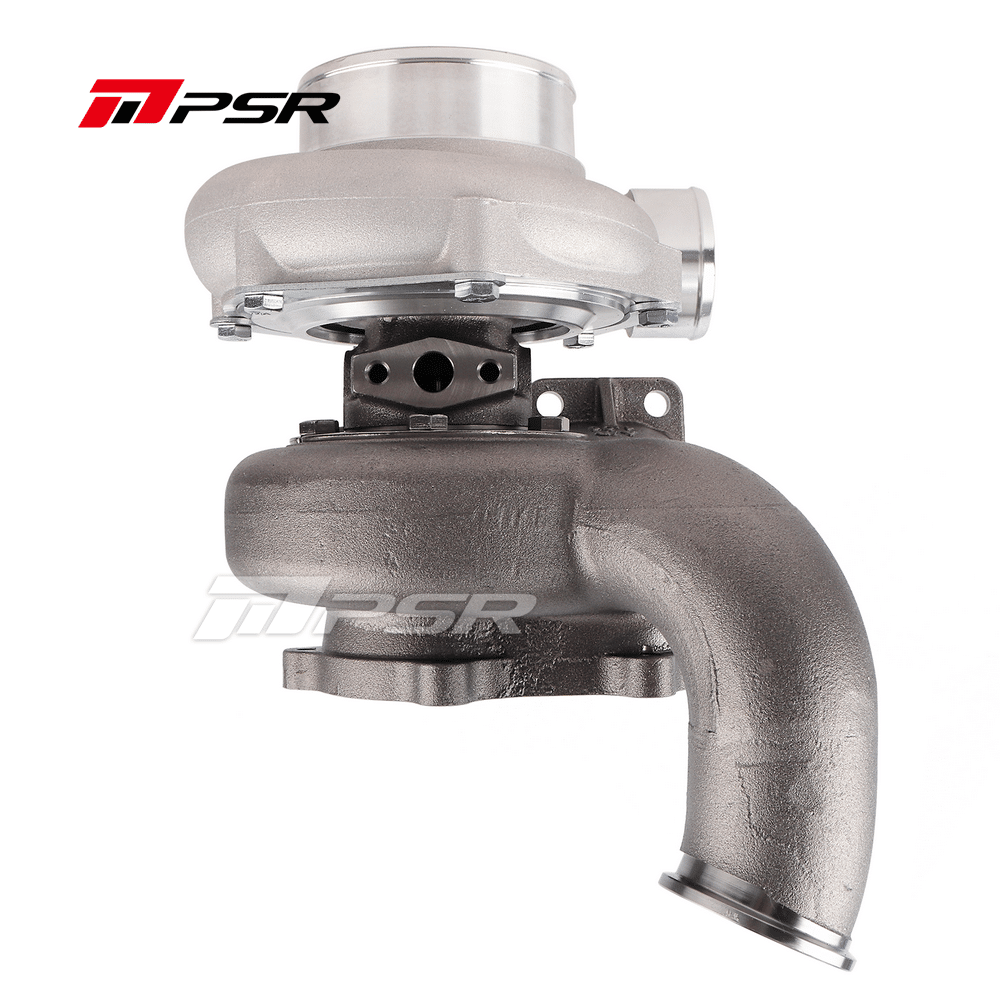

Pulsar Next GEN PSR6682 Turbocharger External Wastegate Version for Ford Falcon BA BF XR6

• New Aerodynamic 10 blade billet compressor wheel flow more air over the stock cast or Gen1 11 blade billet wheel
• New Aerodynamic 9 blade turbine wheel, less weight, lower inertia, and higher flowability
• Genuine structure and rebuildable dual ceramic ball bearing system
• Larger 0.72A/R compressor cover with Anti-Surge 4″ inlet
• Billet actuator with black anodized coating
• 3 Layer Stainless Steel 5 Bolt Gasket

Description:

• Compressor Wheel: 65.7*82.6mm (extended tip diameter: 85.29mm)
• Turbine Wheel: 68*62.3mm
• Compressor Inlet: 4″ Hose
• Compressor Outlet: 2.5″ Hose
• Turbine Inlet: T3 Open
• Turbine Outlet: 5 Bolt
• Turbine housing internal wastegate hole: 33mm
• Water Ports: -6AN
• Oil Feed: -4AN to the Oil Restrictor
• Oil Drain: Std T3 Oil Drain Flange
• Actuator working pressure: 15psi/10psi/5psi

Application:

Replacement for factory XR6 PT3582 PT3576 Turbos.

• 2002- BA FALCON XR6
• 2004- BF FALCON XR6
