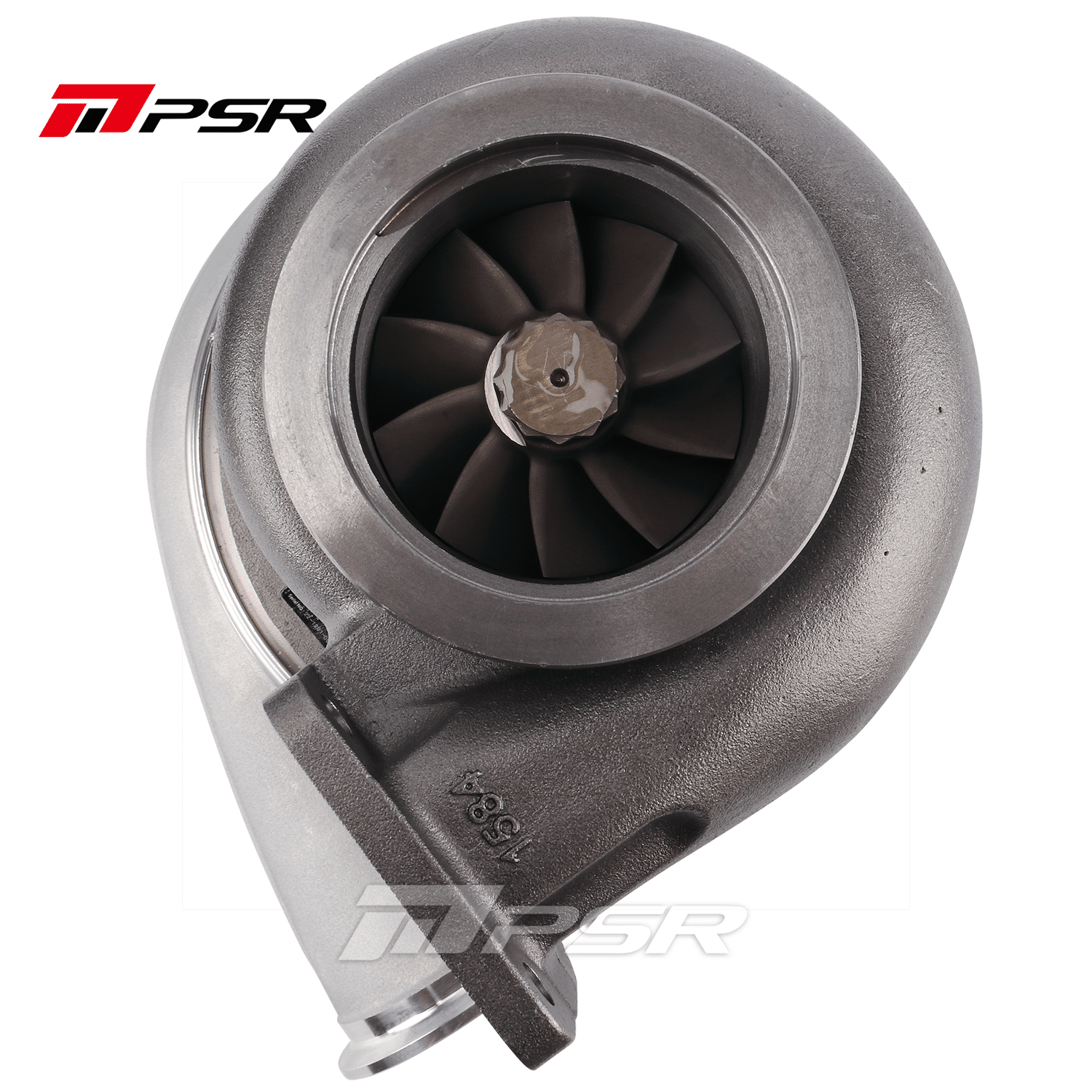

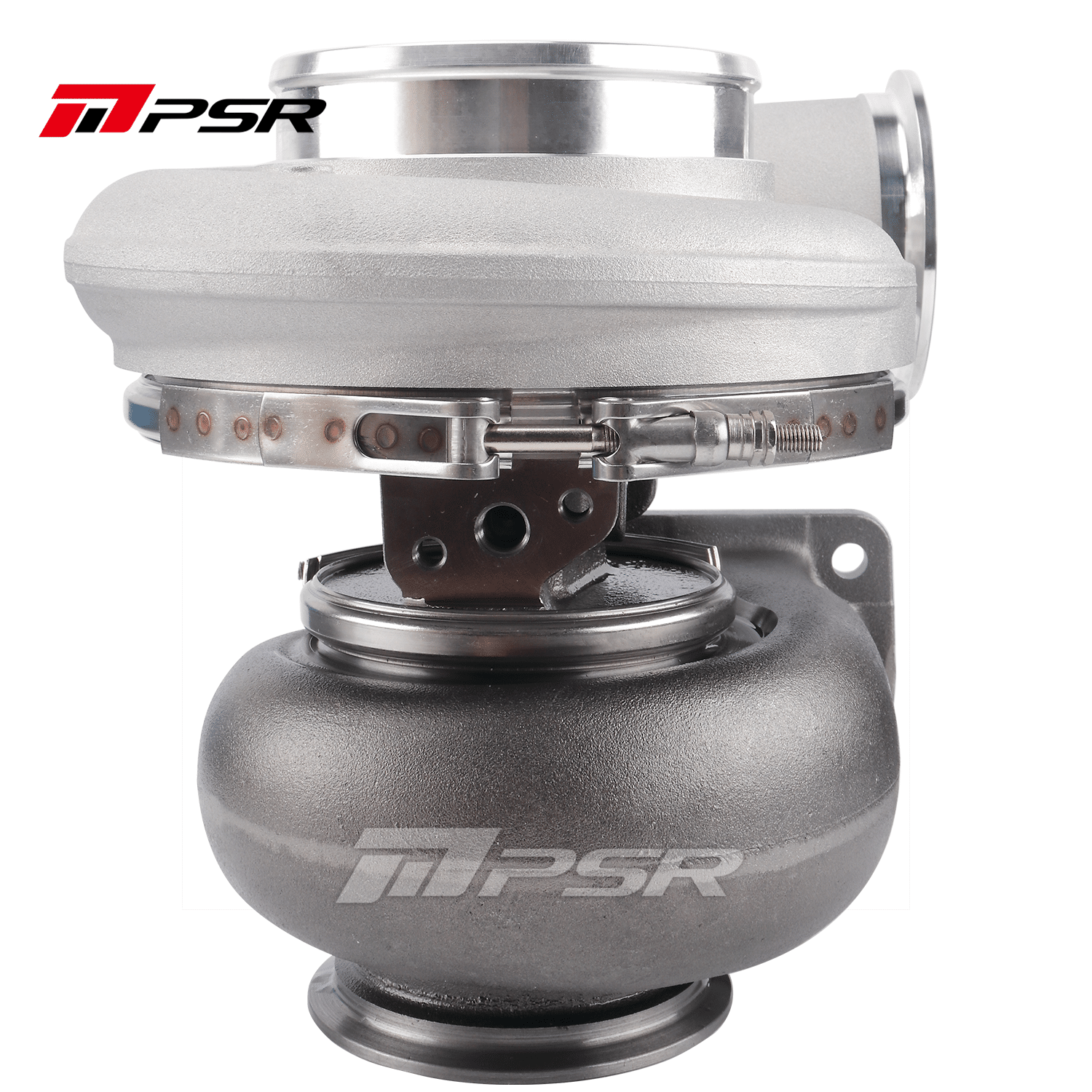

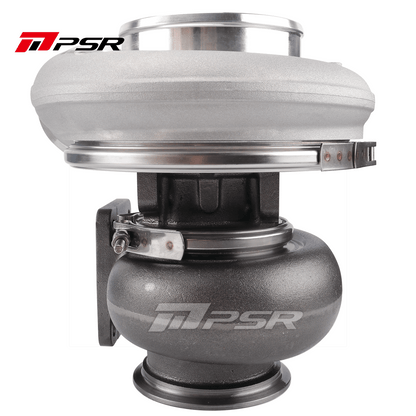

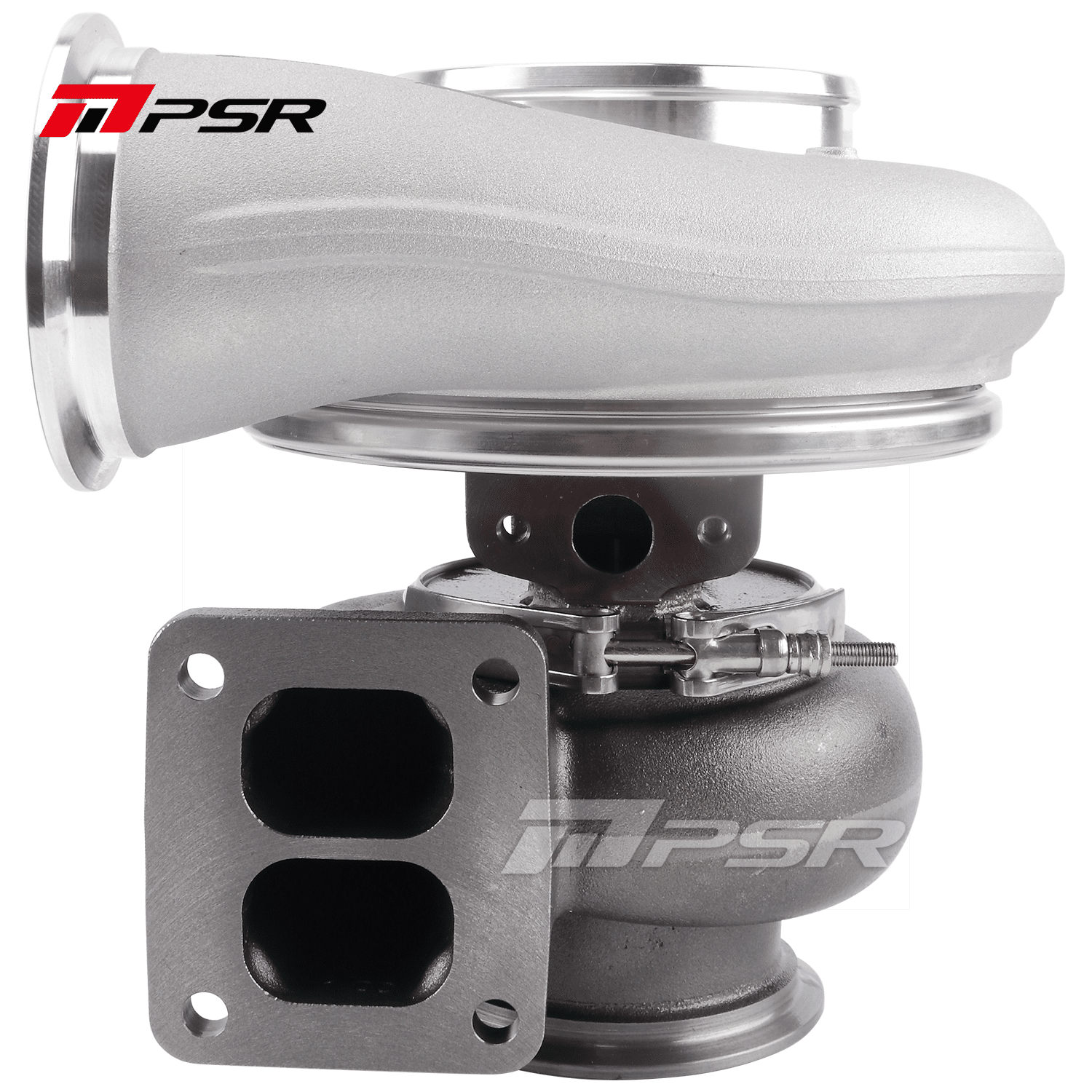

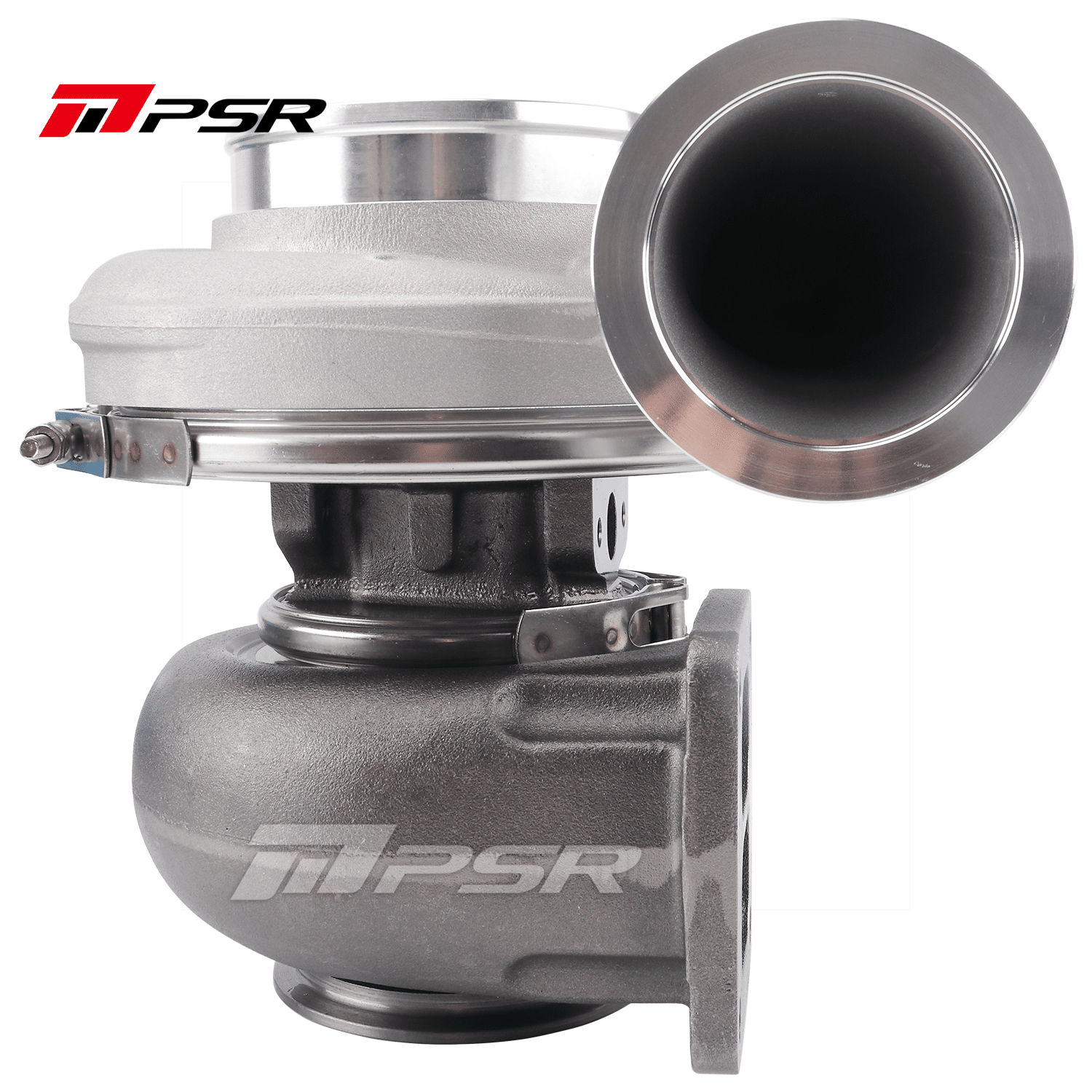

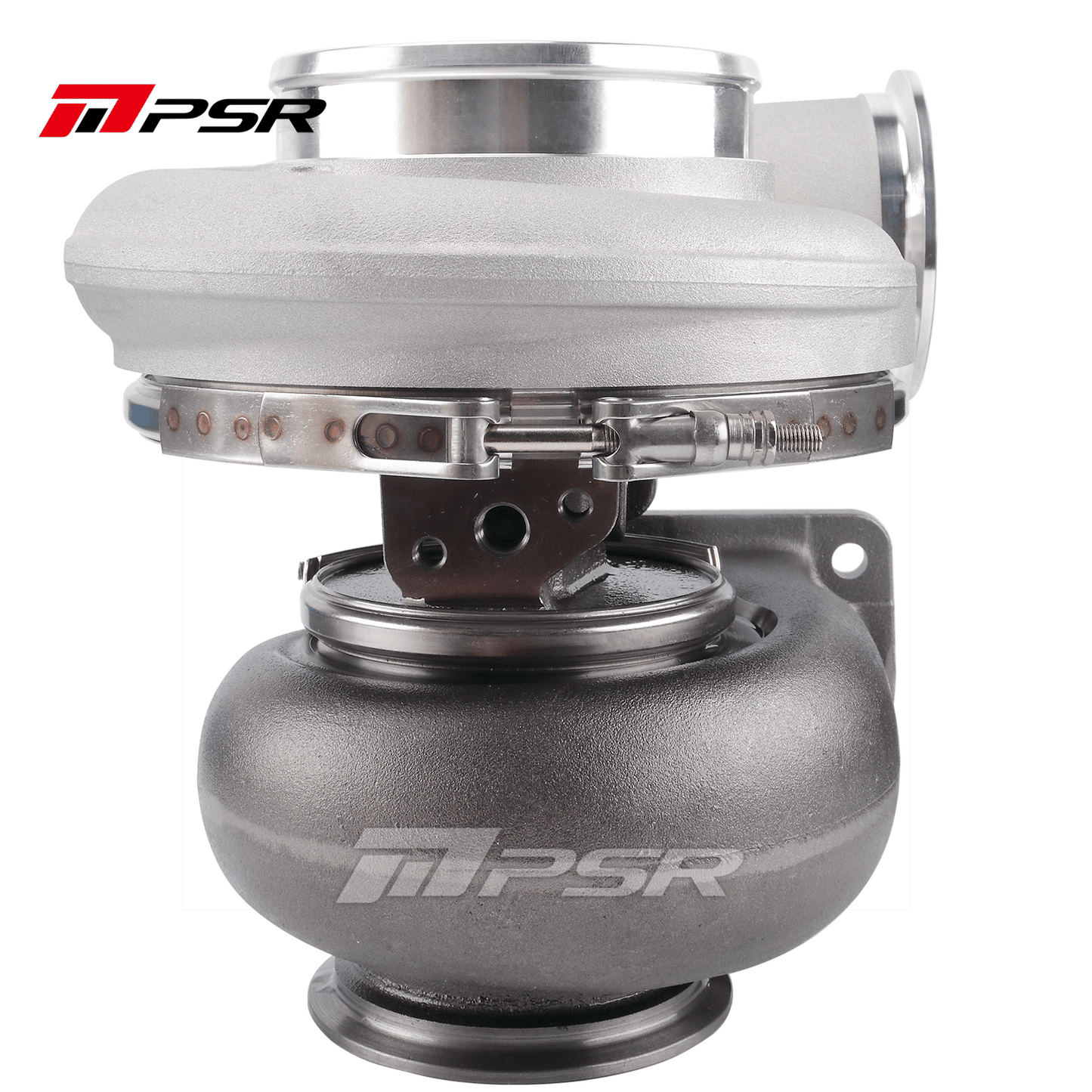

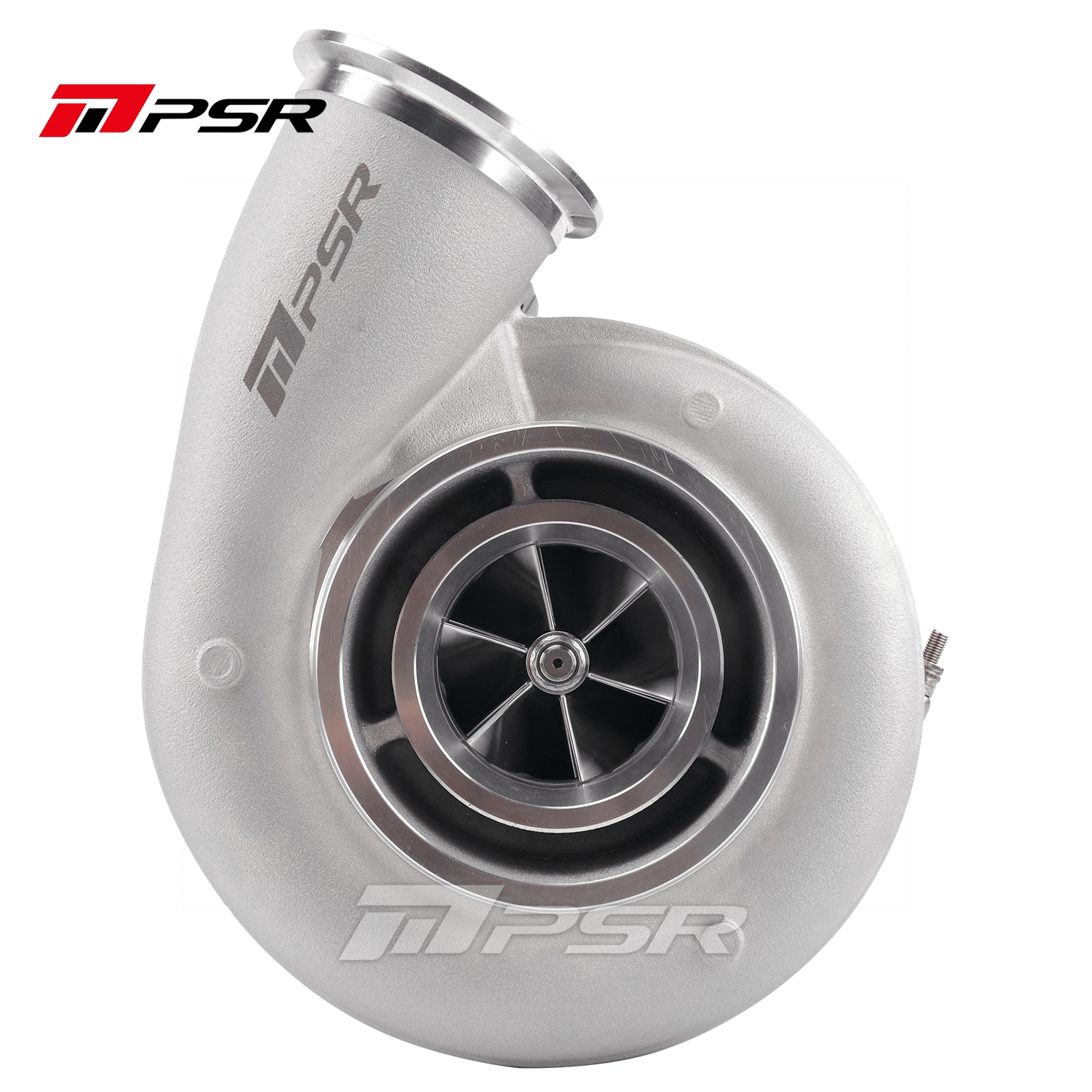

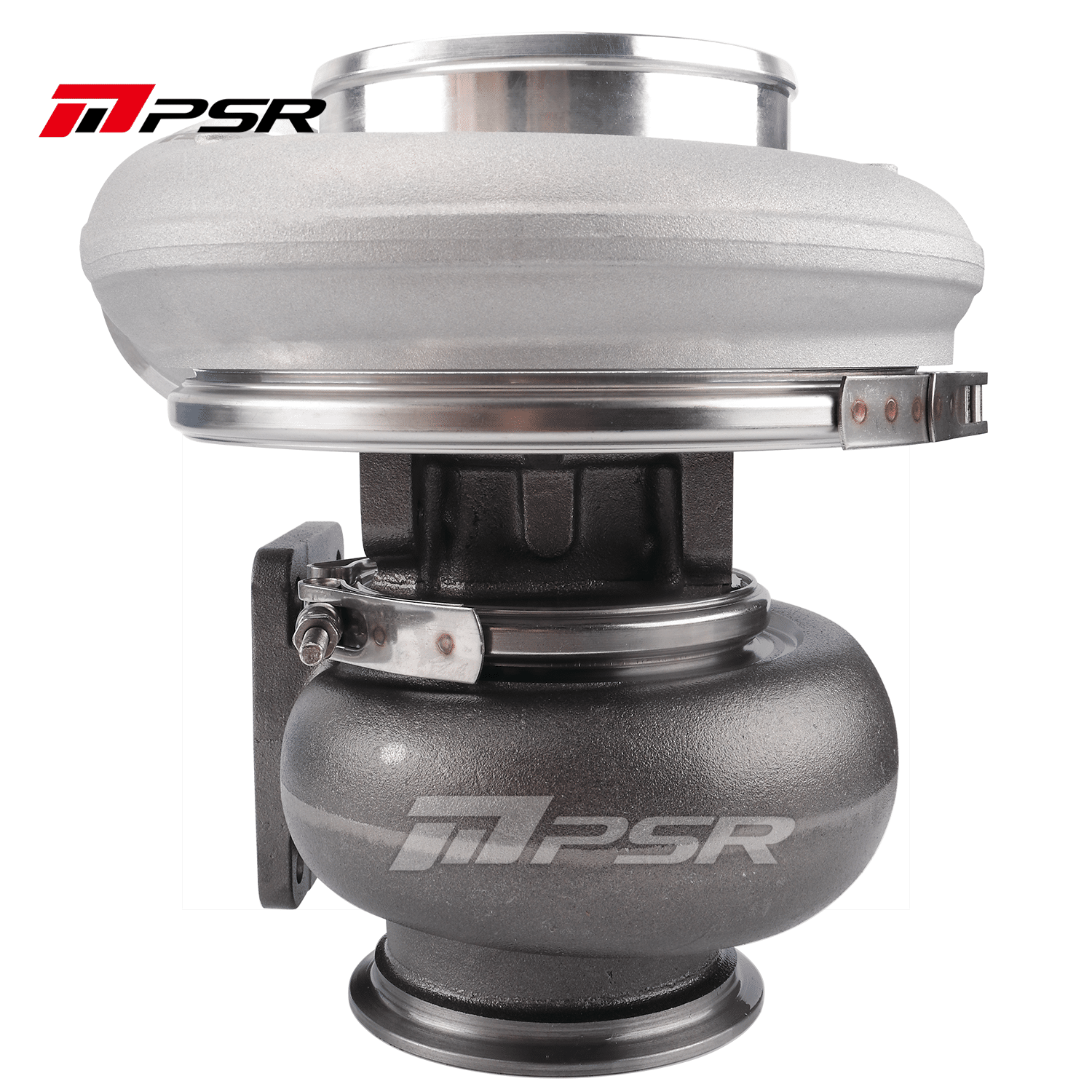

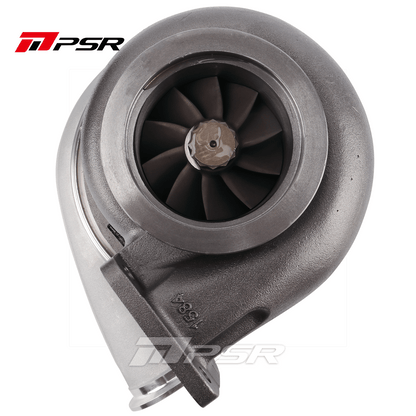

Pulsar PSR 467 Journal Bearing Billet Compressor Wheel Turbocharger

Description:

• Billet compressor wheel with extended tip technology for the ultimate in aerodynamics
• Inconel 713 turbine wheel for high-temperature operation
• T6 Divided turbine housings in 1.15A/R, 1.32A/R or 1.58 A/R with 5″ V Band Outlet 5.75 OD Marmon flange
• T4 Divided turbine housing in 0.9A/R, 1.10A/R or 1.25 A/R with 4” V-band Outlet

Recommending Engine Displacement: 3.0-8.0L

HP Rating 400-900

Features:

• Compressor Wheel:67.7*91.4*98.1mm 6+6
• Billet Compressor Wheels with Extended Tip Technology
• 83/74mm, 87.4/81.7mm in Turbine Wheel Options
• STD Compressor Cover without Speed Sensor Port
• -12AN Oil Drain Flange

Details:

• Compressor Inlet: 5” Slip-Fit
• Compressor Outlet: V-band *
• Turbine Housing A/R: 0.9, 1.0, 1.10, 1.25 in Option
• Turbine Housing Inlet: T4 Divided

V-band Flange Kits are available:

V-Band Flange Clamp Kits for PTG42 PT/X42 PT/X45 PT/X47 PT/X50 PT/X55 400 etc. Compressor Outlet
