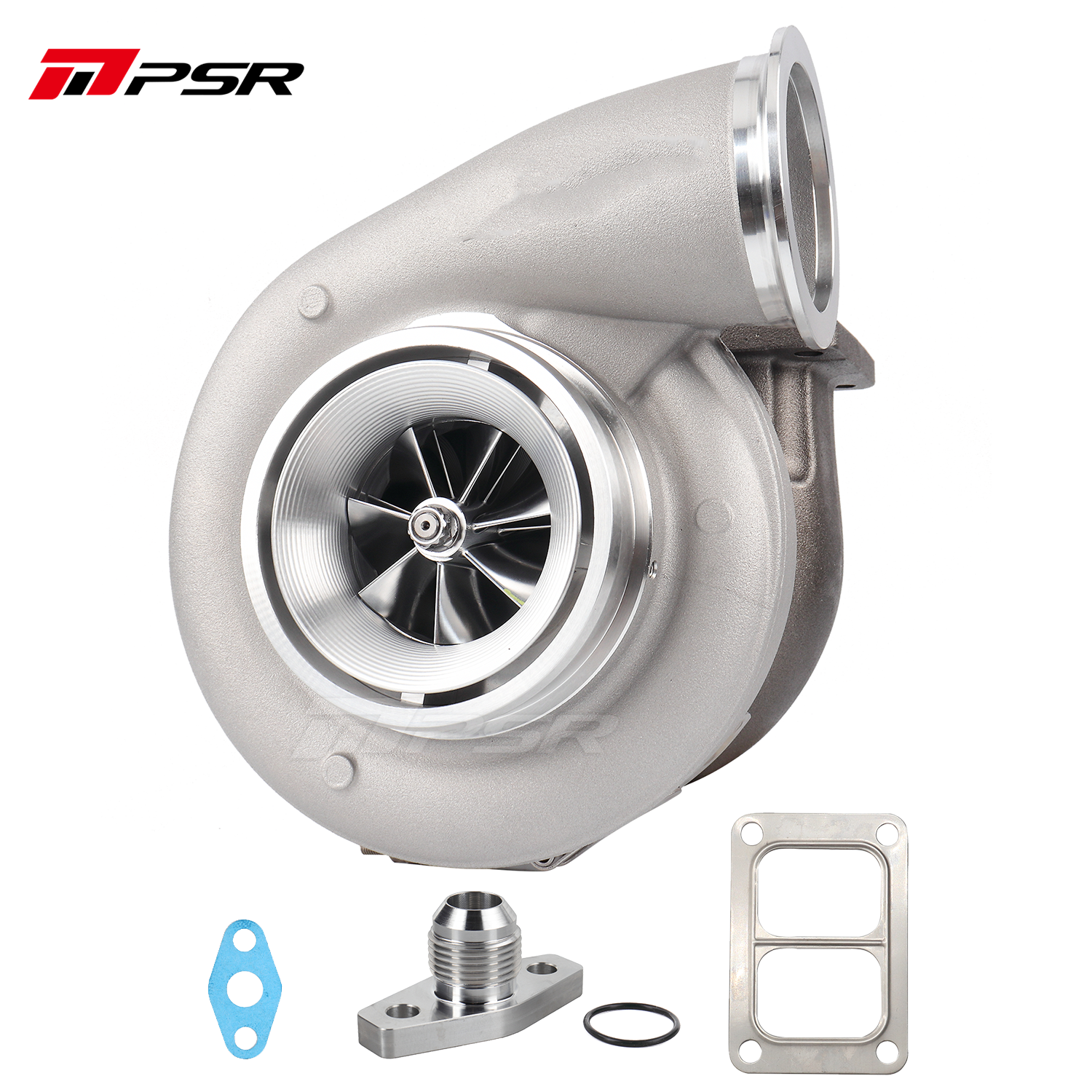

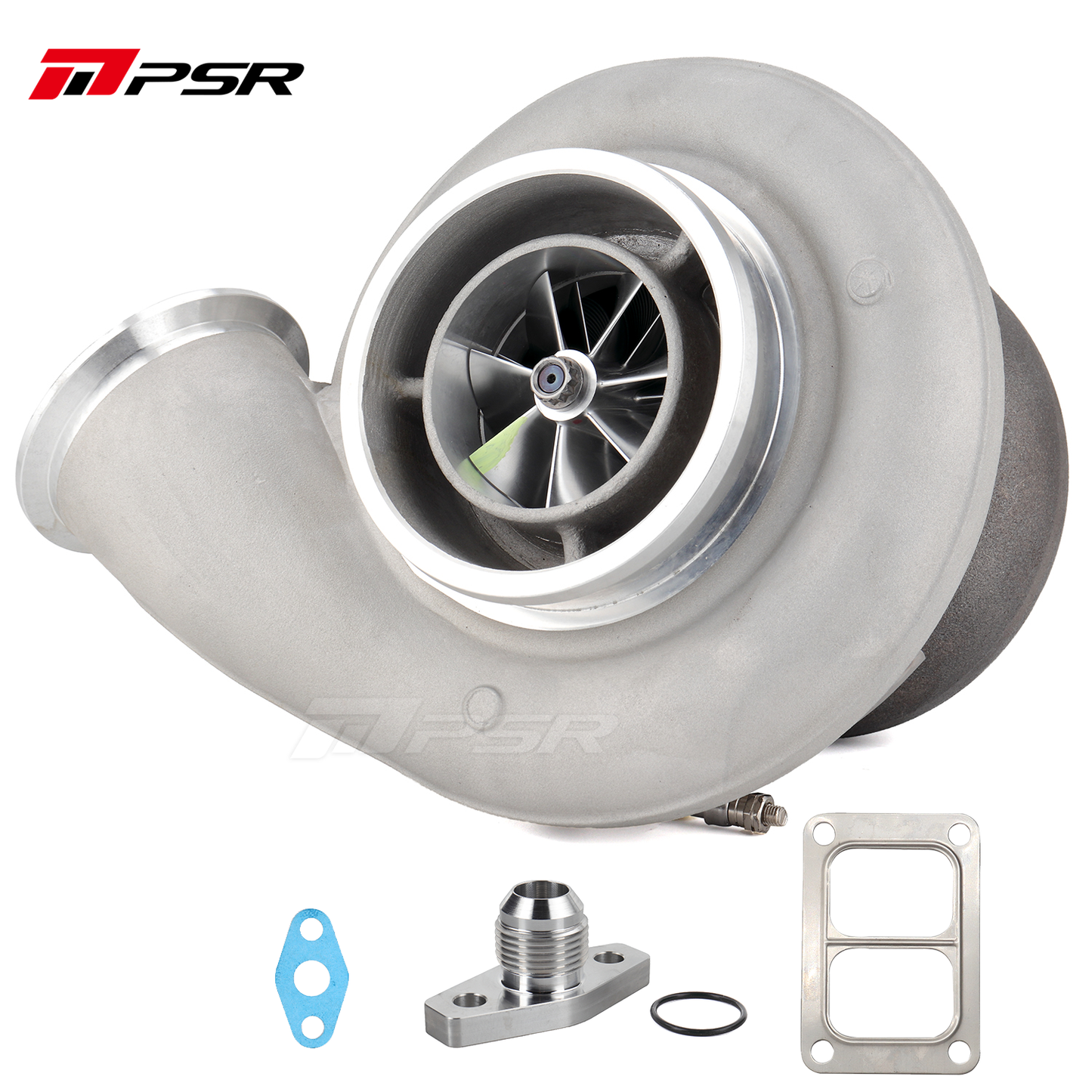

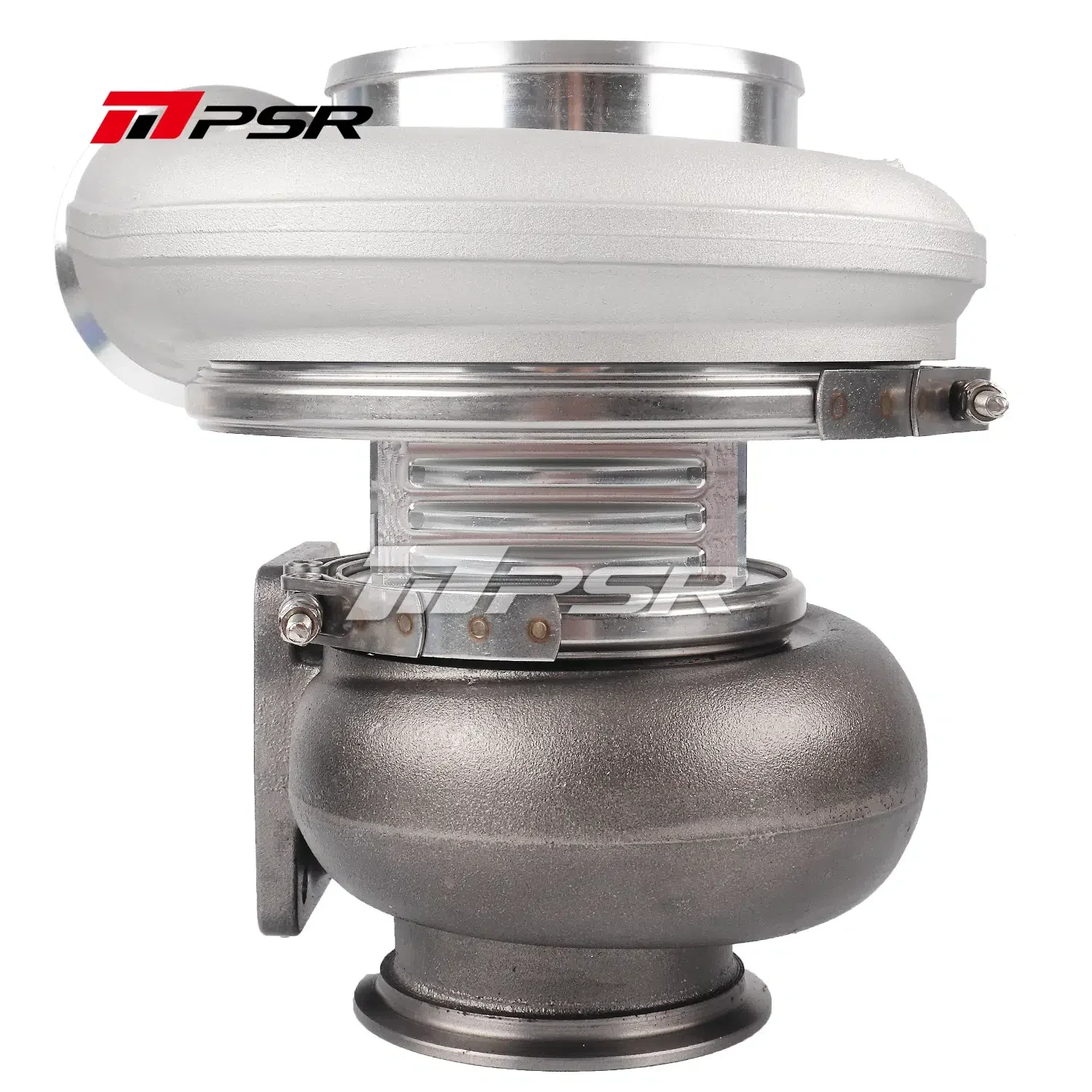

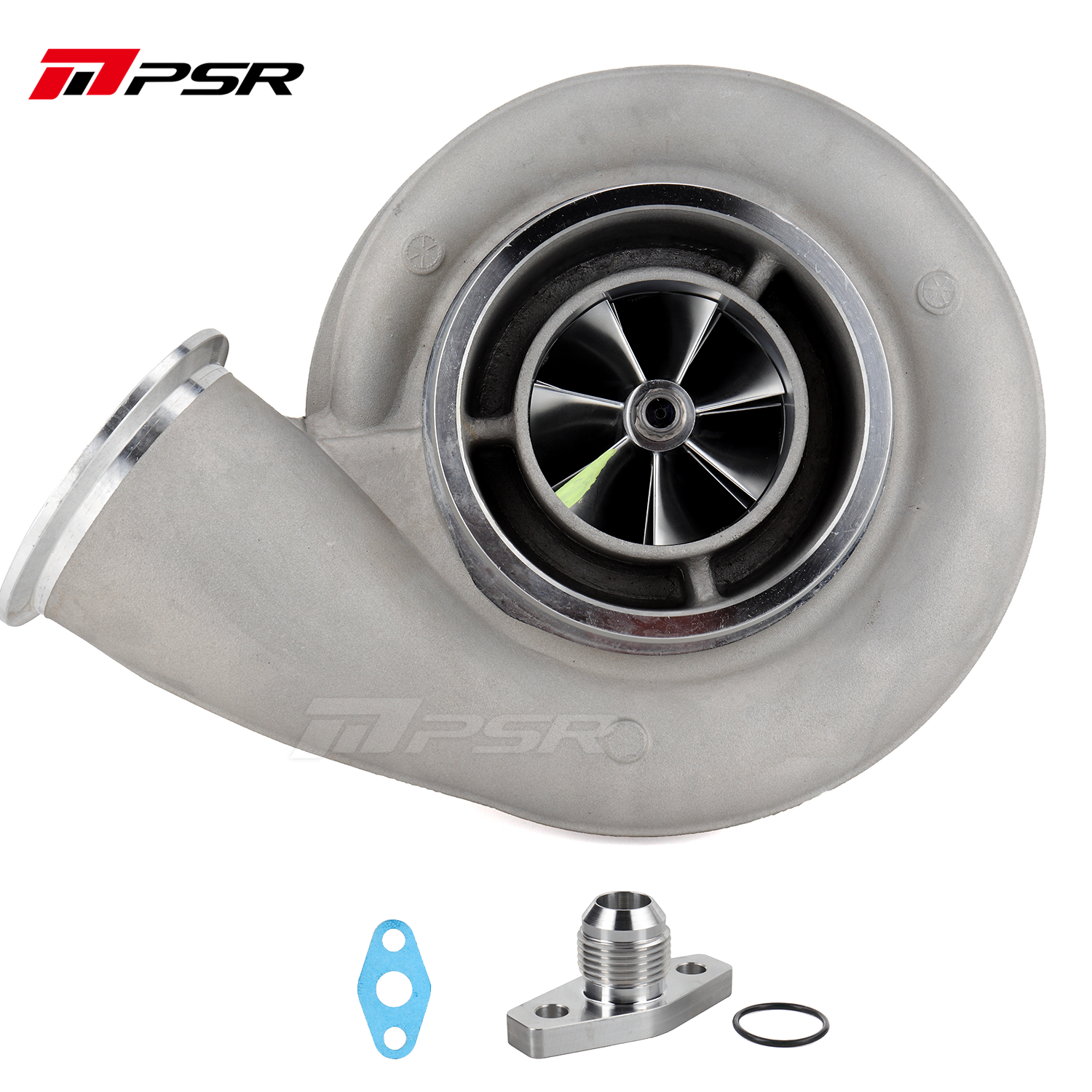

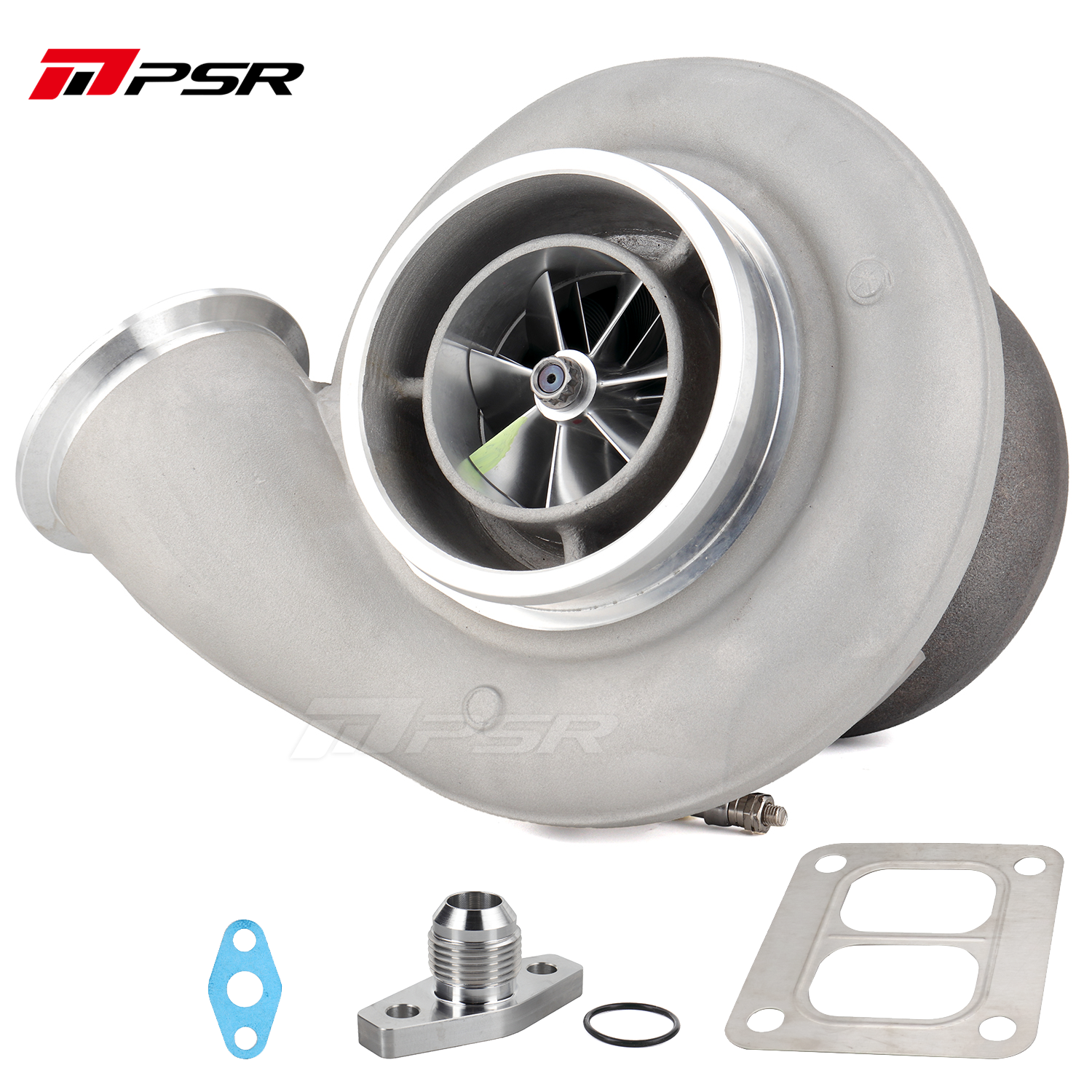

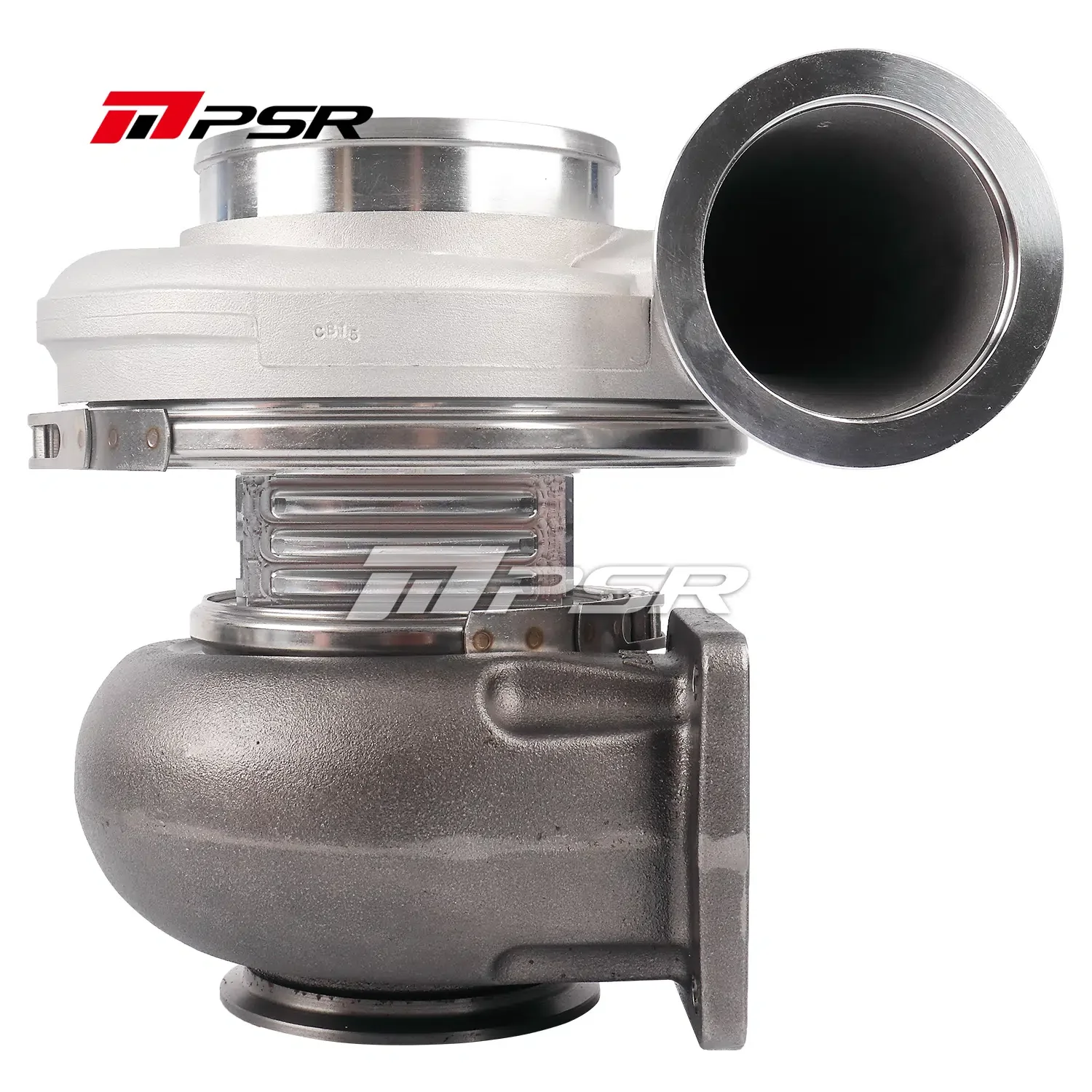

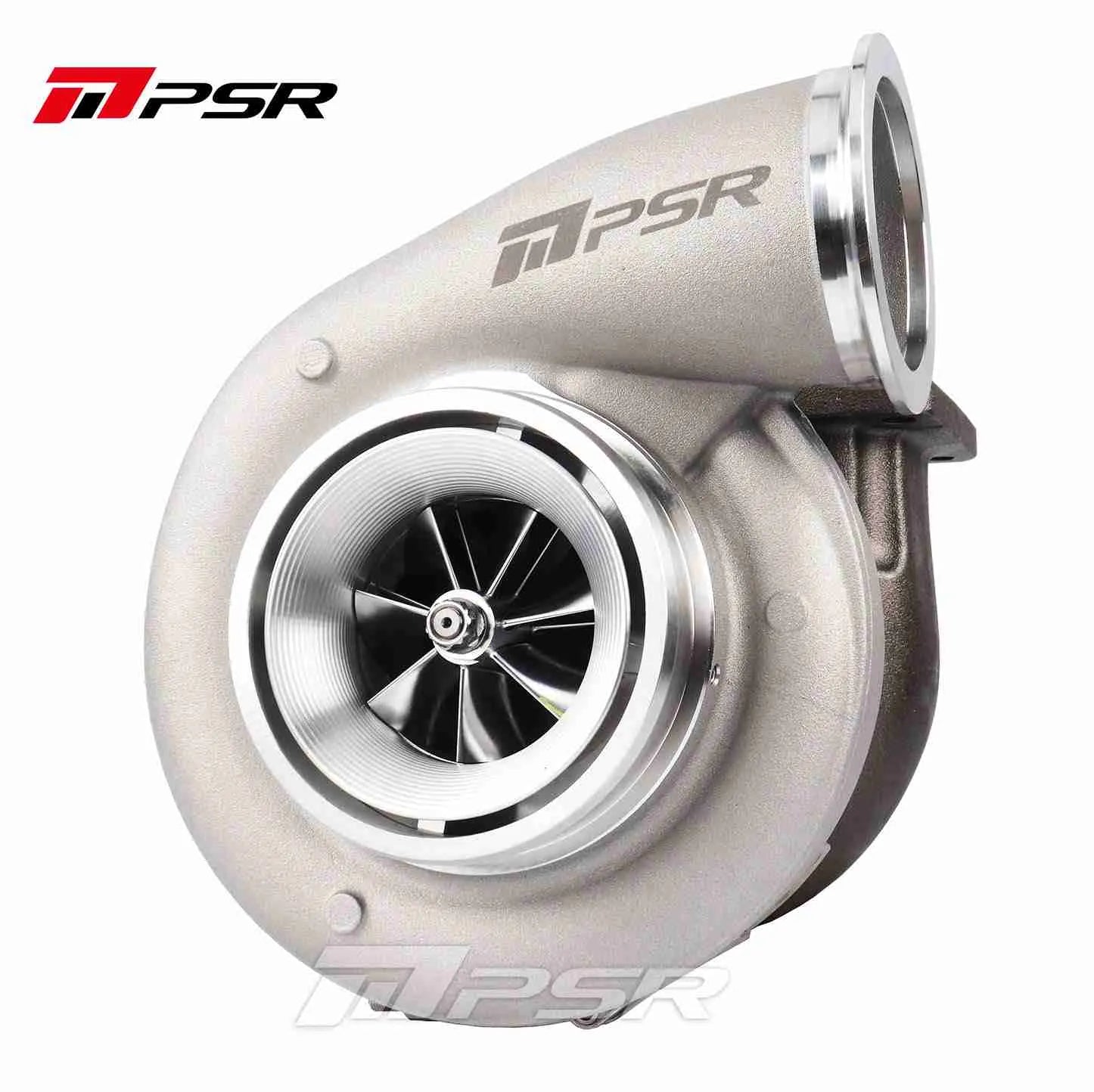

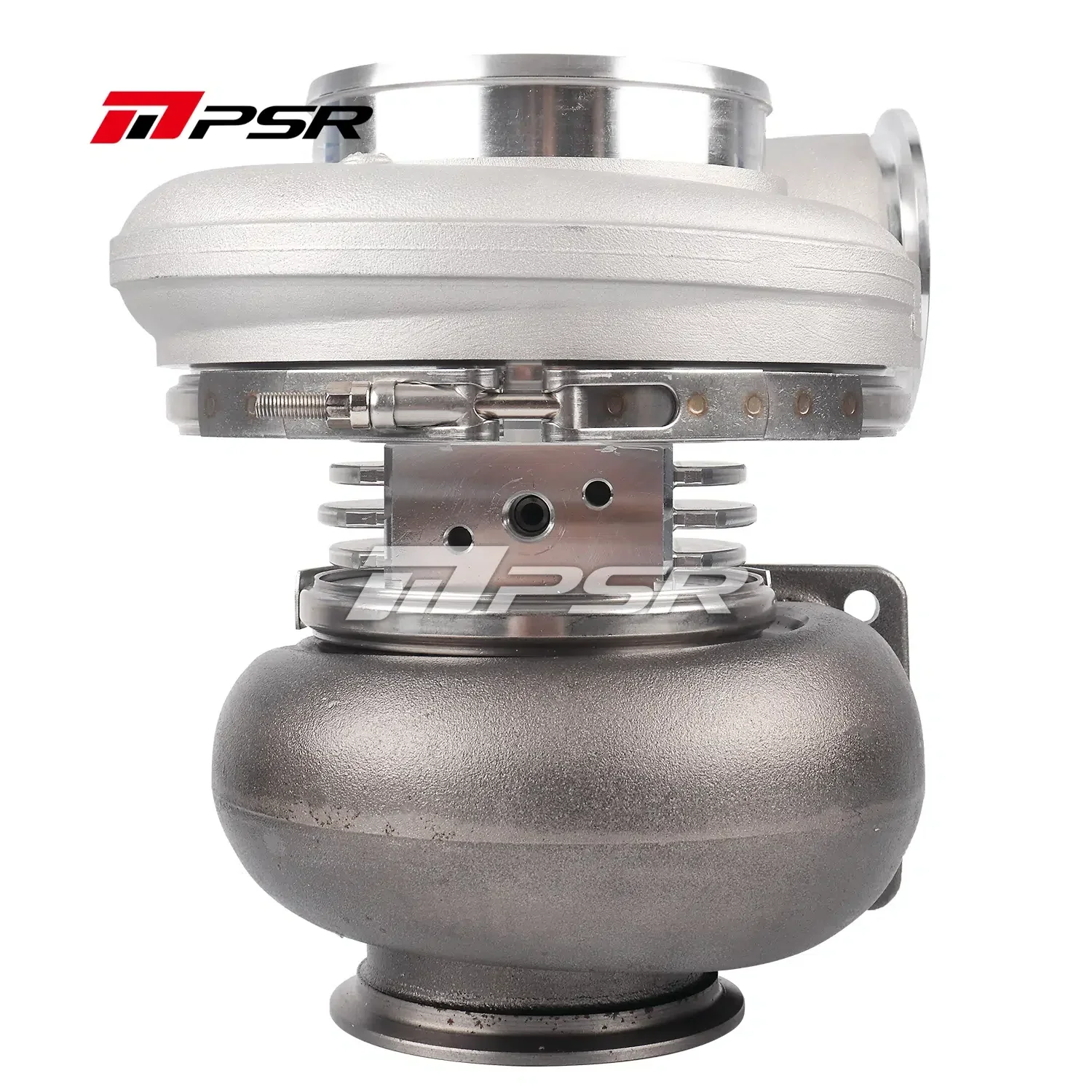

Pulsar PSR 480DG Dual ball Bearing Turbo Billet Compressor Wheel

Description:

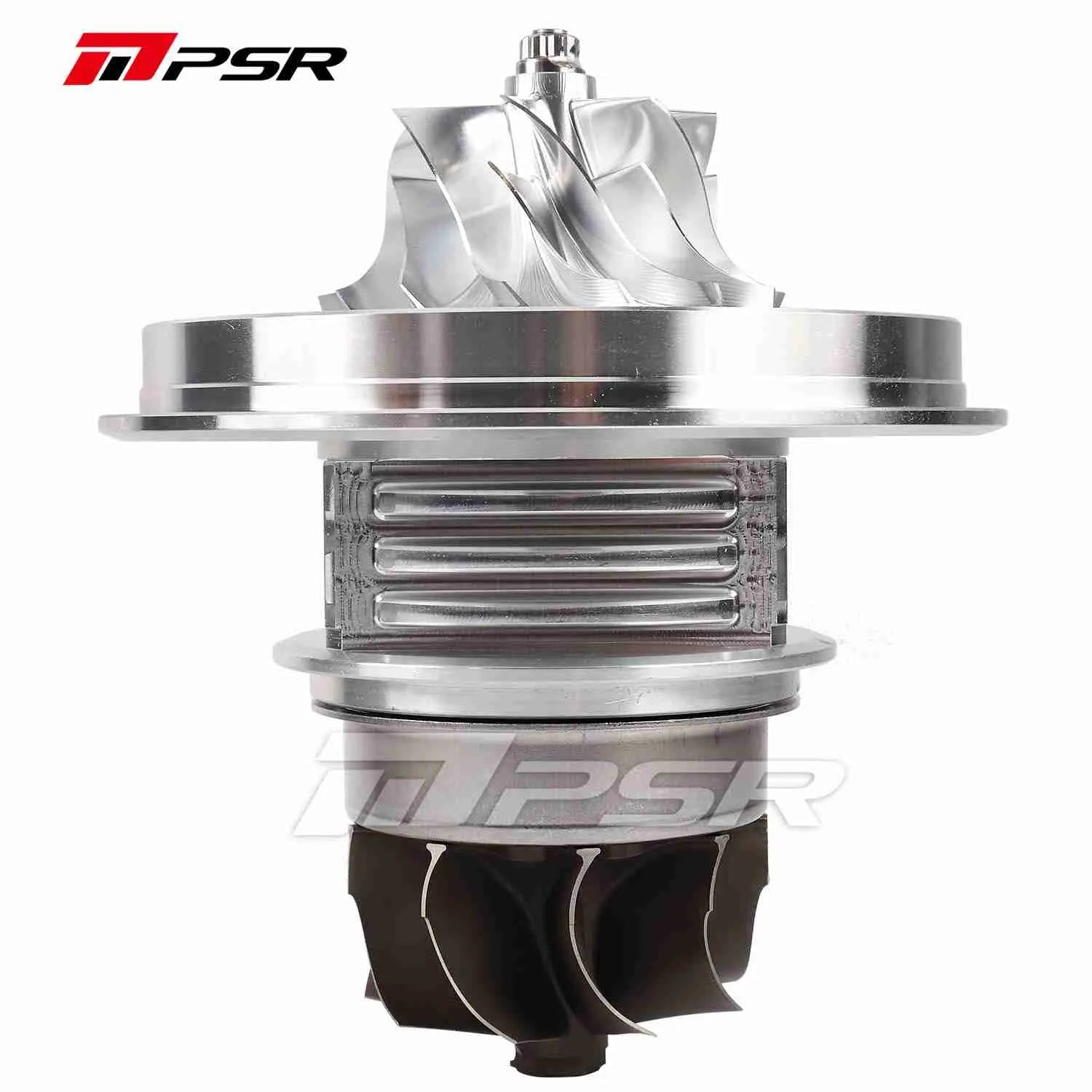

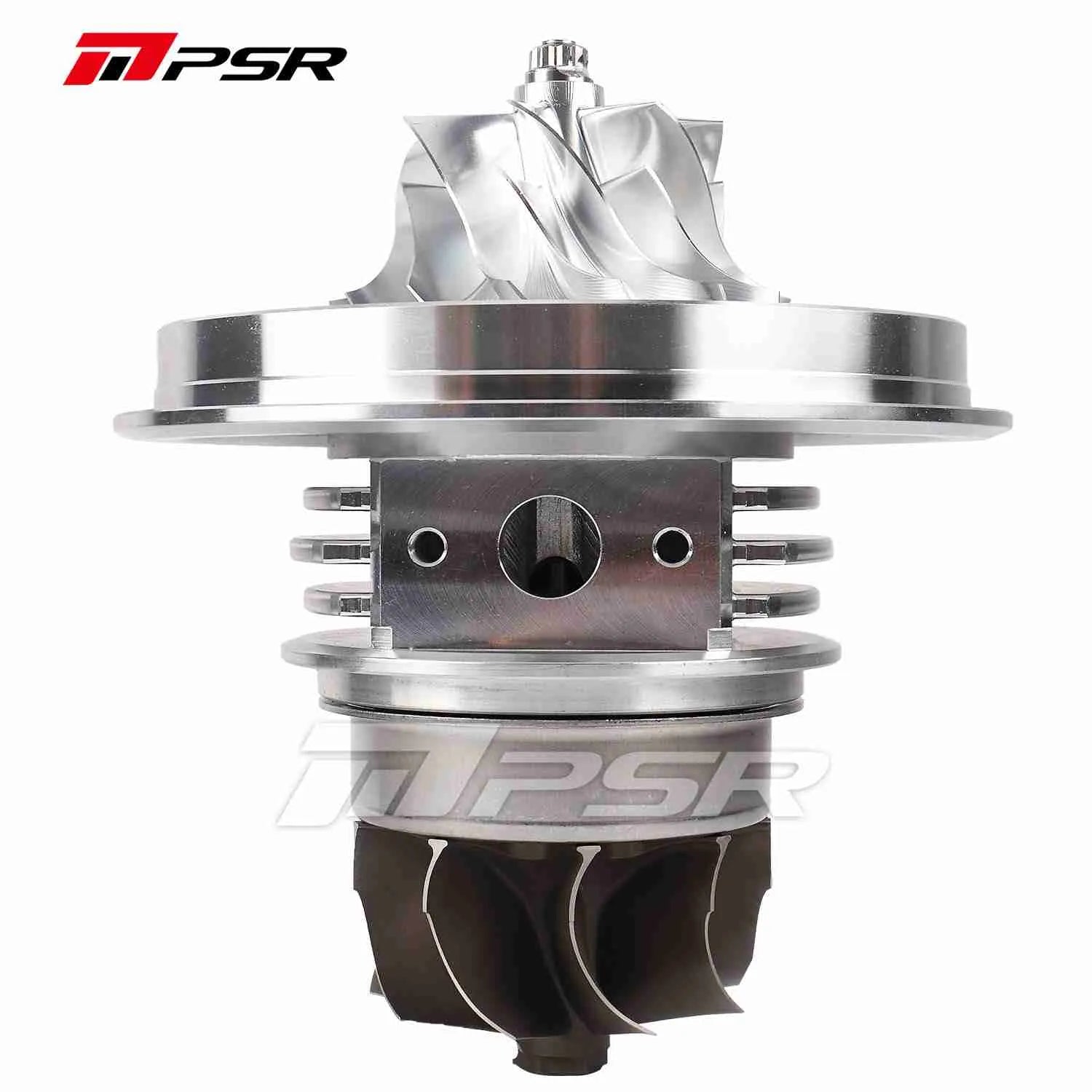

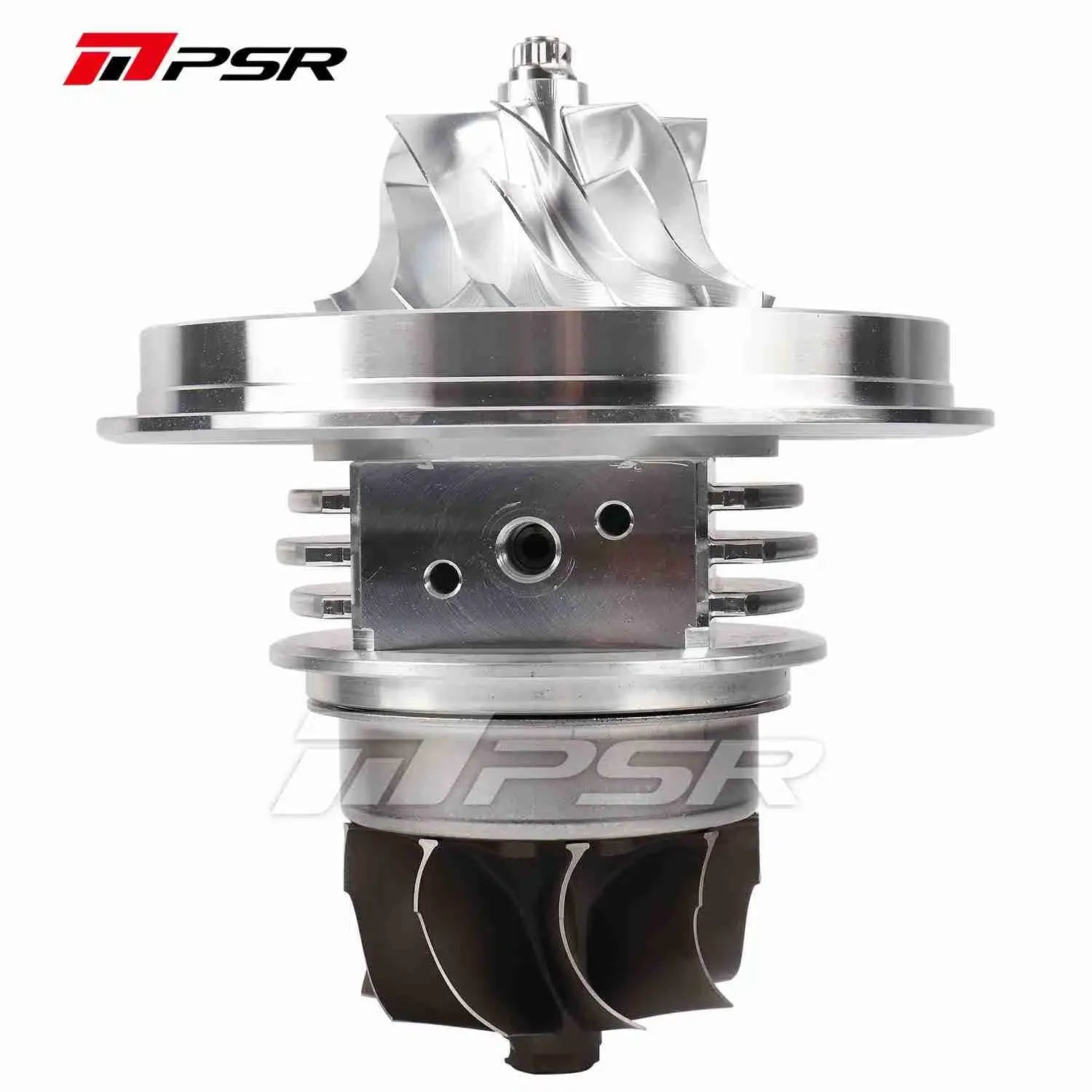

• CNC Machined Aluminum Bearing Housing with The FIN COOLING DESIGN

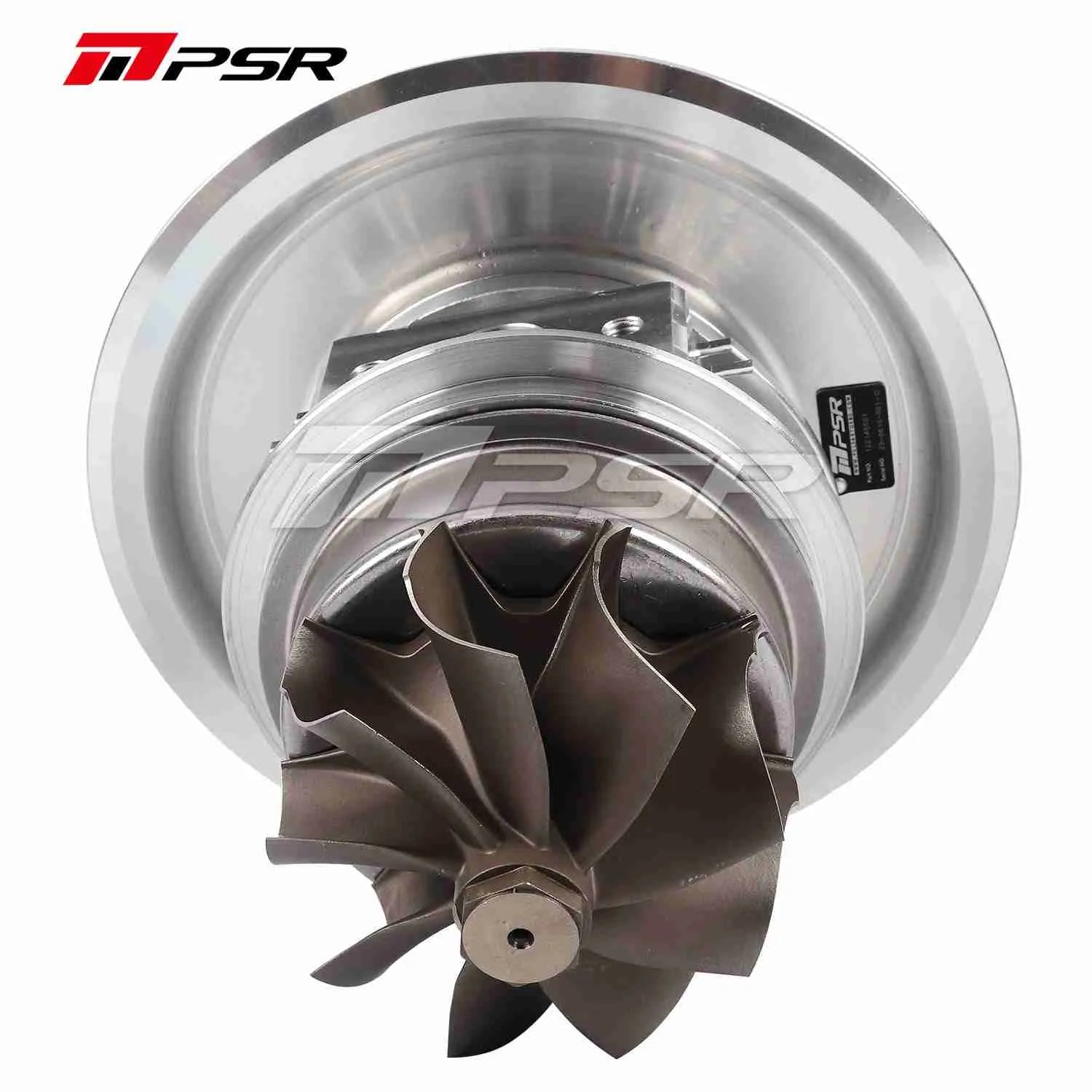

• G series design 9 Blade Inconel 713 turbine wheel for improved gas flow ability and reduced turbo lag
• Dual Ceramic Ball Bearing Systems

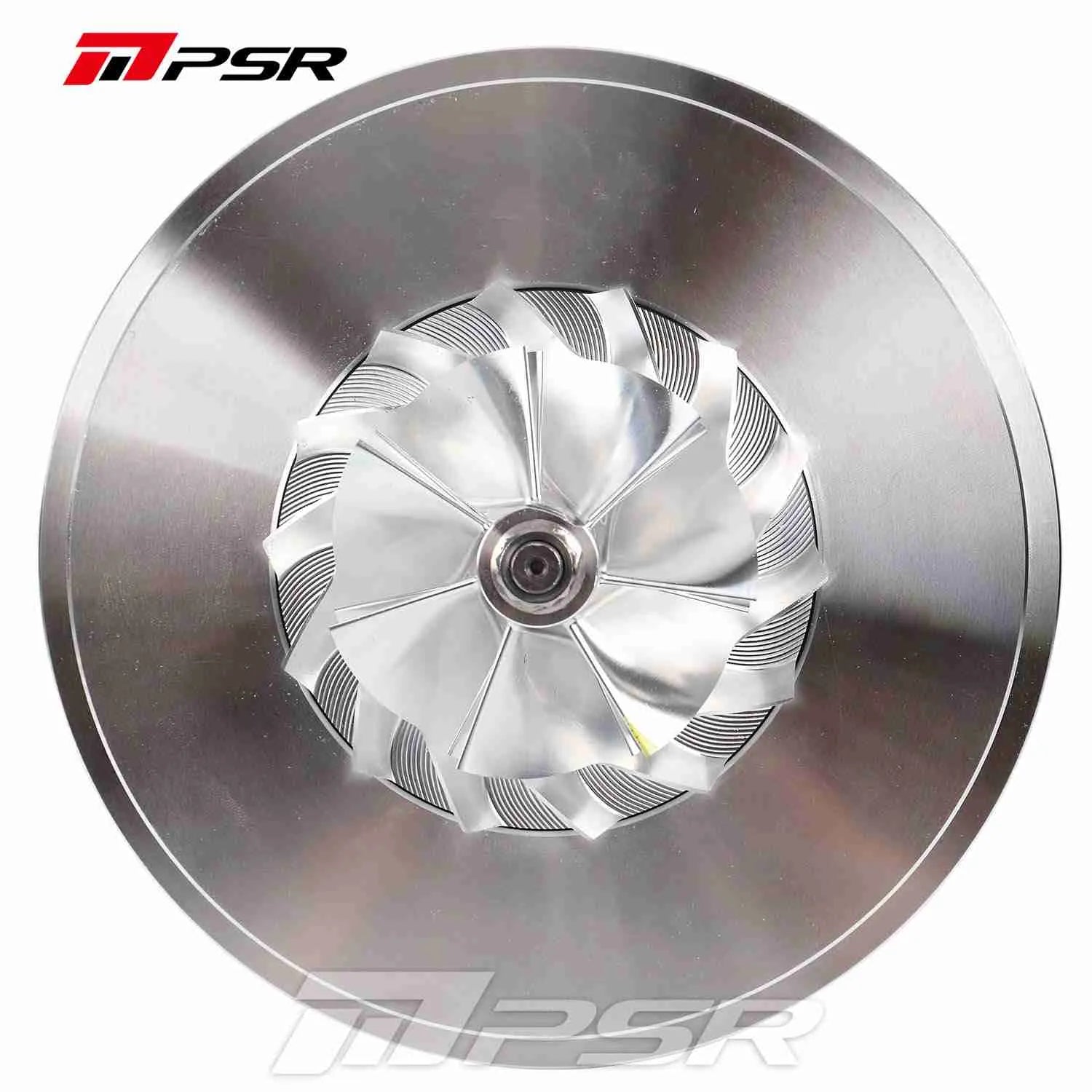

• Billet Compressor Wheels with Extended Tip Technology

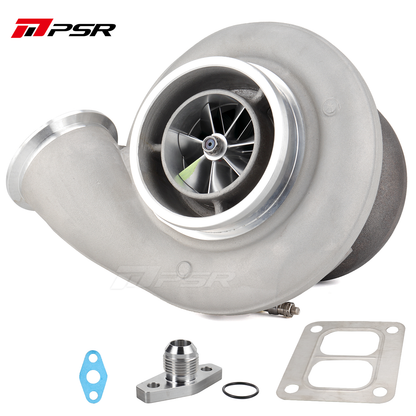

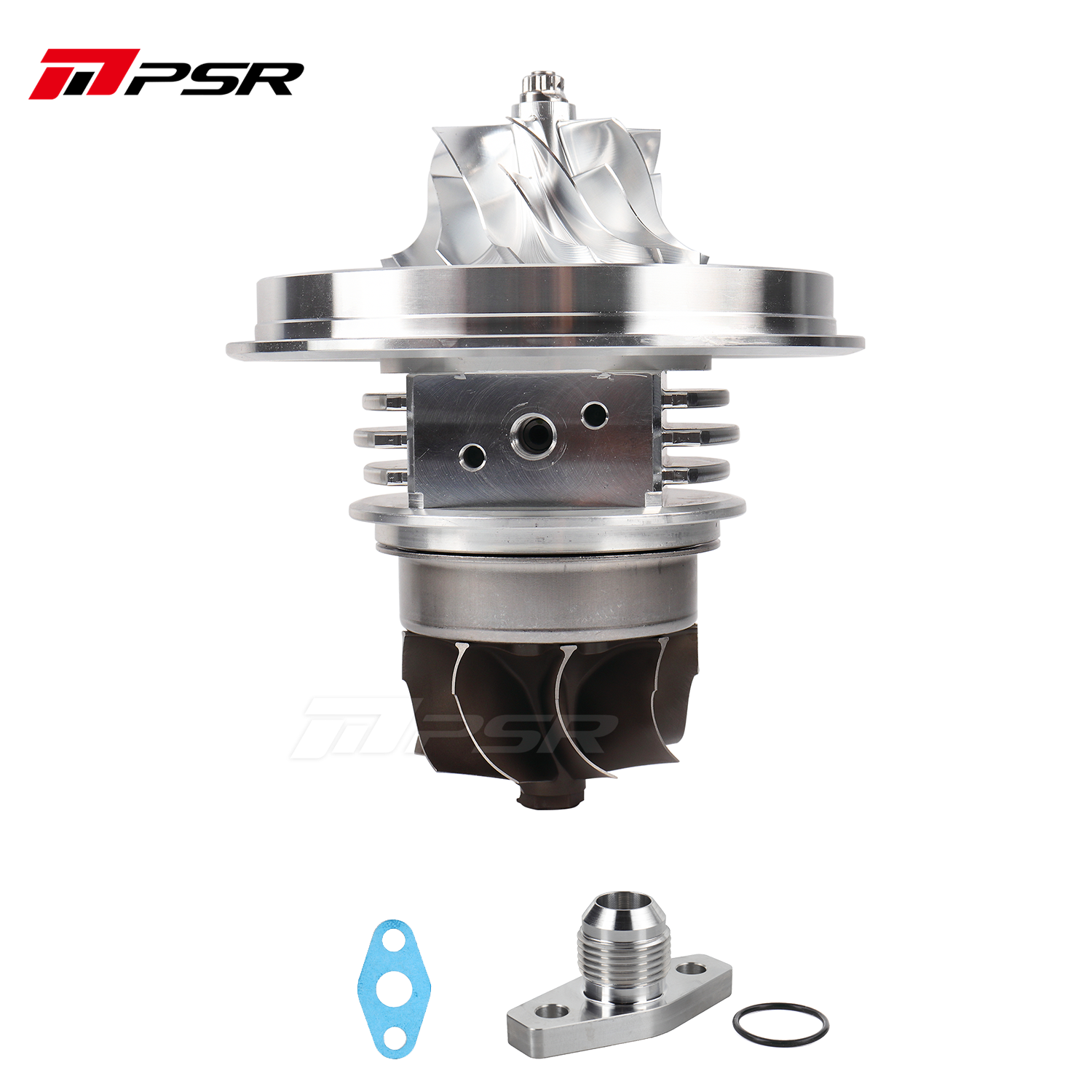

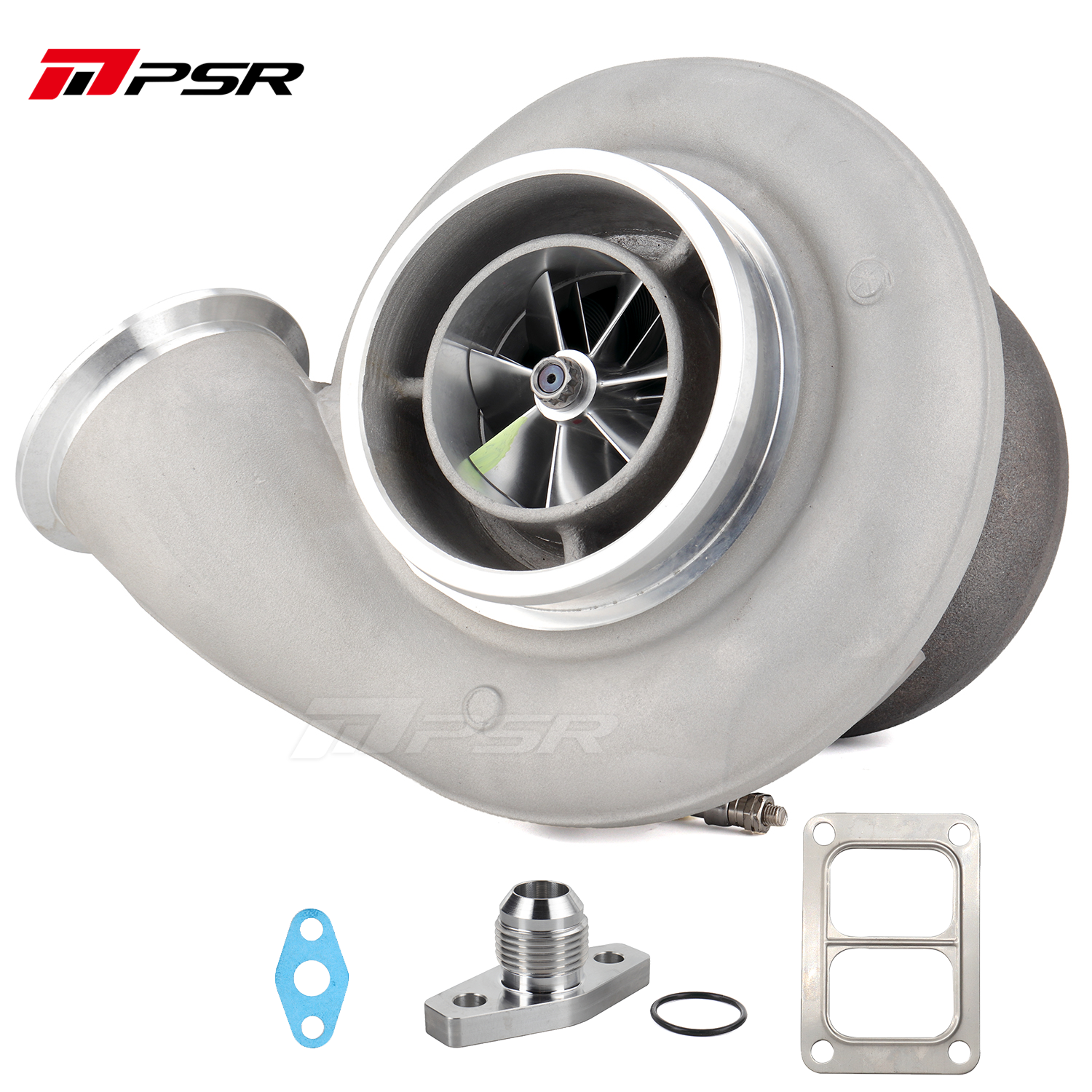

• -12AN Oil Drain Flange and TRB. Inlet Gasket Come in Box.

Recommending Engine Displacement: 3.0-8.0L

HP Rating 750-1250

Features:

• CNC Machined Aluminum Bearing Housing with The FIN COOLING DESIGN
• G series design 9 Blade Inconel 713 turbine wheel for improved gas flow ability and reduced turbo lag
• Dual Ceramic Ball Bearing Systems
• Billet Compressor Wheels with Extended Tip Technology
• -12AN Oil Drain Flange and TRB. Inlet Gasket Come in Box

Details:

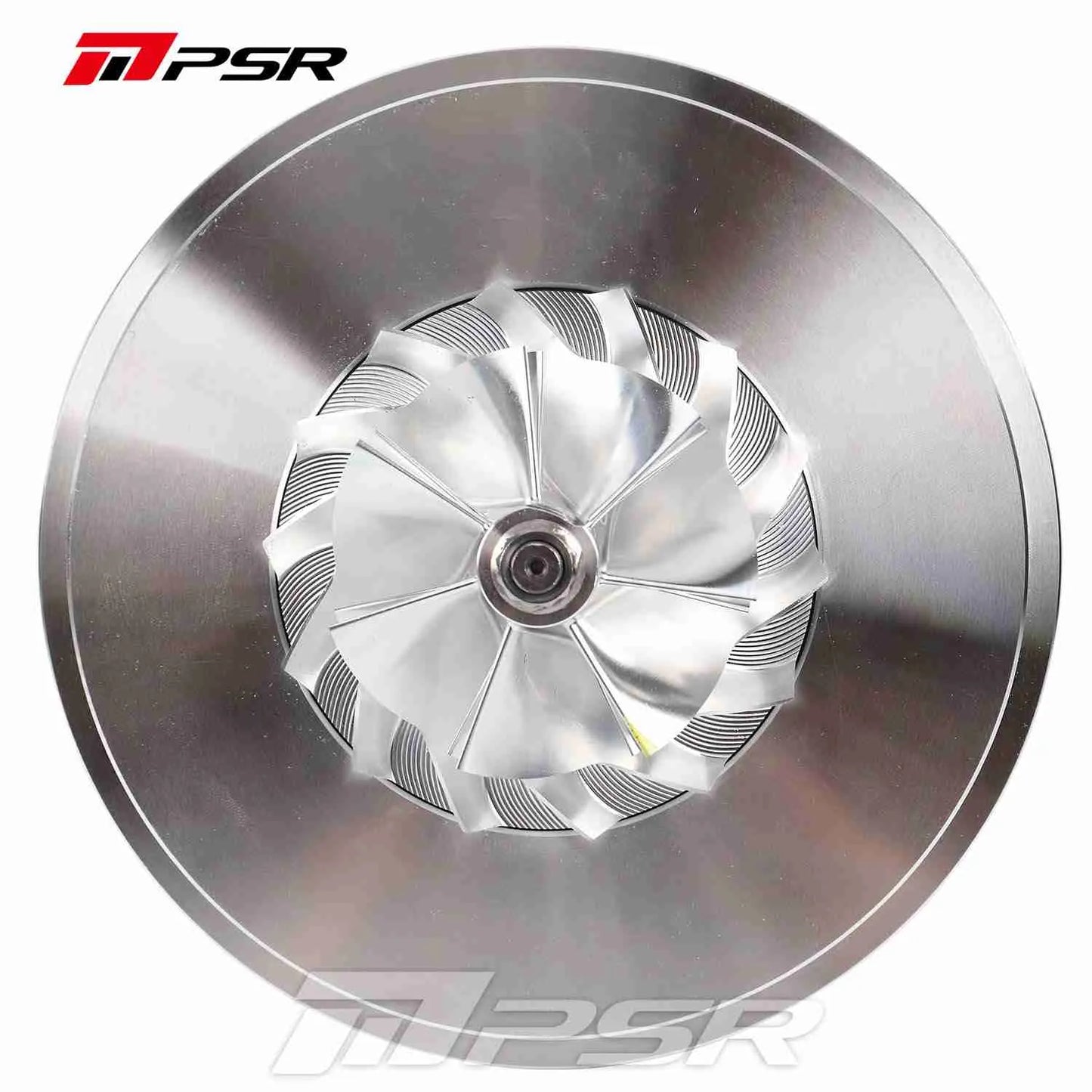

• Compressor Wheel: 80*113mm 7+7 Blade
• Compressor Inlet: 5” Slip-Fit
• Compressor Outlet: V-band

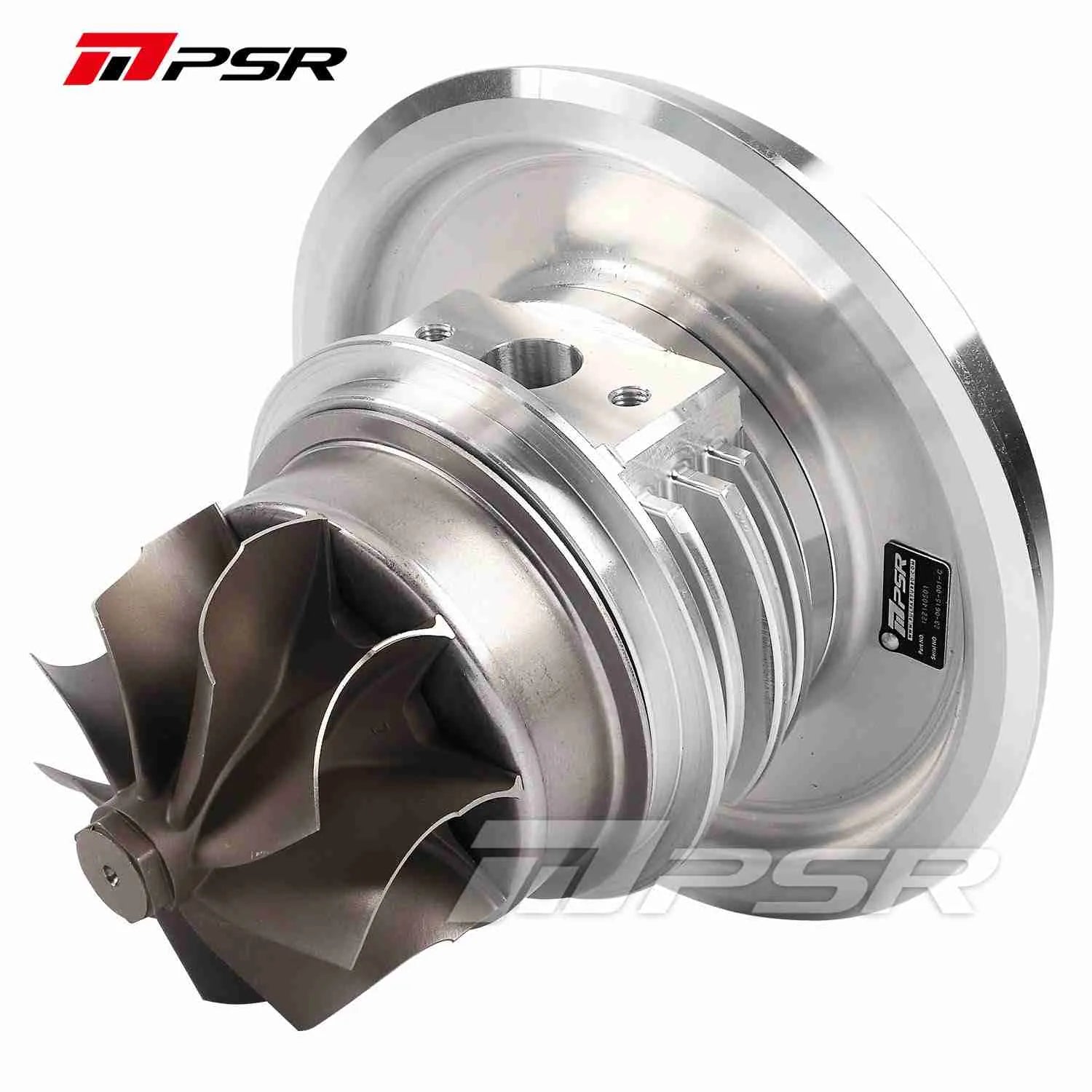

• Turbine Wheel: 96*88mm 9 Blade
• Turbine Housing A/R: 1.15, 1.25, 1.32, 1.45, and 1.58 in Option

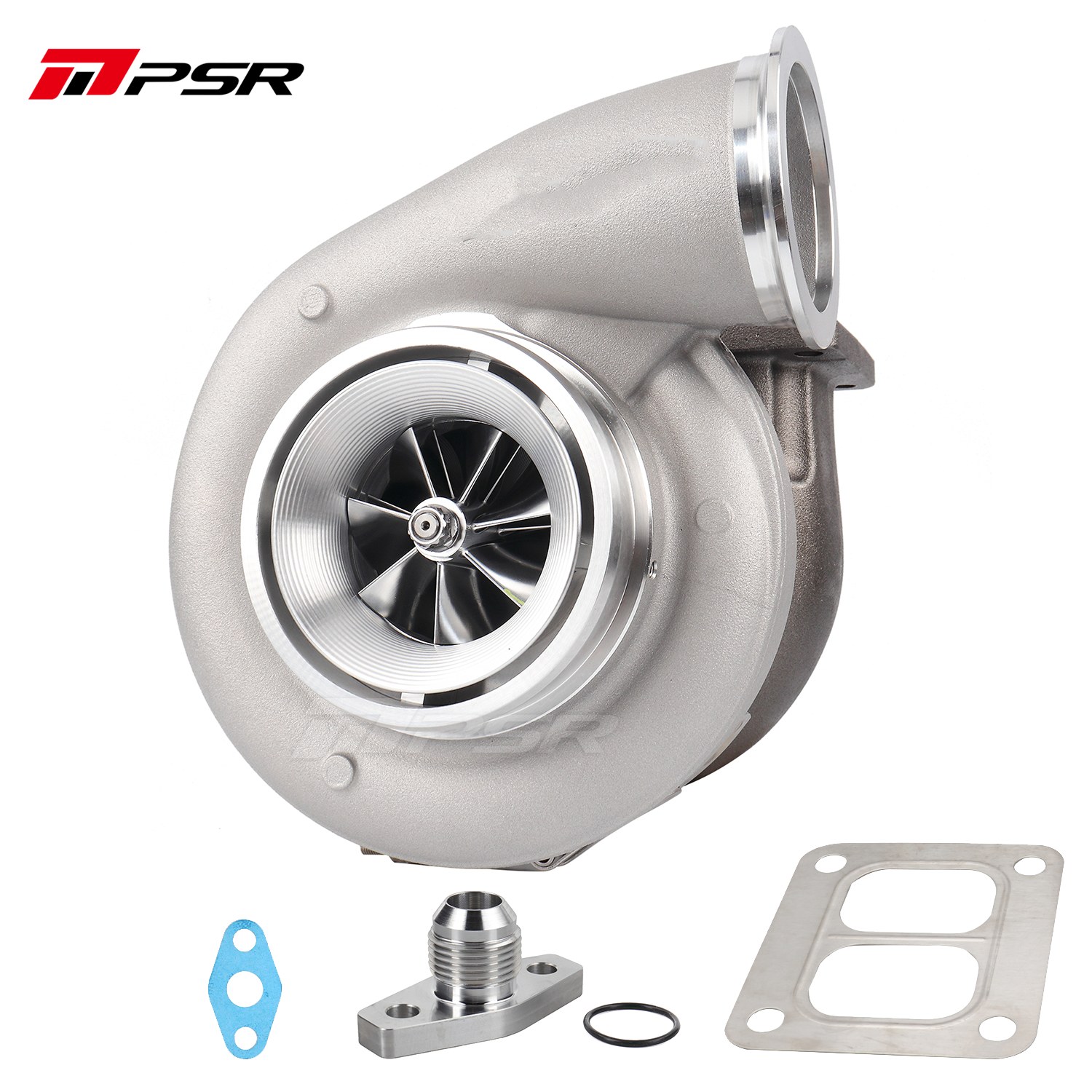

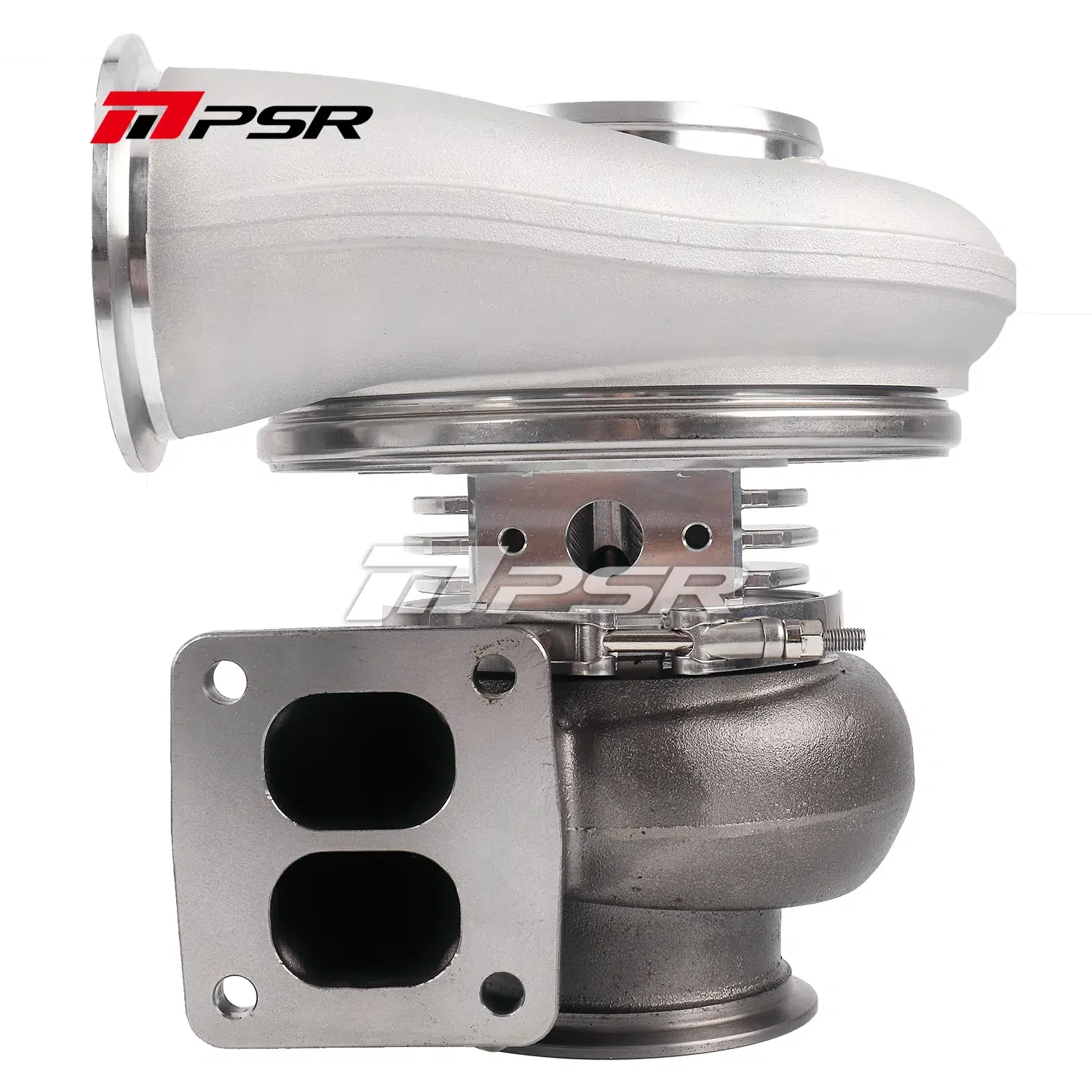

• Turbine Housing Inlet: T4 and T6 Divided in Option
• Turbine Housing Outlet: 3/4 Marmon V-band
• Oil Feed Port 1/4NPT
• Oil Drain Std T6 drain Flange

V-band Flange Kits are available:

PULSAR 400 T6 Turbo 5 to 4″ Stainless Steel Flange Clamp Kit

PULSAR 400 T6 Turbo 5″ Stainless Steel Flange Clamp Kit

 V-Band Flange Clamp Kits for PTG42 PT/X42 PT/X45 PT/X47 PT/X50 PT/X55 400 etc. Compressor Outlet
