Pulsar PSR 8582G Curved Point Mill Compressor Wheel Dual Ball Bearing Turbocharger

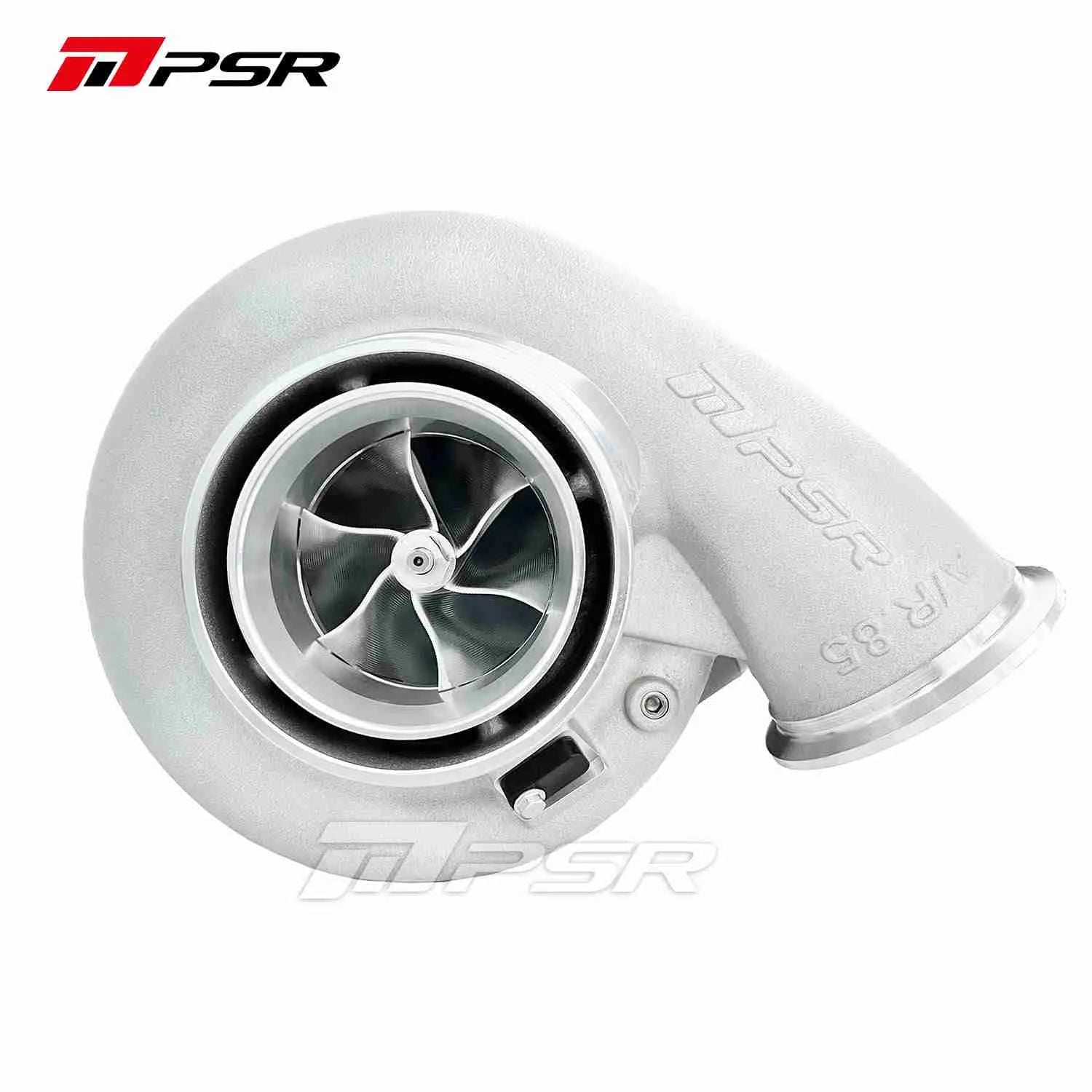

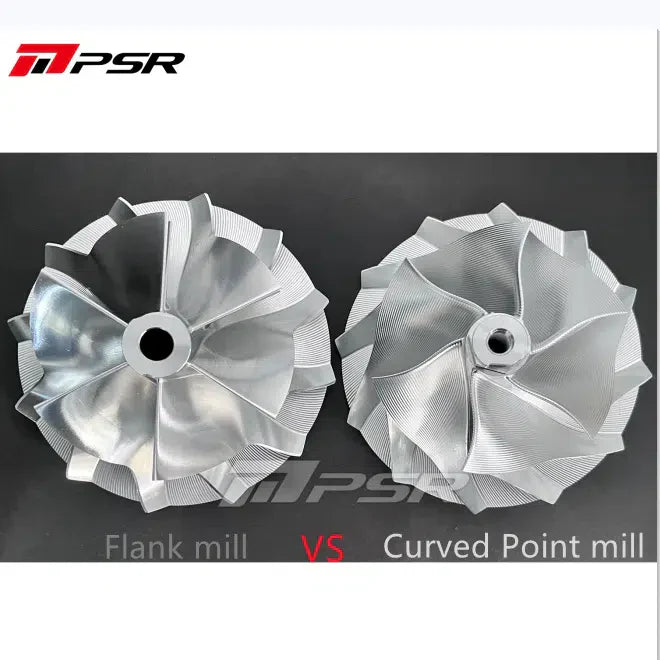

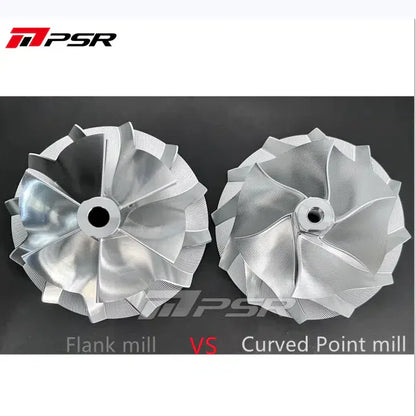

• 6+6 Blade, New design Curved point mill billet compressor wheel which can obtain the most mass flow through the curved vanes and allow increases in engine horsepower output
• Dual ceramic ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion

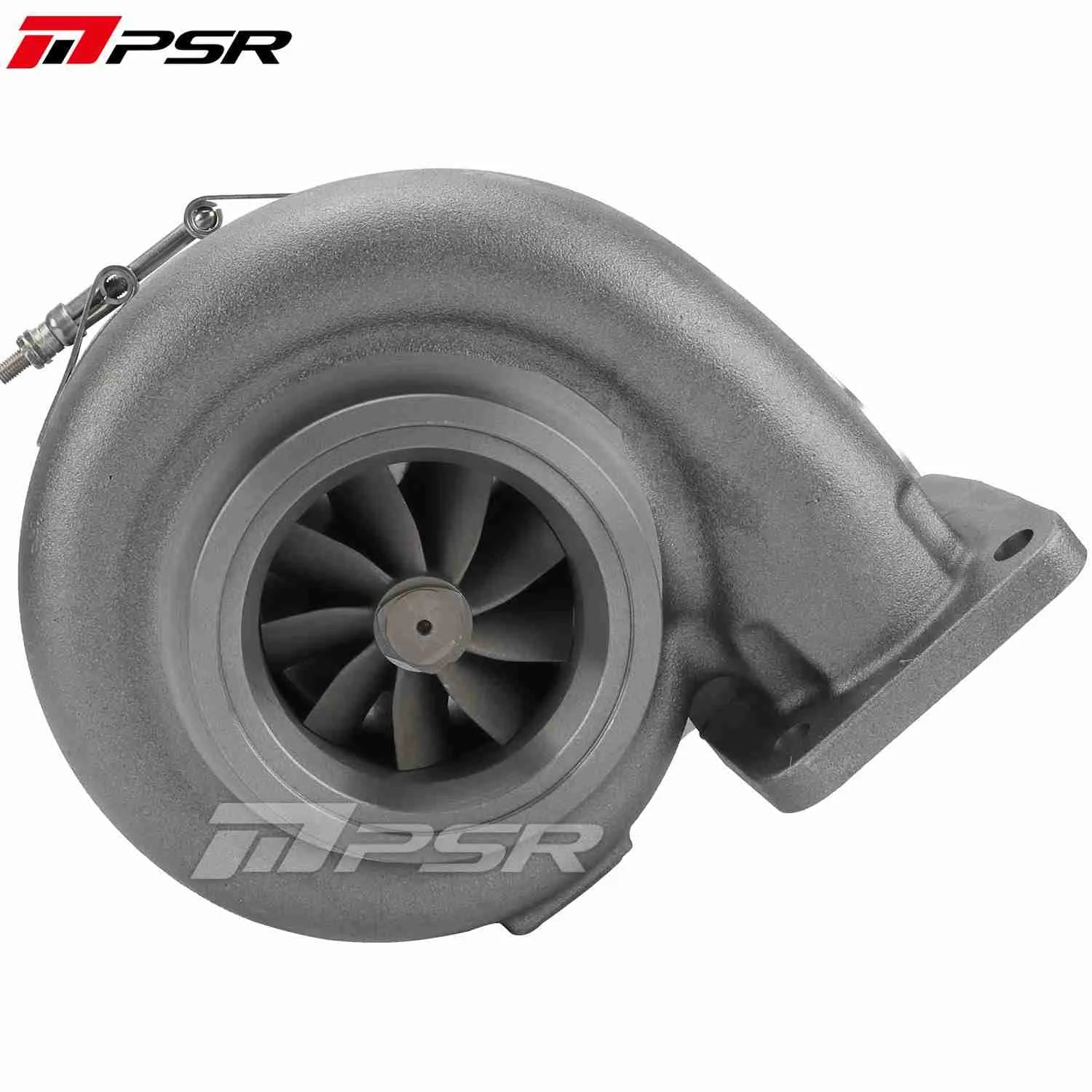

• 9 Blade G-Aero Inconel 713c turbine wheel
• Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor and pressure ports
• Water fittings included with the super core
• 9 Options in Turbine Housing
• Installation Hardware: 3” flange kit for Comp. Outlet, T4 Gasket/3” flange kit for Turb. Inlet, 3.5”/4” flange kit for Turb. Outlet and oil Drain Fitting kit are included by default
• Oil Feed Fitting needs to be bought separately, check the link if you need it, 🔗

Description:

• Curved Point Mill Compressor Wheel: 85.15* 115*119.67mm
• Turbine Wheel: 89*81.6mm
• Compressor Inlet: 5″ Hose
• Compressor Outlet: 3″ V-Band

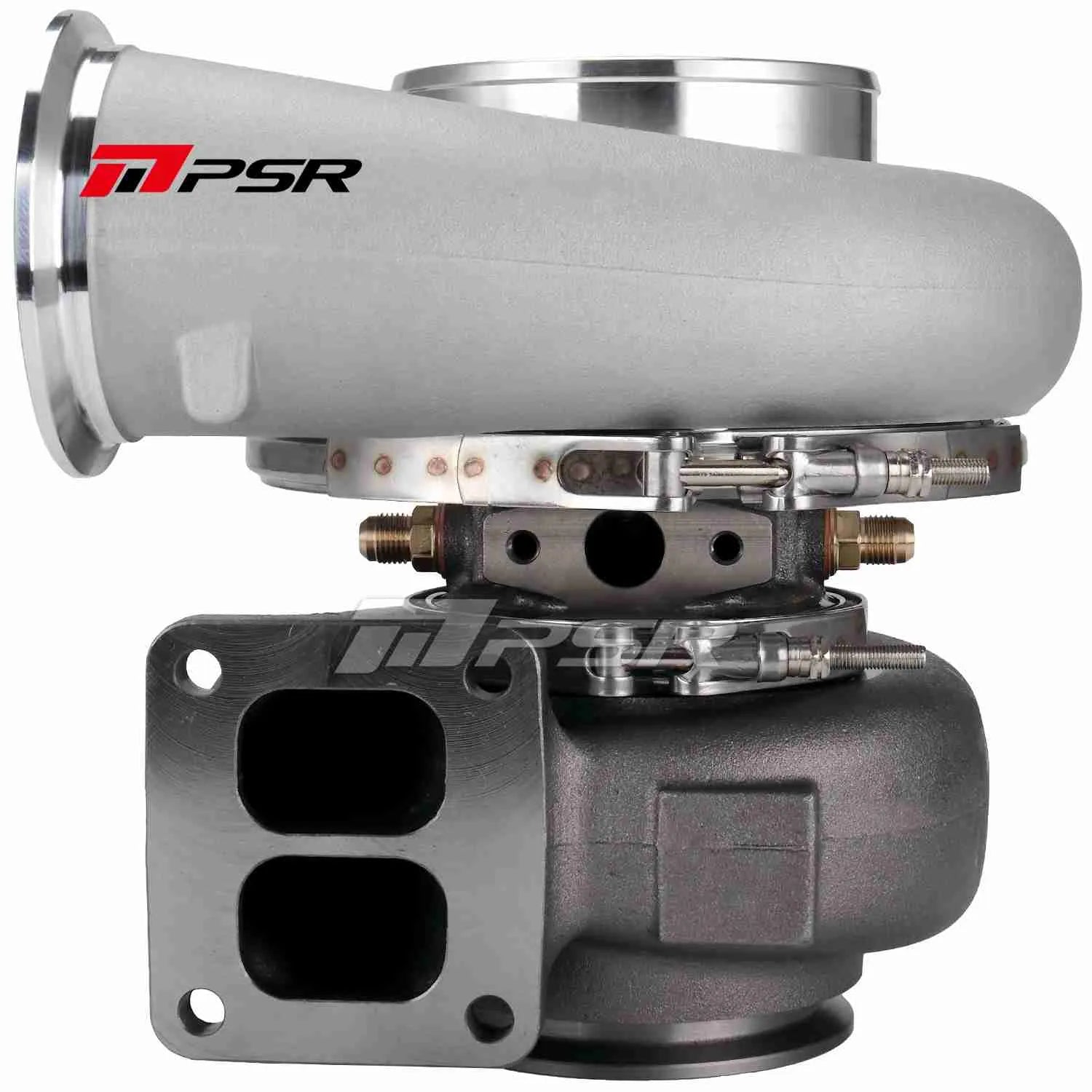

• Turbine Inlet: 3″ V-Band/T4 open/ T4 divided
• Water Ports: -6AN
• Oil Feed: Flange Required (Recommended size: -4AN Std T4 Flange Non-Restricted)
• Oil Drain: -12AN (O-Ring sealed Flange Kit Incl’)
• 9 Options in Turbine Housing: T4(Open) 1.15 A/R; T4(Divided) 0.95A/R, 1.01 A/R, 1.15 A/R 1.28 A/R, 1.44 A/R; Dual v-band 1.01 A/R, 1.15 A/R and 1.28 A/R
