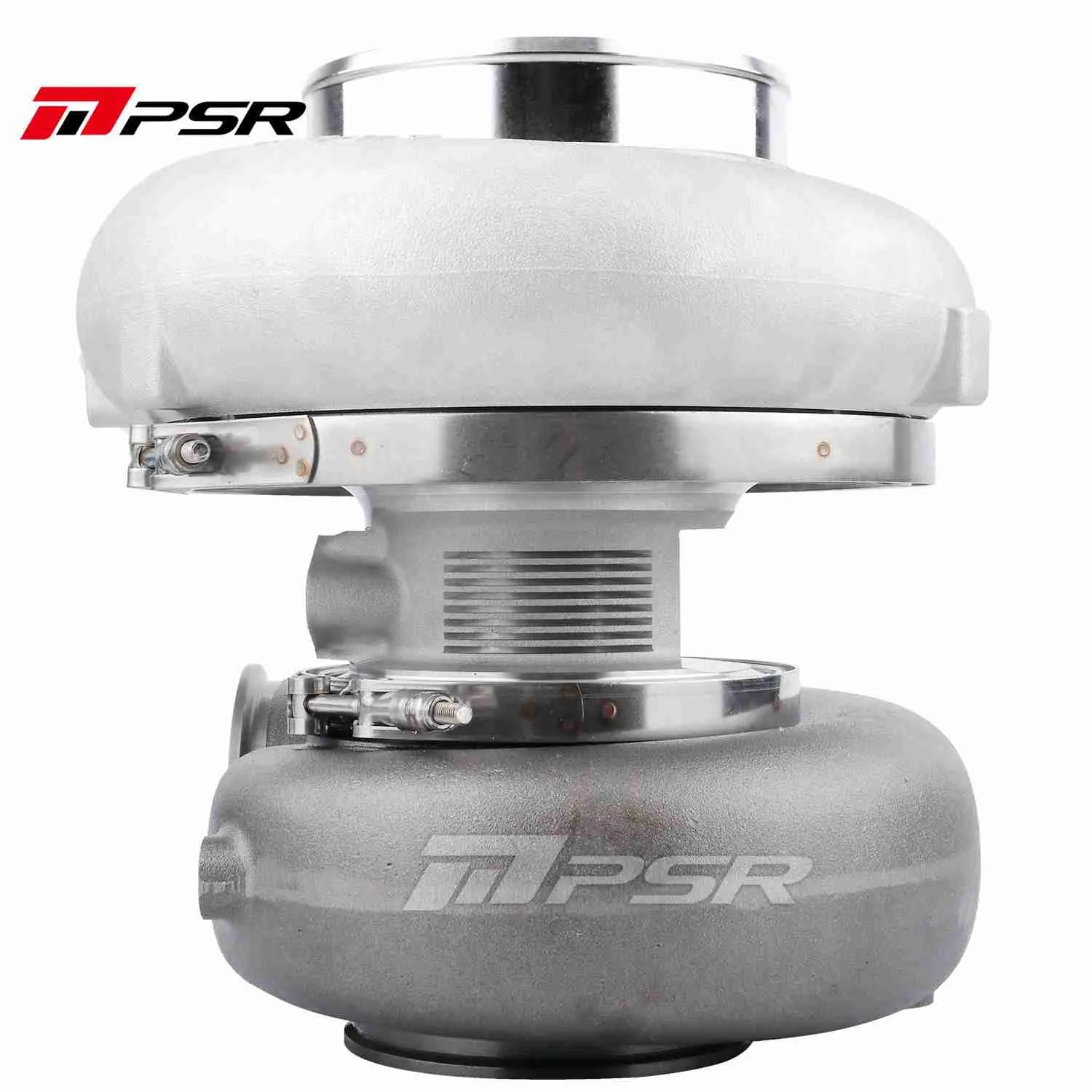

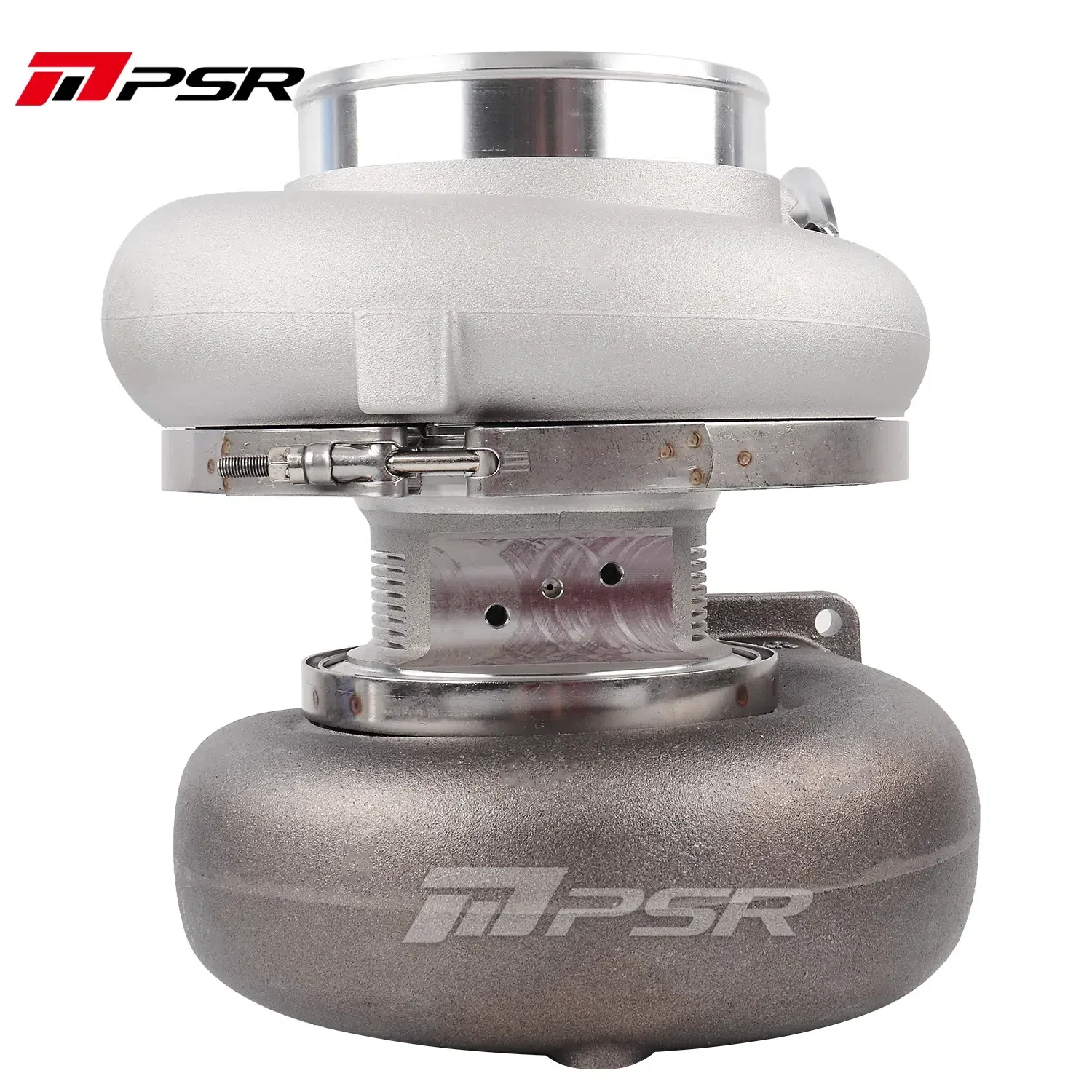

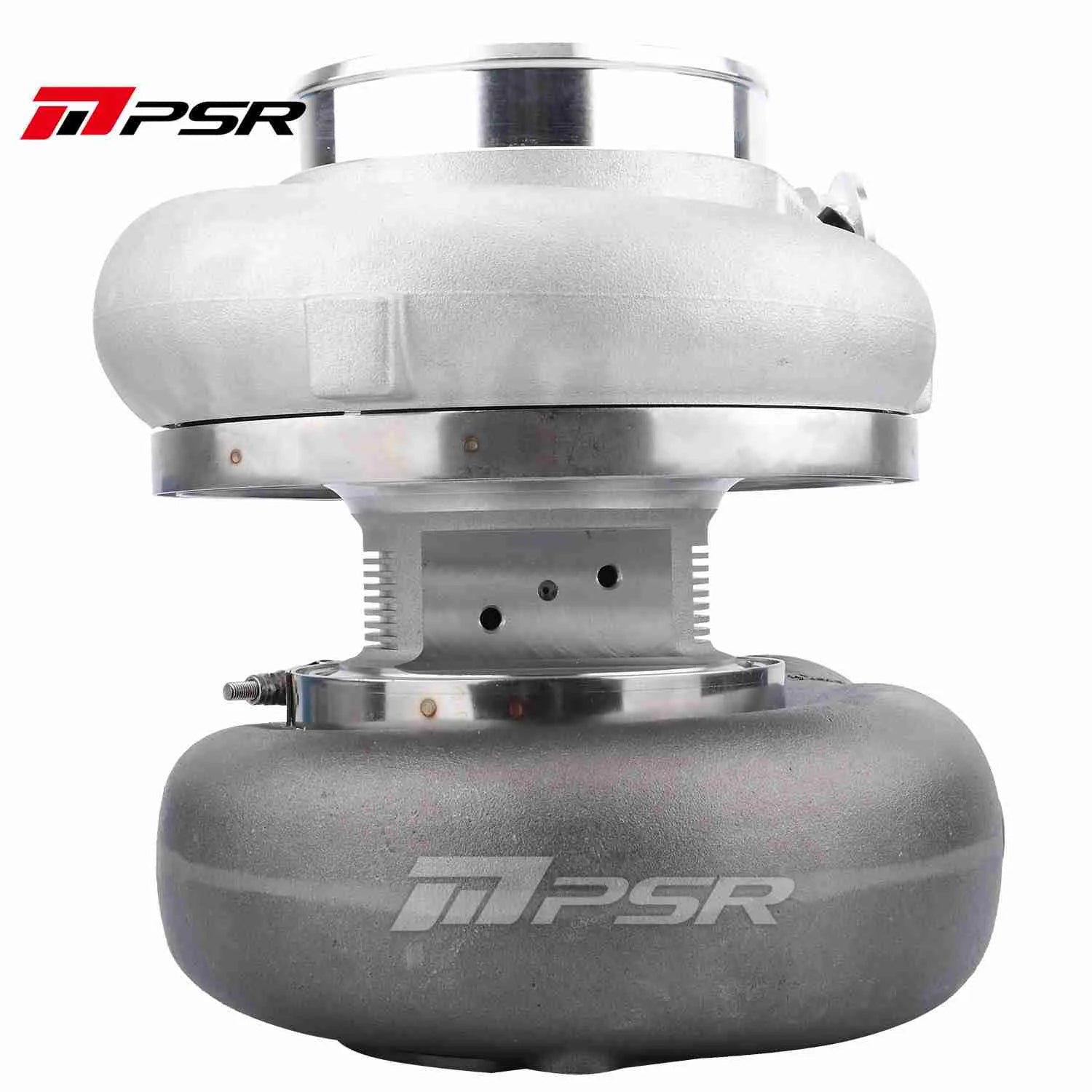

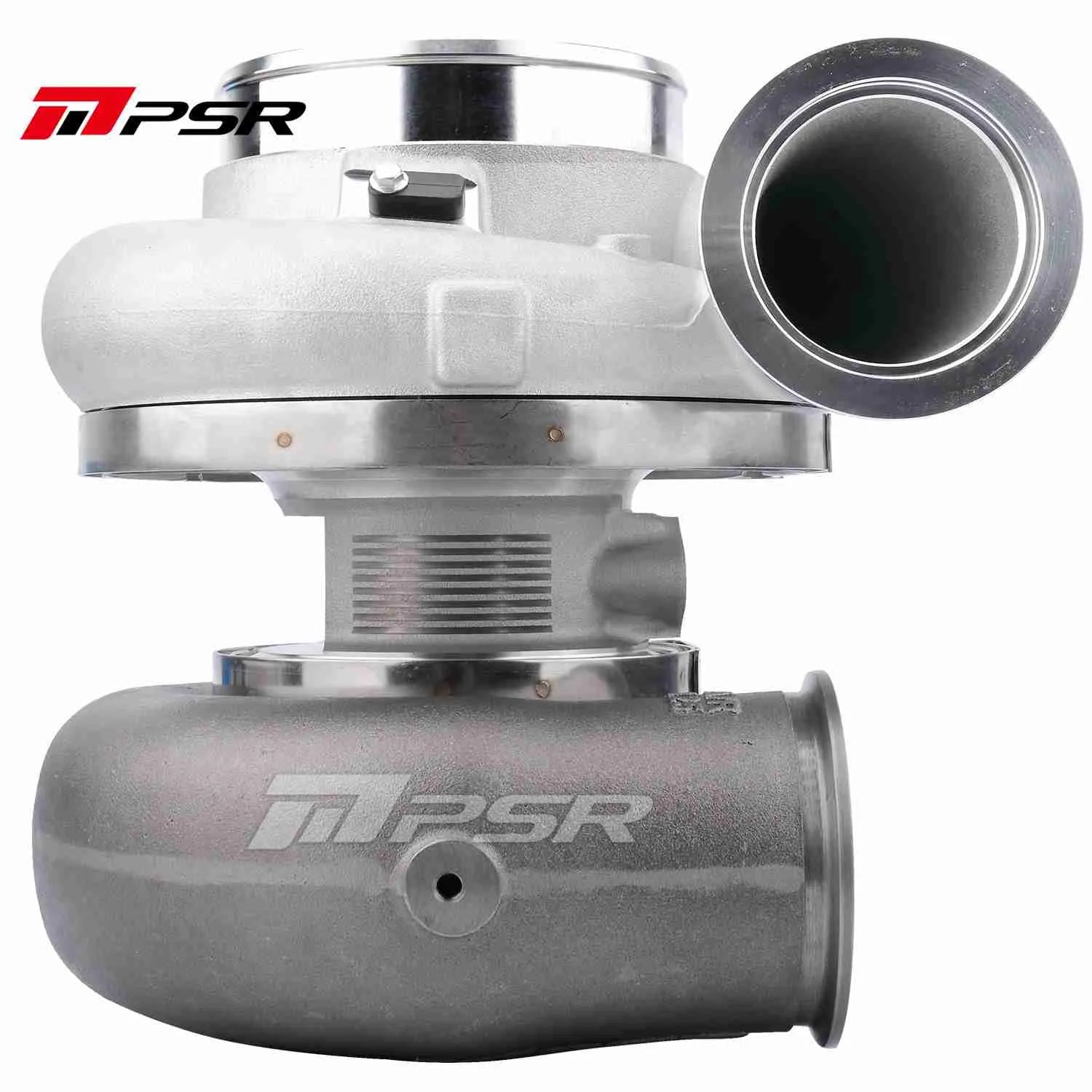

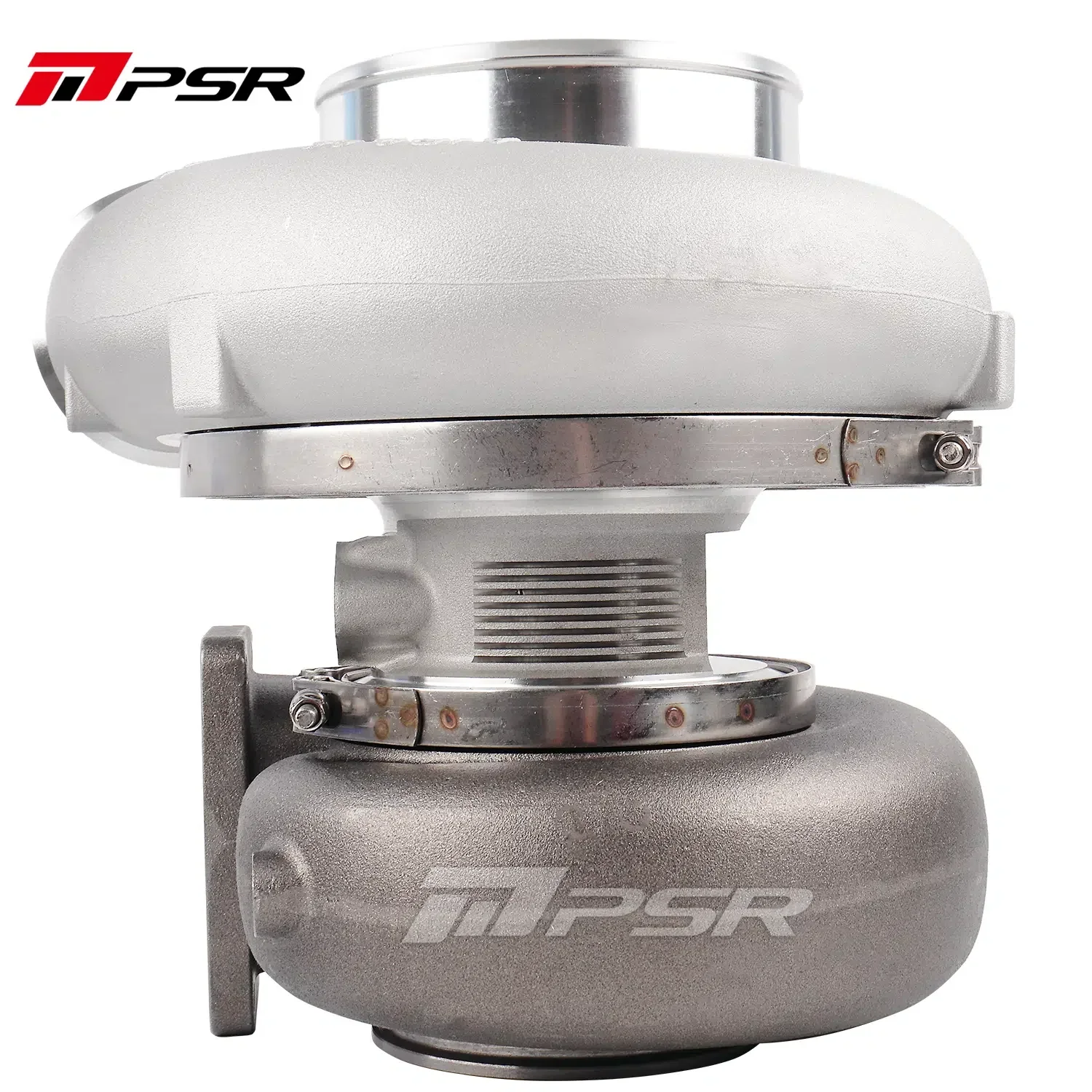

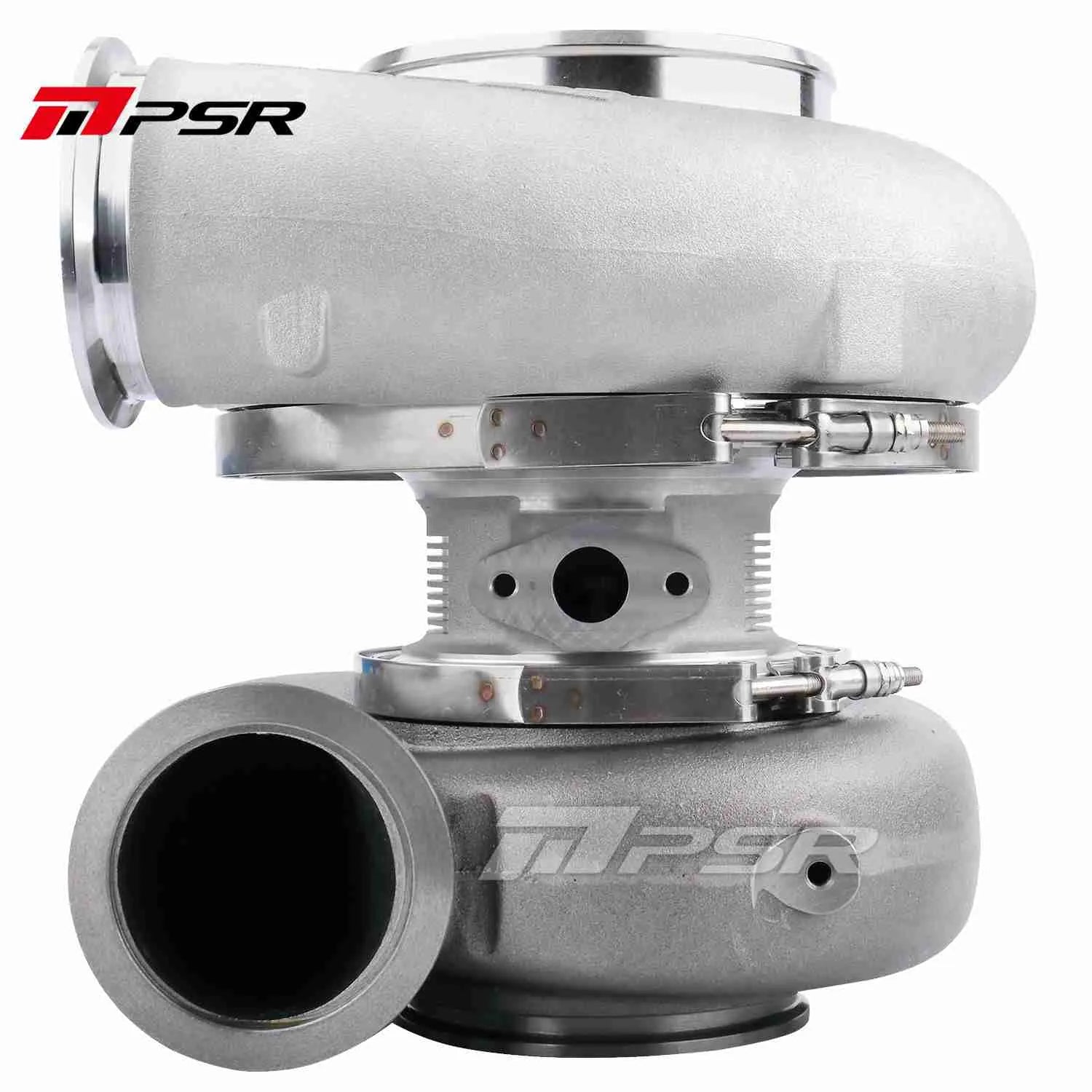

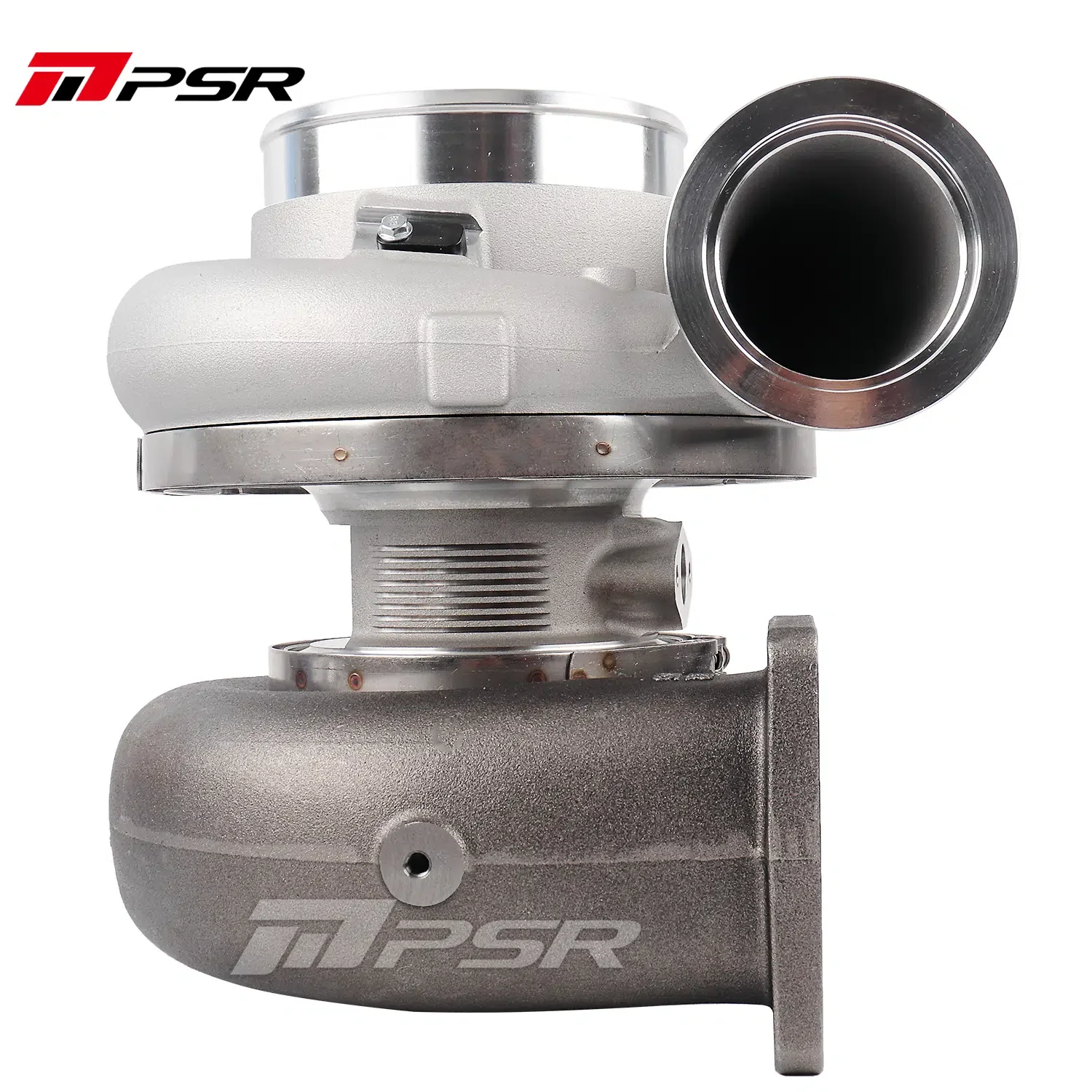

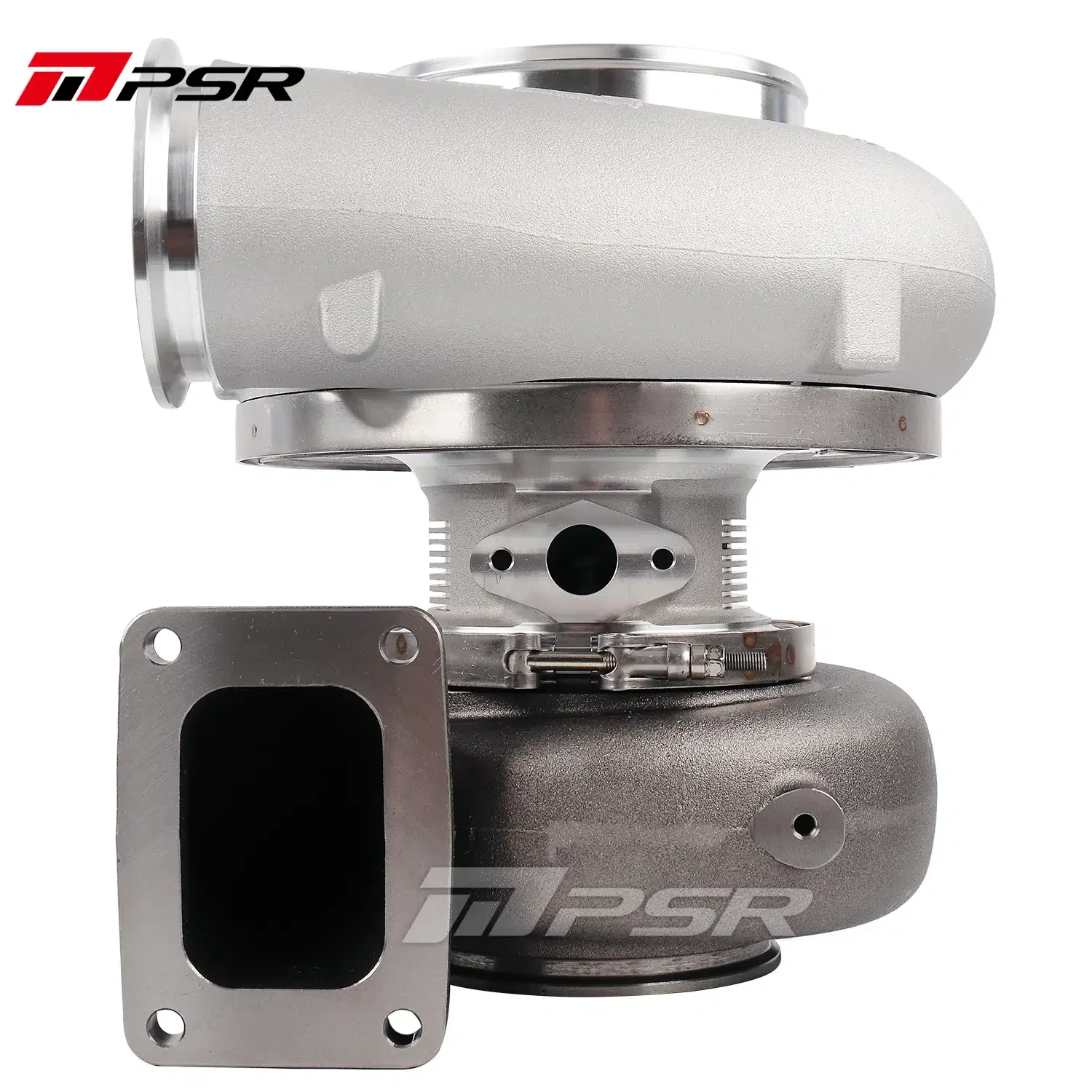

Pulsar PSR PRO106 HP Rating 3000

• Dual ceramic ball bearing system provides optimal turbo response &
  better durability by reducing the shaft-motion

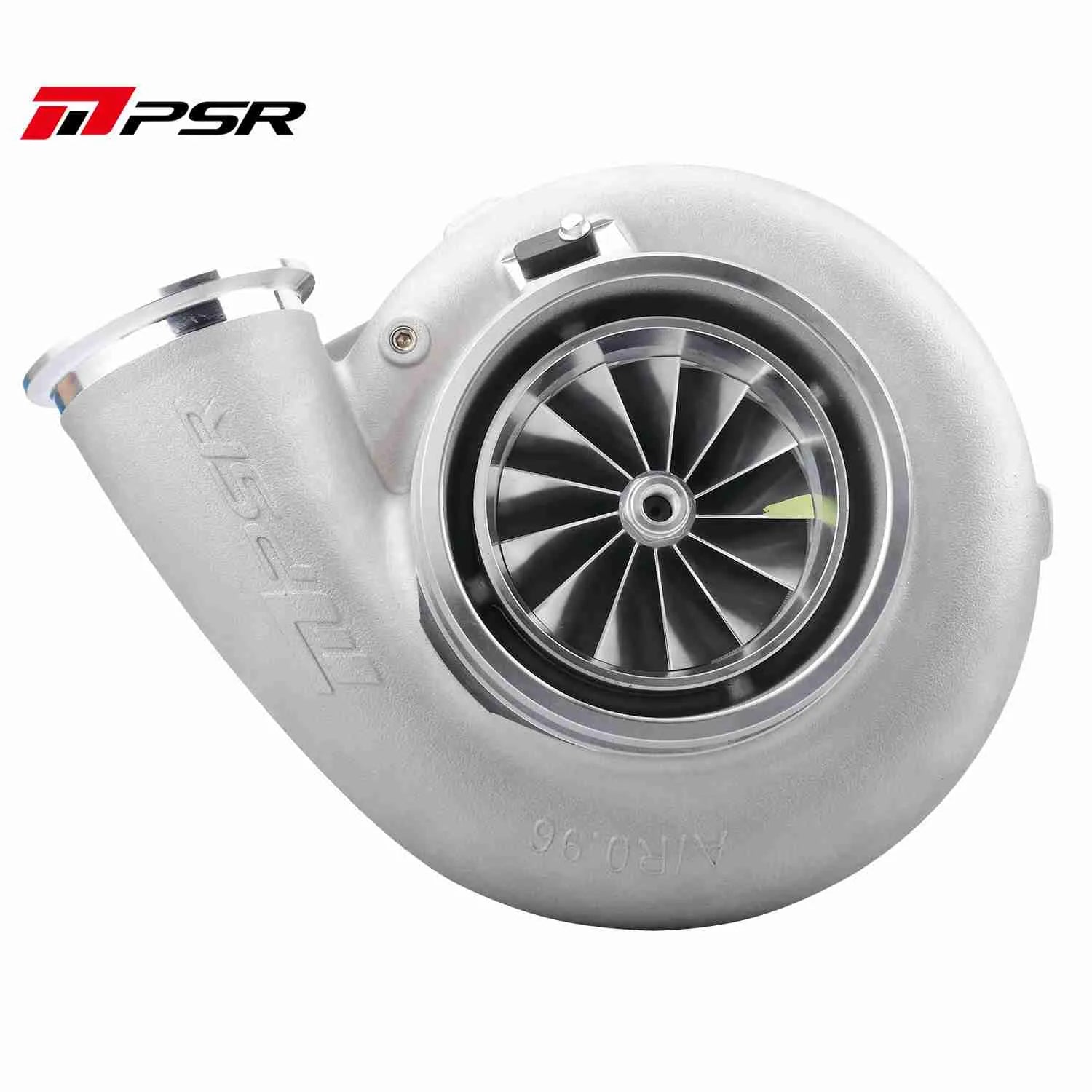

• 13 Blade G-Aero billet compressor wheel 106mm inducer produces up to 3000 hp

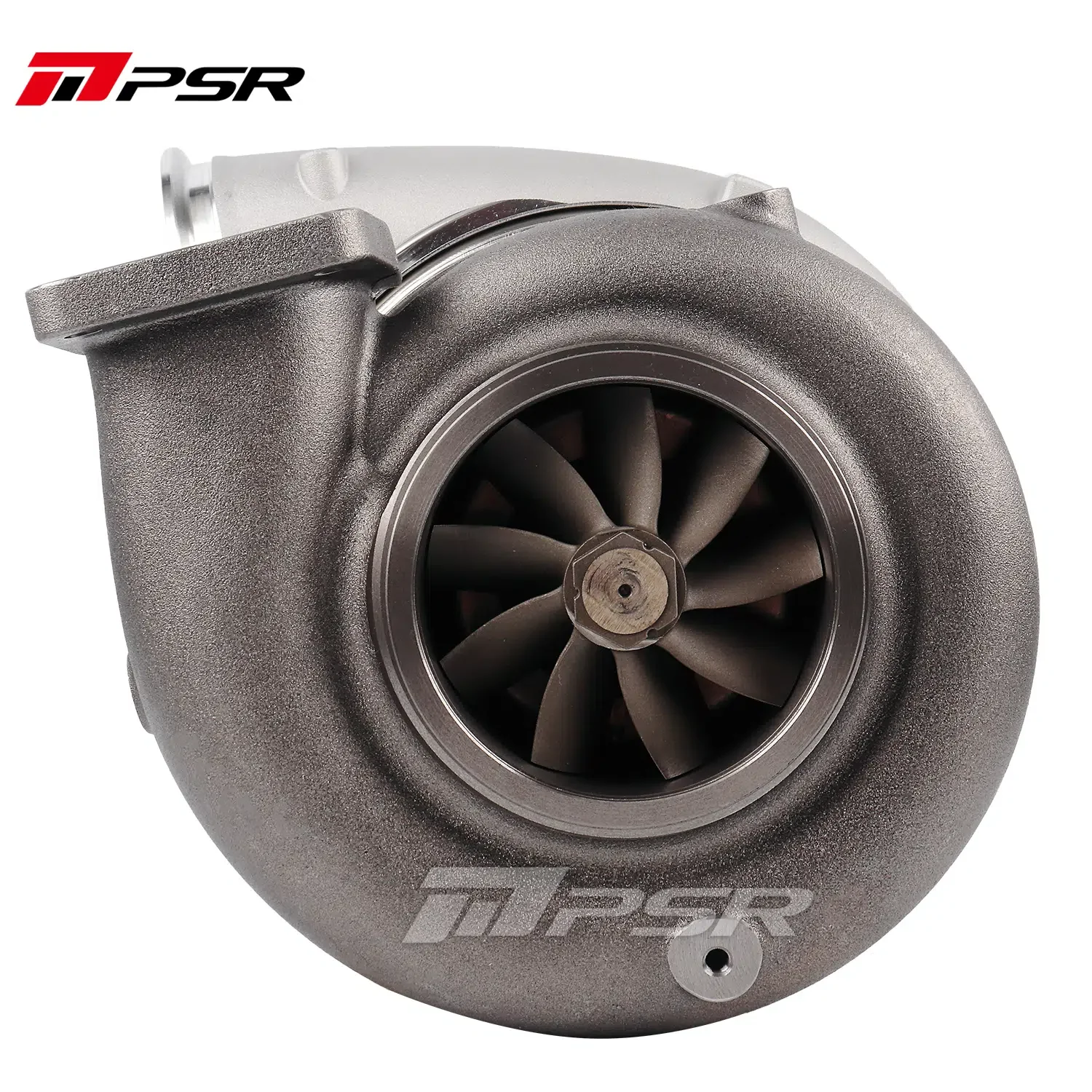

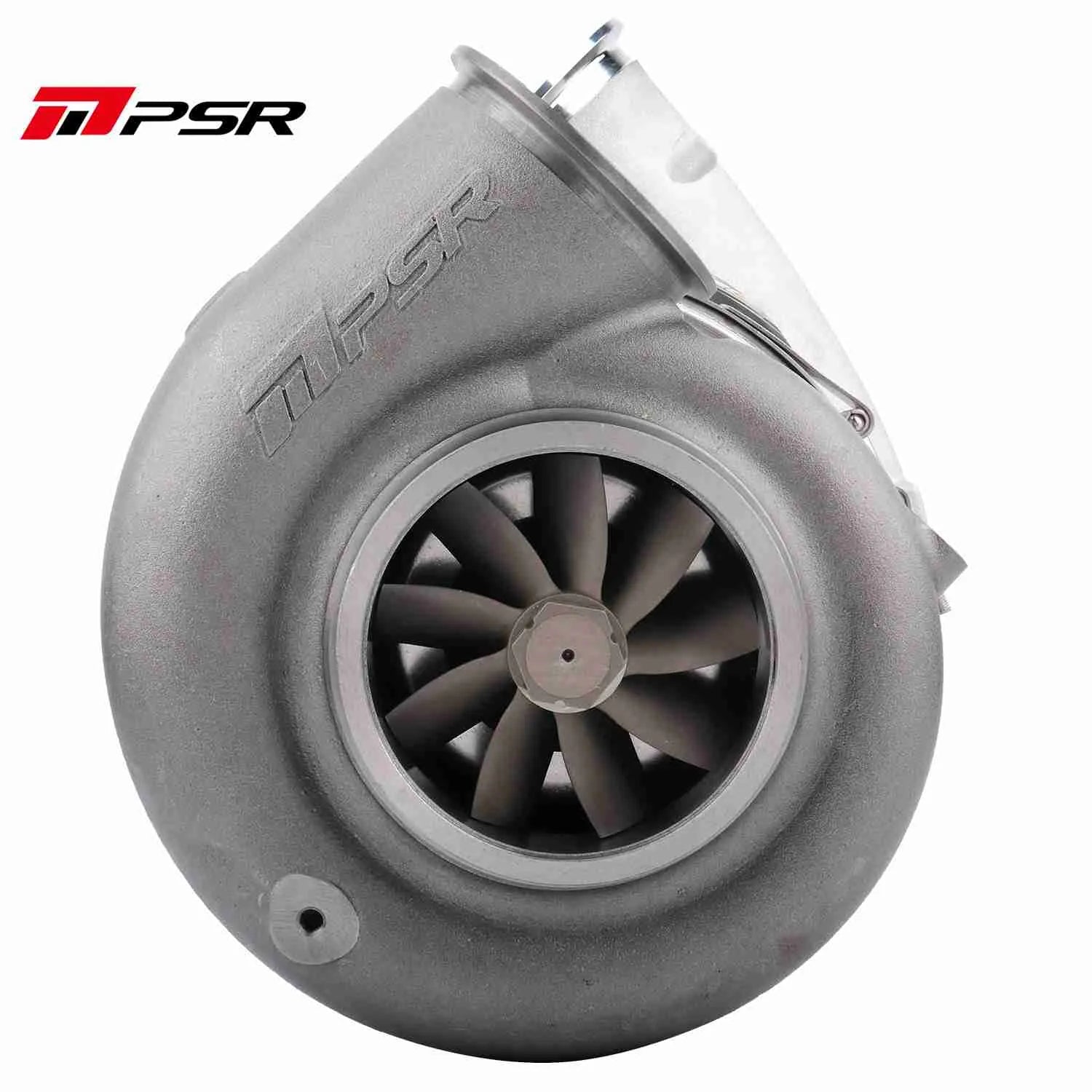

• 9 Blade G-Aero Inconel 713c turbine wheel with more turbine flow
• Fin cooled aluminum center housing, lighter weight
• Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
• Installation Hardware: 4” flange kit for Comp. Outlet, T6 Gasket/3.5” flange kit for Turb. Inlet, 5” flange kit for Turb. Outlet and oil Drain Fitting kit are included by default
• Oil Feed Fitting needs to be bought separately check the link if you need it, 🔗

Description

• Compressor Wheel: 106*144mm
• Turbine Wheel: 118*112mm
• Compressor Inlet: 6” Hose
• Compressor Outlet: 4” V-band
• Compressor Housing A/R: 0.96
• Turbine Inlet: 3.5” V-Band (DV Housings) or T6 Open
• Turbine Outlet: 5” V-Band
• Turbine Housing A/R: 1.09/1.25/1.41
• Oil Feed: See graph below (OIL INLET) (an oil restrictor with ~1mm orifice is highly recommended)
• Oil Drain: See graph below (OIL OUTLET)
