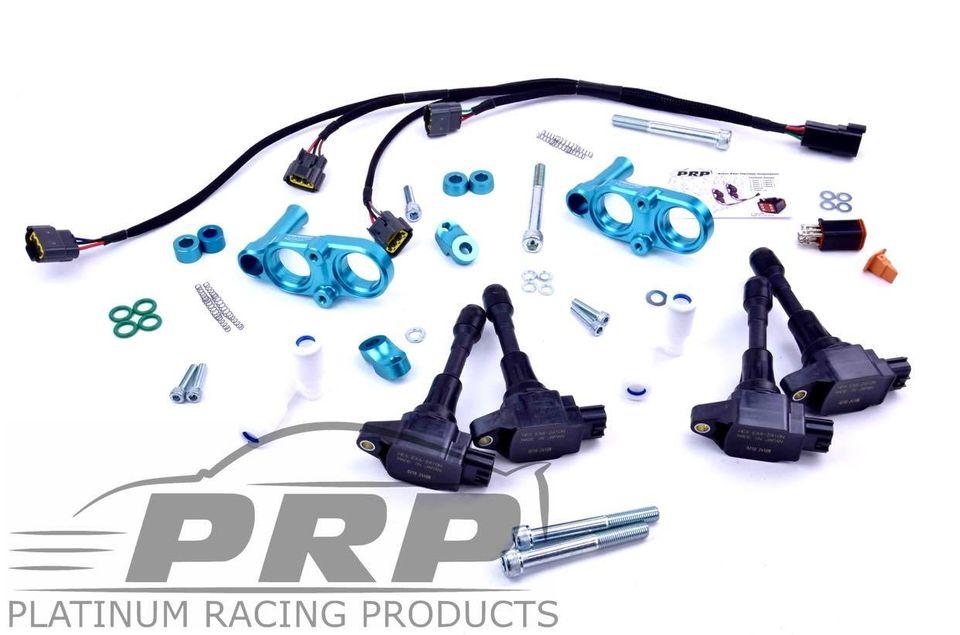

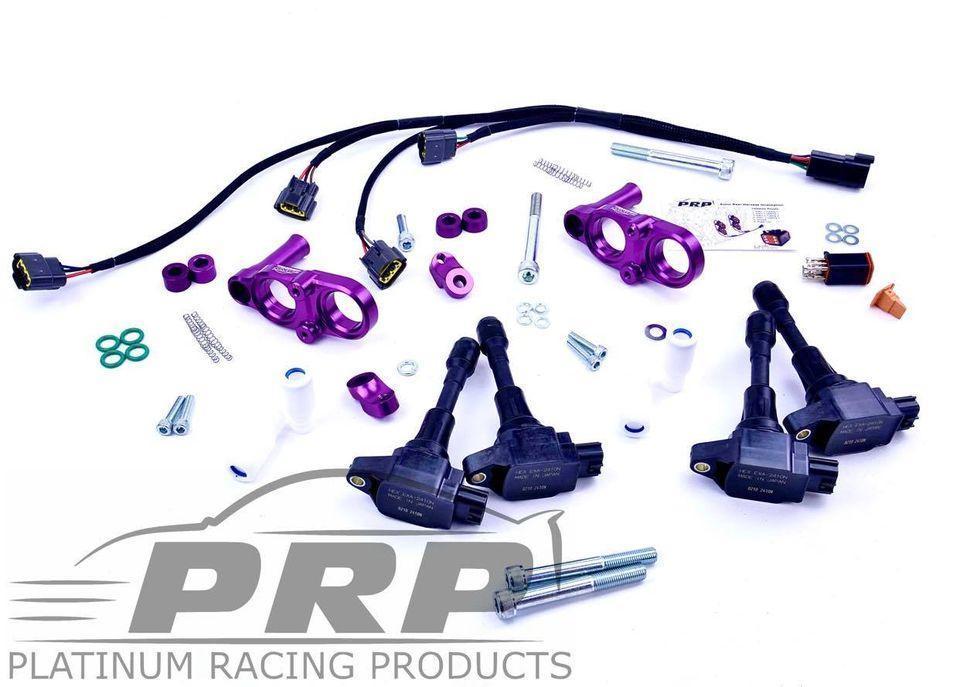

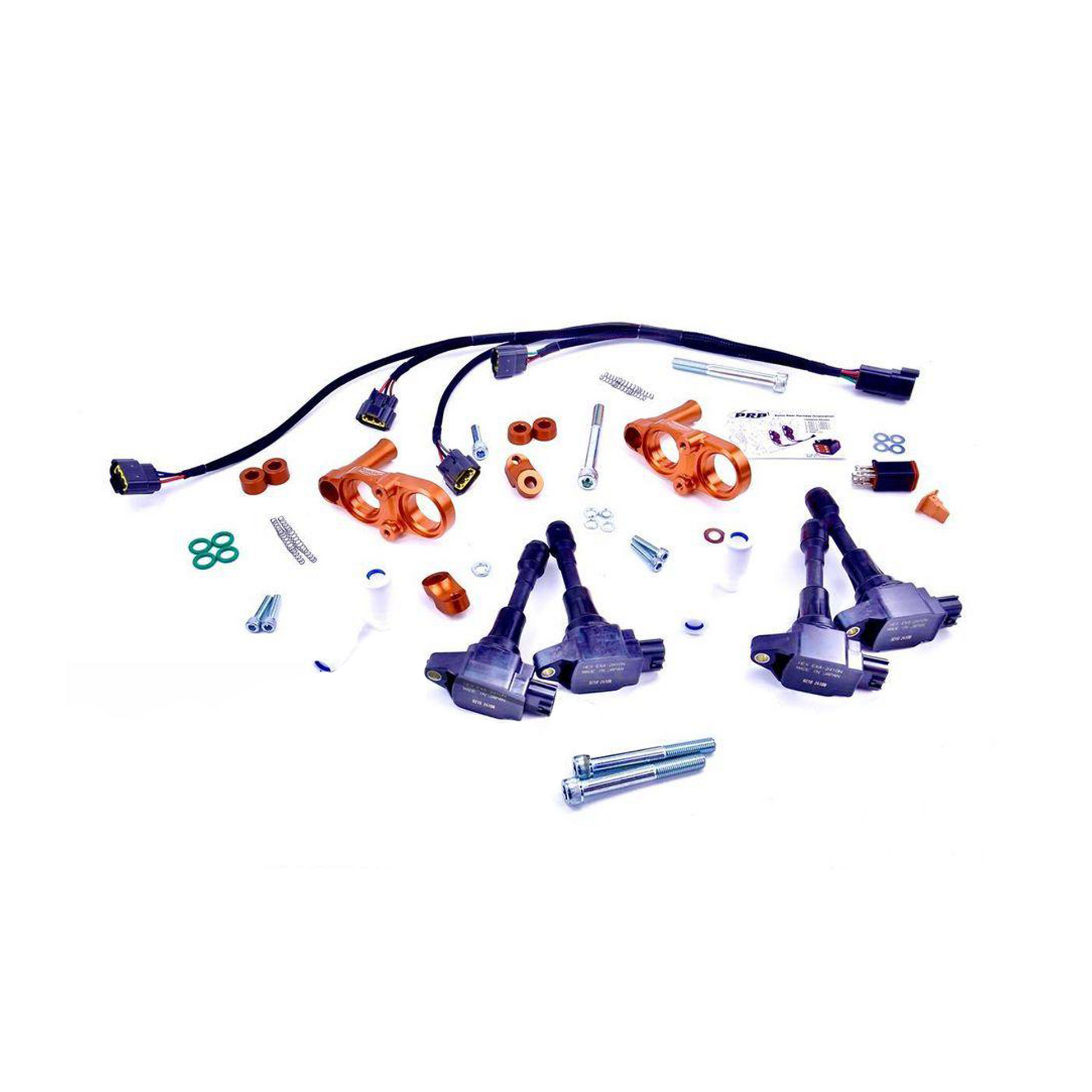

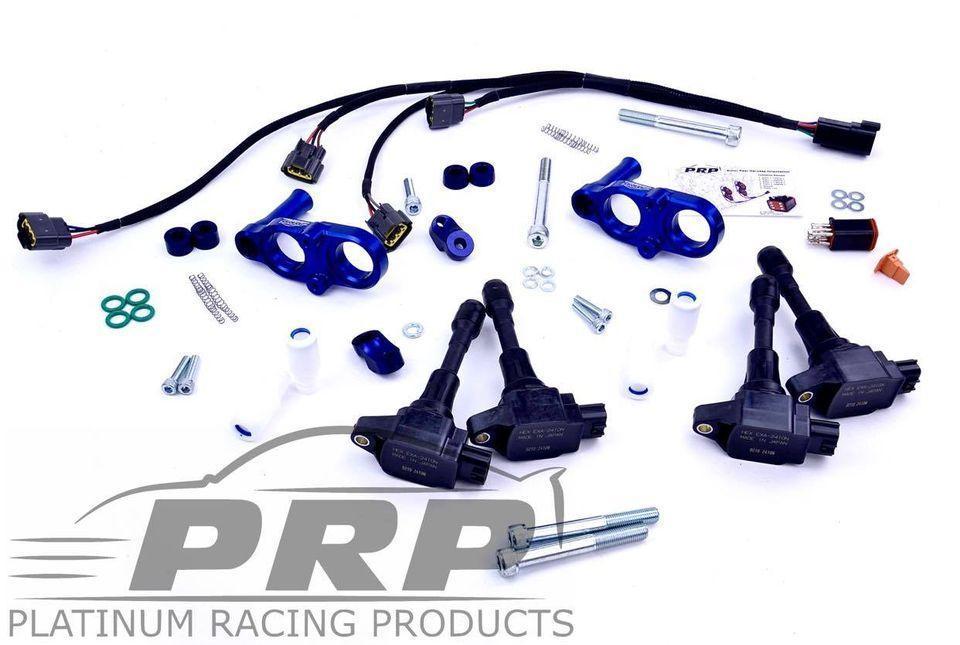

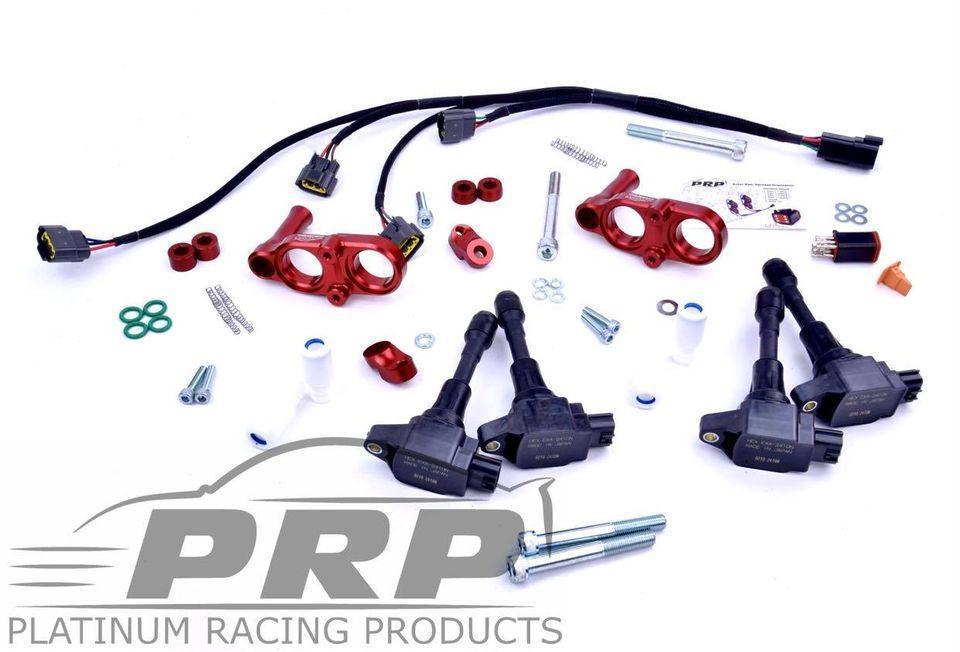

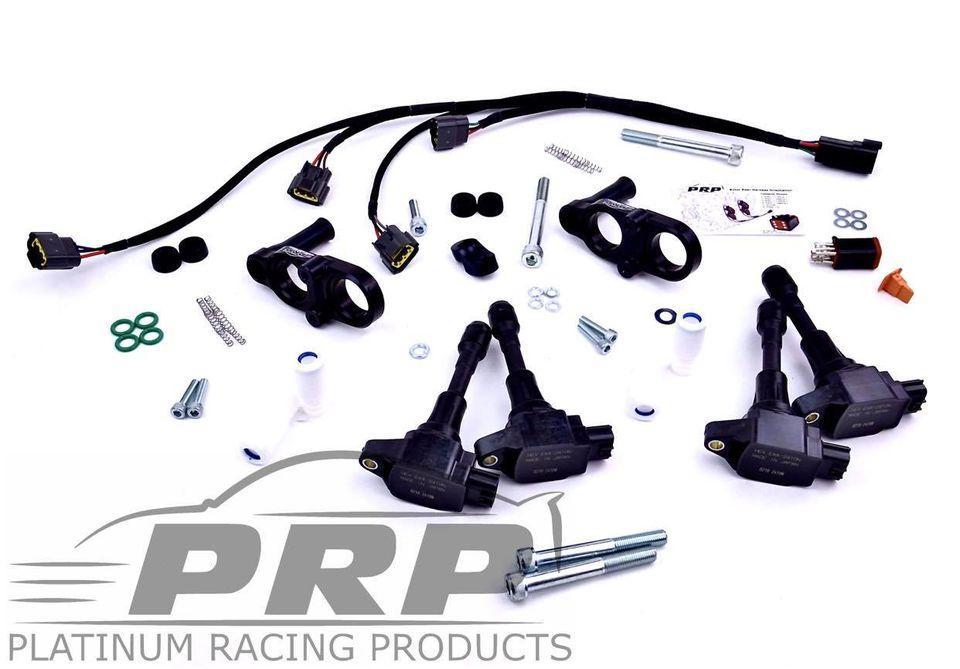

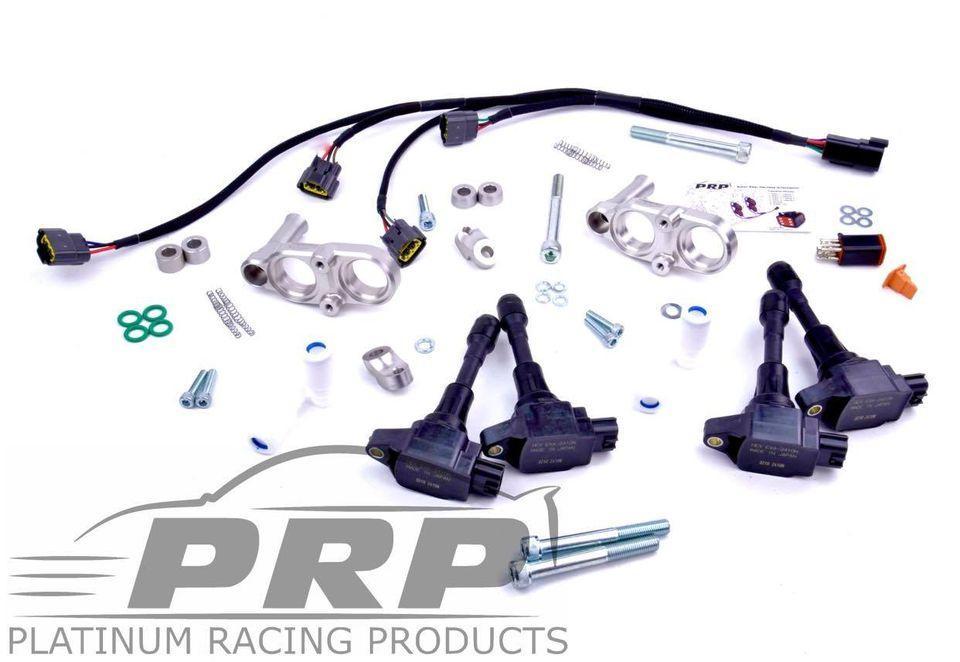

Mazda Rotary 13B & 20B Coil Kits

This new generation coil kit has been specifically designed as an upgraded direct drop-in replacement for the Mazda 13b and 20b rotary engines.

The coil kit incorporates Genuine Hitachi-Astemo R35 GTR VR38 Ignition coils, which have a much higher power output over OEM or conventional dizzy backed single-coils. This coil kit can be used as a direct wire in for all aftermarket ECU’s and to maximize performance we recommend you use the dwell data that can be found HERE.

Key Features:

• Billet Alloy anodized brackets engineered to fit all ignition coils in a way that allows user-friendly access to all the coil plugs and spark plugs in a non-invasive manner.
• Kit includes custom height CNC Machined Teflon composite short stalks that bring the coil head as close to the spark plug as possible (round 5mm off the tip)
• Custom made springs already fitted inside the stalks make for extremely fast installation as well as no trimming of springs required.
• Bench tested, club motorsport grade branded harness, high temp Tefzel wire and crimp joins used with OEM connectors and glue lined heat-shrink.
• Genuine Hitachi-Astemo R35 GTR VR38 Ignition coils are rated to 1400hp and come with a 1-year warranty.
• Bolt kit included caters for the 4 ignition coils and billet brackets to the engine.
• Knock sensor provisions and double length spark plug spacer options also included.
• Lifetime warranty on all PRP products.
• Please note: if you would like Optional Colours - Green, Orange, Teal, Bronze or Grey, please let us know in the CART area.


Suits 13b and 20b Rotor engines.
