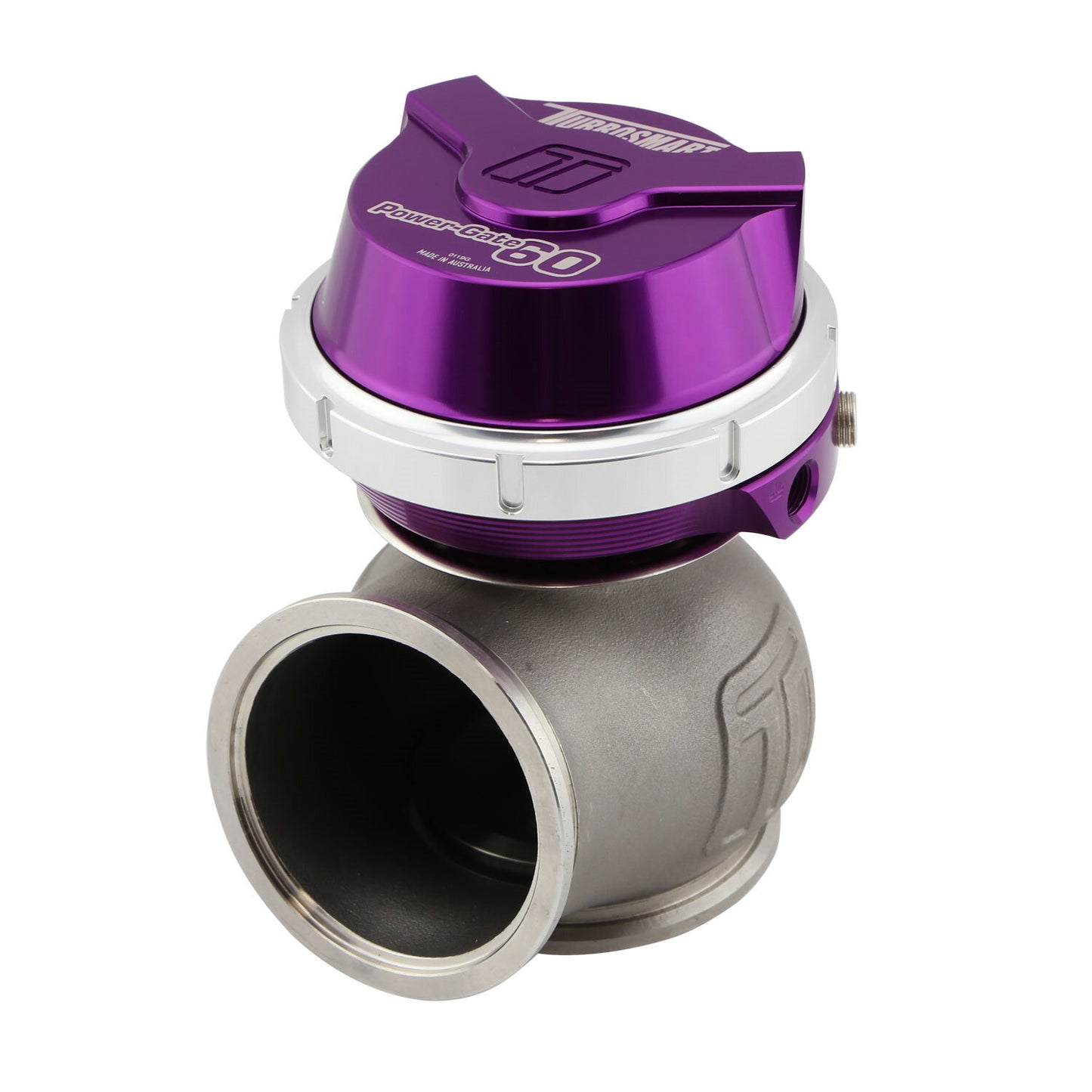

Turbosmart 60mm Wastegate PowerGate GenV PURPLE TS-0555-1013
Turbosmart 60mm Wastegate PowerGate GenV PURPLE TS-0555-1013
Regular price
$822.52 NZD
Regular price
$967.67 NZD
Sale price
$822.52 NZD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The Gen-V WG60 Power-Gate60 external wastegate is a cost effective, high performing 60mm external wastegate, the largest in the Gen-V range.
The Gen-V provides extensive user configurability, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity.
A direct fit upgrade to all 4th-generation Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base, strap-type V-band clamps, liquid-cooling, 1/8″ NPT ports, and are provided with a range of springs.
Available in Compressed Gas configuration
Product features summary:
• Class leading thermal performance
• Class leading flow performance
• Liquid cooling provision
• Strap type V-band clamps
• User adjustable actuator position
• Modular actuator design
• Compressed Gas configuration available
Included in the Box:
• Wastegate unit (pre-assembled with spring as per order)
• SS316 Valve seat
• Inlet V-Band
• Inlet SS304 weld flange
• Outlet V-Band
• Outlet SS304 weld flange
• Collar tool (master/slave)

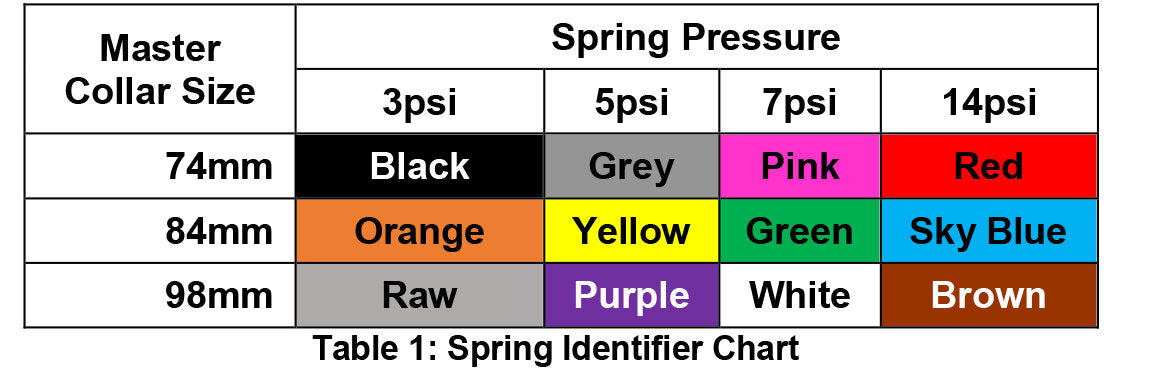

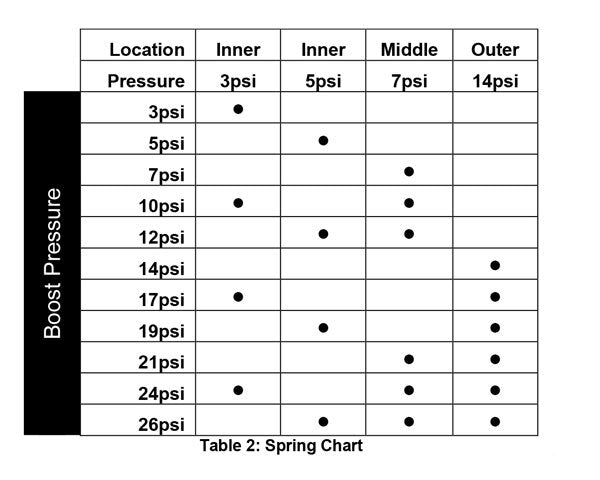

• 17/7 PH 3, 5, 7, 14 psi spring kit (Set up with 14psi out of the box)
• 4x 1/8” NPT plugs (1x installed) / 2x 1/8” NPT nipples
• Sticker
• Instruction card
